7. Place facia plate to nish
installation
Double DIN Kit contents
(1) Facia Plate
(2) Mounting Bracket Right
(3) Mounting Bracket Left
(4) Magnet
(5) Flat Headed Screw
• Audi A3 (8P) 2004 - 09/2012
Installation Manual
INE-W928R Kit
Compatible with these Alpine navigation devices
INE-W928R
colour / part-no.:
black: KIT-8A3 /KIT-8A3D
1
3
5
2
5
4
This kit can be used for cars which were equipped
with the following factory radios:
• Chorus Gen.II+
• Concert Gen.II+
• Symphony II
• Symphony II+
• RNS-E
• RNS-low (BNS 5.0)
If the car was equipped with a 1 DIN radio like Radio Chorus II, Concert II or
Symphony II, you need to change the center console to 2 DIN.
Your Audi partner can support you.
6. Connect all required circuit points
Place Alpine INE-W928R on dash
board and x it with 2 OEM
Torx screws

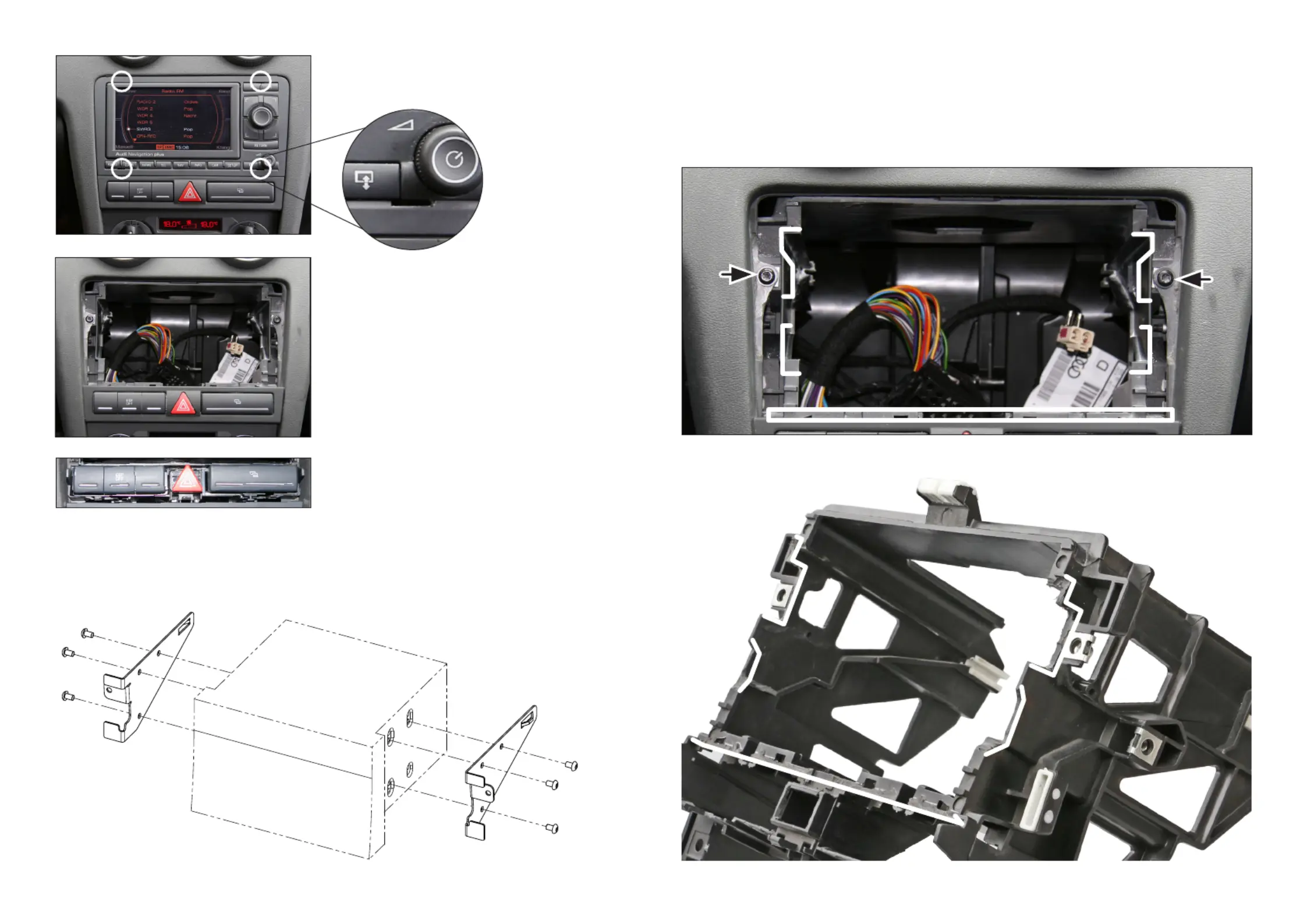

1. Put four radio release keys in the
appropiate slots of the OEM radio
2. Remove OEM head unit by
pulling it towards your direction
3. Remove plastic clip surrounding
cup holder and hazard light switch
5. Remove OEM Torx screws
(see arrows)
Cut away plastic (see white lines)
to clear space for INE-W928R
4. Attach metal mounting
brackets to with 3 at headed
screws on each side to Alpine
INE-W928R
