Side 1/12

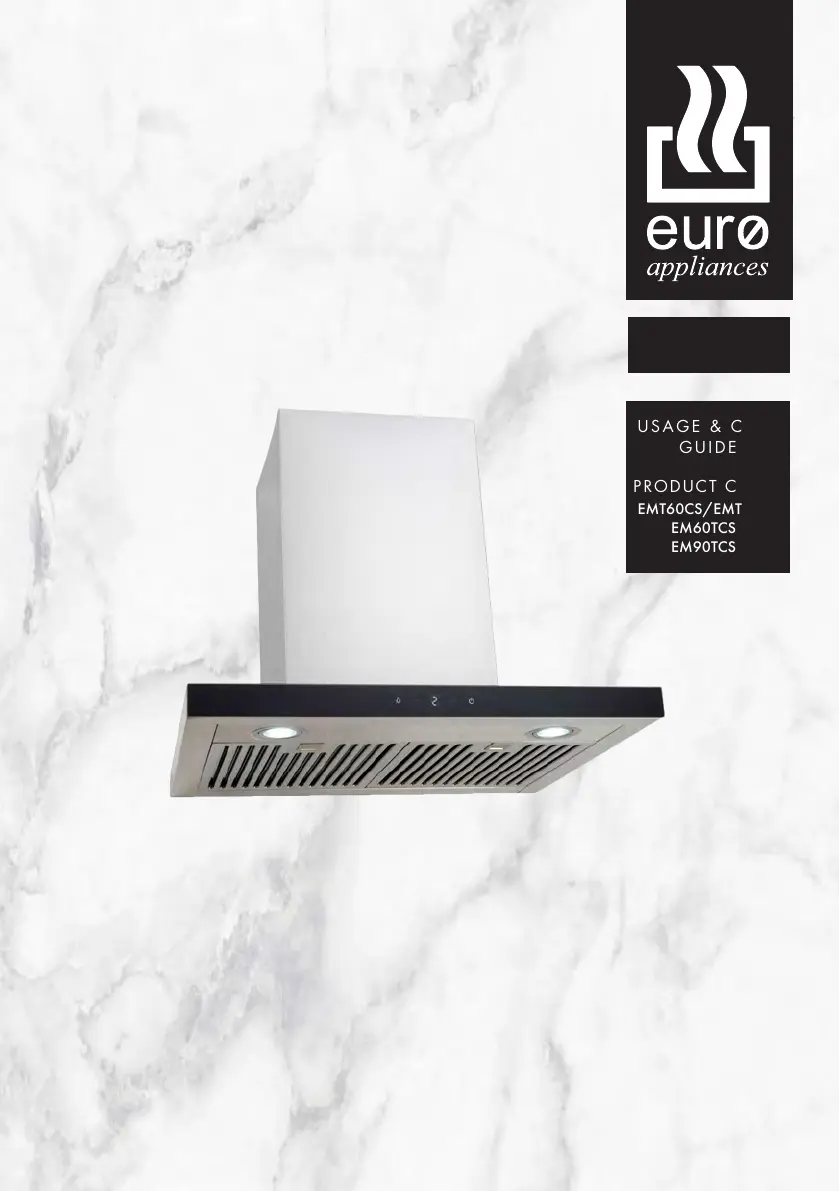

R A N G E H O O D
A R E
O D E :
90CS
X
X
RECOMMENDATIONS AND SUGGESTIONS
The instructions for Use apply to several versions of this appliance. Accordingly, you
may find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
The t manufacturer will no be held liable for any mages resulting or improper installationda from incorrect .
The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the range hood. This distance shall be at least 65 cm. If the
instructions for installation specify a smaller distance, this has to be taken into account.
The distance of 65 cm can be reduced for non-combustible parts of range hoods, ：
except grease filters,and parts operating at safety extra low voltage, provided these
parts do not give access to live parts if deformed.
Check that the correspon tha indicated the fixed mains voltage ds to t on rating plate to
the hood.
For Class I appliances,check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.
The route of the flue must be as short as possible.
The air must not be discharged into a flue that is used for exhausting fumes from appliances
burning gas or other fuels.
If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances),a sufficient degree of
aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an
opening communicating directly with the open air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative
pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Regulations concerning the discharge of air have to be fulfilled.
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
USE
The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that
it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can
burst into flames.
Do not flame under the range hood; risk of fire.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children.
“CAUTION: Accessible parts may become hot when used with cooking appliances”.
MAINTENANCE
The cooker hood and its filter should be cleaned regularly according to the instruction.
Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
Clean and/or repace the Filters after the specified period(Fire hazard).
Clean the hood using a damp cloth and a neutral liquid detergent.
The appliance uses 4 hob elements at most.
The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of
this product, please contact your local city office, your household waste disposal service or the shop where you purchased
the product.
2
Do not ambe under the rangehood.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning
gas or other fuels.
Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or
other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in
carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas
appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.
4
2.2
3
2.1
5
1
20 12 11
21 10
1
Ref. Qty.
1
2.1
Blower,Filter.
Hood Body,complete with: Controls, Light,
1 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 1
4
Flange ( optional )
1 Exhaust Pipe
5 2 The Activated Charcoal filter ( optional )
1 Instruction Manual
COMPONENTS
Product Components
Qty. Documentation
10
7
11
Screws 5 x 50
Hood fixing bracket
7
Wall Plugs
12
6 Screws 4,2 x 9,5
20 1
21 2 Chimney fixing bracket
Ref. Qty. Optional Installation Components
3
Produkspesifikasjoner
| Merke: | Euro Appliances |
| Kategori: | Avtrekkshette |
| Modell: | EMT90CS |
