Side 1/6

서브우퍼 사용 설명서

Buku Panduan Pemilik Subwoofer

低音炮用户手册

Bruksanvisning för subwoofer

Manual do proprietário do subwoofer

Instrukcja obsługi subwoofera

Subwoofer Gebruikershandleiding

Manuale utente del Subwoofer

Alibassokaiuttimen ohjekirja

Subwoofer Bedienungsanleitung

Manual del propietario del subwoofer

Betjeningsvejledning til subwoofer

Mode d'emploi du caisson de graves

Subwoofer Owner's Manual

Subwoofer Kullanım Kılavuzu

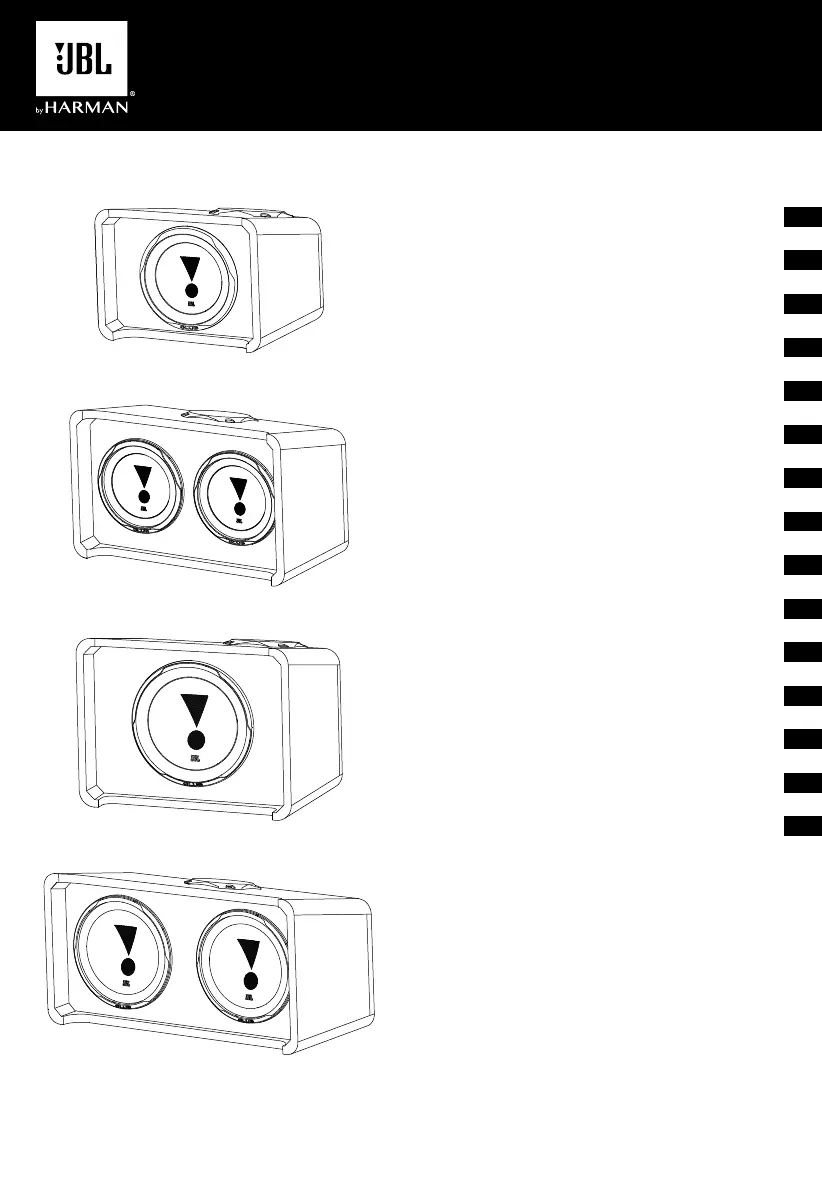

CLUB SUBWOOFER

ENCLOSURES

ZH-CN

CLUB 1000D

CLUB 1200D

CLUB 1000P

CLUB 1200P

* JBL Club1200P/JBL Club1000P

THANK YOU FOR CHOOSING THIS

JBL PRODUCT

This product has been designed to deliver great bass performance

from a compact, easily installed enclosure. To get the best

performance from your enclosure, we strongly recommend that you

entrust installation to a qualified professional. Although these

instructions explain how to install your enclosure in a general

sense, they do not show specific installation methods that may be

required for your particular vehicle. If you do not have the

necessary tools or experience, do not attempt the installation

yourself. Instead, please ask your authorized JBL car audio dealer

about professional installation. To help us serve you better if your

enclosure ever requires warranty service, please retain your original

sales receipt and serial number.

INSTALLATION WARNINGS AND TIPS

INSTALLATION TIPS

• Always wear protective eyewear when using tools.

• Turn off all audio components and other electrical devices before

you start. Disconnect the negative (–) lead from your vehicle’s

battery.

• Check clearances on both sides of a planned mounting surface.

Be sure that screws or wires will not puncture brake lines, fuel

lines or wiring harnesses, and that wire routing will not interfere

with the safe operation of the vehicle.

• When making electrical connections, make sure they are secure

and properly insulated.

• Before drilling or cutting holes, use a utility knife to remove unwanted

fabric or vinyl, to keep material from snagging in a drill bit or saw.

• Do not mount speakers where they will get wet.

CHOOSING A MOUNTING LOCATION FOR THE ENCLOSURE

Choose a mounting location that doesn’t interfere with cargo, the

fold-down rear seat or the trunk lid. The best location is usually a

corner of the trunk or cargo area. Securely mount the enclosure to

the mounting surface.

WARNING: Playing loud music in an automobile can

permanently damage your hearing as well as hinder your ability

to hear traffic. Listening at low levels while driving is

recommended. HARMAN International accepts no liability for

hearing loss, bodily injury or property damage resulting from

use or misuse of this product.

CLUB SUBWOOFER

ENCLOSURES

SPEAKER CONNECTIONS

Co ec e mi al clo e o li ie vi g olann t th + – ter and n s n n o the e sur t the amp f r’s o erutputs, obs n proper p rity. Use at least 4mm 2 (11 AWG) speaker

wire for the connections to the enclosure of Club 1000P, Club 1200P. And 5mm 2 (10 AWG) speaker wire for the connections to the enclosure

of Club 1000D, Club 1200D.

GENERAL CARE

The loudspe be le ned ith mp cloth. any cl ventsaker may c a w a da D e o not us eaners or sol .

A va i mber ired fo a e i c is desi ed o o a i o o c c o o lid ser al nu is requ r rrwa nty coverag . Th s produ t gn for m bi tile applica ns nd s n t intended f r onne ti n t

the mains.

HEAD UNI T

AMP

BATTERY

Speaker Out

Remote

Turn-On

SPECIFICATIONS

CLUB ENCLOSURES

CLUB 1000P CLUB 1000D CLUB 1200P CLUB 1200D

Subwoofer: 1x 10" (250mm) Polypropylene

Driver
