CSS-H15

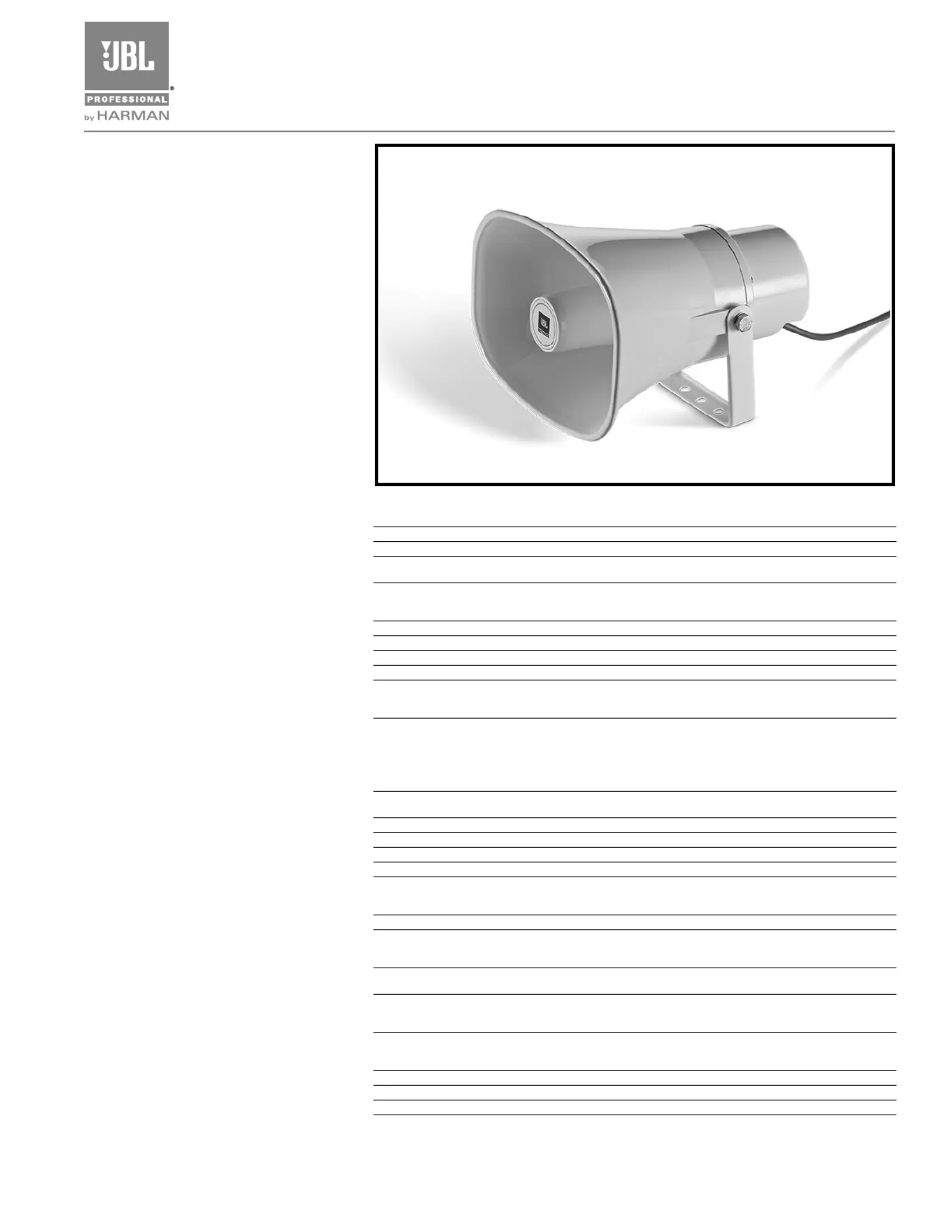

15 Watt Paging Horn
Professional Series
Key Features
c Excellent voice range clarity for
announcement and paging.
c High sensitivity delivers high
sound levels with minimal power
amplification.
c Wide 70° horizontal by 90° vertical
coverage for medium throw
applications.
c Phenolic diaphragm driver for outdoor
durability and high reliability.
c UL-registered 15-watt multi-tap
transformer, with 8 ohm direct bypass.
c Built-in high-pass filter enhances
reliability by protecting against low
frequency damage.
c Highly weather-resistant, with stainless
steel bracket and hardware.
Application
The Commercial Solutions Series
CSS-H15 Paging Horn provides excellent
voice range clarity for public address
systems, announcement/paging,
intercom, security, alarm and industrial
applications. Designed for demanding
environmental conditions, the CSS-H15
is highly weather resistant (IP-65 rated)
so it can be used in either indoor or
outdoor applications. The wide coverage
pattern allows the horn to cover a larger
audience area than is the case with many
paging horns.
Typical applications for this product
are public access areas, warehouses,
factories, schools, recreational facilities,
commercial buildings, distribution
centers, civic centers, and other
commercial sound and protective-
signaling systems.
The CSS-H15 includes a UL-registered
15-watt multi-tap transformer for use with
70V or 100V distributed speaker lines.
The power tap switch is screwdriver
adjustable for easily changing settings
from 15W, 7.5W, 3.8W, 1.9W (and 0.9W
at 70V only). For non-distributed systems
there is an 8 ohm bypass position.
Connection is via bare wire on a built-in
jacketed cable with water-tight entrance
to the speaker.
The transducer diaphragm is sturdy
phenolic material to enhance durability,
especially in outdoor applications, and
to resist deformation under stressful
temperature conditions. To further
increase reliability, a 350 Hz high-pass
filter is built-in to protect the paging horn
against damage from frequencies below
the operational frequency band. The horn
is constructed from sturdy ABS plastic
and exterior hardware is corrosion-
resistant stainless steel. A stainless steel
mounting bracket is included.
Specifications:
System:
Frequency Response (-10 dB)1: 400 Hz – 7.5 kHz
Coverage Pattern: 70° horizontal by 90° vertical (at 2 kHz and averaged
1 kHz – 4 kHz)
Included High-Pass Filter: Passive 350 Hz high-pass filter built-in to protect
against damage from frequencies below operational
range.
Directivity Factor (Q): 10.9 (2 kHz)
Directivity Index (DI): 10.4 (2 kHz)
System Power Rating2: 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m): 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m)3: 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;
123 dB cont ave. (129 dB peak), 2 kHz, 15W input,
8 ohm setting
Nominal Impedance : 15W/70V, NC/100V tap: 333 ohms
7.5W/70V, 15W/100V tap: 667 ohms
3.8W/70V, 7.5W/100V tap: 1333 ohms
1.9W/70V, 3.8W/100V tap: 2666 ohms
0.9W/100V, 1.9W/100V tap:5332 ohms
8 ohms at 8 ohm direct setting
Transformer Taps: 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W
100V: 15W, 7.5W, 3.8W, 1.9W
Transducers:
Full-Range Driver: 33 mm (1.3 in) diameter with phenolic diaphragm
Physical:
Horn Material: ABS
Mounting Hardware: Stainless steel powder-coated U-bracket (yolk) with
3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel
exterior hardware.
Color: RAL9016 (horn and bracket)
Input Connection: 300 mm (12 in) pigtail to bare wire; entrance via water-
tight fitting. Wire colors: red = positive (+); black =
negative (-).
Environmental: IP-65 rating per IEC529, salt spray per B117, stainless
steel U-bracket and exterior hardware.
Safety Agency: Transformer UL Registered per UL1876 “Isolating Signal
and Feedback Transformers for Use in Electronic
Equipment”
Dimensions (H x W x D): 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn
181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including
mounting bracket. Depth excludes cable exit.
Weight (ea): 3.0 lb/1.36 kg
Shipping Weight (ea): 3.7 lb/1.68 kg
Included Accessories: Stainless steel mounting bracket
1Based on average 1 kHz – 6 kHz sensitivity
2AES standard, one decade pink noise with 6 dB crest factor within device’s operational band, free air, 100 hr continuous.
3Calculated, based on power rating and measured sensitivity, exclusive of power compression.
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason,
any current JBL product may differ in some respect from its published description, but will always equal or exceed the original
design specifications unless otherwise stated.
c CSS-H15
15 Watt Paging Horn
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2014 JBL Professional
www.jblpro.com SS CSS-H15
10/22

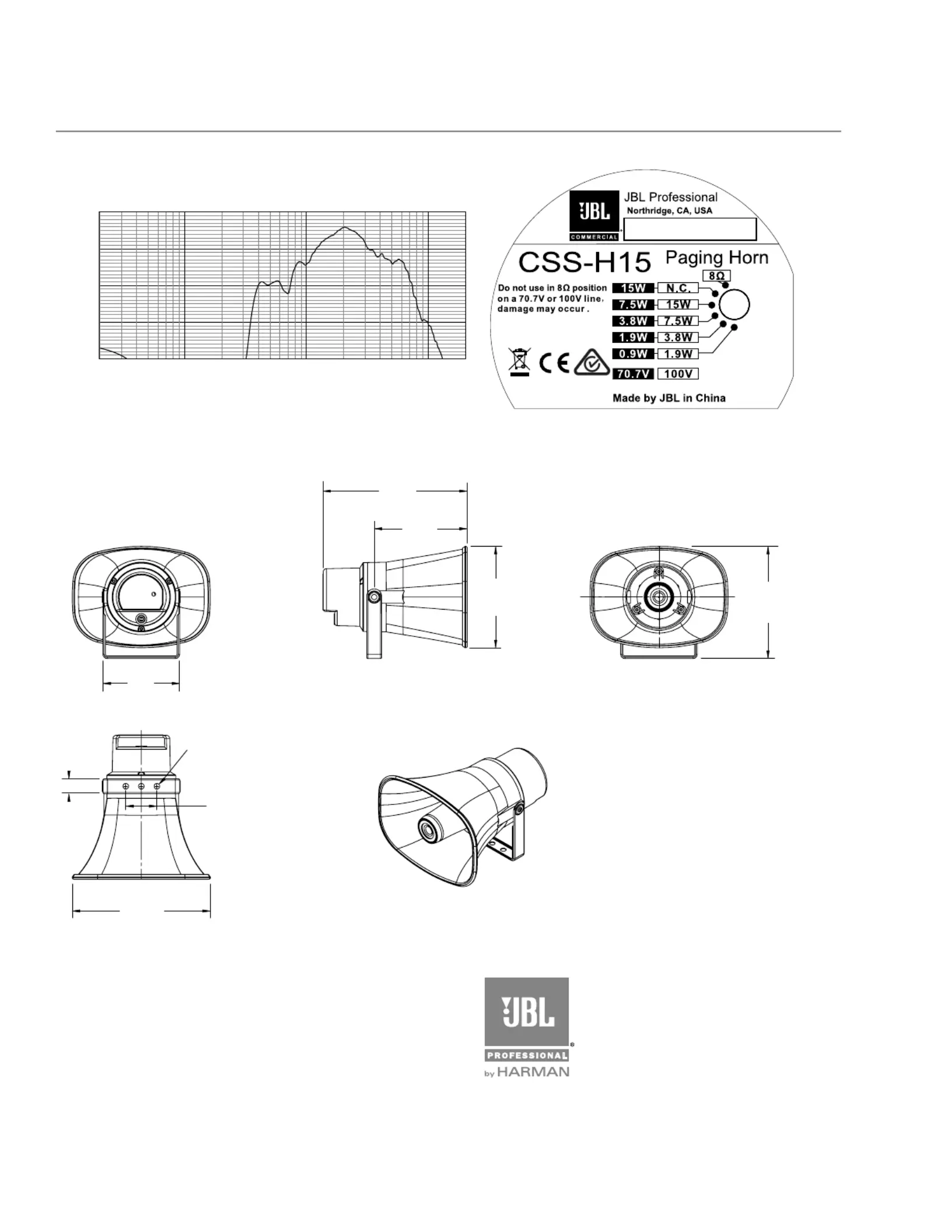

Dimensions:
Dimensions in mm (inches)
Frequency Response:
123
[4.9]
232
[9.2]
150
[5.9]
163
[6.5]
181
[7.1]
24
[1.0]
222
[8.8]
50
[2.0]
3 x 8.8 [0.34] dia
1W (2.83V) input, 8 ohm setting, full-space (4 ) p
20 100 1000 10000 20000
F (H )
75
85
95
105
115
SPL (dB)
Tap Selection:
