Side 1/20
TD-000218-00 revD

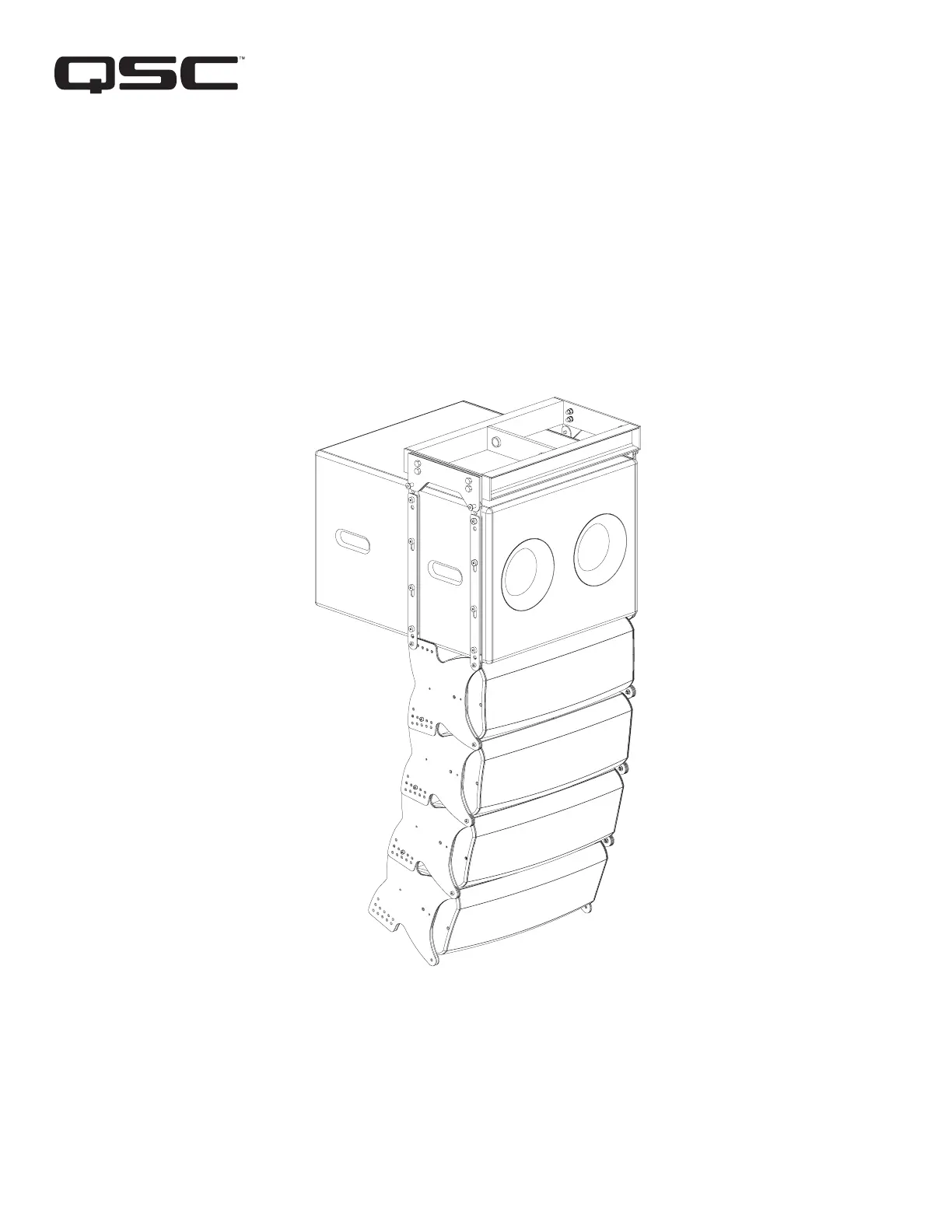

ILA Series Loudspeaker System User Manual
WL2082-i full-range line array loudspeaker
WL115-sw subwoofer line array loudspeaker
FB2082-i array frame
EB2082-i extension bar
PB2082-i pull back bar
GS115-sw ground stack kit
*TD-000218-00*
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
2
IMPORTANT SAFETY PRECAUTIONS
Install in accordance with QSC Audio Product's instructions and under the supervision of a licensed Professional Engineer.
WARNING!
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and
associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of
the installation, placement or array. Any such condition severely reduces the safety of the installation and should be immediately corrected.
Use only hardware which is rated for the loading conditions of the installation and any possible short-term, unexpected overloading. Never
exceed the rating of the hardware or equipment.
Consult a licensed, Professional Engineer regarding physical equipment installation. Ensure that all local, state and national regulations
regarding the safety and operation of suspended equipment are understood and adhered to.
Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper
installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. (“QSC”) guarantees its products to be free from defective material and / or workmanship for a period of three (3)
years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs
under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via prepaid trans-
portation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must
indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse,
neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/
or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the
warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited war-
ranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this
limited warranty.
Periodically, this warranty is updated. To obtain the most recent version of QSC’s warranty statement, please visit www.qscaudio.com.
Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
© Copyright 2006, 2007, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
Speakon® is a registered trademark of Neutrik® and the names of Neutrik® products referenced herein are either trademarks and/or service marks of Neutrik®.
All trademarks are the property of their respective owners.
“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office
3
Introduction
The Installation Line Array (ILA) is a high performance line array system designed for the needs of Houses of Worship, Performing Arts
facilities and a multitude of other venue types. The current ILA family is composed of the WL2082-i line array element, WL115-sw sub-
woofer, FB2082-i array frame, PB2082-i pull-back bar, EB2082-i extension bar, and GS115-sw Ground Stack Kit.
Installation Line Arrays may be used in outdoor applications where the system is somewhat protected from the elements. The enclosure
material is formulated with UV inhibitors, the grille is made of aluminum and the woofer cones are weather resistant.
WL2082-i
The WL2082-i line array element uses two high-power, neodymium magnet, 2" voice-coil, 8" low-frequency drivers in a two-and-a-half
way configuration. Both woofers produce low-frequencies but only one covers the mid-range, resulting in far better horizontal directivity
control in the crossover region. Excellent high-frequency output and clarity are provided by a pair of 1.75" voice coil, neodymium magnet
compression drivers with titanium diaphragms. These drivers are mounted to a multiple-aperture diffraction waveguide that provides an
extremely wide horizontal coverage of 140º. As a result, systems will rarely require side or center fill speakers and solid stereo imaging is
preserved across the listening area.
The low-frequency capability of a WL2082-i array extends to 68 Hz (-10 dB); adequate for speech/vocal and acoustic music program mate-
rial. For reinforcement of program material with more demanding low-frequency content, the WL115-sw companion subwoofer is avail-
able.

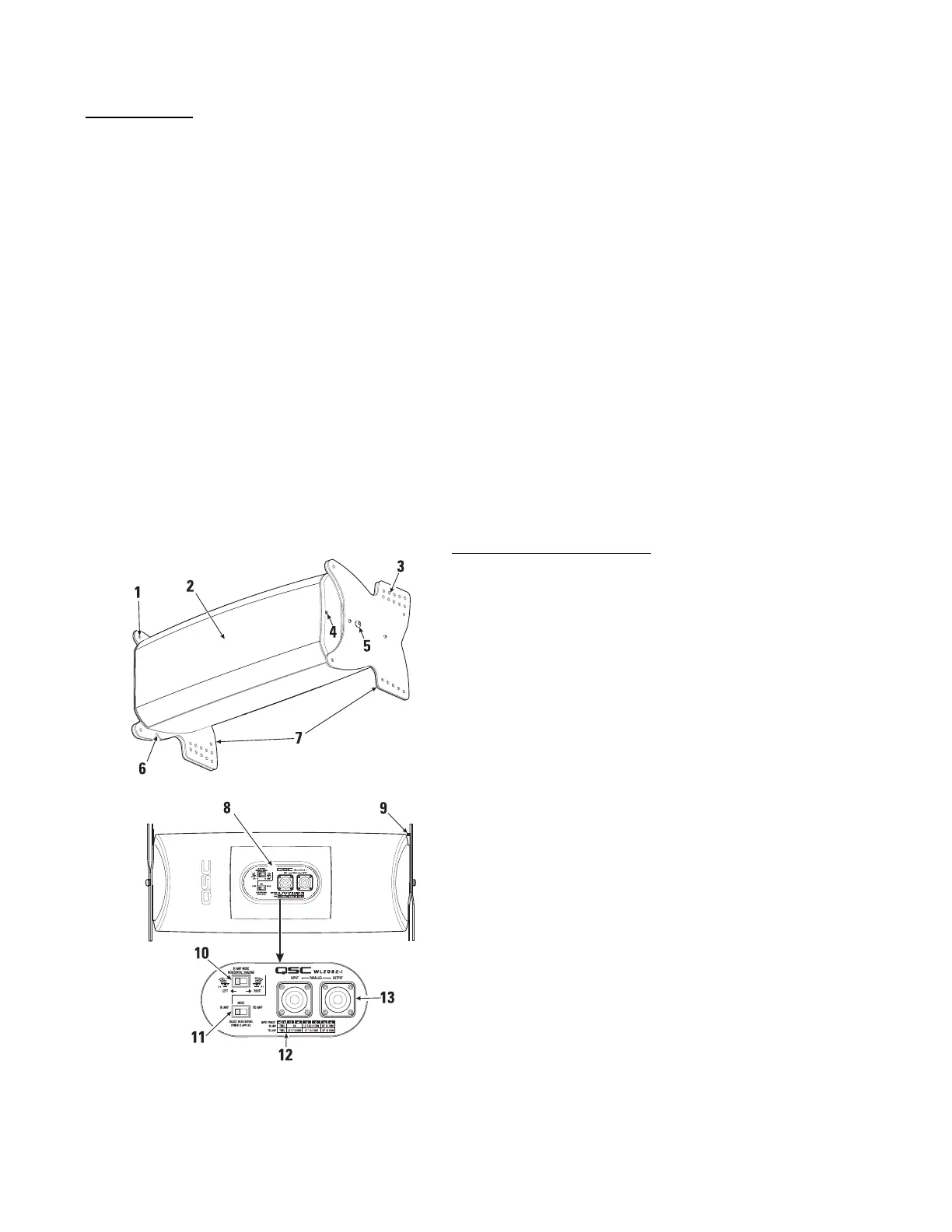

Figure 1: WL2082-i Loudspeaker
1- Rigging plate attachment holes
2- Grille
3- Splay angle selection holes (rear of rigging plates)
4- Grille retaining screws (one on each end of enclosure)
5- Rigging plate retaining bolt
6- Rigging alignment notch
7- Rigging plates
8- Input plate
9- Rigging alignment pin
10- Horizontal Shading selector switch
11- Bi amp/Tri amp Mode selector switch
12- Wiring table
13- NL8 Speakon connectors
