Quad Head HDMI,
USB 2.0 and Audio
KVM CAT5/6 Extender
EXTEND DIGITAL VIDEO
(QUAD HEAD HDMI 4K30HZ),
USB 2.0, USB 1.1 KEYBOARD/
MOUSE AND AUDIO
UP TO 330 FT (100 M) OVER
A SINGLE CAT5E/6/6A
UNCOMPRESSED
Quick Start Guide
VIDEO
Format HDMI 2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth 275 MHz
Input Interface (TX) (4) HDMI (19-pin female)
Output Interface (RX) (4) HDMI (19-pin female)
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
AUDIO
Format Stereo
Frequency 30KHz to 80KHz
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Signal Type USB 1.1 and USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC4A
@ 20 W
Dimensions 11.9” W x 1.7” H x 2.9” D
Weight 1.75 lb (per unit)
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

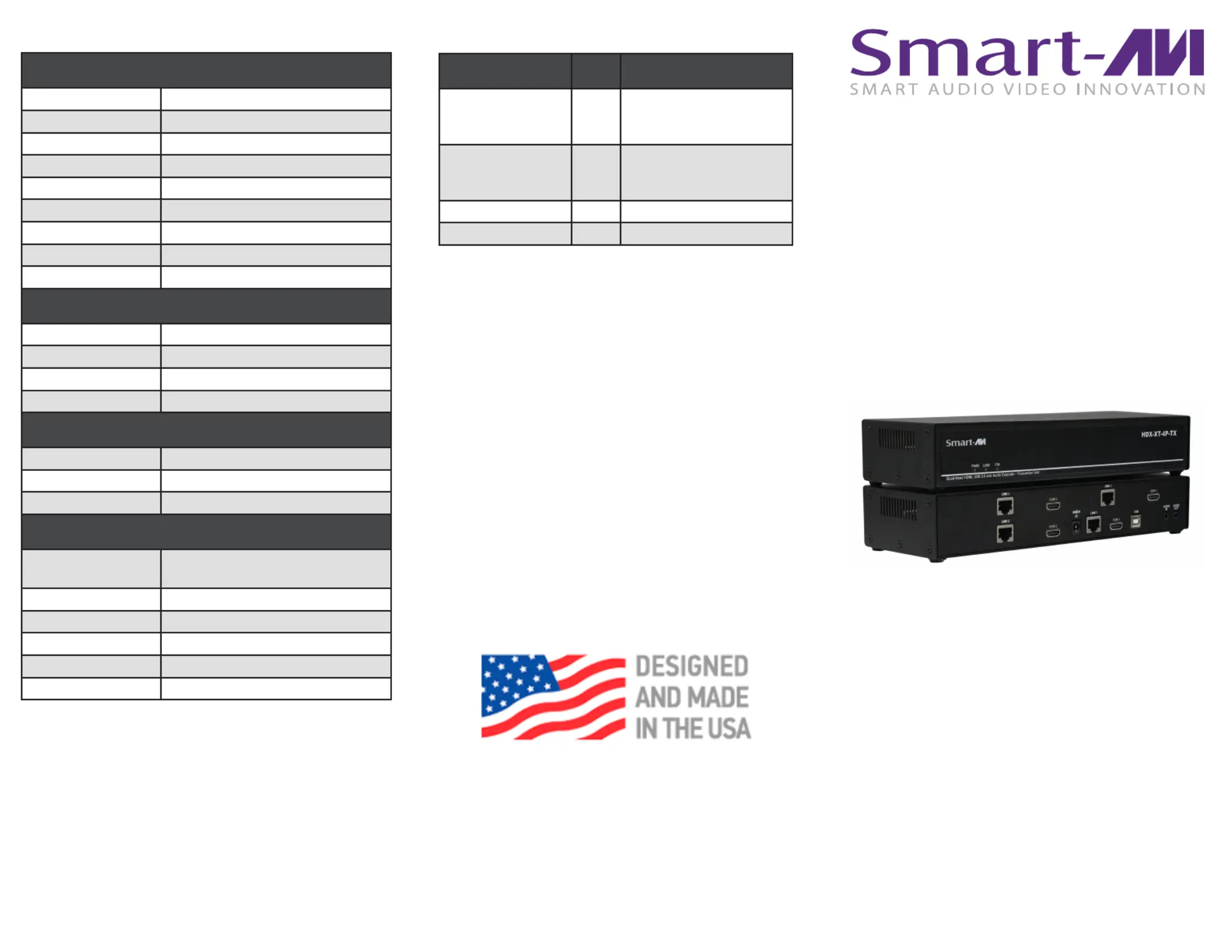

TECHNICAL SPECIFICATION
HDX-XT-4P
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HDX-XT-4P-TX 1
Quad Head HDMI, USB
and Audio CAT5/5e/6
Transmitter.
HDX-XT-4P-RX 1
Quad Head HDMI, USB
and Audio CAT5/5e/6
Receiver.
PS5VD3A-WMT 2 PS5VD3A Power Supply
Quick Start Guide 1
ABOUT HDX-XT-4P
The HDX-XT-4P is an extender supporting Quad Head HDMI
video signals at resolutions up to 4K/30Hz, with
bi-directional audio and fully-transparent USB 2.0
up to 330ft.
The HDX-XT-4P is the rst extender on the market to feature
HDMI 4K/30Hz, USB 2.0, and full KVM extension on one
cohesive system. Its four HDMI 4K (3840x2160 @ 30Hz)
video outputs are optimized for HD monitors with
crystal-clear picture; excellent for detail-driven work.
The HDX-XT-4P extends fully-transparent USB 2.0,
supporting keyboard, mouse, ash-drive, digital cameras,
printer(s) and a wide variety of other USB 2.0 devices!
FEATURES
• Extends Quad Head HDMI 2.0, USB 2.0 and audio up
to 330 ft (100 m) from the source
• Supports up to 3840x2160 digital
video resolution @ 30Hz
• Uncrompressed Video
• Supports keyboard and mouse USB 1.1
• USB 2.0 Transparent
• Carries HDMI, USB 2.0 and Audio
Over a Single CAT 5e/6/6a
• DisplayPort Auxiliary Bypass
• Plug-and-Play Ready
1. Turn off connected devices
2. Connect cables between signal source device and TX unit’s input ports
3. Connect cables between the RX unit’s output ports and end-point device
4. Connect TX and RX via CAT5e/6 cable
5. Connect power supply to either TX and RX units
6. Turn on TX and RX units
7. Return power to connected devices

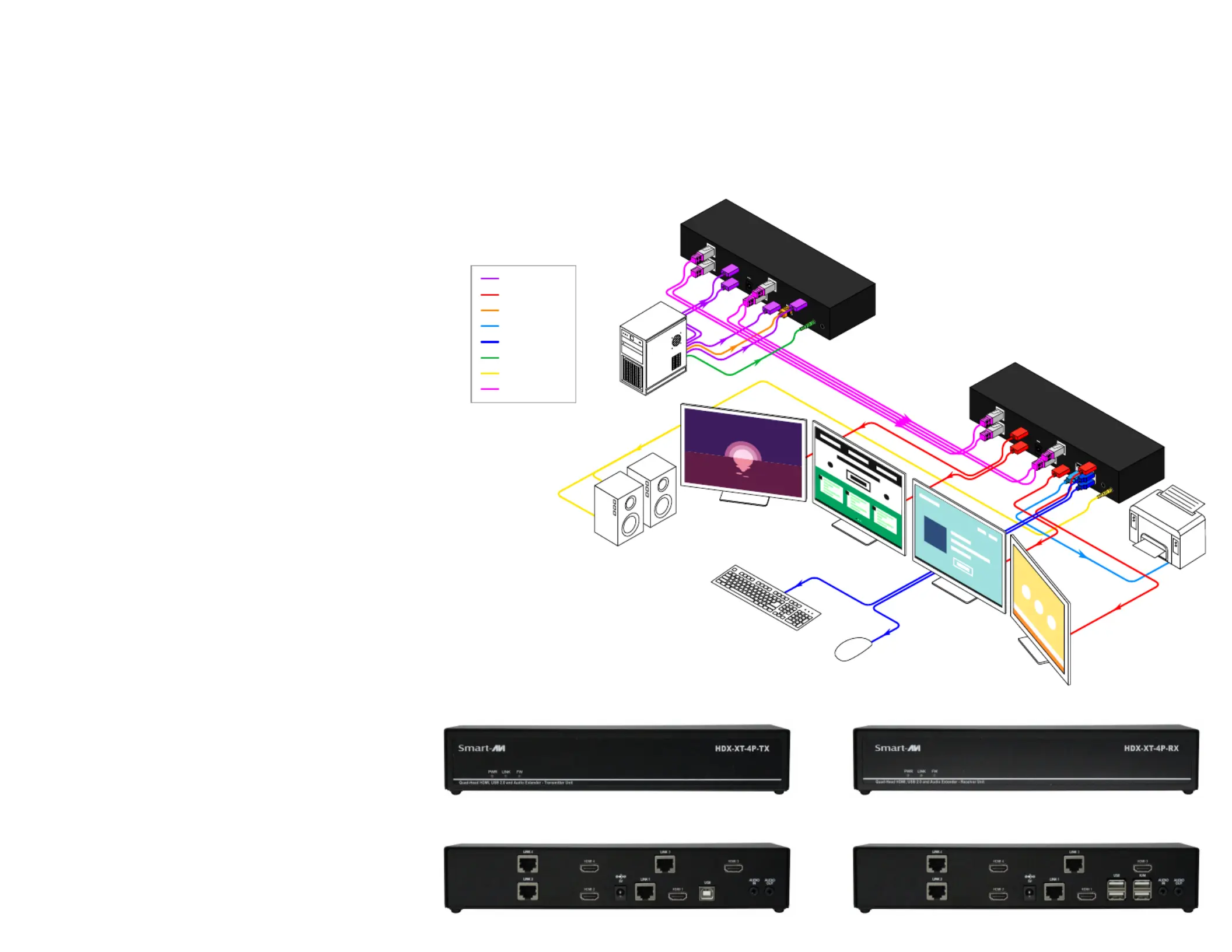

HDX-XT-4P-TX FRONT
HDX-XT-4P-TX BACK HDX-XT-4P-RX BACK
HDX-XT-4P-RX FRONT
HARDWARE INSTALLATION
330 ft
5V
INK 2
HDMI 2
HDMI 4
HDMI 1
HDMI 3
LINK 3
AUDIO
IN
AUDIO
OUT
US
HDX-XT-4P-TX
LINK 4
5V
INK 2
USB
5V
INK 2
LINK 3
AUDIO
IN
AUDIO
OUT
HDX-XT-4P-RX
LINK 4
HDMI 2
HDMI 4
HDMI 1
HDMI 3
HDMI IN
HDMI OUT
USB IN
USB 2.0 OUT
USB K/M OUT
AUDIO IN
AUDIO OUT
CAT5/6
