User Instructions

Rev. 10/14

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

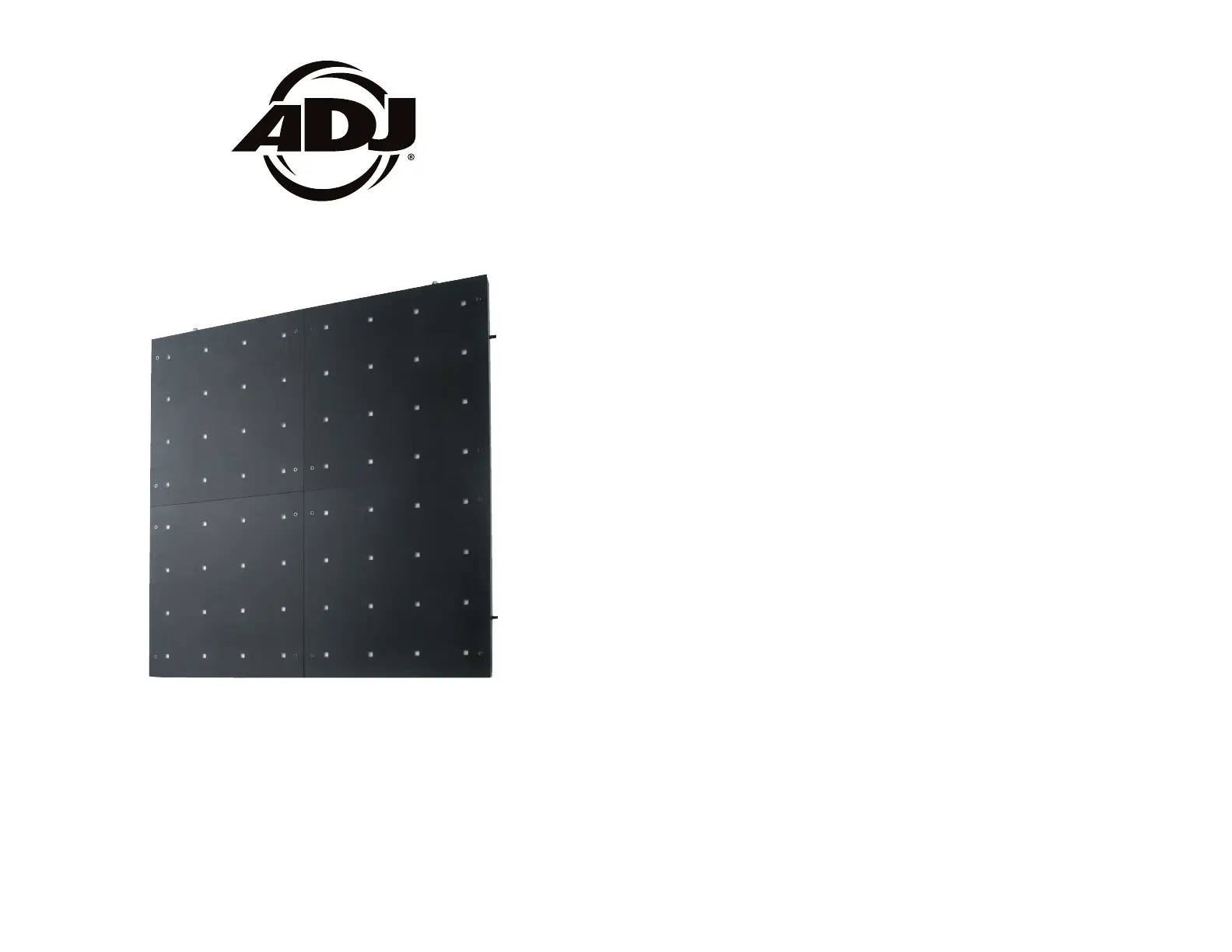

Flash Kling Panel 64

ADJ Products, LLC - www.adj.com - Flash Kling Panel 64 Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Flash Kling Panel 64 Instruction Manual Page 2

• CAT 5 Straight Network Cable included.

• Kling-Net and Art-Net Compatible (Recommended control solu-

tions; Arkaos Media Master Express, Media Master Pro, and LED

Master software’s (sold separately).

• 64 x SMD RGB LED’s (8 x 8 Matrix Configuration

Flash Kling Panel 64 Warranty Registration

The Flash Kling Panel 64 2 year (730 days) limited warranty. carries a

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) umber. If the unit is under warranty you must provide an copy

of your proof of purchase invoice. Please contact ADJ customer sup-

port for a R.A. number.

Flash Kling Panel 64 Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

Flash Kling Panel 64 General Instructions Flash Kling Panel 64 Introduction

Unpacking: Thank you for purchasing the Flash Kling Panel 64 by

ADJ Products, LLC. Every Flash Kling Panel 64 has been thoroughly

tested and has been shipped in perfect operating condition. Carefully

check the shipping carton for damage that may have occurred during

shipping. If the carton appears to be damaged, carefully inspect your

xture for any damage and be sure all accessories necessary to oper-

ate the unit has arrived intact. In the case damage has been found

or parts are missing, please contact our toll free customer support

number for further instructions. Do not return this unit to your dealer

without rst contacting customer support.

Introduction: The Flash Kling Panel 64 is a LED pixel panel for low

resolution, video displays. This LED panel is controlled via Kling-Net

or Art-Net. Recommended control solutions; Arkaos Media Master

Express, Media Master Pro, and LED Master software’s (sold sepa-

rately). Dynamic effects can be played on it, which makes it a great

system for night clubs.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question

should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments

or suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

DMX WORKSHOP™ (alternative software option to congure network

settings)

DMX-Workshop™ is a fully featured network management, analy-

sis, conguration and diagnostics tool for Art-Net networks. It can

be used to congure the Ethernet network settings on this xture

remotely such as the IP Address, Subnet Mask, and the DMX Uni-

verse. This software application is Windows XP™ and Windows 7™

compatible and is free of charge and available via download. (See link

below)

http://artisticlicence.com/index.php?mode=products&sub=overview&

action=&product_id=351

Flash Kling Panel 64 DMX Workshop™

Flash Kling Panel 64 Safety Precautions

ADJ Products, LLC - www.adj.com - Flash Kling Panel 64 Instruction Manual Page 4 ADJ Products, LLC - www.adj.com - Flash Kling Panel 64 Instruction Manual Page 5

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 7 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Flash Kling Panel 64 Connections

Installation me d 1:tho

N e: Do not daisy-chain more an 50pcs LED panels om the com ter,and use an E ernet Sw ch if moreot th fr pu th it

th lian 50pcs LED ghts are being controlled.

Installation me d 2:tho

N e:1.The E ernet Sw ch must be G abit Sw ch.ot th it ig it

2. Do not daisy-chain more than 50pcs LED panels om a s gle network port of e E ernet Sw ch.fr in th th it

3. Maximum 2 ou ut network ports of e E ernet Sw ch n be used.So e system n control 100pcstp th th it ca th ca

panels ma mum.xi

Flash Kling Panel 64 Operation

Control Using Kling-net or Art-Net:

1. Install one of the recommended operating softwares onto your

computer. Recommended softwares; Arkaos Media Master

Express, Media Master Pro, or LED Master (Sold Separately).

2. Connect the panels via CAT 5 Straight Network cable. When

creating your own custom cable, use RJ45 Straight Network

cable.

3. Map the fixtures using KlingNetMapper or Art-Net Mapper.

4. Control the fixtures using ArKaos or Art-Net software. Please refer

to the media playback software user manual for further instruc-

tions.

Note: ArKaos Kling-Net requires a gigabit (1000 mbps) Ethernet card

and network router for a smoother operation.

Connecting to Power and Data:

When connecting to power, the LED indicator on the bottom of the

unit should glow a solid red if the unit is receiving power.

When the unit is receiving a data signal, the LED indicator will flash

yellow.

Note: The LED indicator may only flash when pressing the mouse and

moving the indicator arrow around in the grid.

When connecting you must use a CAT 5 Straight Network cable.
