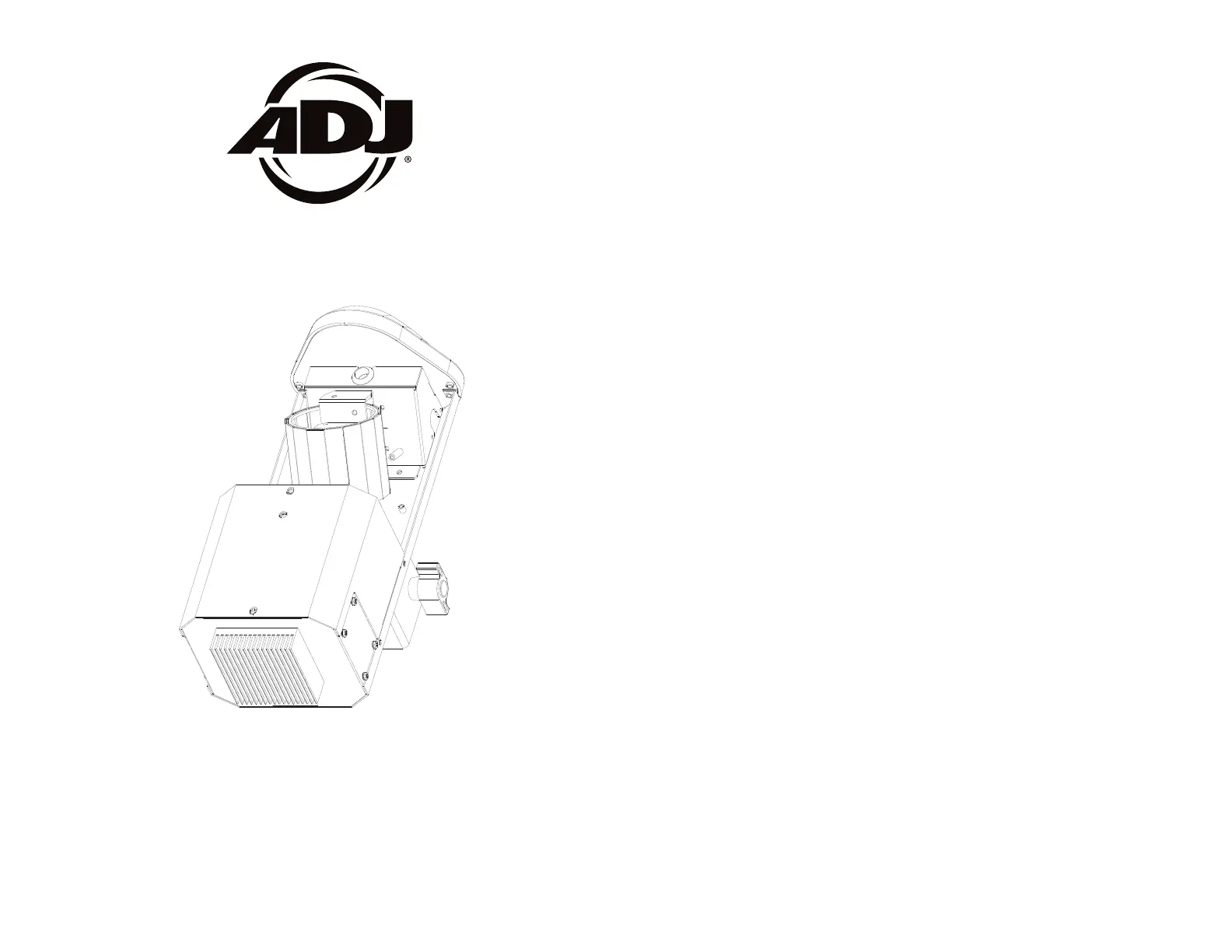

User Instructions

Rev. 2/16

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building,

and electrical damages, injuries to any persons, and direct or

indirect economic loss associated with the use or reliance of

any information contained within this document, and/or as a

result of the improper, unsafe, unsucient and negligent as-

sembly, installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

INNO POCKET ROLL

ADJ Products, LLC - www.adj.com - Inno Pocket Roll Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Inno Pocket Roll Instruction Manual Page 2

• 6 DMX Channels

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• Internal Microphone

• Digital Display for Address and Function Setting

• 12 Preprogrammed Shows

• 8 fixed Gobos/Colors + Spot/White

• Power Cord Daisy Chain (See page 16)

• UC IR Compatiable (Sold Separately)

Inno Pocket Roll Features

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures

warranty. In the unlikely event your unit may require service please

contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touch-

ing the unit with bare hands while in use.

ADJ Products, LLC will not accept any liability for any resulting dam-

ages caused by the non-observance of this manual or any unauthor-

ized modication to this unit.

Inno Pocket Roll Handling Precautions

Inno Pocket Roll Warranty Registration

The Inno Pocket Roll 2 year (730 days) limited warranty. carries a

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) umber. If the unit is under warranty you must provide an copy

of your proof of purchase invoice. Please contact ADJ customer sup-

port for a R.A. number.

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

Inno Pocket Roll General Instructions

Inno Pocket Roll General Information

Unpacking: Thank you for purchasing the Inno Pocket Roll by ADJ

Products, LLC. Every Inno Pocket Roll has been thoroughly tested and

has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your xture for

any damage and be sure all equipment necessary to operate the unit

has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return this unit to your dealer without

contacting customer support rst.

Introduction: The Inno Pocket Roll is a 8 channel DMX intelligent

LED scanner. The Inno Pocket Roll has three operating modes; a

sound active, show mode, DMX controlled The Inno Pocket Roll can .

operate as a stand alone fixture or in a Master/Slave configuration. For

best results use fog or special effects smoke to enhance the beams

projections.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide help and to answer any question should

you encounter problems during your set up or initial operation. You

may also visit us on the web at www.adj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

For Your Own Personal Safety, Please Read and Understand This

Manual Completely Before You Attempt To Install Or Operate

This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break o the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 20 for cleaning details.

• Heat -This fixture should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits

a marked change in performance.

Inno Pocket Roll Safety Precautions

ADJ Products, LLC - www.adj.com - Inno Pocket Roll Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Inno Pocket Roll Instruction Manual Page 4

Power Supply: The ADJ Inno Pocket Roll contains a automatic volt-

age switch, which will auto sense the voltage when it is plugged into

a power source. With this switch there is no need to worry about the

correct power voltage, this unit can be plugged in anywhere.

DMX-512: -DMX is short for Digital Multiplex. This is a universal pro

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix-

ture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX

fixtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models

of dierent manufactures to be linked together and operate from a

single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using

several DMX fixtures try to use the shortest cable path possible. The

order in which fixtures are connected in a DMX line does not influence

the DMX addressing. For example; a fixture assigned a DMX address

of 1 may be placed anywhere in a DMX line, at the beginning, at the

end, or anywhere in the middle. Therefore, the first fixture controlled

by the controller could be the last fixture in the chain. When a fixture

is assigned a DMX address of 1, the DMX controller knows to send

DATA assigned to address 1 to that unit, no matter where it is located

in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): The Inno Pocket Roll can be controlled via DMX-512 pro-

tocol. The Inno Pocket Roll is a 6 channel DMX unit. The DMX address

is set electronically using the controls on the front panel of the unit. Your

unit and your DMX controller require a approved DMX-512 110 Ohm

Data cable for data input and data output (Figure

1). We recommend Accu-Cable DMX cables. If you

are making your own cables, be sure to use stan-

dard 110-120 Ohm shielded cable (This cable may

be purchased at almost all professional sound and

lighting stores). Your cables should be made with

a male and female XLR connector on either end of

the cable. Also remember that DMX cable must be

Inno Pocket Roll Set Up

Figure 1
