Side 1/10

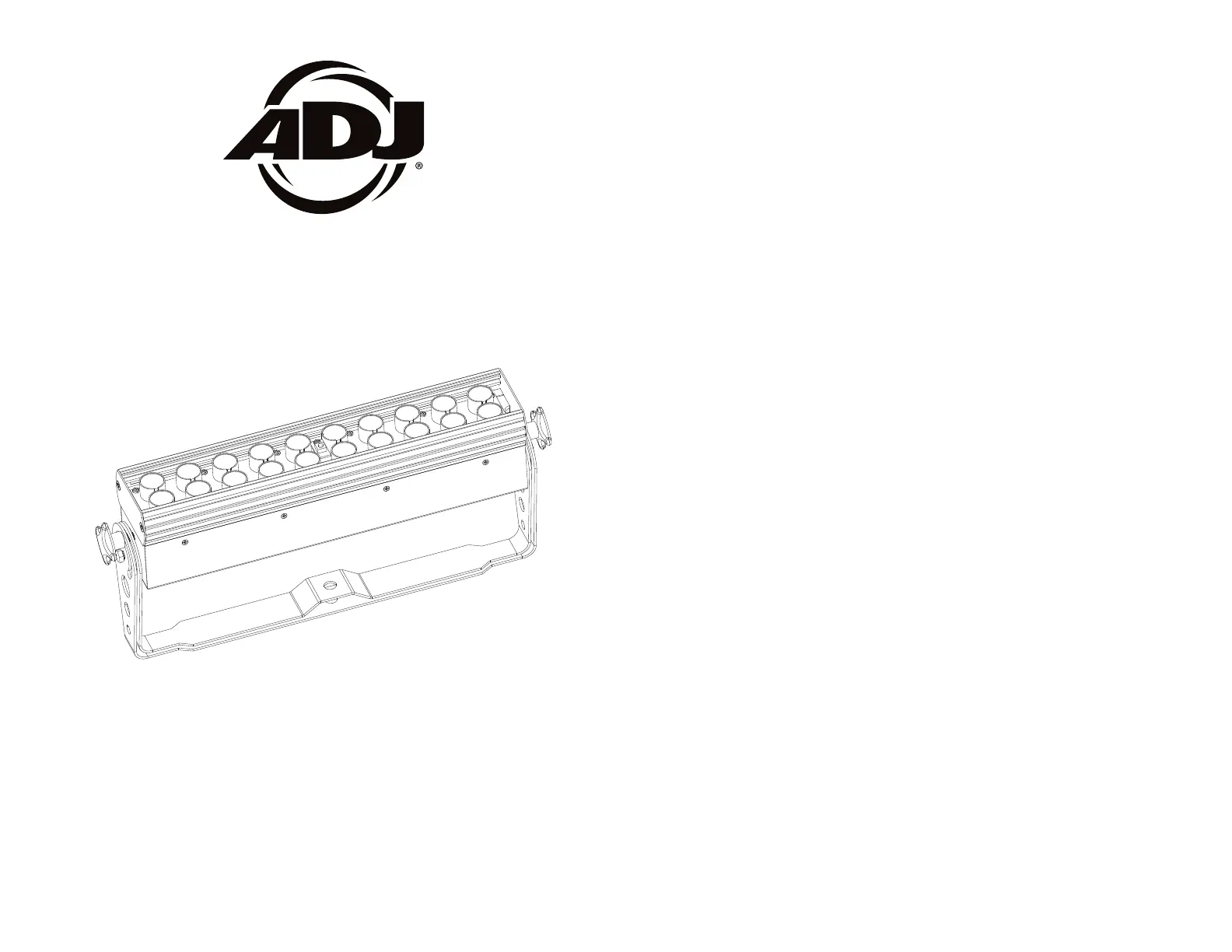

User Instructions

1/17

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

UV LED B 20 IRAR

ADJ Products, LLC - www.adj.com - UV LED Bar20 IR Instruction Manual Page 3

UV LED Bar20 IR Warranty Registration

The UV LED Bar20 IR 2 year (730 days) limited warranty. carries a

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) umber. If the unit is under warranty you must provide an copy

of your proof of purchase invoice. Please contact ADJ customer sup-

port for a R.A. number.

UV LED Bar20 IR Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

UV LED Bar20 IR General Instructions

• 4 Operating Modes

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• 3 DMX Channel Modes: 1 Channel Mode, 2 Channel Mode, & 3

Channel Mode

• Power Cord Daisy Chain (See page 15 for more info)

• UC IR Compatible & Airstream IR Compatible

UV LED Bar20 IR Cleaning

Due to fog residue, smoke, and dust cleaning the internal and exter-

nal optical lenses must be carried out periodically to optimize light

output.

1. Use normal glass cleaner and a soft cloth to wipe down the

outside casing.

2. Clean the external optics with glass cleaner and a soft cloth

every 20 days.

3. Always be sure to dry all parts completely before plugging

the unit back in.

Cleaning frequency depends on the environment in which the fixture

operates (i.e. smoke, fog residue, dust, dew).

UV LED Bar20 IR Introduction

ADJ Products, LLC - www.adj.com - UV LED Bar20 IR Instruction Manual Page 2

Unpacking: Thank you for purchasing the UV LED Bar20 IR by ADJ

Products, LLC. Every UV LED Bar20 IR has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during ship-

ping. If the carton appears to be damaged, carefully inspect your x-

ture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts

are missing, please contact our toll free customer support number for

further instructions. Do not return this unit to your dealer without rst

contacting customer support.

Introduction: The UV LED Bar20 IR is part of ADJ’s continuing pur-

suit for creating high quality affordable intelligent fixtures. The UV LED

Bar20 IR is a DMX intelligent LED color wash. This wash can be used

in a stand alone mode or connected in a Master/Slave conguration.

The unit can also be controlled via DMX controller. This unit has four

operating modes: Static mode, strobing mode, sound active mode,

and DMX controlled.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question

should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments

or suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

UV LED Bar20 IR Safety Precautions

ADJ Products, LLC - www.adj.com - UV LED Bar20 IR Instruction Manual Page 4 ADJ Products, LLC - www.adj.com - UV LED Bar20 IR Instruction Manual Page 5

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 3 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

UV LED Bar20 IR Safety Precautions

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT

AT A WAVELENGTH OF 390NM - 410NM.

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE.

AVOID WEARING WHITE COLOR CLOTHING AND/OR

USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES

SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL

COVER PROTECTIVE LENS.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV)

LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCEN-

TRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS,

SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTO-

SENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO

THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
