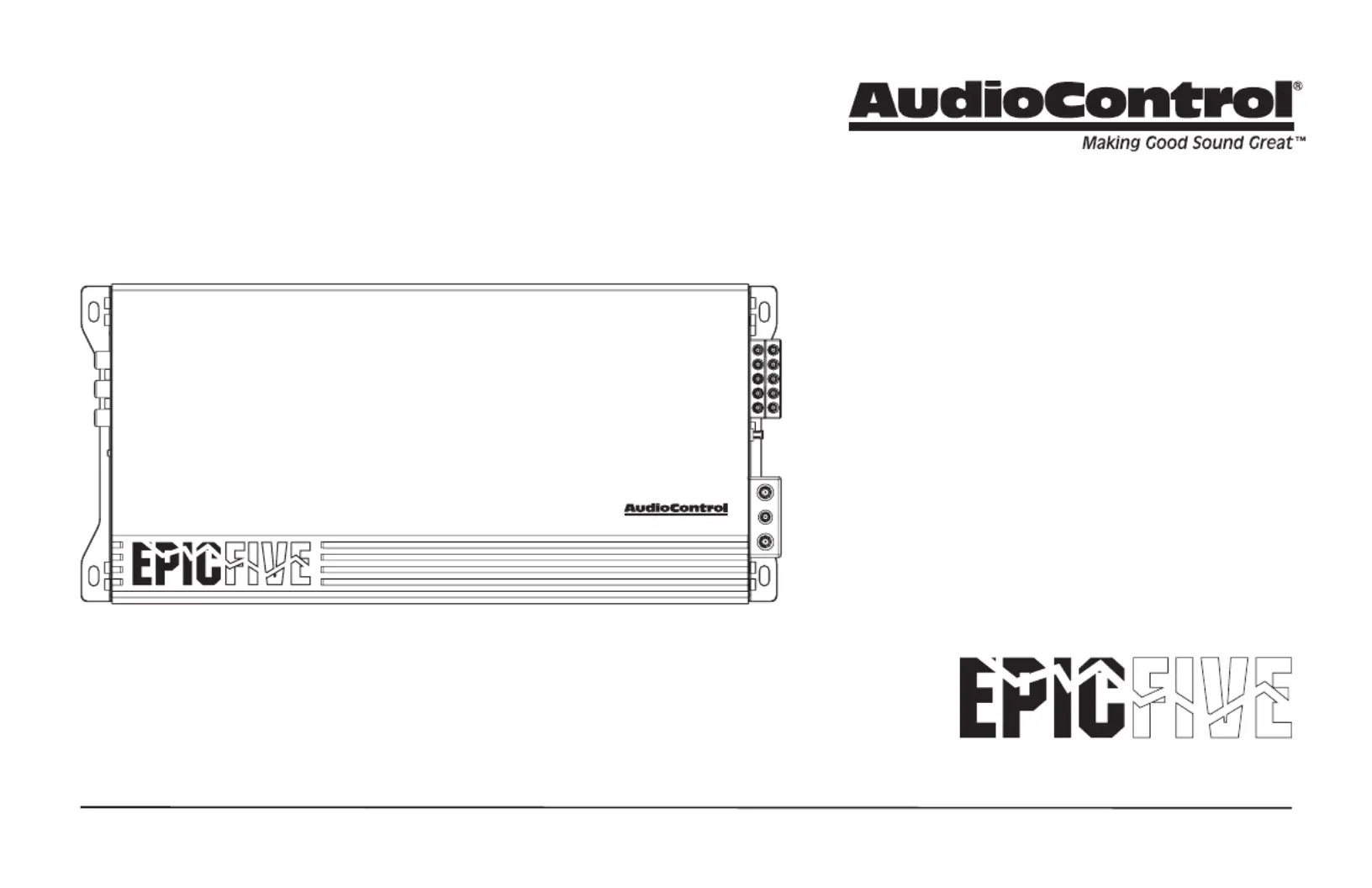

FIVE CHANNEL AMPLIFIER
Quick Start Guide
Features
• Compact High-Power Class D Amplifier
• High-Current Design
• 4 x 75 Watts + 1 x 300 Watts @ 4 ohms
• 4 x 150 Watts + 1 x 500 Watts @ 2 ohms
• 1 x 700 Watts @ 1 ohm
• 2 x 300 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable HP/LP Filters
• 12 dB/octave Variable Subsonic Filter
• Solid Power/Speaker Terminals with Hex Screws
• You're not ready for this
2
Quick Start Guide
FIVE CHANNEL AMPLIFIER
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as mufflers, silencers, exhaust
pipes, or other apparatus (including amplifiers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualified
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of sufficient size to ensure adequate
current to the amplifier.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specified by the manufacturer.
13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered off.
15. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside.
Refer servicing to qualified personnel.
Recycling notice: If the time comes and this apparatus has fulfilled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
3

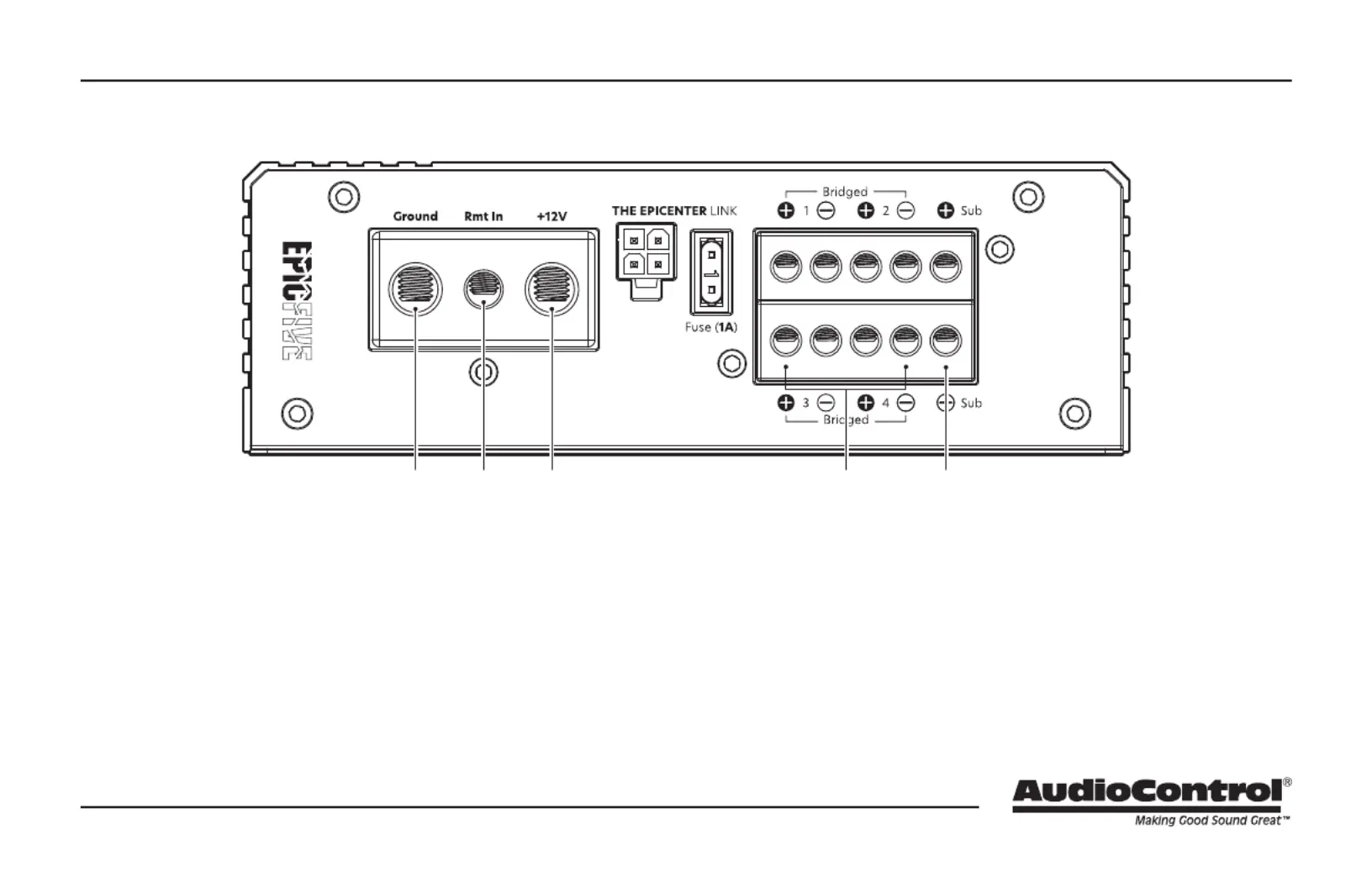

1. Ground Terminal – This screw terminal connects to a clean, solid
ground in the vehicle. Use the shortest length possible of quality
insulated wire of the recommended wire gauge (see specifications).
2. Remote Power Input Wire – This wire connects to the 12V remote
trigger output of some head units and controls the on/off state of
the amplifier.
3. Power Input Terminal +12V – This screw terminal connects to
the +12V binding post of the vehicle battery. Use quality insulated
wire of the same gauge used for the Ground connection.
4. Speaker Output – Connect these speaker terminals to your
speakers using quality insulated wiring of the recommended wire
gauge (see specifications). Make sure the speaker impedance
does not dip below 2 ohms, or 4 ohms in bridged mono mode.
5. Subwoofer Output – Connect these terminals to your subwoofer
using quality insulated wiring of the recommended wire gauge
(see specifications). Make sure the subwoofer impedance does not
dip below 1 ohm.
Connections & Control Panel Features
q w e r t
