Side 1/10
HEX70CS-KIT
User Manual
RevA3 HEX70CS-KIT User Manual
HEX70CS-KIT USER MANUAL
www.blustream.com.au | www.blustream.co.uk 02
Introduction 03
Features 03

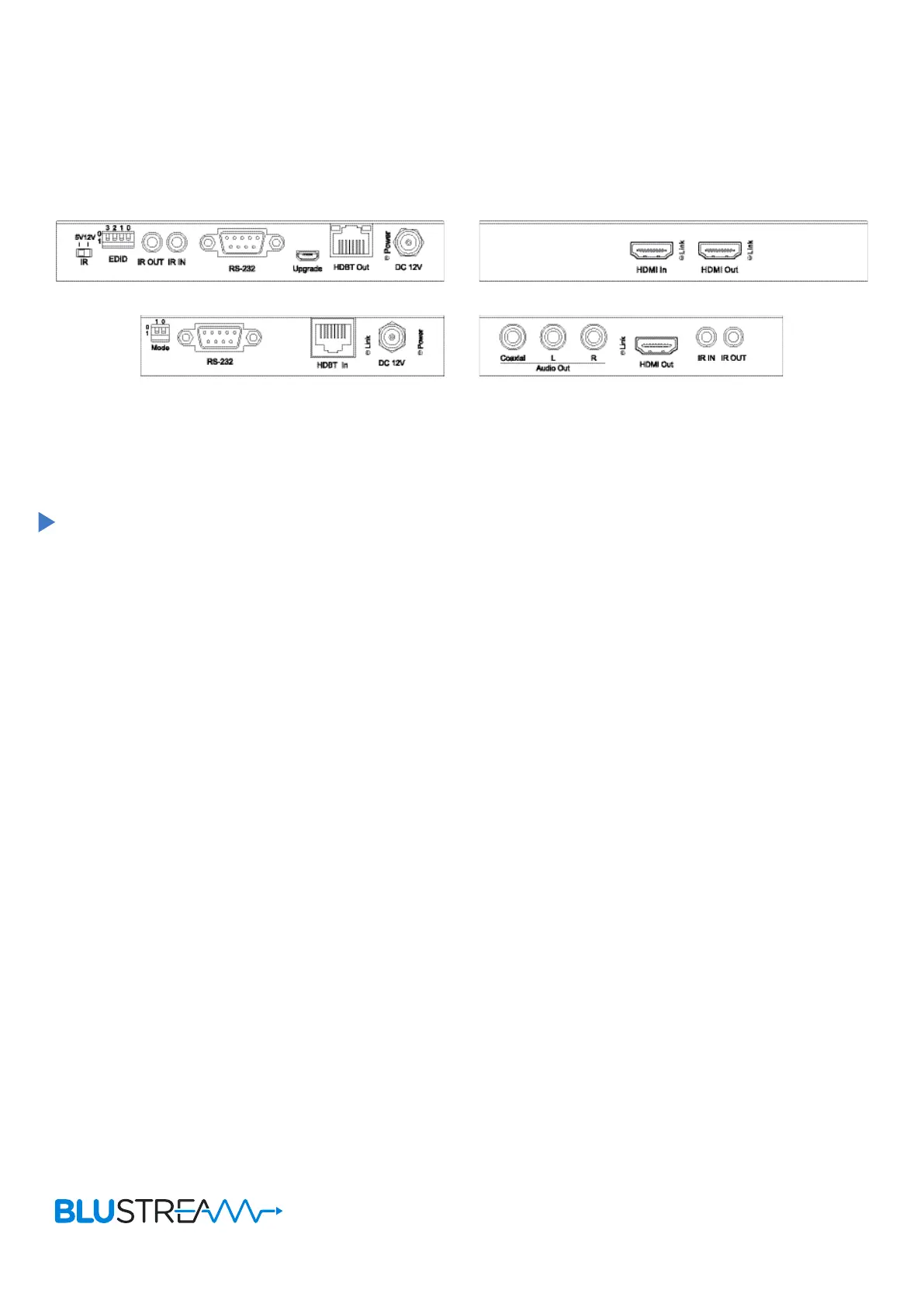

Panel Descriptions 04
Terminating HDBaseT™ CAT Cables 05
Understanding HDBaseT™ Status Lights 05
EDID Control 06
Mode Dip-Switch (RX RS-232 Function) 06
Infrared (IR) Control 07
Application Diagram 08
Specifications 09
Package Contents 09
Maintenance 09
Contents
Surge protection device
recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimise interference of the
unshielded twisted pairs in the
CAT5e/6 cable do not run the HDBaseT/
Cat5e/6/6a cabling with or in close
parallel proximity to mains power
cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved
replacement.
Do not disassemble either the
Transmission or Receiver units for
any reason. Doing so will void the
manufacturer’s warranty.
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
HEX70CS-KIT USER MANUAL
www.blustream.com.au | www.blustream.co.uk 03
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080P video up to 70m
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 support
Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™
extender set offers market leading features and outstanding value utilising
CSC technology. The product extends HDMI,Bi-directional IR & RS-232 and
Bi-directional PoC (PoE) up to lengths of 70m (4K 40m).The Transmitter
includes a HDMI loop-out for integrating local displays or cascading to
multiple devices. The Receiver features simultaneous analogue stereo and
digital coax audio breakout.
Introduction
