Side 1/60

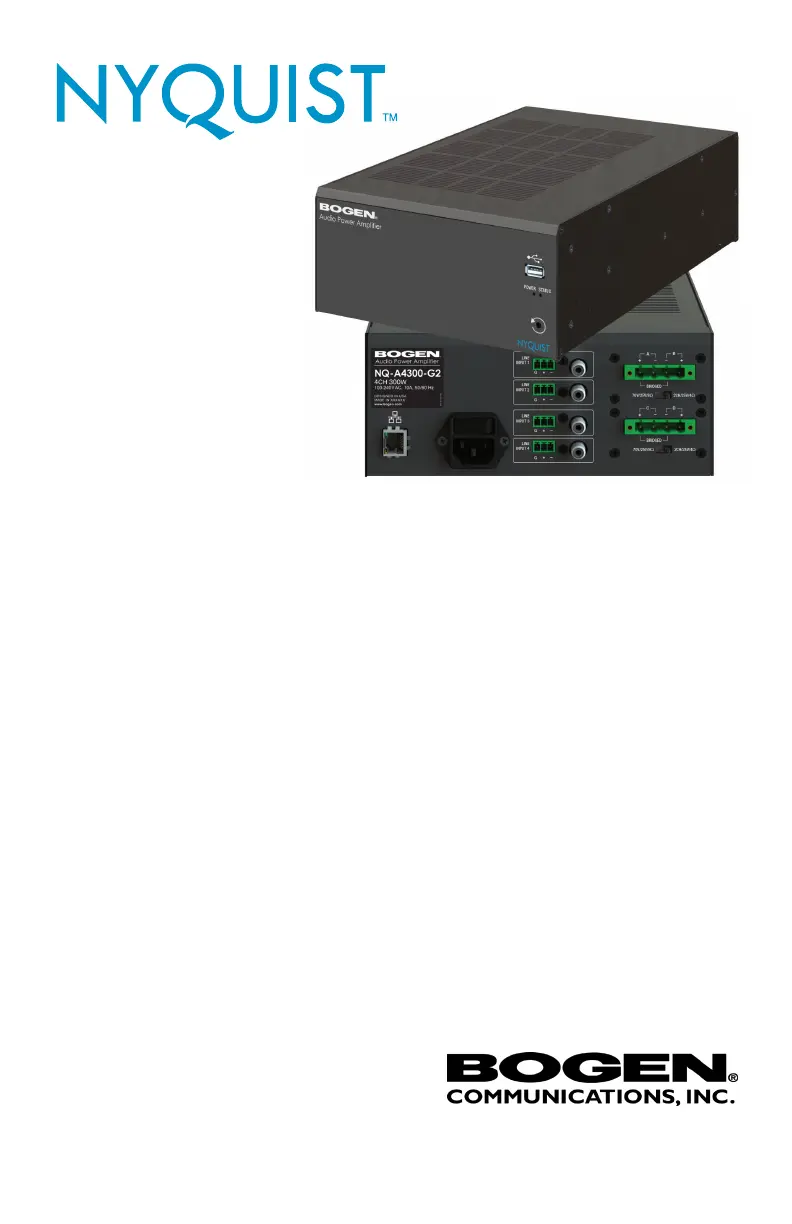

NQ‑A4060‑G2, NQ‑A4120‑G2,
NQ‑A4300‑G2
AudioPowerAmpliers
Installation and Use Manual
Specications are subject to change.
© Copyright 2020 Bogen Communications, Inc.
740-00132B 210917
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
Avertissement: pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.
The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases,
shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un
vase, ne doit être placé sur l’objet.
The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should
be easily accessed during intended use. To be completely disconnect the power input, the mains plug of apparatus
shall be disconnected from the mains.
La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être
facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit
être débranchée du secteur
CAUTION: DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK CASE, BUILT-IN CABINET, OR IN
ANOTHER CONFINED SPACE.
ENSURE THAT THE UNIT IS WELL VENTILATED. TO PREVENT THE RISK OF SHOCK OR FIRE HAZARD
DUE TO OVER HEATING.
ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
Always comply with the following basic safety
precautions when installing and using the unit:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. DO NOT use this apparatus near water.
6. Clean only with dry cloth.
7. DO NOT block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade, or the third prong, are
provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on
and/or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories which are
specied by the manufacturer.
12. Unplug this apparatus during lightning storms or
when unused for long periods of time.
13. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE ANY FRONT/BACK COVERS OR PANELS.
NO USER-SERVICEABLE ARE NSIDE. REFER PARTS ANY
SERVICING TO QUALIFIED PERSONNEL.
The lightning flash with arrowhead sumbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons
.
The exclamation point within a unilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions.
The apparatus shall be connected to a mains socket
outlet with a protective earthing connection.
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Where the mains plug or an appliance coupler is
used as the disconnect device, the disconnect
device shall remain readily operable.
WARNING:
Minimum distances 10cm around the apparatus for
sufcient ventilation.
- 10cm distance minimale autour de l’appareil pour une
aération sufsante
The ventilation should not be impeded by covering
the ventilation openings with items, such as news-
papers, table-cloths, curtains, etc.
- il convient que l’aération ne soit pas gênée par
’obstruction des ouvertures d’aéra
No naked ame sources, such as lighted candles,
should be placed on the apparatus.
- il convient de ne pas placer sur l’appareil de sources de
ammes nues, telles que des bougies allumées
The use of apparatus in moderate climates.
- si l’appareil est destiné à être utilisé sous un climat
tempéré.
This equipment is not suitable for use in locations where
children are likely to be present. Equipment is intended
for use only in a restricted access area.
Installation
To install the Nyquist NQ-A4XXX Power Ampliers:
1. Ensure the POWER switch is in the off position.
2. This product requires a connection to a Mains circuit with a
maximum of a 20A breaker.
3. Connect a Cat-5 type cable into the amplier’s Ethernet port and
ensure the other end of the cable is correctly connected to your
network.
4. Set each of the two AmplierMode switches to the desired setting.
Each of the two internal ampliers (A+B and C+D) can be congured
for single-channel bridged mode (aka bridged-tied load) operation
for 70V/25V/8Ω applications, or 2-channel operation for 25V/8Ω/4Ω
applications. The Amplier Mode switch is used in conjunction with the
Bridged Signal routing setting in the system console.
BridgedMode is typically used when higher power, single channel
operation with a high impedance loudspeaker load is desired. A
typical use-case would be for 70V or 25V loudspeaker runs, where
the total load is no less than 8Ω.
2-ChannelMode is typically used for 8Ω or 4Ω loudspeakers or 25V
loudspeaker runs. This mode allows the two amplier channels to
run independently.
In BridgedMode, Line Input 1 (or Line Input 3) is used as input. For
2-ChannelMode operation, Line Inputs 1 and 2 (or Line Inputs 3 and 4)
are used.
5. Connect the loudspeaker wires to the Amplier Output Terminals
(labeled A +/−, B +/−, C +/−, and D +/−) as appropriate for the
desired mode of operation ( ).see Figures 1 and 2
Bridged mode operation requires the speaker wires to be
NQ‑A4060‑G2, NQ‑A4120‑G2, NQ‑A4300‑G2
These networked Audio Power Amplifiers support a full range of
commercial paging, public address applications, and residential audio
applications, regardless of the venue size. The NQ-A4060, NQ-4120,
and the NQ-4300 can operate in 2-, 3-, or 4-channel mode, depending on
bridged mode congurations and application need.
Each networked audio power amplier is a half-rack 2RU high enclosure
containing a Class D audio power amplier, a universal switched-mode
power supply, an RJ45 network jack, a USB port, and pluggable Phoenix
style terminals for loudspeaker and Line-In connections. Optionally, Line-
In can be connected using the available RCA connectors.
