CRUX ACPBM-77Z Bruksanvisning

Les nedenfor 📖 manual på norsk for CRUX ACPBM-77Z (15 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/15
Microphone
ACPBM-77Z
Smart-Play Inte ation with Rear-View Camera Inputgr
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051820221 of 15
- Control Apps using smartphone’s voice control feature or the factory iDrive (High/Low) Knob
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
The vehicle needs to have a factory AUX input.*
PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77Z Module Power/CAN Harness ACPBM-77Z Vehicle Harness
CRUX LVDS Cable 3.5mm to RCA Adapter Smart-Play Interface Module
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.05182022
2 of 15
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPBM-77Z
Smart-Play Inte ation with Rear-View Camera Inputgr
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
Pink factory
LVDS Cable
Aftermarket Crux
LVDS Cable
Back-Side of Factory
LCD Screen
LVDS
IN LVDS
OUT
123
O N
ACPBM-77Z Module
PO R CANWE /
FR ONT
CAM
REAR
CAM
FW
UPDATE
UART
P I OOWER/V DE
Back of Headunit
ACPBM-77Z
Vehicle Harness
Factory Harness
Power/CAN
Harness
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
iDrive Knob
Retention Cable
Smar h C letp one ab
Wir s A d te rele s ap
Smar i C letl nk ab
OR
USB puIn t
Micr h eop on
Smart-Play Module
Camera
(RED)
+12V Switching
Output 1 (Pink Wire)
R
INTERFACING SOLUTIONS
ACPBM-77Z
Smart-Play Inte ation with Rear-View Camera Inputgr
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector

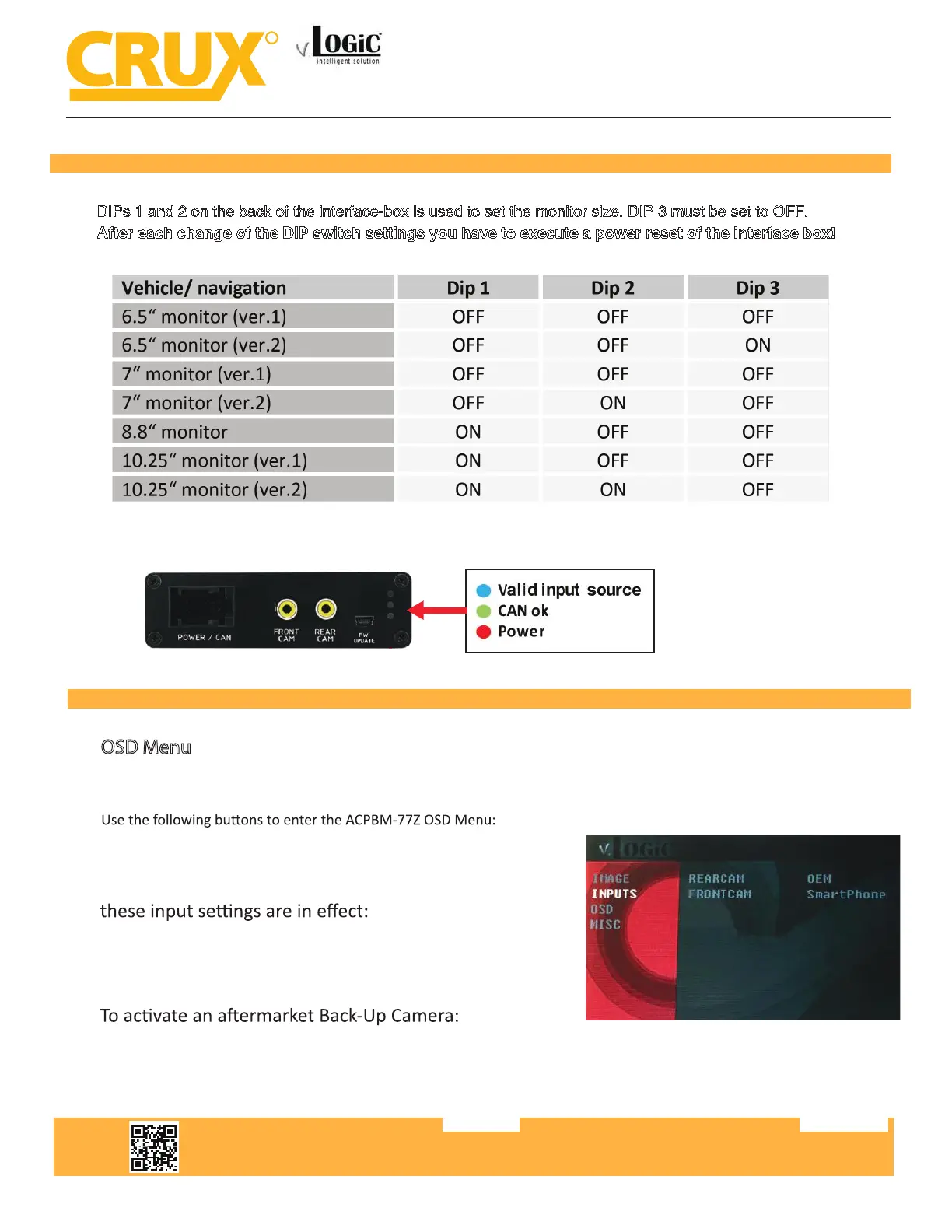

Setting the DIP switches of the Interface Box.
DIPs 1 and 2 on the back of the interface-box is used to set the monitor size. DIP 3 must be set to OFF.
After each change of the DIP switch settings you have to execute a power reset of the interface box!
DIP SWITCH SETTINGS:
LEDs of the interface-box
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.05182022
3 of 15
OSD Menu
NOTE: Must be in factory infotainment menu to trigger full OSD menu
OSD SETTINGS:
To ensure that Smart-Play works, make sure
NOTE: Must have solid BLUE, GREEN, RED, LEDs for part to work..
FRONTCAM ( FVC) = SmartPhone
To retain the factory Back-Up Camera:
REARCAM (RVC) = OEM
REARCAM (RVC) = ON
