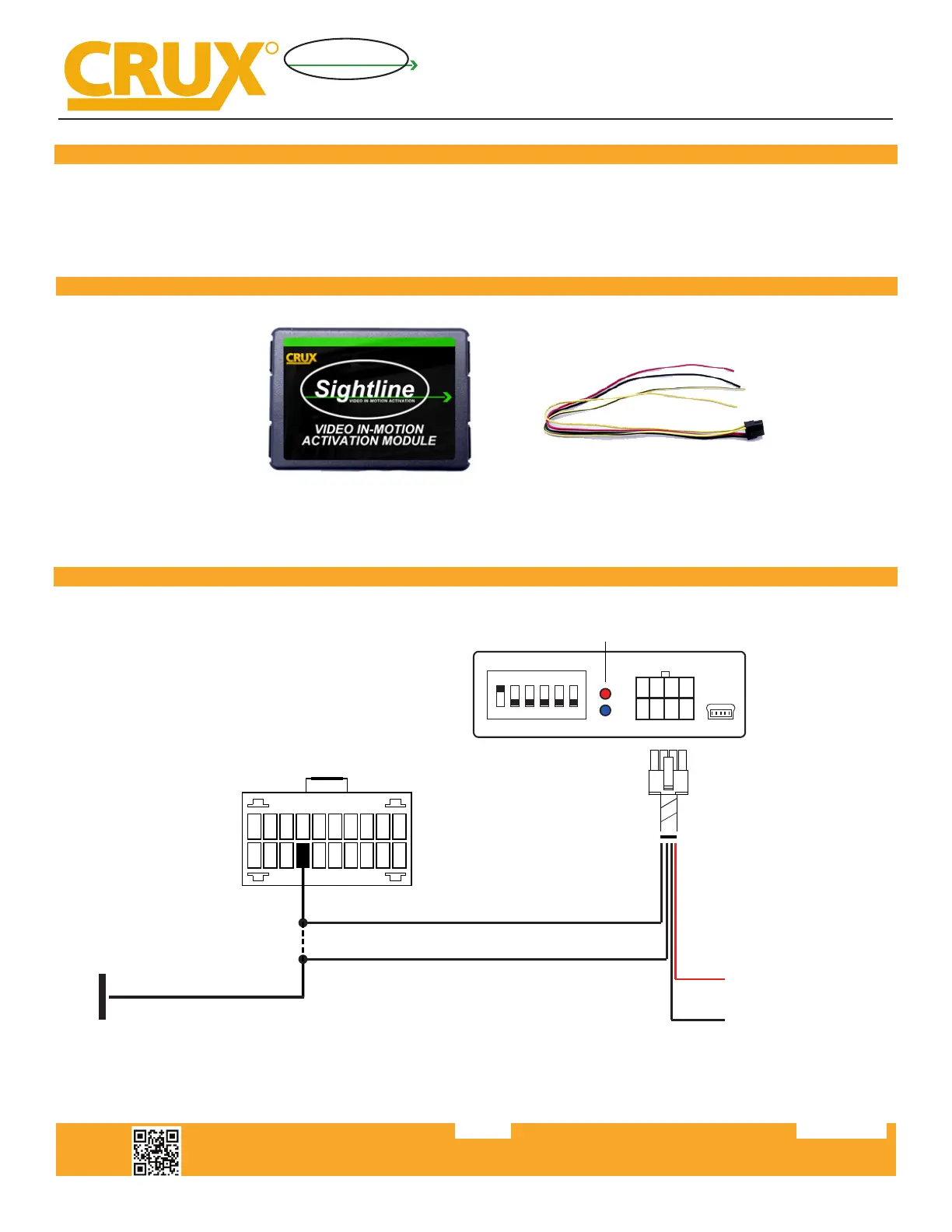

VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
1 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
- Unlocks functionality of the factory-installed Radio Screen for passenger access at any time.
- Designed for OEM equipment only.
PRODUCT FEATURES:
PARTS INCLUDED:
VIMGM-94M Module VIMGM-94M Harness
INSTALLATION DIAGRAM:
8-PIN
(male plug)
4 5 6
ON
1 2 3
STATUS LED’S
CAR SIDE
CUT WIRE YELLOW/BLACK /CAR SIDE
YELLOW /RADIO SIDE
RED 12V ACC
BLACK /GROUND
CUT THE WIRE ON PIN 14
TO INTERCEPT THE DATA
WIRE VIEW
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.030320
2 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
INSTALLATION INSTRUCTIONS:
Remove the RADIO panel to gain access to the factory 20-PIN Harnesses. You will need to locate the CAN wire
on the vehicle. The Installaon Overview on page 1 will give you details on how to connect.
Using the provided 8-Pin harness, you will need to connect the DATA wire from the vehicle harness to the
module. The CAN wire is located on the factory tuners 20-pin connector. The tuner is located below or behind
the factory screen.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0303203 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
Cut the data wire on pin 14 of the 20-pin connector of the vehicle harness and connect it to the YELLOW and
YELLOW/BLACK wires on the VIMGM-94M harness. See chart below for wire descripons. Note that the wire
color on pin 14 may vary. Make sure the connecons are solid to ensure proper data transfer. We recommend
soldering the connecons and applying heatshrink.
Loose wires on VIMGM-94M harness:
RED = 12V ACC
BLACK = Ground
YELLOW = Data Output (To Radio)
YELLOW/BLACK = Data Input (From Car)
8-PIN
(male plug)
CAR SIDE
CUT WIRE YELLOW/BLACK /CAR SIDE
YELLOW /RADIO SIDE
RED 12V ACC
BLACK /GROUND
CUT THE WIRE ON PIN 14
TO INTERCEPT THE DATA
WIRE VIEW
Tap power for the module from the GREEN 16-pin connector located next to the GRAY 20-pin connector.
RED = 12V ACC / BLACK = GROUND (Use a volt meter to conrm)
