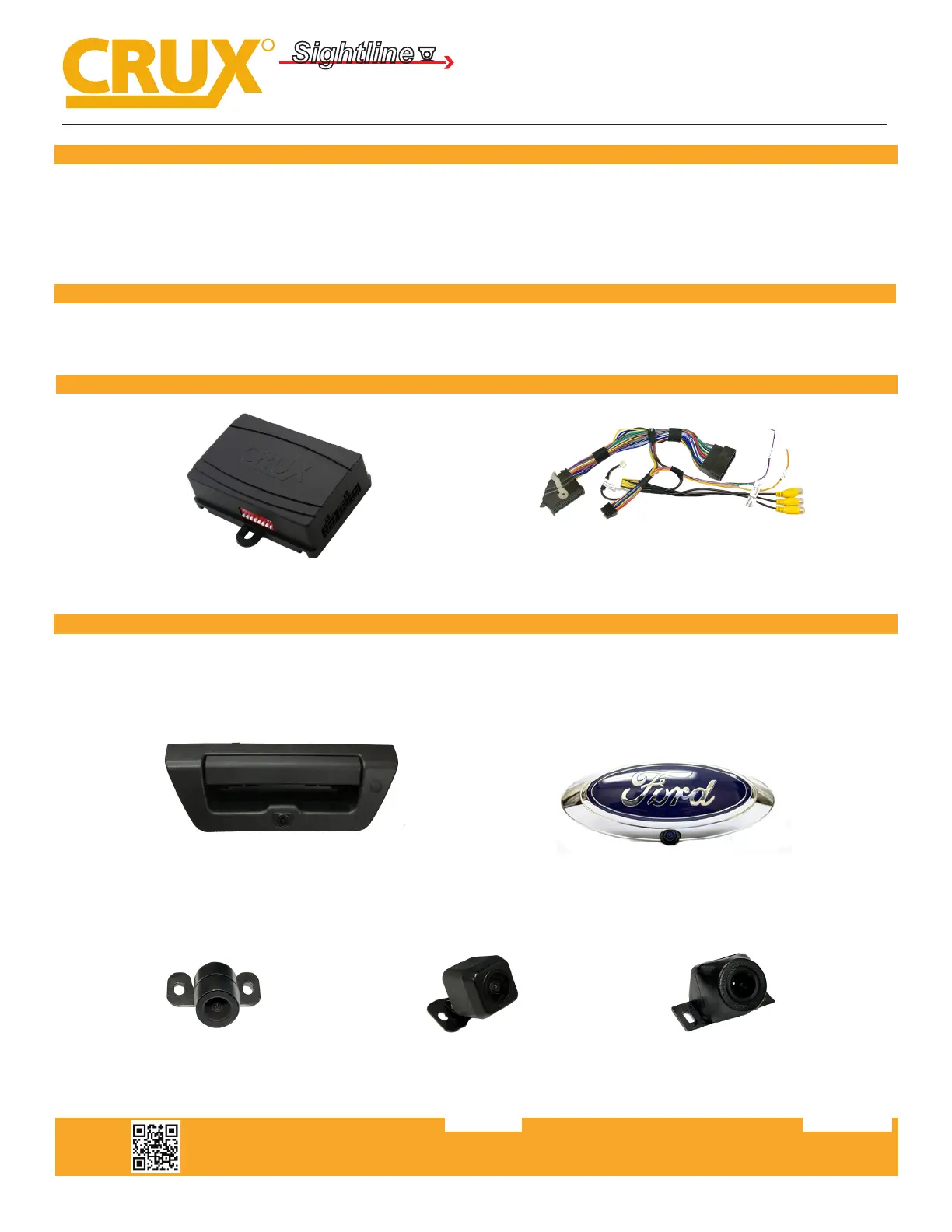

Side 1/4
CFD-15KL Tailgate Handle Camera CFD-03E Emblem Camera
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
- Adds front and aermarket backup camera inputs.
- Adds an extra video input.
- Uses the steering wheel control buons to toggle between the sources.
PRODUCT FEATURES:
PARTS INCLUDED:
VRFFD-79D Module VRFFD-79D Harness
OPTIONAL ADD-ON CAMERAS:
Oponal aermarket add on cameras are available for the VRFFD-79D. Cameras available and sold separately
include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front Camera
(Recommended)
CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 4 rev.12032021
NOTE:
Please use with RVCFD-79O (sold separately) if there is no factory backup camera present.
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
Front Camera Input
Aftermarket Backup Camera Input
Video Input
Front and Rear Camera Power Output +12V (purple/white)
Video Input Power Output +12V (orange/white)
To Vehicle Harness
Connect this 6-pin plug if OEM
backup camera is being used
To Radio
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 4
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3 Set to OFF
4 Set to OFF
5Video Input ON Video Input OFF
6 Set to OFF
7 Set to OFF
8 Set to ON
rev.12032021
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
VRFFD-79D module installaon: (Note: Sample installaon is with a 4” screen radio. Installaon is similar with an 8” screen.
1. Li the rubber mat on the dashboard upper tray and
remove the 2 screws.
2. Remove the tray and remove the 2 screws holding the
radio bezel.
3. Carefully pull out the radio bezel. This is held by mulple
clips.
4. Remove the radio, unplug the connector and plug it
into the VRFFD-79D T-harness. Plug the other end of the
T-harness to the radio.
5. Install the cameras and run the video and power cables
towards the radio. Make the video and power connecons.
The VRFFD-79D provides +12V power to the cameras.
6. Plug the white, 18-pin connector of the T-harness to the
VRFFD-79D module. Set the DIP switches according to the
chart on page 2.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 4 rev.12032021
