Side 1/34
Version 2.02
ANT24-Series
ANT70-Series
D-Link Antenna Kits
Users Guide
2

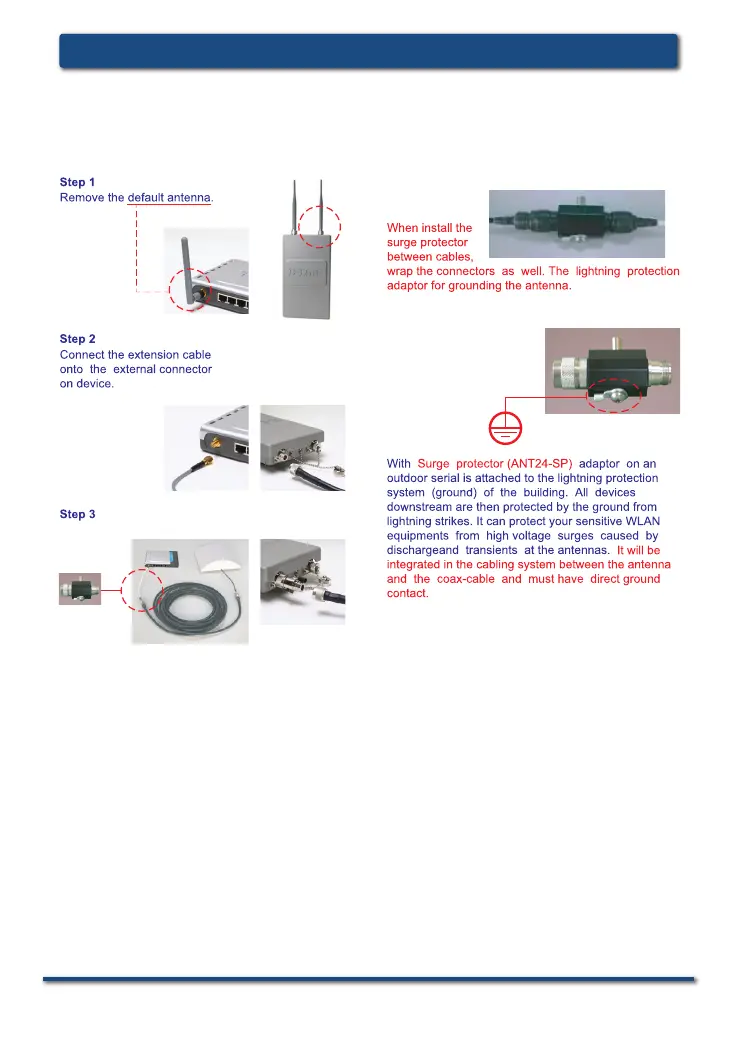

D-Link Antenna-kit Installation Guide
Installation
(If needed)
Install the surge protector. (You can install with
optional ANT24 series low loss cables)
Note:
/antenna
3
ents
Installation
D-Link Antenna-kit Installation Guide
ANT24-SP Surge protector
Installation guide
for outdoor antenna-kit
Step 1
loosen the screw from the surge protector.
Step 2
get a normal conductive copper wire with 2 sides stripped long enough to be conductive,
these wires can lead high voltage surges into the grounding.
Remark:
(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.
(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher
voltage it can sustain.
Option (1) Option (2)
Ground
Step 3
find a conductive material nearby the antenna installation sites, connect another end of the wire
into position, there are several options:
(1) Use a long screw to stick into the ground tightly, connect another wire onto.
(2) fix or solder another end of wire onto a steel material/ bar under steel construction,
such as wall for buildings, railings or other conductive materials which set up from
the ground.
