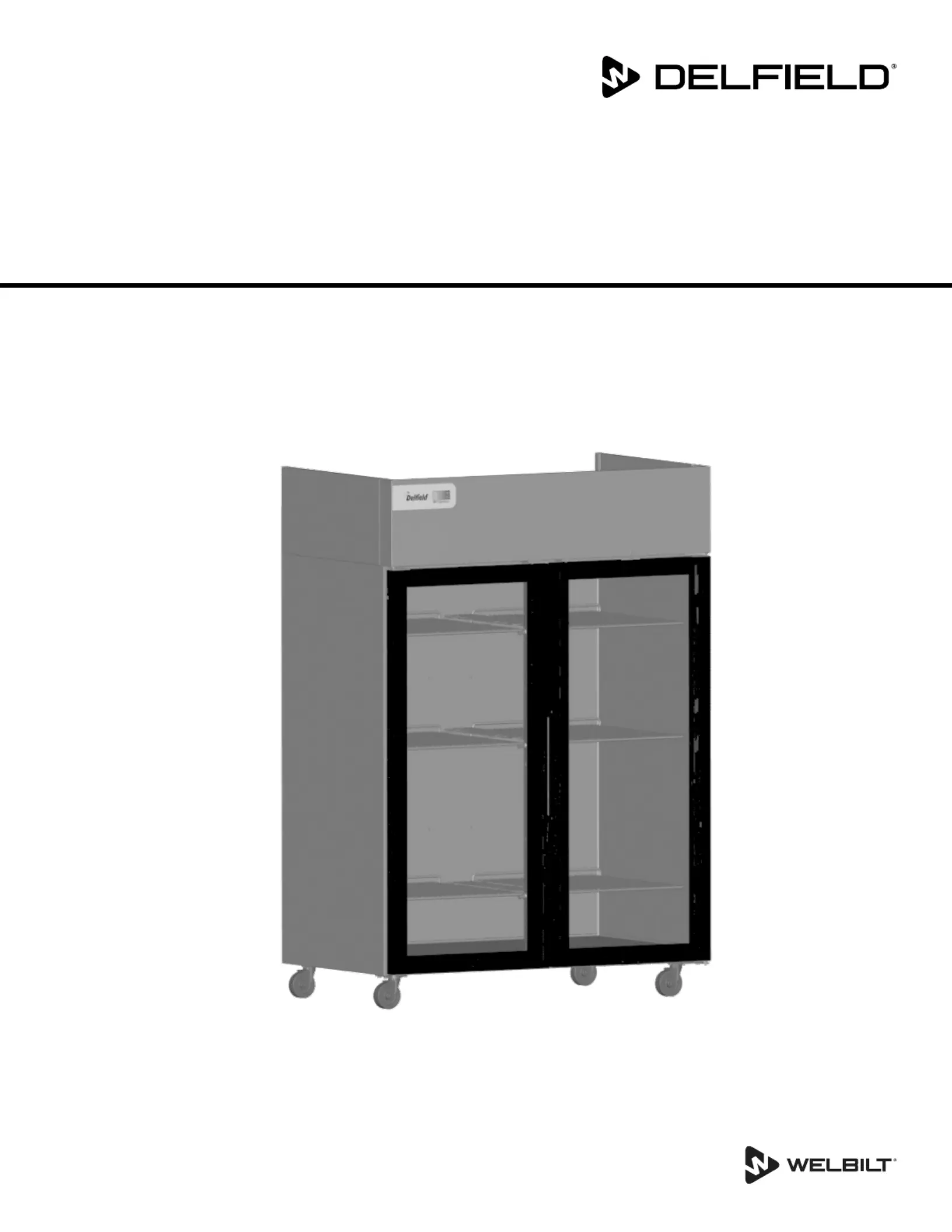

Series GC, GB & GBS Reach-Ins

CoolScapes™

Original Instructions

Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: 9294839 10/17

Safety Notices

nWarning

Read this manual thoroughly before operating, installing

or performing maintenance on the equipment. Failure

to follow instructions in this manual can cause property

damage, injury or death.

DANGER

Do not install or operate equipment that has been

misused, abused, neglected, damaged, or altered/

modified from that of original manufactured

specifications.

DANGER

Keep power cord AWAY from HEATED surfaces. DO NOT

immerse power cord or plug in water. DO NOT let power

cord hang over edge of table or counter.

DANGER

All utility connections and fixtures must be maintained

in accordance with Local and national codes.

nWarning

Authorized Service Representatives are obligated to

follow industry standard safety procedures, including,

but not limited to, local/national regulations for

disconnection / lock out / tag out procedures for all

utilities including electric, gas, water and steam.

nWarning

Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

Never use flammable oil soaked cloths or combustible

cleaning solutions, for cleaning.

nWarning

This product contains chemicals known to the State

of California to cause cancer and/or birth defects or

other reproductive harm. Operation, installation, and

servicing of this product could expose you to airborne

particles of glasswool or ceramic fibers, crystalline

silica, and/or carbon monoxide. Inhalation of airborne

particles of glasswool or ceramic fibers is known to the

State of California to cause cancer. Inhalation of carbon

monoxide is known to the State of California to cause

birth defects or other reproductive harm.

nWarning

Do not use electrical appliances or accessories other

than those supplied by the manufacturer.

nWarning

Use caution when handling metal surface edges of all

equipment.

nWarning

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

concerning use of the appliance by a person responsible

for their safety. Do not allow children to play with this

appliance.

,Caution

Use caution handling, moving and use of the R290

refrigerators to avoid either damaging the refrigerant

tubing or increasing the risk of a leak. Components

shall be replaced with like components. Servicing shall

be done by a factory authorized service personnel to

minimize the risk of possible ignition due to incorrect

parts or improper service.

Notice

Proper installation, care and maintenance are

essential for maximum performance and trouble-free

operation of your equipment. Visit our website www.

mtwkitchencare.com for manual updates, translations,

or contact information for service agents in your area.

Part Number: 9294839 10/17 3

Section 1

General Information

Model Numbers 5 ..................................................................................................................

Serial Number Information 5 ...............................................................................................

Warranty Information 5 ........................................................................................................

Regulatory Certifications 5 ..................................................................................................

Section 2

Installation

Location 7 ..............................................................................................................................

Weight of Equipment 8 .........................................................................................................

Clearance Requirements 8 ....................................................................................................

Drain Connections 8 ..............................................................................................................

Dimensions 9 .........................................................................................................................

Electrical Service 10 ..............................................................................................................

Refrigeration 11 ....................................................................................................................

Leveling 12 .............................................................................................................................

Stabilizing 12 .........................................................................................................................

Leg & Caster Installation 12 ..................................................................................................

Shelf Installation 13 ..............................................................................................................

Applicable to GC Models 13 ..................................................................................................................

Applicable to GB Models 13 ..................................................................................................................

Reversible Full Door Instructions 14 ....................................................................................

New top Hinge Supplied with GB Models 14 ..................................................................................

GC Alternate Hinge Must Be Purchased 14 ......................................................................................

Reversible Half Door Instructions 15 ...................................................................................

New Top and Center Hinges Must Be Purchased 15 .....................................................................

Pilaster Clip Kit Installation Instructions 17 ........................................................................

Applicable to GC Models 17 ..................................................................................................................

New Bottom Hinge Cartridge Installation 18 ......................................................................

T-1 Tray Slide Installation 19 ................................................................................................

T-2 Tray Slide Installation 20 ................................................................................................

T-3 Tray Slide Installation 21 ................................................................................................

T-4 Rack Slide Installation 22 ...............................................................................................

Section 3

Operation

R290 Controls/Programming/Settings 23 ...........................................................................

R290 Temperature Control & Display 24 ...........................................................................................

R290 Evaporator Fan Operation 25 .....................................................................................................

R290 Changing Display from Fahrenheit to Celsius on ERC112 Control 26 .........................

Section 4

Maintenance

Cleaning and Sanitizing Procedures 27 ...............................................................................

General 27 ....................................................................................................................................................

Interior Cleaning 28 ..................................................................................................................................

Exterior Cleaning 28 .................................................................................................................................

Drain 29 .........................................................................................................................................................

Cleaning the Condenser Coil 29 ..........................................................................................................

Casters 29 .....................................................................................................................................................

Doors/Hinges 29 ........................................................................................................................................

Preventing Blower Coil Corrosion 29 .................................................................................................
