Side 1/12

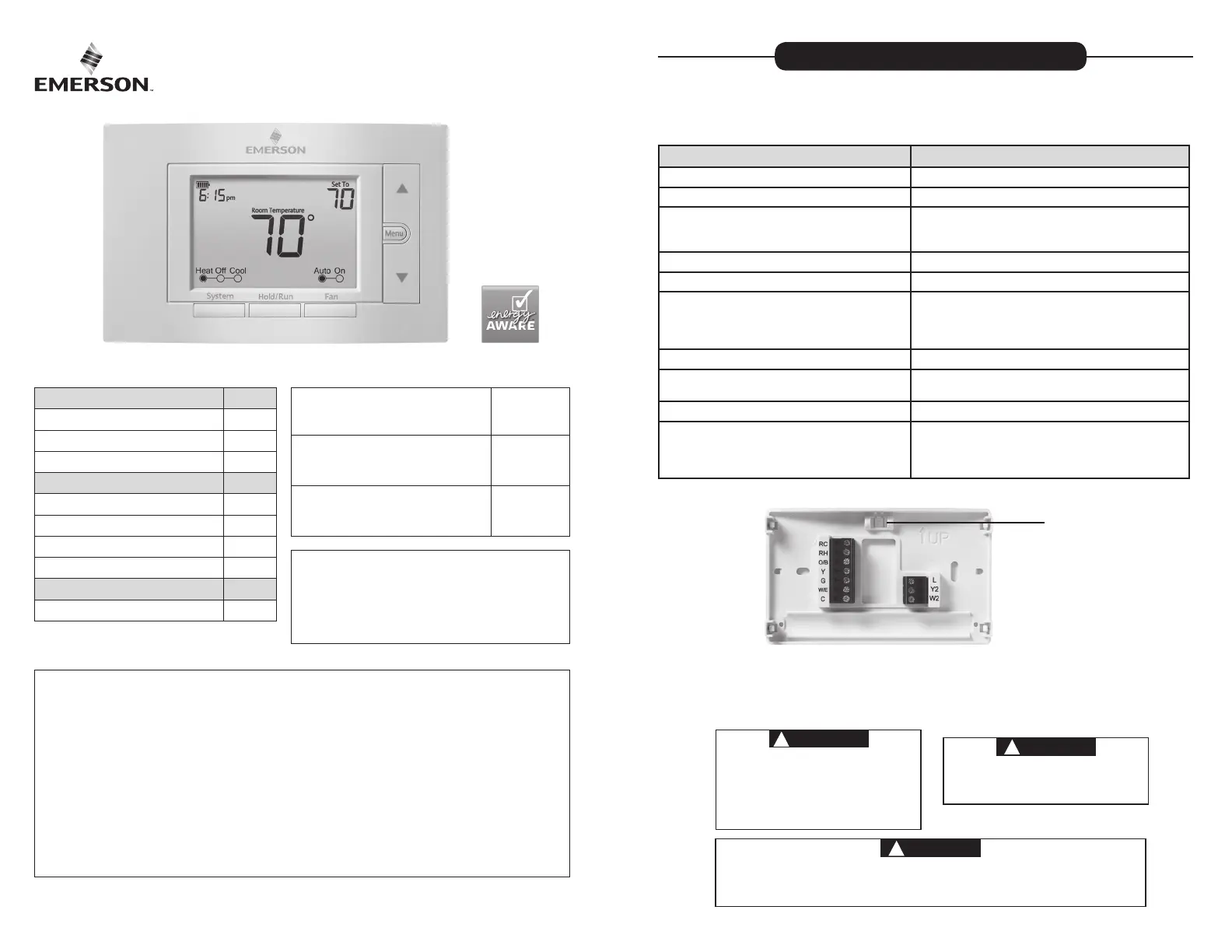

PART NO. 37-7554B-EN
1535
1F85U-42PR (Programmable)
Installation and Operating Instructions
80 SeriesTM Universal Thermostat
Battery Powered or Hardwired with Common
white-rodgers.com
emersonclimate.com
Thermostat Applications
Maximum
Stages
Heat/ Cool
Conventional Gas, Oil, Electric
(mV and V), Heat only, Cool only or 24
Heat/Cool Systems
2/2
Heat Pump (Air Source or Geothermal)
with Aux. Heat 4/2
Thermostat Installation 2-4
Wiring 2
Installer Menu 3-4
Test Equipment 4
Using the Thermostat 5-7
Thermostat Overview 5
User Menu 6
Thermostat Operation 6
Thermostat Schedule 7
Troubleshooting 7-8
Homeowner Help Line 8
INDEX
MERCURY NOTICE: This product does not contain
mercury. However, this product may replace a product
that contains mercury. Mercury and products containing
mercury must not be discarded in household trash.
Refer to www.thermostat-recycle.org for information
on disposing of products containing mercury.
Electrical Rating:
Battery Power to VAC, NEC Class II, Hz ..................................... mV 30 50/60
Input-Hardwire to VAC, NEC Class II, / Hz .................................... 20 30 50 60
Terminal Load A per terminal, A maximum all terminals combined .......................................... 1.5 2.5
Setpoint Range to F ( to ........................................ 45° 99° 7° 37° C)
Rated Dierentials (@ 6°F/ Hr): Fast Med Slow
Heat (Conventional Gas / Oil / Elect) ..... 0.5°F 0.75°F 1.9°F
Cool (Central Air) ................................. .0 9°F 1.2°F 1.7°F
Heat Pump (Heat and Cool) . ................ 0 9°F 1.2°F 1.7°F
Heat Pump Aux. .................................. 0.5°F 0.75°F 1.9°F
Operating Ambient .................................. 32°F to +105°F (0° to +41°C)
Display Temperature Range 32°F to +99°F (0 to 37°C) .......................
Operating Humidity % non-condensing maximum ................................. 90
Shipping Temperature Range ................... °F to + °F-20 150 (-29° to +65°C)
Thermostat Dimensions ........................... 3-3/4” H x 6” W x 1-1/8” D
SPECIFICATIONS
Optional Accessory: Wall Cover-Up Plate ” W x F61-2663 6-3/4, 4-1/2” H
Terminal Designations Terminal Function
RC Power (24V) - Cooling
RH Power ( V) - Heating 24
O/B
6 (not shown) - wire zone valve3
Reversing Valve or output for wire zone valves 3
Congurable as “O” or “B” Reversing Valve or 3 wire
zone heat (power close)
Y1st Stage Compressor
G Fan Relay
W/E
1st Stage Heat (conventional);
1st Stage Auxiliary Heat (heat pump)
Can operate as Emergency Heat only
(See Installer Menu #15)
C Common wire for (optional with batteries)24V
LHeat Pump Malfunction / Diagnostic terminal
(input signal requires common)
Y2 2nd Stage compressor
W2
2nd Stage Heat (Conventional)
2nd Stage Auxiliary Heat (Heat Pump)
Can operate as 1st Stage Auxiliary Heat
(See Installer Menu # )15
WIRING
Refer to equipment manufacturer’s instructions for specic system wiring information. After wiring, see
INSTALLER MENU for proper thermostat conguration. Wiring table shown are for typical systems and
describe the thermostat terminal functions. Wiring will change when dedicated emergency heat is on
(See Installer menu # 15).
THERMOSTAT INSTALLATION
Precautions
• Do not exceed the specication ratings.
• All wiring must conform to local and national electrical codes and ordinances.
• This control is a precision instrument, and should be handled carefully. Rough handing or
distorting components could cause the control to malfunction.
WARNING
!
Do not use on circuits exceeding specied voltage.
Higher voltage will damage control and could
cause shock or re hazard.
Do not short out terminals on gas valve or primary
control to test. Short or incorrect wiring will burn
out thermostat and could cause personal injury
and/or property damage.
CAUTION
!
To prevent electrical shock and/or equipment
damage, disconnect electrical power to system,
at main fuse or circuit breaker box,until
installation is complete.
Leveling Thermostat
Leveling is for appearance only and
will not aect thermostat operation.
CAUTION
!
To prevent compressor and/or property damage, if the outdoor temperature is below 50°F,
DO NOT operate the cooling system.
Do not allow the compressor to run unless the compressor oil heaters have been operational
for hours and the system has not been operational for at least minutes.6 5 2
3

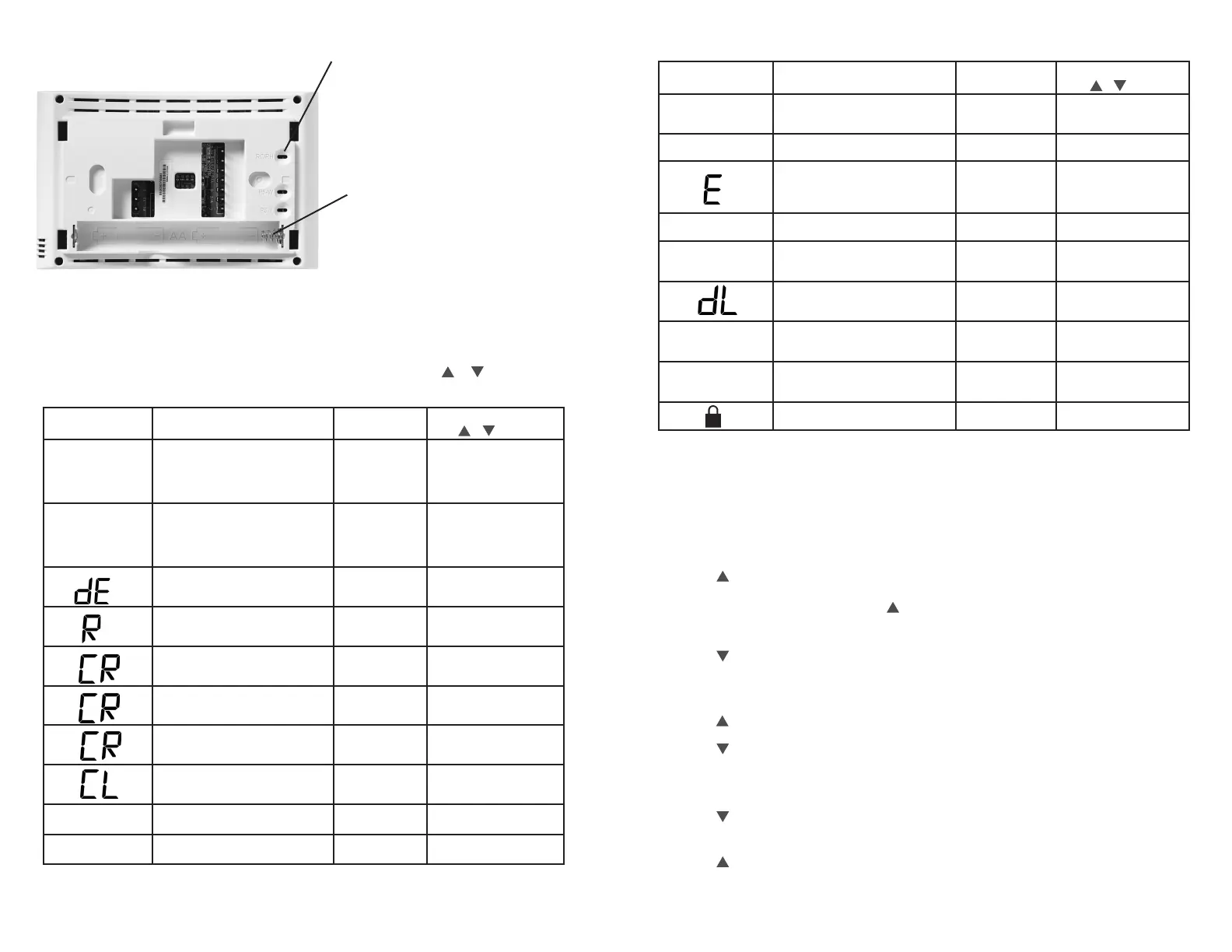

INSTALLER MENU
To prevent changes that may aect system performance, this thermostat has an INSTALLER
MENU and a USER MENU. The INSTALLER MENU provides access to every option, while the
USER MENU provides access to items that will not aect system performance. To access the
INSTALLER MENU press the button for 8 seconds. The display will show item in the Menu 05
table below. Use Next Backand to navigate through menu items. Press or to change a
menu setting.
Installer Menu #
(Hold Menu 8 Seconds) Description Default Setting
(ashing icons)
Settings
(Press or )
05
Outdoor Equipment: selects air
conditioner (AC) or heat pump (HP)
equipment as well as the number of
stage
AC2
AC0
AC1
AC2
HP1
HP2
10 Indoor Equipment: selects whether
the equipment is a gas furnace, elec-
tric furnace or fan only
EL2
FAN
GA1
GA2
EL1
EL2
15 Dedicated Emergency: W/E only
operates in Emergency Aux mode. W2
becomes 1st stage Aux. Heat
OFF On
OFF
20 O,B or 3 Wire Zone Valve Selection O
O
B
3
30 Heat Cycle Rate: how often
the heat will turn on MEd
SLO – slow
MEd – medium
FAS – fast
32 Aux Cycle Rate: how often the
auxiliary heat will turn on MEd
SLO – slow
MEd – medium
FAS – fast
35 Cool Cycle Rate: how often
the cooling will turn on MEd
SLO – slow
MEd – medium
FAS – fast
50 Compressor Lockout:
protects the compressor
from short cycling
OFF On – minute delay 5
OFF – no delay
65 Max Heat Limit: maximum set point
for heat mode 99 47 to 99
66 Minimum Cool Limit: minimum set
point for cool mode 45 45 97to
RC/RH Jumper Wire
This thermostat electrically connects
the RC and RH terminals so a jumper
wire is not required. If the application
provides a separate wire for RC and
RH, clip the RC/RH jumper. This will
isolate both terminals so they can be
independently used.
Baery Locaon
Premium AA alkaline batteries are
required when C-wire is not available.
When C-wire is available, the batteries
provide a back-up source of power
(this will maintain the clock in the
event of a power outage).
(Installer Menu continued on next page)
4
TEST EQUIPMENT Turn on power to the system.
Fan Operation
If your system does not have a G terminal connection, skip to . Heating System
1.) Press the fan button to select the On position. The blower should begin to operate.
2.) Press the fan button to select the Auto position. The blower should stop immediately.
Heating System
1.) Press the button to select the position. Heat Pumps only - if the auxiliary System Heat
heating system has a standing pilot, be sure to light it.
2.) 1° Press to adjust thermostat setting to above room temperature. The heating system
should begin to operate and the thermostat will indicate . Heat On
3.) For heat pump with auxiliary- 3° above room Press to adjust thermostat setting to
temperature. The auxiliary heat should begin to operate and the thermostat will indicate
Heat On Aux.
4.) 1° Press to adjust thermostat setting below room temperature. The heating system
should stop operating and the icon will disappear.Heat On
Auxiliary System ( only for heat pumps with auxiliary)
1.) Press the system button to select the position. Aux
2.) Press to adjust thermostat setting to above room temperature. The auxiliary heating 1°
system should begin to operate and the thermostat will indicate Heat On Aux.
3.) 1° Press to adjust thermostat setting below room temperature. The auxiliary heating
system should stop operating and the icon will disappear.Heat On Aux
Cooling System
1.) Press the system button to select the position. Cool
2.) 1° Press to adjust thermostat setting below room temperature. The blower should
come on immediately on high speed, followed by cold air circulation. The thermostat will
indicate There can be up to a minute delay. (see INSTALLER MENU, item Cool On. 5 50)
3.) 1° Press to adjust thermostat setting to above room temperature. The cooling system
should stop operating and the icon will disappear.Cool On
Installer’s Menu #
(Hold Menu 8 Seconds) Description Default Setting
(ashing icons)
Settings
(Press or )
74 Schedule Type: set as either -Day, 7
5-1-1 Day or Non-Programmable 5
7 – 7 Day
5 – 5-1-1 Day
0 – Non Programmable
75 Denes periods per day 42 -leave, return
4 -wake, leave, return, sleep
76
Early Start: starts heating or
cooling early so your programmed
temperature is reached by the
programmed time
OFF
On – start early
OFF – start at program
period time
79 Fahrenheit or Celsius °F °F – Fahrenheit
°C – Celsius
81
Temperature Display Adjustment:
adjust the displayed “Room
Temperature”
0 -5 to +5
83 Continuous Display Light: keep
the backlight always on – “C” wire
required
OFF On – always on
OFF – momentarily
86 Change Air Filter: set up a monthly
reminder OFF
1 to 12 – reminder time
(months)
OFF – no lter reminder
88 Auto Changeover: thermostat
automatically switches between
heat and cool.
OFF On – enable auto
OFF – disable auto
99 Keypad Lock: prevent unwanted
changes to the thermostat OFF On – disable buttons
OFF – all buttons are active
INSTALLER MENU (C0ntinued)
Note: If is shown on the display, the compressor lockout feature is operating. There will Starting Soon
be up to a minute delay before the compressor turns on (see INSTALLER MENU, item ).5 50
5

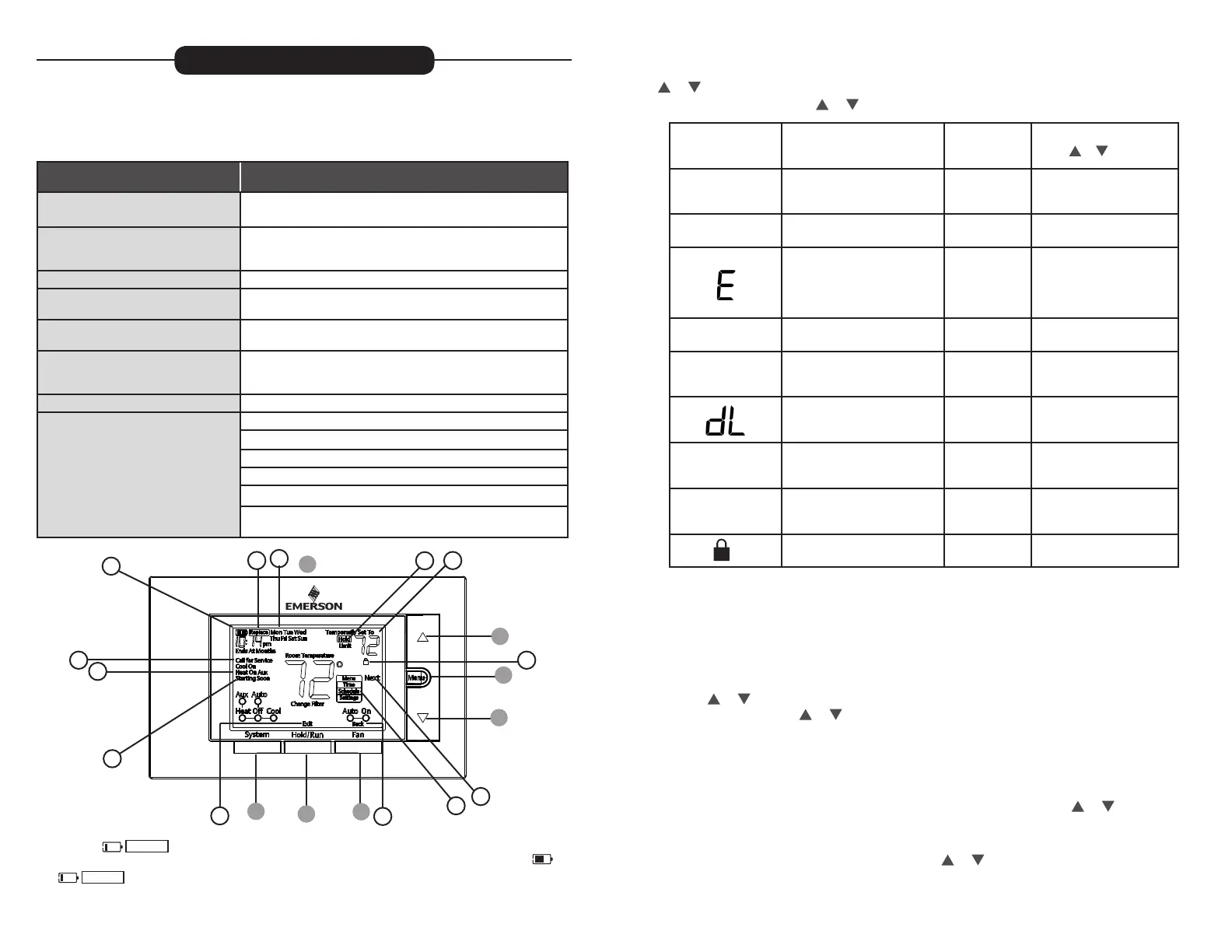

THERMOSTAT OVERVIEW
Before you begin using your thermostat, you should be familiar with its features, display and
the location/operation of the thermostat buttons and switches.
THERMOSTAT BUTTONS
AND SWITCHES THE DISPLAY
1. 8.)) Fan Button is used to navigate within a menuNext (Menu button)
2.) Hold a permanent temperature or
press again to cancel hold (return to
programmed schedule)
9.) Set the correct time, access the schedule and customize
thermostat settings.
3.) System Button is used to navigate within a menu 10.) Back (Fan button)
4.) Backlight Button (located on the top
of the thermostat)
11.) Exit (Hold/Run button) returns to the home screen
5.) Raises Temperature Setting 12.) Thermostat is protecting the equipment from short cycling
( minute delay)5-
6 13.).) Access Menu Options Indicates that the system is running in Cool, Heat or Auxiliary
mode. (Heat Pump Only -The auxiliary will run in Heat mode
when the heat pump cannot maintain the set temperature.)
7.) Lowers Temperature Setting 14.) SEE TROUBLESHOOTING
15.) Battery status indicator
16.) Replace battery indicator
17.) Day of the week used when programming a schedule
18.) Permanent hold (bypassing the schedule)
19.) Temperature setpoint
20.) Appears when the keypad is locked (to prevent unwanted
changes)
USING THE THERMOSTAT
1
2
3
4
5
6
7
8
9
11
12
13
14
15 16 17 18 19
20
10
“ Replace ” appears in the display, new premium brand AA alkaline batteries
should be installed. If the house will be unoccupied for an extended period and either “ ”
or “ Replace ” is displayed, install new batteries before leaving.
Whenever
6
USER MENU
To customize thermostat settings, press the button from the home screen. Use the Menu
or buttons to highlight and press and to navigate Settings Next. Use Next Back
through menu items. Press or to change the setting.
User’s Menu #
(Press Menu button
and release)
Description Default Setting
(ashing icons)
Settings
(Press or )
01 Schedule Type: set as either
7-Day, 5-1-1 Day or Non
Programmable
5
7 – 7 Day
5 – 5-1-1 Day
0 – Non-Programmable
02 Denes periods per day 42 - leave, return
4 - wake, leave, return, sleep
03
Early Start: starts heating
or cooling early so your
programmed temperature is
reached by the programmed
time
OFF
On – start early
OFF – start at program
period time
04 Fahrenheit or Celsius °F °F – Fahrenheit
°C – Celsius
05
Temperature Display
Adjustment: adjust the Room
Temperature)
0 -5 +5 to
06 Continuous Display Light:
keep the backlight always on –
“C” wire required
OFF On – always on
OFF – momentarily
07 Change Air Filter: set up a
monthly reminder OFF
1 12to – reminder time
(months)
OFF – no lter reminder
08
Auto-Changeover: thermostat
automatically switches between
heat and cool
OFF On - enable auto
OFF - disable auto
09 Keypad Lock: prevent unwant-
ed changes to the thermostat OFF On – disable buttons
OFF – all buttons are active
THERMOSTAT OPERATION
Set Current Time and Day
Note: Time icons will ash at initial power up or after a reset.
1.) Press Menu
2.) The time icon will be ashing, Press Next to advance and set the time
3.) Use or to set the correct time
4.) Press Next and use or to set the correct day
5.) Press Exit when nished.
The default program is , but can be setup as a or 5-1-1 Day 7-Day Non-Programmable
thermostat (refer to the above) User Menu
• Hold Temperature (bypassing the schedule) – With the set to or , System Heat Cool
momentarily press the button. will be displayed. Use or to adjust the Hold/Run Hold
temperature. The thermostat will hold the room temperature at the selected setting until
you press again to start program operation (cancels permanent Hold).Hold/Run
• Program Override (Temporary Hold) – Press or until the desired temperature is
displayed. The thermostat will override the schedule until the next programmed time
period with a minimum override of hours. Then the thermostat will automatically revert 2
to the program.
Produkspesifikasjoner
| Merke: | Emerson |
| Kategori: | Termostat |
| Modell: | 1F85U-42PR |
Trenger du hjelp?
Hvis du trenger hjelp med Emerson 1F85U-42PR still et spørsmål nedenfor, og andre brukere vil svare deg
Termostat Emerson Manualer
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
18 Oktober 2024
Termostat Manualer
- Termostat ORNO
- Termostat Bosch
- Termostat Boneco
- Termostat Siemens
- Termostat EBERLE
- Termostat Schwaiger
- Termostat AEG
- Termostat TP Link
- Termostat Oreg
- Termostat Netatmo
- Termostat Busch-Jaeger
- Termostat Brennenstuhl
- Termostat Danfoss
- Termostat Somfy
- Termostat Panasonic
- Termostat Schneider
- Termostat EMOS
- Termostat Heatit
- Termostat Dimplex
- Termostat Velleman
- Termostat GE
- Termostat Nexa
- Termostat Nobo
- Termostat Tru Components
- Termostat Bearware
- Termostat Elgato
- Termostat Avidsen
- Termostat STI
- Termostat Hunter
- Termostat Basetech
- Termostat TFA
- Termostat Tesla
- Termostat Renkforce
- Termostat REMKO
- Termostat ATAG
- Termostat Drayton
- Termostat Jung
- Termostat Ambiano
- Termostat Crestron
- Termostat Xavax
- Termostat Techno Line
- Termostat Remeha
- Termostat Heatmiser
- Termostat Wolf
- Termostat GENERAL Life
- Termostat Silvercrest
- Termostat AVM
- Termostat HomePilot
- Termostat Elektrobock
- Termostat Corberó
- Termostat Perel
- Termostat Delta Dore
- Termostat Homematic IP
- Termostat Vimar
- Termostat Salus
- Termostat Fenix
- Termostat Honeywell
- Termostat Junkers
- Termostat Eliwell
- Termostat Grasslin
- Termostat Jumo
- Termostat Enda
- Termostat Orbis
- Termostat Fantini Cosmi
- Termostat Vemer
- Termostat Qubino
- Termostat Theben
- Termostat EQ3
- Termostat Etherma
- Termostat Saunier Duval
- Termostat Gewiss
- Termostat Viessmann
- Termostat Bticino
- Termostat Conrad
- Termostat Econo-Heat
- Termostat Elro
- Termostat Gira
- Termostat Tado
- Termostat Brink
- Termostat Emmeti
- Termostat Itho
- Termostat Bryant
- Termostat Aube
- Termostat Baxi
- Termostat Seitron
- Termostat Amfra
- Termostat Vaillant
- Termostat Carel
- Termostat Buderus
- Termostat Optima
- Termostat Frico
- Termostat UPM
- Termostat Computherm
- Termostat Veria
- Termostat Innogy
- Termostat Nefit
- Termostat ICY
- Termostat Levica
- Termostat Itho-Daalderop
- Termostat Carrier
- Termostat Radson
- Termostat ChiliTec
- Termostat King
- Termostat ACV
- Termostat Landis Gyr
- Termostat Nest
- Termostat Oventrop
- Termostat IMIT
- Termostat Horstmann
- Termostat ELKO
- Termostat Alecto
- Termostat Google
- Termostat Emko
- Termostat Wachendorff
- Termostat MundoControl
- Termostat Otio
- Termostat Rose LM
- Termostat Tylö
- Termostat Sinustec
- Termostat TrickleStar
- Termostat Finder
- Termostat Sygonix
- Termostat Warmup
- Termostat Plugwise
- Termostat Lowes
- Termostat Go Green
- Termostat Drayton Erie
- Termostat Intertechno
- Termostat EQ-3
- Termostat Johnson Control
- Termostat RWE
- Termostat Webasto
- Termostat Tellur
- Termostat OJ ELECTRONICS
- Termostat Zehnder
- Termostat Plieger
- Termostat HomeMatic
- Termostat Eneco
- Termostat VDH
- Termostat Maico
- Termostat Yokis
- Termostat Eurotronic
- Termostat HQ
- Termostat Ouellet
- Termostat THERMAFLEX
- Termostat Truma
- Termostat Wallair
- Termostat AWB
- Termostat PECO
- Termostat Worcester-Bosch
- Termostat 2Heat
- Termostat EasyTemp
- Termostat Hugo Muller
- Termostat Watts
- Termostat Westfalia
- Termostat Oregon Scientific
- Termostat H-Tronic
- Termostat Z-Wave
- Termostat Easy Timer
- Termostat Fibaro
- Termostat SPC
- Termostat Muller
- Termostat Bulex
- Termostat Helios (Amfra)
- Termostat IR-V
- Termostat Eqiva
- Termostat Hager
- Termostat Energenie
- Termostat Thermy
- Termostat Ferroli
- Termostat Niko
- Termostat Stiebel Eltron
- Termostat De Dietrich
- Termostat POER
- Termostat Technoline
- Termostat Magnum
- Termostat Cotech
- Termostat Hornbach
Nyeste Termostat Manualer
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
27 Oktober 2024
