USER’S MANUAL
SMOKE & CARBON MONOXIDE ALARM
AC POWERED WITH VOICE & LOCATION
Model SMCO100V-AC
IMPORTANT! PLEASE READ CAREFULLY AND SAVE.
The warnings/limitations card and manual contains important
information about your Smoke Alarm’s operation. If you are
installing this Alarm for use by others, you must leave this
manual—or a copy of it—with the end user.
Para el manual del usuario en español, por favor
visite rstalert.com
DANGER!
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Smoke Alarm is
installed before removing it from the mounting bracket. Failure to turn off the power
rst may result in serious electrical shock, injury or death.
! WARNING!
• This unit will not alert hearing impaired residents.
• It is recommended that you install special units which use devices like ashing strobe
lights to alert hearing impaired residents.
• Installation of this unit must conform to the electrical codes in your area; Articles 210
and 300.3 (B) of NFPA 70 (NEC), NFPA 72, NFPA 101; SBC (SBCCI); UBC (ICBO); NBC
(BOCA); OTFDC (CABO), and any other local or building codes that may apply. Wiring and
installation must be performed by a licensed electrician. Failure to follow these guidelines
may result in injury or property damage.
• This unit must be powered by a 24-hour, 120VAC pure sine wave 60Hz circuit. Be sure the
circuit cannot be turned off by a switch, dimmer, or ground fault circuit interrupter. Failure
to connect this unit to a 24-hour circuit may prevent it from providing constant protection.
• This Alarm must have AC or battery power to operate.
• If the AC power fails, battery back-up will allow the alarm to sound for at least 4 minutes.
If AC power fails and the battery is weak, protection should last for at least 7 days.
• If AC power fails and the battery is dead or missing, the alarm cannot operate.
• Never disconnect the power from an AC powered unit to stop an unwanted alarm. Doing
so will disable the unit and remove your protection. In the case of a true unwanted alarm
open a window or fan the smoke away from the unit.
• The alarm will reset automatically when it returns to normal operation. Never remove
the batteries from a battery operated unit to stop an unwanted alarm (caused by cooking
smoke, etc.). Instead open a window or fan the smoke away from the unit. The alarm will
reset automatically.
! CAUTION!
• Connect this unit ONLY to other compatible units. See “How To Install This Smoke Alarm”
for details. Do not connect it to any other type of alarm or auxiliary device.
• Connecting anything else to this unit may damage it or prevent it from operating properly.
• This Smoke/CO Alarm has a battery drawer which resists closing unless a battery is
installed. This warns you the unit will not operate under DC power without a battery.
• Do not stand too close to the unit when the alarm is sounding. It is loud to wake you in an
emergency. Exposure to the horn at close range may harm your hearing.
• Do not paint over the unit. Paint may clog the openings to the sensing chambers and
prevent the unit from operating properly.
01 INTRODUCTION
Thank you for choosing First Alert
®
for your Smoke and Carbon Monoxide Alarm needs. You have
purchased a state-of-the-art Smoke & Carbon Monoxide Alarm designed to help provide you with early
warning of a smoke and/or carbon monoxide danger. Please take the time to read this manual and
make the Smoke & Carbon Monoxide Alarm an integral part of your family’s safety plan.
BASIC SAFETY INFORMATION
IMPORTANT!
• Dangers, Warnings, and Cautions alert you to important operating instructions or to potentially
hazardous situations. Pay special attention to these items.
• This smoke and co alarm is approved for use in single-family residences. It is designed for NOT
marine or RV use.
! CAUTION!
• The Smoke Alarm will only indicate the presence of smoke that reaches the sensor.
• The Smoke Alarm is not designed to sense gas, heat or ames.
! WARNING!
• This Smoke Alarm cannot operate without working batteries. Removing the batteries for any
reason, or failing to replace the batteries at the end of their service life, removes your protection.
• ignore any alarm. See “If Your Smoke Alarm Sounds” for more information on how to NEVER
respond to an alarm. Failure to respond can result in injury or death.
• The Silence Features are for your convenience only and will not correct a problem. See “Using the
Silence Features” for details. Always check your home for a potential problem after any alarm.
Failure to do so can result in injury or death.
• Test this Smoke Alarm once a week. If the alarm ever fails to test correctly, have it replaced
immediately! If the alarm is not working properly, it cannot alert you to a problem.
02 ABOUT SMOKE ALARMS
TYPES OF ALARMS
All these Smoke Alarms are designed to provide early warning of res if located, installed and cared
for as described in the user’s manual, and if smoke reaches the Alarm. If you are unsure which type of
Smoke Alarm to install, refer the National Fire Protection Association (NFPA) Standard 72 (National Fire
Alarm and Signaling Code) and NFPA 101 (Life Safety Code). National Fire Protection Association, One
Batterymarch Park, Quincy, MA 02269-9101. Local building codes may also require specic units in
new construction or in different areas of the home.
Battery (DC) operated Smoke Alarms: Provide protection even when electricity fails, provided the
batteries are fresh and correctly installed. Units are easy to install, and do not require professional
installation. However, they do not provide interconnected functionality.
AC powered Smoke Alarms: Can be interconnected so if one unit senses smoke, all units Alarm.
They do not operate if electricity fails. will operate if electricity fails, AC with battery (DC) back-up:
provided the batteries are fresh and correctly installed. AC and AC/DC units must be installed by a
qualied electrician.
Smoke Alarms for solar or wind energy users and battery backup power systems: AC powered
Smoke Alarms should only be operated with true or pure sine wave inverters. Operating this Alarm
with most battery-powered UPS (uninterruptible power supply) products or square wave or “quasi sine
wave” inverters . If you are not sure about your inverter or UPS type, please will damage the Alarm
consult with the manufacturer to verify.
Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should be installed
for the hearing impaired. They include a visual Alarm and an audible Alarm horn, and meet the
requirements of the Americans With Disabilities Act. Can be interconnected so if one unit senses
smoke, all units Alarm.
Smoke Alarms are not to be used with detector guards unless the combination has been evaluated
and found suitable for that purpose.
All First Alert
®
Smoke Alarms conform to regulatory requirements, including UL217 and are
designed to detect particles of combustion. Smoke particles of varying number and size are
produced in all res.
Ionization technology is generally more sensitive than photoelectric technology at
detecting small particles, which tend to be produced in greater amounts by aming res,
which consume combustible materials rapidly and spread quickly. Sources of these res
may include paper burning in a wastebasket, or a grease re in the kitchen.
Photoelectric technology is generally more sensitive than ionization technology at
detecting large particles, which tend to be produced in greater amounts by smoldering
res, which may smolder for hours before bursting into ame. Sources of these res may
include cigarettes burning in couches or bedding.
For maximum protection, use both types of Smoke Alarms on each level and in every
bedroom of your home.
03 INSTALLATION
WHERE TO INSTALL THIS ALARM
Minimum coverage for Smoke Alarms, as recommended by the National Fire Protection Association
(NFPA), is one Smoke Alarm on every oor, in every sleeping area, and in every bedroom (See
“Regulatory Information For Smoke Alarms” for details on the NFPA recommendations).
For CO Alarms, the National Fire Protection Association (NFPA) recommends that a CO Alarm
should be centrally located outside of each separate sleeping area in the immediate vicinity of the
bedrooms. For added protection, install additional CO Alarms in each separate bedroom, and on every
level of your home.
NOTE: For added protection, install an additional Smoke/CO Alarm at least 15 feet (4.6 meters) away
from the furnace or fuel burning heat source where possible. In smaller homes or in manufactured
homes where this distance cannot be maintained, install the Alarm as far away as possible from the
furnace or other fuel burning source. Installing the Alarm closer than 15 feet (4.6 meters) will not harm
the Alarm, but may increase the frequency of unwanted alarms.
IN GENERAL, INSTALL COMBINATION SMOKE AND CARBON MONOXIDE ALARMS:
• On every level of your home, including nished attics and basements.
• Inside every bedroom, especially if people sleep with the door partly or completely closed.
• In the hall near every sleeping area. If your home has multiple sleeping areas, install a unit in each.
If a hall is more than 40 feet (12 meters) long, install a unit at each end.
• At the top of rst-to-second oor stairs and at the bottom of the basement stairs.
• For additional coverage, install Alarms in all rooms, halls, and storage areas, where temperatures
normally remain between 40˚ F and 100˚ F (4.4˚ C and 37.8˚ C).

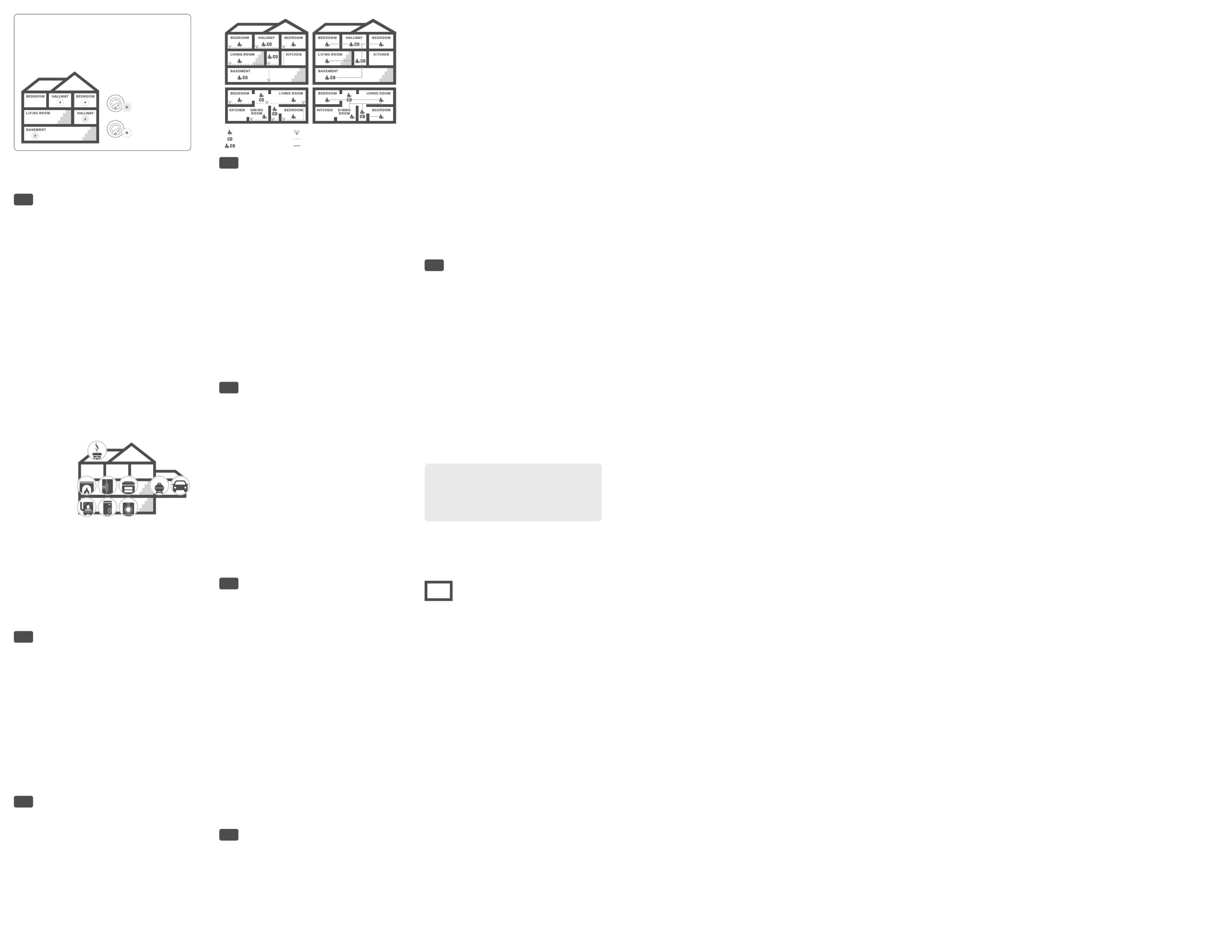

RECOMMENDED PLACEMENT:
Smoke Alarm
One on every level and
in every bedroom
Carbon Monoxide Alarm
One on every level and
in every bedroom
Fire Extinguisher
One on every level, plus
kitchen and garage
• When installing on the ceiling, place the Alarm as close to the center as possible.
• When installing on the wall, the top edge of Smoke Alarms should be placed between 4 inches
(102 mm) and 12 inches (305 mm) from the wall/ceiling line.
• In either case, install at least 4 inches (102 mm) from where the wall and ceiling meet. See
“Avoiding Dead Air Spaces” for more information.
NOTE: For any location, make sure no door or other obstruction could keep carbon monoxide or smoke
from reaching the Alarm.
WHERE NOT TO INSTALL THIS ALARM
FOR BEST PERFORMANCE, IT IS RECOMMENDED YOU AVOID INSTALLING SMOKE/CO ALARMS
IN THESE AREAS:
• In garages, furnace rooms, crawl spaces and unnished attics. Avoid extremely dusty, dirty
or greasy areas.
• Where combustion particles are produced. Combustion particles form when something burns.
Areas to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep units at
least 20 feet (6 meters) from the sources of combustion particles (stove, furnace, water heater,
space heater) if possible. In areas where a 20-foot (6 meter) distance is not possible – in modular,
mobile, or smaller homes, for example – it is recommended the Smoke Alarm be placed as far
from these fuel-burning sources as possible. The placement recommendations are intended
to keep these Alarms at a reasonable distance from a fuel-burning source, and thus reduce
“unwanted” Alarms. Unwanted Alarms can occur if a Smoke Alarm is placed directly next to a
fuel-burning source. Ventilate these areas as much as possible.
• Within 5 feet (1.5 meters) of any cooking appliance. In air streams near kitchens. Air currents can
draw cooking smoke into the smoke sensor and cause unwanted Alarms.
• In extremely humid areas. This Alarm should be at least 10 feet (3 meters) from a shower, sauna,
humidier, vaporizer, dishwasher, laundry room, utility room, or other source of high humidity.
• In direct sunlight.
• In turbulent air, like near ceiling fans or open windows. Blowing air may prevent smoke from
reaching the sensors.
• In areas where temperature is colder than 40˚ F (4.4˚ C) or hotter than 100˚F (37.8˚ C). These
areas include non air-conditioned crawl spaces, unnished attics, uninsulated or poorly insulated
ceilings, porches, and garages.
• In insect infested areas. Insects can clog the openings to the sensing chamber.
• Less than 12 inches (305 mm) away from uorescent lights. Electrical “noise” can interfere
with the sensor.
• In “dead air” spaces.
AVOIDING DEAD AIR SPACES
“Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To avoid dead air spaces,
follow installation recommendations below.
On ceilings, install Smoke Alarms as close to the center of the ceiling as possible. If this is not
possible, install the Smoke Alarm at least 4 inches (102 mm) from the wall or corner.
For wall mounting (if allowed by building codes), the top edge of Smoke Alarms should be placed
between 4 inches (102 mm) and 12 inches (305 mm) from the wall/ceiling line, below typical
“dead air” spaces.
On a peaked, gabled, or cathedral ceiling, install the rst Smoke Alarm within 3 feet (0.9 meters) of
the peak of the ceiling, measured horizontally. Additional Smoke Alarms may be required depending
on the length, angle, etc. of the ceiling’s slope. Refer to NFPA 72 for details on requirements for sloped
or peaked ceilings.
HOW TO INSTALL THIS ALARM
IMPORTANT!
This Smoke/CO Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch
(10 cm) size, on either the ceiling or wall (if allowed by local codes). Read “Where to Install This Alarm”
and “Where This Alarm Should Not Be Installed” before you begin installation.
Tools you will need: needle-nose pliers or utility knife, standard athead screwdriver, wire strippers
! WARNING!
Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could
be major appliances on the same circuit, power from a generator or solar power, light dimmer
on the same circuit or mounted near uorescent lighting. Excessively noisy power may cause
damage to your Alarm.
THE PARTS OF THIS ALARM
The Mounting Bracket: To remove the mounting
bracket from the Alarm base, hold the Alarm
base rmly and twist the mounting bracket
counterclockwise. The mounting bracket installs
onto the junction box. It has a variety of screw slots
to t most boxes.
The Power Connector: The power connector plugs
into a power input block on the Alarm. It supplies
the unit with AC power.
• The black wire is “hot.”
• The white wire is neutral.
• The orange wire is used for interconnect.
If you need to remove the power connector, turn rst. Insert a at screwdriver blade POWER OFF
between the power connector and the security tab inside the power input block. Gently pry back the
tab and pull the connector free.
THE PARTS OF
THIS SMOKE/CO ALARM
1 Mounting Bracket
2 Mounting Slots
3 Locking Pins
(break out of bracket)
4 Hot (Black) AC Wire
5 Neutral (White) AC Wire
6 Interconnect (Orange) Wire
7 Quick-Connect
Power Connector
8 Turn this way to
remove from bracket
9 Turn this way to
attach to bracket
10 Slide-Out Battery Drawer
12
3
4
6
5
9
8
7
2
10
FOLLOW THESE SIMPLE STEPS
The basic installation of this Smoke/CO Alarm is similar whether you want to install one Alarm, or
interconnect more than one Alarm. If you are interconnecting more than one Alarm, you read MUST
“Special Requirements For Interconnected Alarms” below before you begin installation.
DANGER!
ELECTRICAL SHOCK HAZARD. Turn off power to
the area where you will install this unit at the
circuit breaker or fuse box before beginning
installation. Failure to turn off the power before
installation may result in serious electrical
shock, injury or death.
1. Remove the mounting bracket from the base,
and attach it to the junction box.
2. Using wire nuts, connect the power connector to
the household wiring.
STAND-ALONE ALARM ONLY:
• Connect the white wire on the power connector to the neutral wire in the junction box.
• Connect the black wire on the power connector to the hot wire in the junction box.
• Tuck the orange wire inside the junction box. It is used for interconnect only.
INTERCONNECTED UNITS ONLY:
• Strip off about 1/2" (12 mm) of the plastic coating on the orange wire on the
power connector.
• Connect the white wire on the power connector to the neutral wire in the junction box.
• Connect the black wire on the power connector to the hot wire in the junction box.
•
Connect the orange wire on the power connector to the interconnect wire in the junction box.
Repeat for each unit you are interconnecting. Never connect the hot or neutral wires in the
junction box to the orange interconnect wire. Never cross hot and neutral wires between Alarms.
3. If there’s a battery pull tab, activate the battery back-up by removing the “Pull to Activate Battery
Back-Up” tab. If batteries are not installed, install battery back-up. Battery back-up cannot work
until you install the battery in the correct position (Match “+” to “+” and “-” to “-”).
4. Plug the power connector into the back of the Alarm.
5. Position the base of the Alarm over the mounting bracket, and turn the Alarm clockwise (right) until
the unit is in place. If wall mounted, adjust unit so words are level.
6. Check all connections.
! WARNING!
Improper wiring of the power connector or the wiring leading to the power connector will cause
damage to the Alarm and may lead to a non-functioning Alarm.
STAND-ALONE ALARM ONLY:
• If you are only installing one Alarm, restore power to the junction box.
INTERCONNECTED UNITS ONLY:
• If you are interconnecting multiple Alarms, repeat steps 1-6 for each Alarm in the series.
When you are nished, restore power to the junction box.
DANGER!
ELECTRICAL SHOCK HAZARD. Do not restore power until all Alarms are completely installed.
Restoring power before installation is complete may result in serious electrical shock,
injury or death.
7. Turn AC power back on. Under normal operation, the Green power indicator light will
shine continuously.
8. If the Green power indicator light does not light, and TURN OFF POWER TO THE JUNCTION BOX
recheck all connections. If all connections are correct and the Green power indicator still does not
light when you restore the power, the unit should be replaced immediately.
9. Test each Alarm. Press and hold the Test/Silence button until the unit Alarms. When testing a
series of interconnected units you must test each unit individually. Make sure all units
Alarm when each one is tested.
DANGER!
If any unit in the series does not Alarm, TURN OFF POWER and recheck connections. If it does
not Alarm when you restore power, replace it immediately.
SPECIAL REQUIREMENTS FOR INTERCONNECTED ALARMS
! WARNING!
• Failure to meet any of the above requirements could damage the units and cause them to
malfunction, removing your protection.
• AC and AC/DC Alarms can be interconnected. Under AC power, all units will Alarm when
one senses smoke or CO. When power is interrupted, only the AC/DC units in the series will
continue to send and receive signals. AC powered Alarms will not operate.
Interconnected units can provide earlier warning of re than stand-alone units, especially if a re
starts in a remote area of the dwelling. If any unit in the series senses smoke, all units will Alarm. To
determine which Alarm initiated an Alarm, see table:
During an Alarm On Initiating Alarm(s): Red LED(s) ashes (ash) rapidly
On All Other Alarms: Red LED is Off
After an Alarm (Latching)
On Initiating Alarm(s): Red LED(s) On for
2 seconds/Off for 2 seconds
On All Other Alarms: Green LED(s) On, Red LED(s) Off
COMPATIBLE INTERCONNECTED UNITS
IMPORTANT!
Interconnect units within a single family residence only. Otherwise all households will experience
unwanted alarms when you test any unit in the series. Interconnected units will only work if they are
wired to compatible units and all requirements are met. This unit is designed to be compatible with:
First Alert
®
Smoke Alarm Model: SMI100-AC, and Smoke/CO Model: SMCO100V-AC; BRK Electronics
®
Smoke Alarm Models 9120, 9120B, SC9120B, 7010, 7010B; BRK Electronics
®
Heat Alarm Models
HD6135F; BRK Electronics
®
CO Alarm Models CO5120BN, CO5120PDBN; Smoke/CO Alarm Model
SC7010BV, SC7010B.
INTERCONNECTED UNITS MUST MEET ALL OF THE FOLLOWING REQUIREMENTS:
• A maximum of 18 compatible units may be interconnected (Maximum of 12 Smoke Alarms).
• The same fuse or circuit breaker must power all interconnected units.
• The total length of wire interconnecting the units should be less than 1000 feet (300 meters). This
type of wire is commonly available at Hardware and Electrical Supply stores.
• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA
101, and/or your local building code for further connection requirements.
BA
6
7
8
11
22
4
53
3
45
A Unswitched 120VAC 60 Hz source B To additional units; Maximum =
18 total (Maximum 12 Smoke Alarms)
1 Alarm
2 Ceiling or Wall
3 Power Connector
4 Wire Nut
5 Junction Box
6 Neutral Wire (White)
7 Interconnect Wire
(Orange)
8 Hot Wire (Black)
STEP BY STEP GUIDE TO PROGRAMMING THIS ALARM
For First Time and When Changing Batteries
Action Alarm Will Say
Insert batteries (2, AA batteries)
“Welcome, First Alert Carbon Monoxide
and Smoke Alarm.”
“No location programmed” if rst time or “[Location,
example: “Basement”] location programmed” when
changing batteries.
“To select location, press and hold test button now.”
Press & hold test button if
you would like to program the
location or change the location
of the alarm. Release button
after alarm responds.
“To save location, press and hold test button
after location is heard.” Alarm will speak list of
locations (see below).
After you hear the location
of where you are placing
the alarm, press & hold
the test button.
“[Location, example: “Basement”] location saved.” If no
location is chosen: “No location saved.”
Your Alarm has now been programmed for the location of your choice.
Available Locations: Basement, Hallway, Ofce, Child’s Bedroom, Kitchen, Utility Room,
Dining Room, Living Room, Family Room, Master Bedroom, Guest Bedroom, No Location.
For Reprogramming: When it is necessary to reprogram the Alarm after the unit has been
activated and is in normal operation: Tap the test button 5 times to reset the Alarm to again
access the programming menu.
Action What You Will See & Hear
Normal Operations Voice: Power/Smoke LED: Silent; Constant Green;
Horn: CO LED: Silent; Off
When You Test the Alarm
Voice: “Testing.” Horn: 3 beeps, pause, 3 beeps;
Voice: “Warning, evacuate smoke in [Location,
example: “Basement”]. Evacuate.”; Power/Smoke
LED: CO Flashes Red in sync with the horn pattern;
LED: Horn: Off, followed by 4 fast beeps, pause, 4 fast
beeps; “Warning, evacuate carbon monoxide in Voice:
[Location, example: “Basement”]. Evacuate.” Pause.
“Highest carbon monoxide level was [CO level example:
_0_ ppm]”; Off; Flashes Power/Smoke LED: CO LED:
Red in sync with the horn pattern.
If Battery Becomes
Low or is Missing
Voice: “Replace battery in [Location, example
“Basement”].” Repeated every 5 hours; chirps Horn:
once a minute; Flashes Green On Power/Smoke LED:
for 2 seconds/Off for 2 seconds. Low Battery Latch is
now engaged. Flashes Green once a minute if AC power
is off; OffCO LED:
If Alarm is Not
Operating Properly
(MALFUNCTION SIGNAL)
Voice: “Detector error in [Location, example
“Basement”], please see manual.” Repeated every
5 hours; 3 chirps every minute; Horn: Power/
Smoke LED: 3 Green Flashes approximately once a
minute; OffCO LED:
Alarm has reached
its End of Life
Voice: “Detector error in [Location, example
“Basement”], please see manual.” Repeated every
5 hours; 5 chirps every minute; Horn: Power/
Smoke LED: 5 Green Flashes approximately once a
minute; OffCO LED:
Smoke is Detected
Horn: 3 beeps, pause, repeating 9 times; Voice:
“Warning, evacuate smoke in [Location, example:
“Basement”]. Evacuate.”; 3 beeps, pause, Horn:
repeating 2 times followed by Voice Warning above;
Power/Smoke LED: During Alarm: Flashes Red in sync
with the horn pattern. After Alarm: Flashes Red On for
2 seconds/Off for 2 seconds. Smoke Alarm Latch is now
engaged; OffCO LED:
Alarm Levels of CO are Detected
Horn: 4 fast beeps, pause, 4 fast beeps, pause*; Voice:
“Warning, evacuate carbon monoxide in [Location,
example: “Basement”]. Evacuate.” Pause. “Highest
carbon monoxide level was [CO level example: ___
ppm]”; 4 beeps, pause, 4 beeps, pause repeating Horn:
2 times followed by Voice Warning above; Power/
Smoke LED: CO LED: Off; During Alarm: Flashes Red
in sync with the horn pattern. After Alarm: Flashes Red
On for 2 seconds/Off for 2 seconds. CO Alarm Latch
is now engaged.
*NOTE: If unit goes into CO Alarm, the regular 4 beeps-
brief pause cycle will repeat for fteen minutes. After
fteen minutes, the pause will increase to one minute.
Smoke Alarm is Silenced Voice: “Horn silenced. Detector active.”; Off; Horn:
Power/Smoke LED: CO LED: Flashes Red; Off
CO Alarm is Silenced Voice: “Horn silenced. Detector active.”; Off; Horn:
Power/Smoke LED: CO LED: Off; Flashes Red
04 ALARM FEATURES
• Friendly voice tells you what the danger is and it’s location.Voice & Location Alerts:
• When one alarm sounds, all compatible* alarms sound.Early Warning Interconnect:
• Allows for easy installation. No need to rewire.Quick Connect Plug:
LOCKING FEATURES
The locking features are designed to discourage unauthorized removal of the batteries
or Alarm. It is not necessary to activate the locks in single-family households where
unauthorized battery or Alarm removal is not a concern.
These Alarms have two separate locking features: one to lock the battery compartment, and
the other to lock the Alarm to the mounting bracket. You can choose to use either feature
independently, or use them both.
Tools you will need: Needle-nose pliers,
Standard Flathead screwdriver.
Both locking features use locking pins, which
are molded into the mounting bracket. Using
needle-nose pliers, remove one or both pins
from the mounting bracket, depending on how
many locking features you want to use.
IMPORTANT!
To permanently remove either lock, insert a athead screwdriver between the locking
pin and the lock, and pry the pin out of the lock.
TO LOCK THE BATTERY COMPARTMENT
Do not lock the battery compartment until you have installed the battery and tested the
battery back-up.
1. Push and hold Test/Silence button until
the Alarm sounds.
IMPORTANT!
If the unit does not Alarm during testing, DO
NOT lock the battery compartment! Install a
new battery and test again. If the Alarm still
does not Alarm, replace it immediately.
2. Using needle-nose pliers, detach one locking pin
from the mounting bracket.
3. Push the locking pin through the hole near the
battery drawer on the back of the Alarm.
TO UNLOCK THE BATTERY COMPARTMENT
IMPORTANT!
Once the Alarm is installed, you must disconnect it from the AC power before unlocking
the battery compartment.
DANGER!
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is
installed before removing it from the mounting bracket. Failure to turn off the power
rst may result in serious electrical shock, injury or death.
! WARNING!
Always discharge the branch circuit before servicing an AC or AC/DC Alarm. First, turn off
the AC power at the circuit breaker or fuse box. Next, remove the battery from Alarms with
battery back-up. Finally, press and hold the Test/Silence button for 5-10 seconds to discharge
the branch circuit.
1. Remove the Alarm from the mounting bracket.
If the unit is locked to the bracket, see the
section “To Unlock the Mounting Bracket.”
2. Disconnect the power connector by gently
prying it away from the back of the Alarm.
3. Insert a athead screwdriver under the head
of the locking pin, and gently pry it out of
the battery compartment lock. (If you plan
to relock the battery compartment, save
the locking pin.)
4. To relock the battery compartment, close the battery door and reinsert locking pin in lock.
5. Reconnect the power connector to the back of the Alarm, reattach the Smoke Alarm to the
mounting bracket, and restore the power.
IMPORTANT!
When replacing the batteries, always test the Alarm before relocking the battery compartment.
TO LOCK THE MOUNTING BRACKET
1. Using needle-nose
pliers, detach one
locking pin from
mounting bracket.
2. Insert the locking pin
into the lock located
opposite from the
battery drawer as
shown in the diagram.
3. When you attach
the Alarm to the
mounting bracket,
the locking pin’s head
will t into a notch
on the bracket.
TO UNLOCK THE MOUNTING BRACKET
DANGER!
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is
installed before removing it from the mounting bracket. Failure to turn off the power
rst may result in serious electrical shock, injury or death.
! WARNING!
Always discharge the branch circuit before servicing
an AC or AC/DC Alarm. First, turn off the AC power
at the circuit breaker or fuse box. Next, remove the
battery from Alarms with battery back-up. Finally,
press and hold the Test/Silence button for 5-10
seconds to discharge the branch circuit.
1. Insert a athead screwdriver between the
mounting bracket pin and the mounting bracket.
2. Pry the Alarm away from the bracket by
turning both the screwdriver and the Alarm
counterclockwise (left) at the same time.
05 TESTING & MAINTENANCE
WEEKLY TESTING
! WARNING!
• use an open ame of any kind to test this unit. You might accidentally damage or set re NEVER
to the unit or to your home. use vehicle exhaust! Exhaust may cause permanent damage NEVER
and voids your warranty.
• If the Alarm ever fails to test properly, replace it immediately. Products under warranty may be
returned to the manufacturer for replacement. See “Limited Warranty” at the end of this manual.
! CAUTION!
It is important to test this unit every week to make sure it is working properly. Using the test
button is the recommended way to test this Smoke/CO Alarm.
You can test this Smoke/CO Alarm by pressing and holding the Test/Silence button on the Alarm
cover until Alarm Voice says “Testing” (typically 3-5 seconds).
Activate the Alarm test, reset or silence function by use of a nger or thumb. Use of any other
instrument is strictly prohibited.
During testing, you will see and hear the following sequence:
• The Alarm Voice will say “Testing.” The Horn will sound 3 beeps, pause, 3 beeps. The Alarm Voice
will say “Warning, evacuate smoke in [Location, example: “Basement”]. Evacuate.” The Power/
Smoke LED CO LED ashes Red and the will be Off.
• Next the Horn will sound 4 beeps, pause, 4 beeps. The Alarm Voice will say “Warning, evacuate
carbon monoxide in [Location, example: “Basement”]. Evacuate.” The Power/Smoke LED will be
Off and the ashes Red.CO LED
If the unit does not alarm, make sure the batteries are correctly installed, and test again. If the
unit still does not alarm, replace it immediately.
REGULAR MAINTENANCE
This unit has been designed to be as maintenance-free as possible, but there are a few simple things
you must do to keep it working properly:
• Test it at least once a week.
• Clean the Smoke/CO Alarm at least once a month; gently vacuum the outside of the Smoke/CO
Alarm using your household vacuum’s soft brush attachment. Test the Smoke/CO Alarm. Never use
water, cleaners or solvents since they may damage the unit.
• If the Smoke/CO Alarm becomes contaminated by excessive dirt, dust and/or grime, and cannot be
cleaned to avoid unwanted alarms, replace the unit immediately.
• If the green power LED ashes 2 times every minute (horn is silent) it means that the Alarm needs
to be cleaned as indicated above. If green light continues to ash, replace Alarm.
• Relocate the unit if it sounds frequent unwanted alarms. See “Where This Alarm Should Not Be
Installed” for details.
• When the battery back-up becomes weak, the Alarm will “chirp” about once a minute (the low
battery warning), and the will say “Replace battery in [Location, example “Basement”].” Voice
Repeated every 5 hours. This warning should last 7 days, but you should replace the battery
immediately to continue your protection. The Low Battery Latch feature will be engaged. The
Green Power/Smoke LED will ash On for 2 seconds/Off for 2 seconds.
• Protect or cover the alarm when doing any maintenance to home i.e. sanding oors, painting,
drywall patching, etc. to prevent contamination.
CHOOSING A REPLACEMENT BATTERY:
Your Smoke/CO Alarm requires two “AA” Duracell MN1500/LR6 and Energizer E91 batteries. These
batteries are available at many local retail stores.
! WARNING!
• Always use the exact batteries specied by this User’s Manual. use rechargeable DO NOT
batteries. Clean the battery contacts and also those of the device prior to battery installation.
Install batteries correctly with regard to polarity (+ and -).
• Please dispose of or recycle used batteries properly, following any local regulations. Consult your
local waste management authority or recycling organization to nd an electronics recycling facility
in your area. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
! WARNING!
• Keep battery out of reach of children. In the event a battery is swallowed, immediately contact
your poison control center, your physician, or the National Battery Ingestion hotline at
202-625-3333 as serious injury may occur.
IMPORTANT!
Actual battery service life depends on the Alarm and the environment in which it is installed. All
the batteries specied above are acceptable replacement batteries for this unit. Regardless of the
manufacturer’s suggested battery life, you replace the battery immediately once the unit starts MUST
“chirping” (the “low battery warning”).
To replace the batteries (without removing Alarm from the ceiling or wall):
1. Open the battery compartment.
2. Press tabs A and B as shown in the diagram
and remove each battery.
3. Insert the new batteries, making sure they
snap completely into the battery compartment.
Match the terminals on the ends of the
batteries with the terminals on the unit.
4. Close the battery compartment, and then test
the unit by pressing the Test/Silence button.
AB
TROUBLESHOOTING GUIDE
DANGER!
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Alarm is installed
BEFORE removing it from the mounting bracket or checking any electrical connections!
Failure to turn off the power rst may result in electrical shock, injury or death.
IF THE ALARM... PROBLEM... YOU SHOULD...
Horn “chirps” and LED
ashes green about once
per minute, or LED ashes
Green On for 2 seconds/
Off for 2 seconds. (Low
Battery Latch is engaged.)
Voice: “Replace battery in
[Location]” every 5 hours
Low battery warning. Install two
new AA batteries*.
Horn “chirps” and Green
LED ashes 3 times
every minute. Voice:
“Detector error in [Location,
example “Basement”],
please see manual”,
repeated every 5 hours.
MALFUNCTION SIGNAL.
Device is not working
properly, and needs
to be replaced.
If unit is under warranty,
contact Consumer
Support to process a
warranty replacement.
Horn “chirps” and Green
LED ashes 5 times
every minute. Voice:
“Detector error in [Location,
example “Basement”],
please see manual”,
repeated every 5 hours.
END OF LIFE SIGNAL.
Alarm needs to
be replaced.
Immediately
replace the Alarm.
Power LED ashes Green 2
times every minute. Alarm requires cleaning.
Clean Alarm then press
and release the test button.
See Regular Maintenance
section. If Green LED
Continues to ash, contact
Consumer Support.
CARBON MONOXIDE ALARM ONLY
CO Alarm goes back into
alarm 4 minutes after
you Silence it.
CO levels indicate
a potentially
dangerous situation.
IF YOU ARE FEELING
SYMPTOMS OF CO
POISONING, EVACUATE
your home and call 911
or the Fire Department.
Refer to “If The CO Alarm
Sounds” for details.
CO Alarm sounds frequently
even though no high levels
of CO are revealed in
an investigation.
The CO Alarm may be
improperly located. Refer
to “Where to Install This
Alarm” for details.
Relocate your Alarm. If
frequent alarms continue,
have home rechecked for
potential CO problems. You
may be experiencing an
intermittent CO problem.
SMOKE ALARM ONLY
Smoke Alarm sounds when
no smoke is visible.
Unwanted alarm may be
caused by nonemergency
source like cooking smoke.
Silence Alarm using
manual button; clean the
Alarm’s cover with a soft,
clean cloth. If frequent
unwanted alarms continue,
relocate your Alarm. Alarm
may be too close to a
kitchen, cooking appliance,
or steamy bathroom.
*For a list of acceptable replacement batteries, see “Choosing a Replacement Battery.”
If you have questions that cannot be answered by reading this manual, call the
Consumer Support Team at 1-800-323-9005
FIRE SAFETY TIPS
Follow safety rules and prevent hazardous situations: 1) Use smoking materials properly. Never smoke
in bed. 2) Keep matches or lighters away from children; 3) Store ammable materials in proper
containers; 4) Keep electrical appliances in good condition and don’t overload electrical circuits;
5) Keep stoves, barbecue grills, replaces and chimneys grease- and debris-free; 6) Never leave
anything cooking on the stove unattended; 7) Keep portable heaters and open ames, like candles,
away from ammable materials; 8) Don’t let rubbish accumulate. Keep Alarms clean, and test them
weekly. Replace Alarms immediately if they are not working properly. Smoke Alarms that do not work
cannot alert you to a re. Keep at least one working re extinguisher on every level, and an additional
one in the kitchen. Have re escape ladders or other reliable means of escape from an upper level in
case stairs are blocked; 9) Have an escape plan and practice it regularly.
06 IF YOUR SMOKE/CO ALARM SOUNDS
WHAT TO DO FIRST: IDENTIFY THE TYPE OF ALARM SIGNAL
Refer to previous section “What You Will See And Hear With This Alarm”.
IF THE CO ALARM SOUNDS
“ALARM-MOVE TO FRESH AIR”
If you hear the Alarm horn sound 4 beeps, pause, 4 beeps, pause, and the RED CO light
is ashing, move everyone to a source of fresh air.
! WARNING!
Actuation of your CO Alarm indicates the presence of carbon monoxide (CO) which can kill you. In
other words, when your CO Alarm sounds, you must not ignore it!
IF THE CO ALARM SIGNAL SOUNDS:
1. Press the Test/Silence button.
2. Call your emergency services, re department or 911. Write down the number of your local
emergency service here:
____________________________________________________________________
3. Immediately move to fresh air—outdoors or by an open door or window. Do a head count to check
that all persons are accounted for. Do not re-enter the premises, or move away from the open door
or window until the emergency services responder has arrived, the premises have been aired out,
and your CO Alarm remains in its normal condition.
4. After following steps 1-3, if your CO Alarm reactivates within a 24-hour period, repeat steps
1-3 and call a qualied appliance technician to investigate for sources of CO from fuel-burning
equipment and appliances, and inspect for proper operation of this equipment. If problems are
identied during this inspection have the equipment serviced immediately. Note any combustion
equipment not inspected by the technician, and consult the manufacturers’ instructions, or contact
the manufacturers directly, for more information about CO safety and this equipment. Make sure
that motor vehicles are not, and have not, been operating in an attached garage or adjacent to the
residence. Write down the number of a qualied appliance technician here:
____________________________________________________________________
NOTE: A qualied appliance technician is dened as “a person, rm, corporation, or company that
either in person or through a representative, is engaged in and responsible for the installation, testing,
servicing, or replacement of heating, ventilation, air conditioning (HVAC) equipment, combustion
appliances and equipment, and/or gas replaces or other decorative combustion equipment.”
AFTER AN ALARM
After the emergency responders arrive, the premises aired out, and your CO Alarm
remains in its normal condition, you can check what the highest carbon monoxide
level sensed was:
Action Alarm Will Say
Press & Hold Test Button
“Highest carbon monoxide level was ___
ppm. Please see manual.”
“To clear highest carbon monoxide level,
press and hold test button now.”
Press & Hold Test Button, if you would like to
clear the highest level sensed. If you would
like to keep the highest level in memory, do
not press anything.
“Highest carbon monoxide
level cleared.”
Alarm will say nothing.
IF THE SMOKE ALARM SOUNDS:
RESPONDING TO AN ALARM
! WARNING!
• If the unit alarms and you are not testing the unit, it is warning you of a potentially dangerous
situation that requires your immediate attention. ignore any alarm. Ignoring the alarm may NEVER
result in injury or death.
• Never remove the batteries from a battery operated Smoke/CO Alarm to stop an unwanted alarm
(caused by cooking smoke, etc.). Removing batteries disables the alarm so it cannot sense smoke,
and removes your protection. Instead open a window or fan the smoke away from the unit. The
alarm will reset automatically.
• If the unit alarms get everyone out of the house immediately.
WHAT TO DO IN CASE OF FIRE
• Don’t panic; stay calm. Follow your family escape plan.
• Get out of the house as quickly as possible. Don’t stop to get dressed or collect anything.
• Feel doors with the back of your hand before opening them. If a door is cool, open it slowly. Don’t
open a hot door. Keep doors and windows closed, unless you must escape through them.
• Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.
• Meet at your planned meeting place outside your home, and do a head count to make sure
everybody got out safely.
• Call the Fire Department as soon as possible from outside. Give your address, then your name.
• Never go back inside a burning building for any reason.
• Contact your Fire Department for ideas on making your home safer.
! WARNING!
Alarms have various limitations. See “General Limitations of Smoke/CO Alarms” for details.
07 USING THE SILENCE FEATURES
! WARNING!
Never remove the batteries to quiet an unwanted alarm. Removing the batteries disables the
alarm and removes your protection.
• The Silence Feature is intended to temporarily silence the horn while you identify and correct the
problem. Do not use the Silence Feature in emergency situations. It will not correct a CO problem
or extinguish a re.
• The Silence Feature can temporarily quiet an unwanted alarm for several minutes. You can
silence this Smoke/CO Alarm by pressing the Test/Silence button on the alarm cover for at
least 3-5 seconds.
• After the Test/Silence button is released, the Alarm Voice will say “Horn silenced, detector active.”
The Red LED blinks during the silence mode.
When the Smoke Alarm is Silenced When the CO Alarm is Silenced
The Smoke Alarm will remain silent for up to
15 minutes, then return to normal operation.
If the smoke has not cleared–or continues to
increase–the device will go back into alarm.
The CO Alarm will remain silent for
up to 4 minutes.
After 4 minutes, if CO levels remain
potentially dangerous the horn will start
sounding again.
SILENCING THE LOW BATTERY WARNING
This Silence Feature can temporarily quiet the low battery warning “chirp” for up to 8 hours if AC power
is present. Press the Test/Silence button on the Alarm cover until you hear the acknowledge “chirp”.
Once the low battery warning “chirp” Silence Feature is activated, the unit continues to ash the
green light once a minute for 8 hours. After 8 hours, the low battery “chirp” will resume. The Alarm
will continue to operate as long as AC power is supplied. However, replace the batteries as soon as
possible, to maintain protection in event of a power outage.
To deactivate this feature: Press the Test/Silence button again. The unit will go into Test Mode and
the low battery warning will resume (LED ashes and unit sounds “chirp” once a minute).
To silence alarms in an interconnected series: To silence an interconnected series of Smoke/CO
Alarms, you must press the Test/Silence button on the initiating alarm (The unit with the ashing red
light; the red light will be off on all other Alarms.). If you press the Test/Silence on any other Alarm, it
will only silence that unit, not the whole interconnected series.
SILENCING THE END OF LIFE SIGNAL
This Silence Feature can temporarily quiet the End of Life warning “chirp” for up to 2 days. You can silence
the End of Life warning “chirp” by pressing the Test/Silence button. The horn will chirp, acknowledging that
the End of Life Silence Feature has been activated. After approximately 2 days, the End of Life “chirp” will
resume. The timer shall not be able to be reset after 14 days following the initial end-of-life signal.
LATCHING FEATURES
Alarm Latch is activated after an Alarm is exposed to alarm levels of smoke or carbon
monoxide. This feature will only work with AC power. See “Special Requirements for
Interconnected Alarms” for signaling. This feature helps emergency responders, investigators,
or service technicians identify which unit(s) in your home were exposed to alarm levels of
smoke or carbon monoxide. This can help investigators pinpoint the source of smoke or CO.
Interconnected Alarms. Latching Alarm Indicator shows which Alarm(s) in the series were
exposed to alarm levels of smoke or carbon monoxide. The Latching Alarm Indicator stays
ON until you clear it, so it can alert you to an alarm that occurred while you were away from
home, even though smoke or CO present in the air has dropped below alarm levels.
LATCHING FEATURES (CONTINUED)...
Low Battery Latch
is activated when the Alarm is in the “low battery condition”. When this
occurs, the Smoke/Power LED ashes Green On for 2 seconds/Off for 2 seconds. This feature
is designed to help you identify which Alarm needs to have the battery replaced. Although, the
Alarm will sound the low battery chirp approximately once every minute, sometimes during the
initial stages of “low battery”, the Alarm will chirp in greater intervals than one minute, sometimes
up to several hours, until the battery reaches a steady low battery level. This innovative feature
eliminates the frustration of waiting for and/or identifying which unit is chirping.
Latching Alarm
Unit was exposed to
Alarm levels of smoke
Latching Not Activated
Unit was not exposed to
Alarm levels of smoke
“SMART INTERCONNECT” FEATURE
This Alarm includes “Smart Interconnect” which enables the Alarm to be interconnected with other
First Alert
®
and BRK Smoke, Heat, and “Smart Interconnect” CO Alarms. When smoke is detected, all
Alarms will sound the smoke horn pattern. When CO is detected, “Smart Interconnect” Alarms will
sound the CO horn pattern. Alarms that do not have the “Smart Interconnect” feature will remain silent
during a CO Alarm.
08 WHAT YOU NEED TO KNOW ABOUT CO
WHAT IS CO?
CO is an invisible, odorless, tasteless gas produced when fossil fuels do not burn completely, or are
exposed to heat (usually re). Electrical appliances typically do not produce CO.
These fuels include: Wood, coal, charcoal, oil, natural gas, gasoline, kerosene, and propane.
Common appliances are often sources of CO. If they are not properly maintained, are improperly
ventilated, or malfunction, CO levels can rise quickly. CO is a real danger now that homes are more
energy efcient. “Air-tight” homes with added insulation, sealed windows, and other weatherproong
can “trap” CO inside.
SYMPTOMS OF CO POISONING
These symptoms are related to CO POISONING and should be discussed with ALL household members.
Mild Exposure: Slight headache, nausea, vomiting, fatigue (“u-like” symptoms).
Medium Exposure: Throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure: Convulsions, unconsciousness, heart and lung failure. Exposure to carbon
monoxide can cause brain damage, death.
IMPORTANT!
This CO Alarm measures exposure to CO over time. It Alarms if CO levels are extremely high in a
short period of time, or if CO levels reach a certain minimum over a long period of time. The CO
Alarm generally sounds an Alarm before the onset of symptoms in average, healthy adults. Why is
this important? Because you need to be warned of a potential CO problem while you can still react in
time. In many reported cases of CO exposure, victims may be aware that they are not feeling well, but
become disoriented and can no longer react well enough to exit the building or get help. Also, young
children and pets may be the rst affected. The average healthy adult might not feel any symptoms
when the CO Alarm sounds. However, people with cardiac or respiratory problems, infants, unborn
babies, pregnant mothers, or elderly people can be more quickly and severely affected by CO. If you
experience even mild symptoms of CO poisoning, consult your doctor immediately!
FINDING THE SOURCE OF CO AFTER AN ALARM
Carbon monoxide is an odorless, invisible gas, which often makes it difcult to locate the source of CO
after an Alarm. These are a few of the factors that can make it difcult to locate sources of CO:
• House well ventilated before the investigator arrives.
• Problem caused by “backdrafting.”
• Transient CO problem caused by special circumstances.
Because CO may dissipate by the time an investigator arrives, it may be difcult to locate the
source of CO. First Alert shall not be obligated to pay for any carbon monoxide investigation
or service call.
POTENTIAL SOURCES OF CO IN THE HOME
Fuel-burning appliances like:
portable heater, gas or wood
burning replace, gas kitchen range
or cooktop, gas clothes dryer.
Damaged or insufcient venting:
corroded or disconnected water
heater vent pipe, leaking chimney
pipe or ue, or cracked heat
exchanger, blocked or clogged
chimney opening.
Improper use of appliance/
device: operating a barbecue grill
or vehicle in an enclosed area (like
a garage or screened porch).
Transient CO problems: “transient” or on-again-off-again CO problems can be caused by outdoor
conditions and other special circumstances.
The following conditions can result in transient CO situations:
1. Excessive spillage or reverse venting of fuel appliances caused by outdoor conditions such as:
Wind direction and/or velocity, including high, gusty winds. Heavy air in the vent pipes (cold/humid air
with extended periods between cycles).
• Negative pressure differential resulting from the use of exhaust fans.
• Several appliances running at the same time competing for limited fresh air.
• Vent pipe connections vibrating loose from clothes dryers, furnaces, or water heaters.
• Obstructions in or unconventional vent pipe designs which can amplify the above situations.
2. Extended operation of unvented fuel burning devices (range, oven, replace).
3. Temperature inversions, which can trap exhaust close to the ground.
4. Car idling in an open or closed attached garage, or near a home.
These conditions are dangerous because they can trap exhaust in your home. Since these
conditions can come and go, they are also hard to recreate during a CO investigation.
09 HOW CAN I PROTECT MY FAMILY FROM
CO POISONING
A CO Alarm is an excellent means of protection. It monitors the air and sounds a loud Alarm before
carbon monoxide levels become threatening for average, healthy adults. A CO Alarm is not a substitute
for proper maintenance of home appliances.
TO HELP PREVENT CO PROBLEMS AND REDUCE THE RISK OF CO POISONING:
• Clean chimneys and ues yearly. Keep them free of debris, leaves, and nests for proper air ow.
Also, have a professional check for rust and corrosion, cracks, or separations. These conditions
can prevent proper air movement and cause backdrafting. Never “cap” or cover a chimney in any
way that would block air ow.
• Test and maintain all fuel-burning equipment annually. Many local gas or oil companies and HVAC
companies offer appliance inspections for a nominal fee.
• Make regular visual inspections of all fuel-burning appliances. Check appliances for excessive rust
and scaling. Also check the ame on the burner and pilot lights. The ame should be blue. A yellow
ame means fuel is not being burned completely and CO may be present. Keep the blower door
on the furnace closed. Use vents or fans when they are available on all fuel-burning appliances.
Make sure appliances are vented to the outside. Do not grill or barbecue indoors, or in garages or
on screen porches.
• Check for exhaust backow from CO sources. Check the draft hood on an operating furnace for a
backdraft. Look for cracks on furnace heat exchangers.
• Check the house or garage on the other side of shared wall.
• Keep windows and doors open slightly. If you suspect that CO is escaping into your home, open a
window or a door. Opening windows and doors can signicantly decrease CO levels.
In addition, familiarize yourself with all enclosed materials. Read this manual in its entirety, and make
sure you understand what to do if your CO Alarm sounds.
10 REGULATORY INFORMATION
FOR SMOKE ALARMS
RECOMMENDED LOCATIONS FOR SMOKE ALARMS
INSTALLING SMOKE ALARMS IN SINGLE-FAMILY RESIDENCES
The National Fire Protection Association (NFPA), recommends one Smoke Alarm on every oor, in every
sleeping area, and in every bedroom. In new construction, the Smoke Alarms must be AC powered and
interconnected. See “Agency Placement Recommendations” for details. For additional coverage, it is
recommended that you install a Smoke Alarm in all rooms, halls, storage areas, nished attics, and
basements, where temperatures normally remain between 40˚ F (4.4˚ C) and 100˚ F (37.8˚ C). Make
sure no door or other obstruction could keep smoke from reaching the Smoke Alarms.
MORE SPECIFICALLY, INSTALL SMOKE ALARMS:
• On every level of your home, including nished attics and basements.
• Inside every bedroom, especially if people sleep with doors closed.
• In the hall near every sleeping area. If your home has multiple sleeping areas, install a unit in each.
• If a hall is over 40 feet (12 meters) long, install an Alarm at each end.
• At the top of the rst-to-second level stairway, and at bottom of basement stairway.
IMPORTANT!
Specic requirements for Smoke Alarm installation vary from state to state and from region to region.
Check with your local Fire Department for current requirements in your area. It is recommended AC
or AC/DC units be interconnected for added protection.
HARDWIREDBATTERY OPERATED & WIRELESS
MULTI-STORY RESIDENCE1-STORY RESIDENCE
Wireless Alarms
Wireless Interconnected Alarms
Hardwired Interconnected
AC or AC/DC Alarms
Smoke Alarms
CO Alarms
Both OR Combination
Smoke/CO Alarms
11 REGULATORY INFORMATION FOR CO ALARMS
WHAT LEVELS OF CO CAUSE AN ALARM?
Underwriters Laboratories Inc. Standard UL2034 requires residential CO Alarms to sound when
exposed to levels of CO and exposure times as described below. They are measured in parts per
million (ppm) of CO over time (in minutes).
UL2034 Required Alarm Points*:
• If the Alarm is exposed to 400 ppm of CO, IT MUST ALARM BETWEEN 4 and 15 MINUTES.
• If the Alarm is exposed to 150 ppm of CO, IT MUST ALARM BETWEEN 10 and 50 MINUTES.
• If the Alarm is exposed to 70 ppm if CO, IT MUST ALARM BETWEEN 60 and 240 MINUTES.
* Approximately 10% COHb exposure at levels of 10% to 95% Relative Humidity (RH).
The unit is designed not to Alarm when exposed to a constant level of 30 ppm for 30 days.
IMPORTANT!
CO Alarms are designed to Alarm before there is an immediate life threat. Since you cannot see or
smell CO, never assume it’s not present.
• An exposure to 100 ppm of CO for 20 minutes may not affect average, healthy adults, but after 4
hours the same level may cause headaches.
• An exposure to 400 ppm of CO may cause headaches in average, healthy adults after 35 minutes,
but can cause death after 2 hours.
Standards: Underwriters Laboratories Inc. Single and Multiple Station Carbon
Monoxide Alarms UL2034.
According to Underwriters Laboratories Inc. UL2034, Section 1-1. 2: “Carbon monoxide Alarms covered
by these requirements are intended to respond to the presence of carbon monoxide from sources
such as, but not limited to, exhaust from internal-combustion engines, abnormal operation of fuel-red
appliances, and replaces. CO Alarms are intended to Alarm at carbon monoxide levels below those
that could cause a loss of ability to react to the dangers of carbon monoxide exposure. ” This CO Alarm
monitors the air at the Alarm, and is designed to Alarm before CO levels become life threatening. This
allows you precious time to leave the house and correct the problem. This is only possible if Alarms
are located, installed, and maintained as described in this manual.
Gas Detection at Typical Temperature and Humidity Ranges: The CO Alarm is not formulated to
detect CO levels below 30 ppm typically. UL tested for false Alarm resistance to Methane (500 ppm),
Butane (300 ppm), Heptane (500 ppm), Ethyl Acetate (200 ppm), Isopropyl Alcohol (200 ppm) and
Carbon Dioxide (5000 ppm). Values measure gas and vapor concentrations in parts per million.
Audible Alarm: 85 dB minimum at 10 feet (3 meters).
12 AGENCY PLACEMENT RECOMMENDATIONS
Standards: Underwriters Laboratories Inc. Single and Multiple Station Smoke Alarms 217.
NFPA 72 CHAPTER 29 “FOR YOUR INFORMATION, THE NATIONAL FIRE ALARM AND SIGNALING
CODE, NFPA 72, READS AS FOLLOWS:”
29.5.1* Required Detection.
29.5.1.1* Where required by other governing laws, codes, or standards for a specic type of
occupancy, approved single and multiple-station Smoke Alarms shall be installed as follows:
1. *In all sleeping rooms and guest rooms
2. *Outside of each separate dwelling unit sleeping area, within 21 ft (6.4 m) of any door to a
sleeping room, with the distance measured along a path of travel
3. On every level of a dwelling unit, including basements
4. On every level of a residential board and care occupancy (small facility), including basements and
excluding crawl spaces and unnished attics
5. *In the living area(s) of a guest suite
6. In the living area(s) of a residential board and care occupancy (small facility)
(Reprinted with permission from NFPA 72
®
, National Fire Alarm and Signaling Code Copyright © 2012
National Fire Protection Association, Quincy, MA 02269. This reprinted material is not the complete
and ofcial position of the National Fire Protection Association, on the referenced subject which is
represented only by the standard in its entirety).
(National Fire Alarm and Signaling Code
®
and NFPA 72
®
are registered trademarks of the National Fire
Protection Association, Inc., Quincy, MA 02269).
CALIFORNIA STATE FIRE MARSHAL (CSFM)
Early warning detection is best achieved by the installation of re detection equipment in all rooms
and areas of the household as follows: A Smoke Alarm installed in each separate sleeping area (in
the vicinity, but outside bedrooms), and Heat or Smoke Alarms in the living rooms, dining rooms,
bedrooms, kitchens, hallways, nished attics, furnace rooms, closets, utility and storage rooms,
basements, and attached garages.
13 SPECIAL COMPLIANCE CONSIDERATIONS
This Smoke Alarm is suitable for use in apartments, condominiums, townhouses, hospitals, day care
facilities, health care facilities, boarding houses, group homes and dormitories provided a primary re
detection system already exists to meet re detection requirements in common areas like lobbies,
hallways, or porches. Using this Smoke Alarm in common areas may not provide sufcient warning to
all residents or meet local re protection ordinances/regulations.
This Smoke Alarm alone is not a suitable substitute for complete re detection systems in places
housing many people—like apartment buildings, condominiums, hotels, motels, dormitories, hospitals,
health care facilities, nursing homes, day care facilities, or group homes of any kind. It is not a
suitable substitute for complete re detection systems in warehouses, industrial facilities, commercial
buildings, and special-purpose non-residential buildings which require special re detection and Alarm
systems. Depending on the building codes in your area, this Smoke Alarm may be used to provide
additional protection in these facilities.
In new construction, most building codes require the use of AC or AC/DC powered Smoke Alarms only.
In existing construction, AC, AC/DC, or DC powered Smoke Alarms can be used as specied by local
building codes. THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL FIRE
PROTECTION ASSOCIATION’S STANDARD 72 (National Fire Protection Association, Batterymarch Park,
Quincy, MA 02269). Refer to NFPA 101 (Life Safety Code), local building codes, or consult your Fire
Department for detailed re protection requirements in buildings not dened as “households”.
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the receiver.
• Consult the dealer or an experienced radio or TV technician for help.
! WARNING!
Changes or modications to the product, not expressly approved by First Alert, could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
14 GENERAL LIMITATIONS OF
SMOKE/CO ALARMS
This Smoke/CO Alarm is intended for residential use. It is not intended for use in industrial
applications where Occupational Safety and Health Administration (OSHA) requirements for Carbon
Monoxide Alarms must be met. The Smoke Alarm portion of this device is not intended to alert hearing
impaired residents. Special purpose Smoke Alarms should be installed for hearing impaired residents
(CO Alarms are not yet available for the hearing impaired).
Smoke/CO Alarms may not waken all individuals. Practice the escape plan at least twice a year,
making sure that everyone is involved – from kids to grandparents. Allow children to master re
escape planning and practice before holding a re drill at night when they are sleeping. If children
or others do not readily waken to the sound of the Smoke/CO Alarm, or if there are infants or family
members with mobility limitations, make sure that someone is assigned to assist them in re drill and
in the event of an emergency. It is recommended that you hold a re drill while family members are
sleeping in order to determine their response to the sound of the Smoke/CO Alarm while sleeping and
to determine whether they may need assistance in the event of an emergency.
Smoke/CO Alarms cannot work without power. Battery operated units cannot work if the batteries
are missing, disconnected or dead, if the wrong type of batteries are used, or if the batteries are not
installed correctly. AC units cannot work if the AC power is cut off for any reason (open fuse or circuit
breaker, failure along a power line or at a power station, electrical re that burns the electrical wires,
etc.). If you are concerned about the limitations of battery or AC power, install both types of units.
This Smoke/CO Alarm will not sense smoke or CO that does not reach the sensors. It will
only sense smoke or CO at the sensor. Smoke or CO may be present in other areas. Doors or other
obstructions may affect the rate at which CO or smoke reaches the sensors. If bedroom doors are
usually closed at night, we recommend you install an Alarm device (Combination CO and Smoke Alarm,
or separate CO Alarms and Smoke Alarms) in each bedroom and in the hallway between them.
This Smoke/CO Alarm may not sense smoke or CO on another level of the home. Example:
This Alarm device, installed on the second oor, may not sense smoke or CO in the basement For
this reason, one Alarm device may not give adequate early warning. Recommended minimum
protection is one Alarm device in every sleeping area, every bedroom, and on every level of your
home. Some experts recommend battery powered smoke and CO Alarms be used in conjunction with
interconnected AC powered Smoke Alarms. For details, see “About Smoke Alarms” for details.
Smoke/CO Alarms may not be heard. The Alarm horn loudness meets or exceeds current UL
standards of 85 dB at 10 feet (3 meters). However, if the Smoke/CO Alarm is installed outside the
bedroom, it may not wake up a sound sleeper or one who has recently used drugs or has been
drinking alcoholic beverages. This is especially true if the door is closed or only partly open. Even
persons who are awake may not hear the Alarm horn if the sound is blocked by distance or closed
doors. Noise from trafc, stereo, radio, television, air conditioner, or other appliances may also prevent
alert persons from hearing the Alarm horn. This Smoke/CO Alarm is not intended for people who are
hearing impaired.
The Alarm may not have time to Alarm before the re itself causes damage, injury, or death,
since smoke from some res may not reach the unit immediately. Examples of this include
persons smoking in bed, children playing with matches, when a person’s clothing catches re
while cooking, res caused by violent explosions resulting from escaping gas, or incendiary
res where the re grows so rapidly that an occupant’s egress is blocked even with properly
located Smoke Alarms.
This Smoke/CO Alarm is not a substitute for life insurance. Though this Smoke/CO Alarm warns
against increasing CO levels or the presence of smoke, First Alert does not warrant or imply in any way
that they will protect lives. Homeowners and renters must still insure their lives.
This Smoke/CO Alarm has a limited life. Although this Smoke/CO Alarm and all of its parts have
passed many stringent tests and are designed to be as reliable as possible, any of these parts could
fail at any time. Therefore, you must test this device weekly. The unit should be replaced immediately
if it is not operating properly.
This Smoke/CO Alarm is not foolproof. Like all other electronic devices, this Smoke/CO Alarm has
limitations. It can only detect smoke or CO that reaches the sensors. It may not give early warning of
the source of smoke or CO is in a remote part of the home, away from the Alarm device.
15 LIMITED WARRANTY
First Alert
®
warrants that for a period of ten years from the date of purchase, this product will be free
from defects in material and workmanship. First Alert, at its option, will repair or replace this product
or any component of the product found to be defective during the warranty period. Replacement
will be made with a new or remanufactured product or component. If the product is no longer
available, replacement may be made with a similar product of equal or greater value. This is your
exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is
not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty
performance. First Alert dealers, service centers, or retail stores selling First Alert products do not have
the right to alter, modify or any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following:
negligent use or misuse of the product, use on improper voltage or current, use contrary to the
operating instructions, disassembly, repair or alteration by anyone other than First Alert or an
authorized service center. Further, the warranty does not cover Acts of God, such as re, ood,
hurricanes and tornadoes or any batteries that are included with this unit.
First Alert shall not be liable for any incidental or consequential damages caused by the breach of any
express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty
of merchantability or tness for a particular purpose is limited in duration to the duration of the above
warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied warranty lasts, so the above
limitations or exclusion may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights that vary from state to state or province to province.
HOW TO OBTAIN WARRANTY SERVICE
Service: If service is required, do not return the product to your retailer. In order to obtain warranty
service, contact the Consumer Support Team at 1-800-323-9005. To assist us in serving you, please
have the model number and date of purchase available when calling.
Battery: First Alert makes no warranty, express or implied, written or oral, including that of
merchantability or tness for any particular purpose with respect to battery.
Disposal: Please follow local guidelines regarding the disposal or recycling of batteries
and/or electronics.
For your records, please record:
Date Purchased: ___________________________
Where Purchased: __________________________
Date Installed: __________/__________Month/Year
Replace Alarm 10 years after installation.
Please write the date in the space provided:_____________/____________ Month/Year
The Alarm will also provide an audible End-of-Life Signal approximately 10 years after
installation to remind you to replace the unit.
The End-of-Life Signal can be silenced for up to 2 days. Do not unplug or deactivate the Alarm
until you get replacement.
Printed in Mexico | M08-179720 12/22
CONFORMS TO UL STD 217 AND UL STD 2034
120 VAC ~ 60Hz, 0.07A
rstalert.com
K1 © 2022 Resideo Technologies, Inc. All rights reserved. These products are
manufactured by Resideo Technologies, Inc. and its afliates. 3901 Liberty Street,
Aurora, IL 60504-8122. Consumer Support Team: (800) 323-9005 | rstalert.com
Produkspesifikasjoner
| Merke: | First Alert |
| Kategori: | Røykvarsler |
| Modell: | SMCO100V-AC |
Trenger du hjelp?
Hvis du trenger hjelp med First Alert SMCO100V-AC still et spørsmål nedenfor, og andre brukere vil svare deg
Røykvarsler First Alert Manualer
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
Røykvarsler Manualer
- Røykvarsler Kogan
- Røykvarsler AngelEye
- Røykvarsler Ferguson
- Røykvarsler Smartwares
- Røykvarsler X-Sense
Nyeste Røykvarsler Manualer
28 Oktober 2024
23 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
