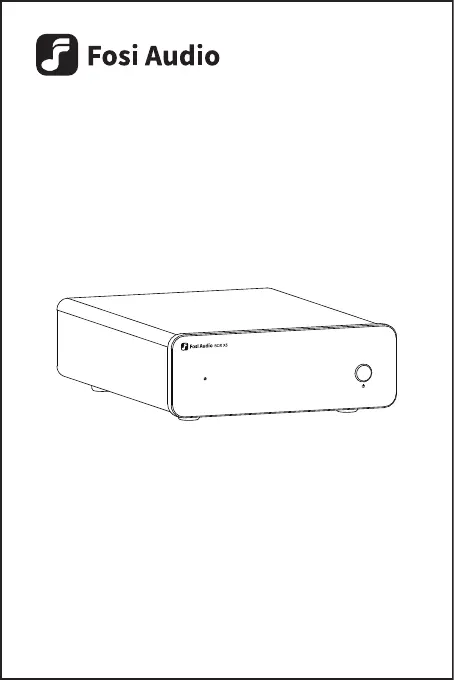

BOX X5 User Manual
Introduction
Thank you for purchasing the BOX X5 phono preamp.
The BOX X5 is a high-performance phono preamp that supports both MM
and MC cartridges and offers four selectable gain settings (38/48/56/66
dB) to accommodate most cartridges on the market. This preamp is
equipped with high-precision capacitors and resistors to ensure very low
noise, providing a pristine audio experience. Its straightforward RCA input
and output interfaces make connectivity simple. The robust all-aluminum
chassis not only ensures durability but also effectively shields against
electromagnetic interference, ensuring consistent and stable
performance.
Gain Recommended Phono Signal
56dB
66dB
48dB
38dB
≤2mV
≤0.5mV
≤0.25mV
>2mV
1Power Indicator Light
3MM/MC RCA Input
2Power Switch:
Long press for two seconds to turn on; single click to turn off.
7Ground Terminal
4Gain Knob
6
RCA Output
5Input Impedance Selector Switch
MM47KΩ (Recommended for use with 38dB or 48dB gain settings)
MC100Ω (Recommended for use with 56dB or 66dB gain settings)
8Power Input:
AC 15-18V (The included 16V AC adapter is recommended.)
5 6 83
214 7
Specifications
Surpported Cartridges MM/MC
Gain
Output
Output Impedance
SNR
THD
Input
Frequency Response
Input Voltage
Input Impedance
RCA
38/48/56/66dB
10KΩ
92dB(38dB gain, 5mV input)
0.009%(38dB gain, 5mV input)
Noise Floor
MM/MC RCA
37μV(38dB gain, 5mV input)
20Hz-20kHz(±0.015dB)
AC 16V
MM: 47KΩ
MC: 100Ω
