A R C H I T E C T S A N D E N G I N E E R S
D E S I G N D A T A M A N U A L
GE Zoneline®Packaged Terminal
Air Conditioners
We bring good things to life.
Contract Sales
g
2
Quick Reference
2500 Series Cooling with Electric Heat
MODEL COOLING Cooling Electric Heat Electric Electric Min. Circuit
NUMBER (Btuh) Watts EER (Btuh) Heater Heat Protection
Watts Amps (Amps)
AZ25E07D2* 7100/6900 600/585 11.8/11.8 8600/7100 2550/2090 11.0/10.0 15
AZ25E07D3* 7100/6900 600/585 11.8/11.8 11700/9600 3450/2820 15.0/13.6 20
AZ25E09D2* 9000/8800 785/765 11.5/11.5 8600/7100 2550/2090 11.0/10.0 15
AZ25E09D3* 9000/8800 785/765 11.5/11.5 11700/9600 3450/2820 15.0/13.6 20
AZ25E09D5* 9000/8800 785/765 11.5/11.5 17000/13900 5000/4090 21.7/19.7 30
AZ25E12D2* 11700/11500 1075/1055 10.9/10.9 8600/7100 2550/2090 11.0/10.0 15
AZ25E12D3* 11700/11500 1075/1055 10.9/10.9 11700/9600 3450/2820 15.0/13.6 20
AZ25E12D5* 11700/11500 1075/1055 10.9/10.9 17000/13900 5000/4090 21.7/19.7 30
AZ25E15D2* 14600/14300 1520/1490 9.6/9.6 8600/7100 2550/2090 11.0/10.0 15
AZ25E15D3* 14600/14300 1520/1490 9.6/9.6 11700/9600 3450/2820 15.0/13.6 20
AZ25E15D5* 14600/14300 1520/1490 9.6/9.6 17000/13900 5000/4090 21.7/19.7 30
AZ25E07E3* 7100 600 11.8 8600 2550 9.6 15
AZ25E07E4* 7100 600 11.8 12600 3700 14.0 20
AZ25E09E3* 9000 785 11.5 8600 2550 9.6 15
AZ25E09E4* 9000 785 11.5 12600 3700 14.0 20
AZ25E09E5* 9000 785 11.5 17000 5000 18.9 30
AZ25E12E3* 11700 1075 10.9 8600 2550 9.6 15
AZ25E12E4* 11700 1075 10.9 12600 3700 14.0 20
AZ25E12E5* 11700 1075 10.9 17000 5000 18.9 30
AZ25E15E3* 14600 1520 9.6 8600 2550 9.6 15
AZ25E15E4* 14600 1520 9.6 12600 3700 14.0 20
AZ25E15E5* 14600 1520 9.6 17000 5000 18.9 30
2500 and 3500 Series
Control Panel
3500 Series Heat Pump with Backup Resistance Heat
MODEL COOLING Cooling Reverse Electric Heat Electric Electric Min. Circuit
NUMBER (Btuh) Watts EER Cycle Heat COP (Btuh) Heater Heat Protection
(Btuh) Watts Amps (Amps)
AZ35H07D2* 7100/6900 600/585 11.8/11.8 6400/6200 3.5/3.5 8600/7100 2550/2090 11.0/10.0 15
AZ35H07D3* 7100/6900 600/585 11.8/11.8 6400/6200 3.5/3.5 11700/9600 3450/2820 15.0/13.6 20
AZ35H09D2* 9000/8800 785/765 11.5/11.5 8400/8200 3.5/3.5 8600/7100 2550/2090 11.0/10.0 15
AZ35H09D3* 9000/8800 785/765 11.5/11.5 8400/8200 3.5/3.5 11700/9600 3450/2820 15.0/13.6 20
AZ35H09D5* 9000/8800 785/765 11.5/11.5 8400/8200 3.5/3.5 17000/13900 5000/4090 21.7/19.7 30
AZ35H12D2* 11700/11500 1075/1055 10.9/10.9 10900/10700 3.3/3.3 8600/7100 2550/2090 11.0/10.0 15
AZ35H12D3* 11700/11500 1075/1055 10.9/10.9 10900/10700 3.3/3.3 11700/9600 3450/2820 15.0/13.6 20
AZ35H12D5* 11700/11500 1075/1055 10.9/10.9 10900/10700 3.3/3.3 17000/13900 5000/4090 21.7/19.7 30
AZ35H15D2* 14600/14300 1520/1490 9.6/9.6 13400/13200 3.1/3.1 8600/7100 2550/2090 11.0/10.0 15
AZ35H15D3* 14600/14300 1520/1490 9.6/9.6 13400/13200 3.1/3.1 11700/9600 3450/2820 15.0/13.6 20
AZ35H15D5* 14600/14300 1520/1490 9.6/9.6 13400/13200 3.1/3.1 17000/13900 5000/4090 21.7/14.7 30
AZ35H07E3* 7100 600 11.8 6400 3.5 8600 2550 9.6 15
AZ35H07E4* 7100 600 11.8 6400 3.5 12600 3700 14.0 20
AZ35H09E3* 9000 785 11.5 8400 3.5 8600 2550 9.6 15
AZ35H09E4* 9000 785 11.5 8400 3.5 12600 3700 14.0 20
AZ35H09E5* 9000 785 11.5 8400 3.5 17000 5000 18.9 30
AZ35H12E3* 11700 1075 10.9 10900 3.3 8600 2550 9.6 15
AZ35H12E4* 11700 1075 10.9 10900 3.3 12600 3700 14.0 20
AZ35H12E5* 11700 1075 10.9 10900 3.3 17000 5000 18.9 30
AZ35H15E3* 14600 1520 9.6 13400 3.1 8600 2550 9.6 15
AZ35H15E4* 14600 1520 9.6 13400 3.1 12600 3700 14.0 20
AZ35H15E5* 14600 1520 9.6 13400 3.1 17000 5000 18.9 30
LEGEND
COP – Coefficient of Performance
EER – Energy Efficient Ratio
* – Covers All Model Versions
All Units are 60 hertz single phase.
Dual rated 230/208 volt units are shown with ratings separated by “/”.
Units with one rating are 265 volt units.
3
LEGEND
COP – Coefficient of Performance
EER – Energy Efficient Ratio
* – Covers All Model Versions

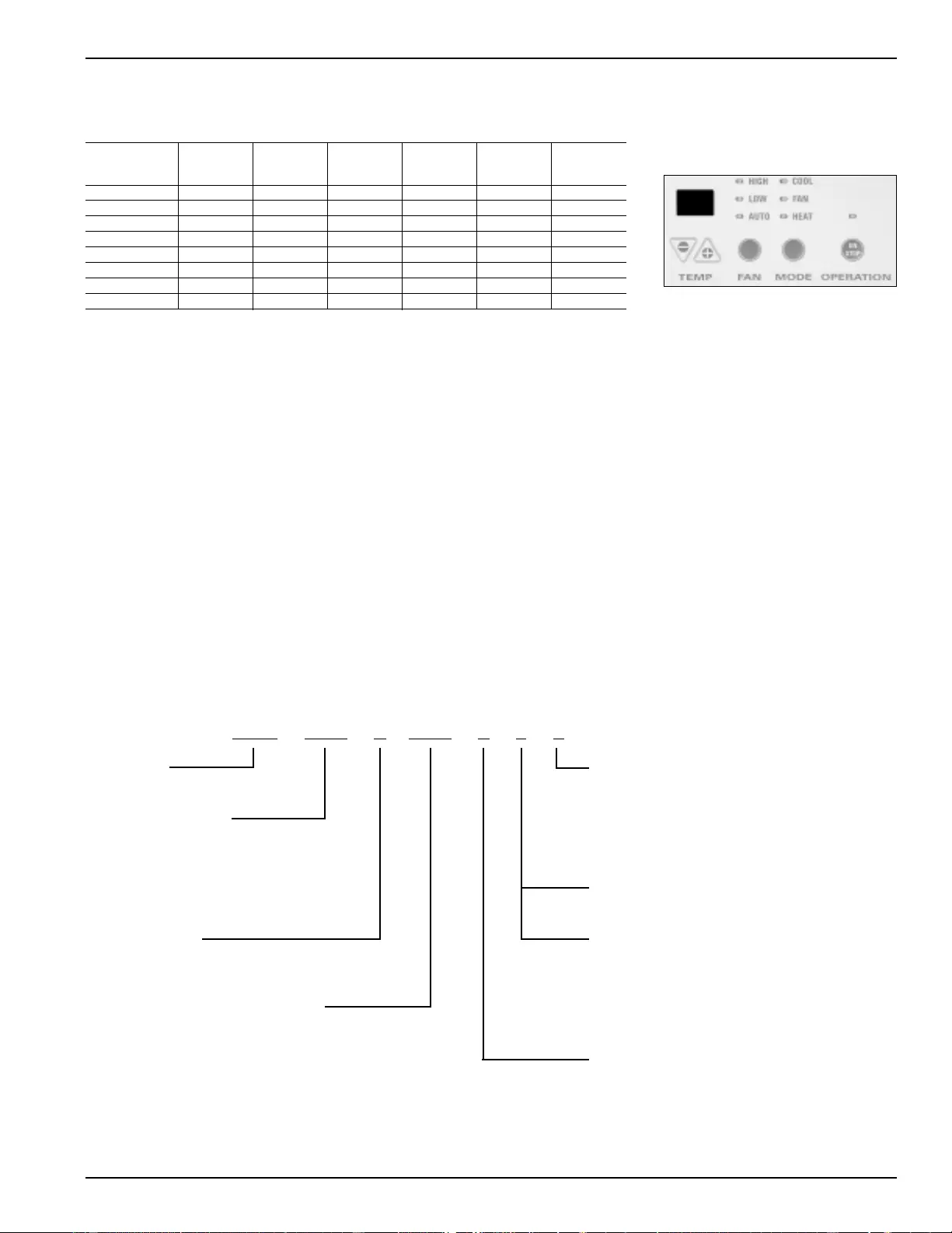

Quick Reference
5500 Series Control Panel
5500 Series Heat Pump with Backup Resistance Heat
MODEL COOLING Voltage Cooling Reverse
NUMBER (Btuh) 60 hz Watts EER COP Cycle Heat
1-phase (Btuh)
AZ55H07DA* 7100/6800 230/208 590/565 12.0/12.0 3.5/3.5 6400/6200
AZ55H09DA* 9000/8800 230/208 785/765 11.5/11.5 3.5/3.5 8400/8200
AZ55H12DA* 11800/11600 230/208 1085/1065 10.9/10.9 3.3/3.3 10900/10700
AZ55H15DA* 14700/14400 230/208 1470/1440 10.0/10.0 3.1/3.1 13400/13200
AZ55H07EA* 7100 265 590 12.0 3.5 6400
AZ55H09EA* 9000 265 785 11.5 3.5 8400
AZ55H12EA* 11800 265 1085 10.9 3.3 10900
AZ55H15EA* 14700 265 1470 10.0 3.1 13400
Zoneline ®Chassis Nomenclature
The Zoneline chassis is identified by a model number defining the type of unit, cooling capacity, electrical information and optional features
included on the unit. When specifying or ordering the Zoneline chassis use of this nomenclature will assure receiving the correct unit.
Example
A Z 2 5 E 0 9 E 4 P
A Z 5 5 1 2H D A D
Zoneline®
Packaged Terminal Chassis
Chassis Series
25 - Deluxe Line Cool/Electric Heat
35 - Deluxe Line Heat Pump
55 - Premium Line Heat Pump
Unit Type
E - Cooling with Electric Resistance Heat
H - Heat Pump with Electric Resistance Heat
Nominal Cooling Capacity
07 - 7,000 BTUH Cooling 12 - 12,000 BTUH Cooling
09 - 9,000 BTUH Cooling 15 - 15,000 BTUH Cooling
Special Features
B - Base Unit
C - Corrosion Treated
D - Internal Condensate Removal
(ICR) System (Heat Pump Models Only)
P - Dry Air 25
5500 Universal Power Connection
(see Premium Series Models - see page 53)
2500, Dry Air 25 & 3500 Numeric
Designator of Heater Size
230/208 Volt 265 Volt
2 - 2.55/2.09 kW 3 - 2.55 kW
3 - 3.45/2.82 kW 4 - 3.7 kW
5 - 5.0/4.09 kW 5 - 5.0 kW
Voltage/Phase/Frequency
D - 230/208 Volt Single Phase 60 Hz
E - 265 Volt Single Phase 60 Hz
