Installation Instructions
Magnetic cylinder sensor
701949 / 02 05 / 2015
UK
UK
UK
UK
UK
2
Function and features
The cylinder sensor signals the position of the piston in a cylinder. It detects a ring
magnet in the piston of the cylinder when it passes the sensor and signals this by
means of an output signal.
Can be used on all commercial cylinders made of nonmagnetizable material.

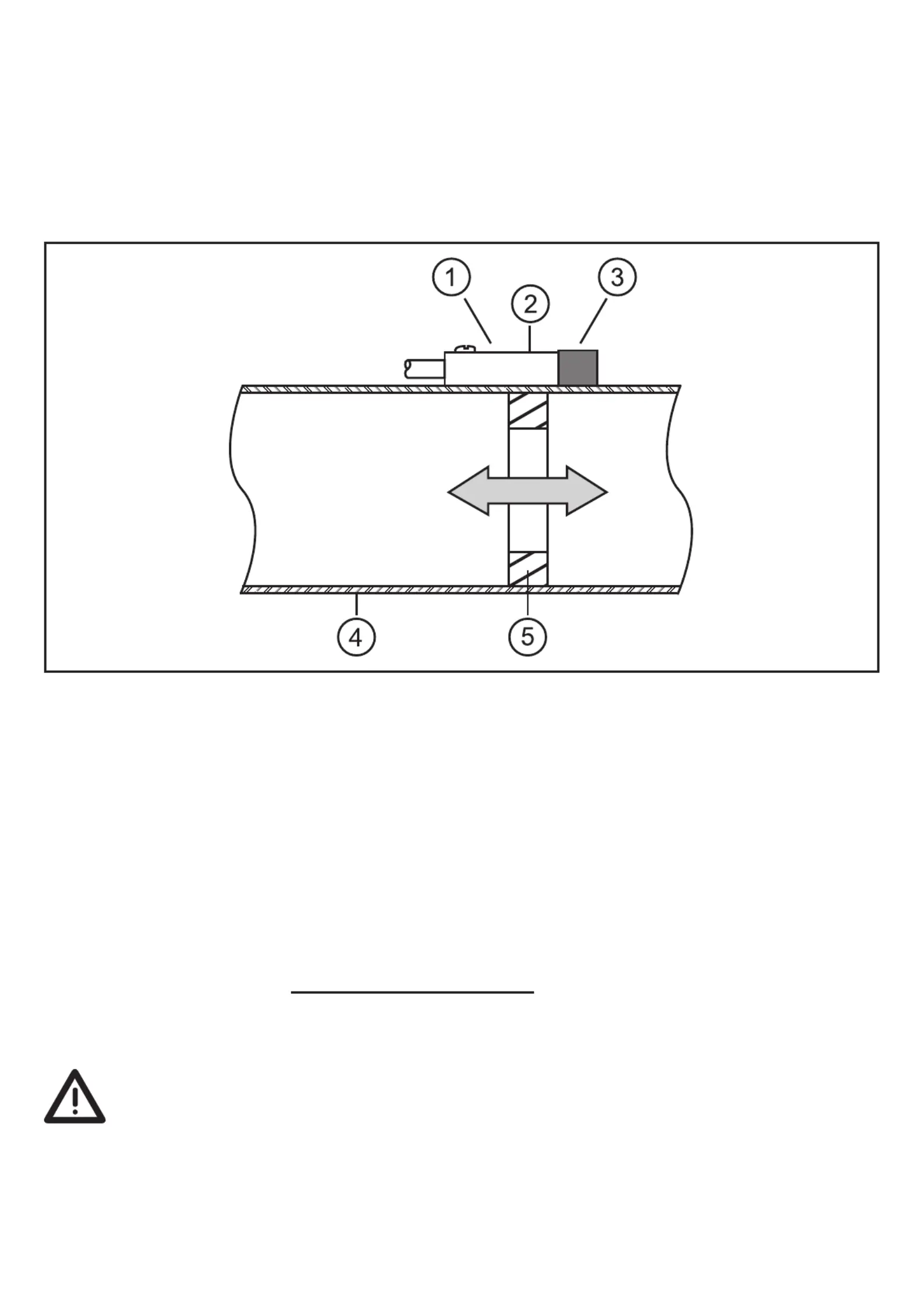

1: Cylinder sensor
2: Sensing face
3: Rubber placeholder
4: Cylinder wall
5: Cylinder piston with ring magnet
Installation
Fix the sensor on the cylinder. Position the sensing face so that it is about in the
place where you want to detect the position of the piston. You can find a selection
of mounting adapters at www.ifm.com/accessory.
Electrical connection
Disconnect power before connecting the sensor. Connection strictly to the
indications on the type label. Core colours for units with cable connection:
BN = brown, BU = blue, BK = black, WH = white.
3
UK
Adjustment / operation
1. Bring the piston into the detection position.
2. Precisely align the sensor by means of the LED indication: The LED is lit when
the output is switched.
3. Tighten the clamp screw to secure it in the slot.
4. Mark the sensor position by inserting a rubber placeholder.
If the cylinder is mounted in the immediate vicinity of magnetisable
components, the switching characteristics of the sensor may change.
