Side 1/4

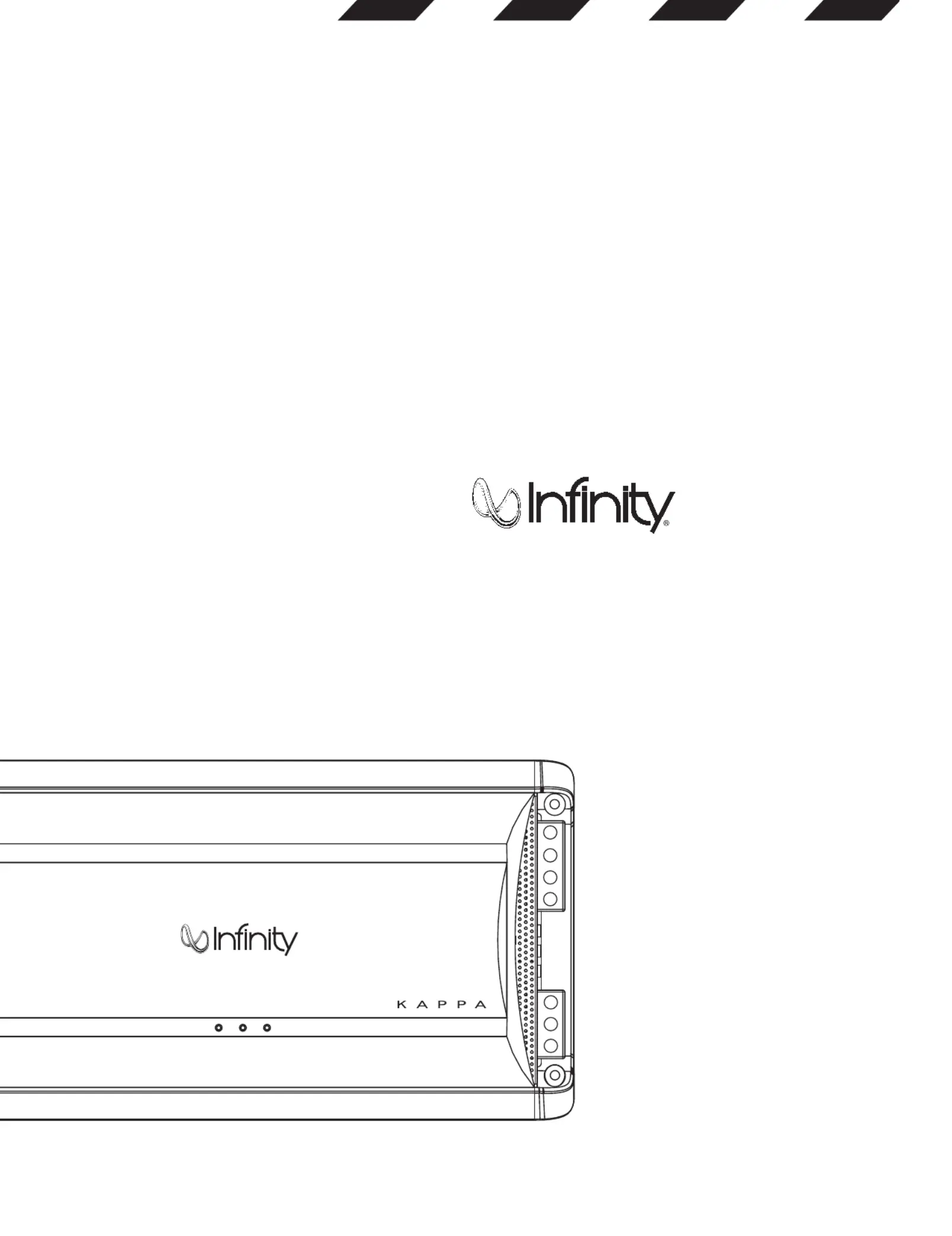

K A P P A
KAPPA
® ONE
®
A
A B C D
3x
4x 1x
1x
¡
AB
3a
Installation Warnings and Tips
•Disconnect the negative (–) lead from your vehicle’s battery.
•Attheinstallationsites,locateandmakeanoteofallfuel
lines, hydraulic brake lines, vacuum lines and electrical
wiring. Use extreme caution when cutting or drilling in and
around these areas.
•Chooseasafemountinglocationawayfrommoisture.
•Makesurethereissufcientaircirculationatthemount-
ing location for the amplifier to cool itself.
•Mounttheamplier,usingthesuppliedhardware.
Specifications
•500WRMSx1channel@4ohms
<
–1% THD + N*
•800WRMSx1channel@2ohms
<
–1% THD + N*
•Total peak power: 1600W
•Frequency response: 20Hz – 320Hz 3dB)(–
•Maximuminputsignal:6V*
•Maximumsensitivity:200mV*
•THD + N: 0.05%
•Signal-to-noise ratio: 85dBA (reference to 1 watt)*
•Signal-to-noise ratio: 109dBA (reference to rated power)
* CEA-2006A-compliant
0 Speaker Output Connectors
•Connectthespeakerstotheseterminals,observing
proper polarity. Gold screws indicate +, and silver
screws indicate – .
•Minimumspeakerimpedanceis2ohms.
1 Fuses
•Replaceonlywiththesametypeandrating.
2 Power Input Connectors
•+12V:Connecttothepositiveterminalofthevehicle’s
battery. Install an appropriate fuse holder and fuse
(120Aminimum)within18”(457mm)ofthebattery.
Makesurethewireisnotdamagedorpinchedduring
installation. Install protective grommets when routing
wires through the firewall or other sheet metal.
•GND:Connecttothevehicle’schassis.Refertothe
illustration below.
•REM:Connecttothe“RemoteOut”leadfromthe
source unit or to a source of switched +12V(ACC).
4 AWG Adapter
•Forpowerwirelongerthan4’(1.2m),4AWGwireis
recommended. Use the adapter to make the connection
according to the illustration below.
3 DBO: Variable Subsonic High-Pass
Filter With Variable Boost (Q)
•Forwoofersintuned(vented)enclosures,setthe
frequency control to a value 10Hz below the enclo-
sure’s resonance (tuned) frequency.
•Forwoofersinsealedboxes,setthecontroltoany
value you prefer between 30Hz and 50Hz.
•SettheBoostcontrolaccordingtoyourpreference,
being careful not to apply enough boost to damage
your woofer(s).
ADBOBoostcontrolprovidesupto12dBofboost,
slightly above the high-pass filter’s frequency.
See above for appropriate settings.
BDBOHigh-PassFilterFrequencycontrol,variable
between 10Hz and 80Hz. See above for appropri-
ate settings.
4 Crossover-Frequency Control
•12dB/octavecrossover,variablefrom32Hzto320Hz.
See for the adjustment procedure.
Input Level Control
•Usedtomatchtheinputleveloftheamplierto
the output level of the source unit. See A for the
adjustment procedure.
Input Connectors
•Connecttofrontoutputsfromthesourceunitor
signal processor.
Aux Output Connectors
•Nonlteredpass-throughoutput.Connecttothe
input of an additional subwoofer amplifier.
Protect LED
•Illuminatedunderanyofthefollowingfault
conditions: battery over/under voltage; short
circuit in speaker wires; amplifier is too hot;
amplifier’s output circuit has failed (DC voltage
present in the amplifier’s output).
Power On LEDs
•Illuminatedwhentheamplierison.
A Setting Input Level
ATurnInputLevelcontrolcounterclockwiseto6V.
With a dynamic music track playing, turn the head B
unit’svolumecontroltothe3/4position.
Turn Input Level control clockwise until the bass C
output is proportionate to the output of the high-
frequency speakers, according to your preference.
Input level is now adjusted correctly.D
Setting the Crossover
Crossover setting for subwoofers.A
Acceptable frequency ranges indicated in gray.Note:
Factory Bolt Ring Connector
Ground Wire
Note: Remove any paint
below ring connector.
Star Washer
This product is designed for mobile applications and is not intended
for connection to the mains.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change
without notice.
3a
ENGLISH
