Side 1/4

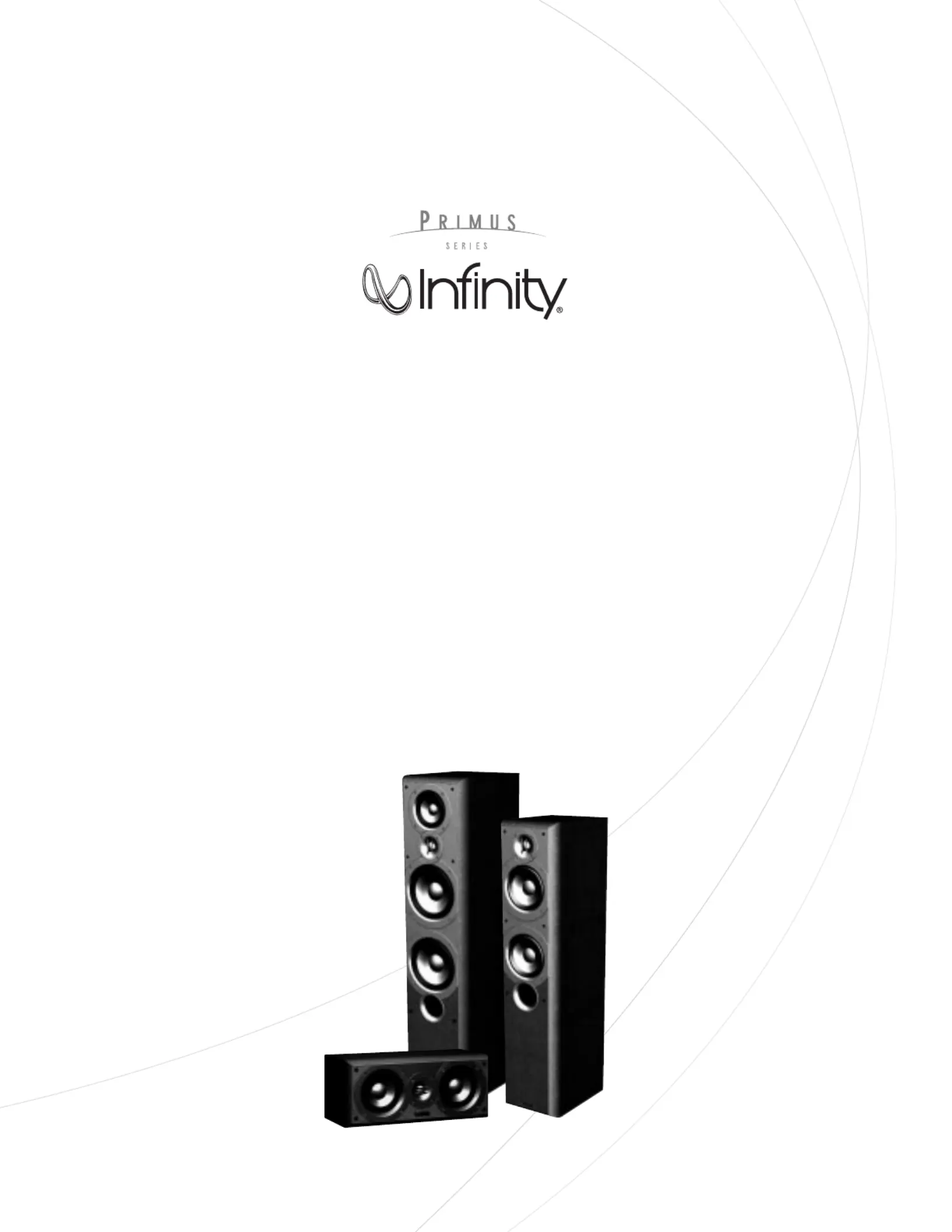

Owner’s Guide

Primus 250

Primus 360

Primus C25

P S SRIMUS PEAKER YSTEMS

I PNFINITY RIMUS

™

SERIES

The Primus series of loudspeakers continues Infinity’s longstanding

commitment to accurate sound reproduction. Our proprietary Metal

Matrix Diaphragm (MMD™) drivers, precision dividing networks, and

rigid, well-braced enclosures combine to deliver uncompromised

performance in any stereo or multichannel home theater system.

In addition, Primus series speakers are magnetically shielded for

safe placement adjacent to a television.

UNPACKING THE SPEAKERS

If you suspect damage from transit, report it immediately to your dealer.

Keep the shipping carton and packing materials for future use.

PLACEMENT

Stereo

Before deciding where to place your Primus speakers, survey your room

and think about placement, keeping the following points in mind, using

Figure 1 as a guide:

•For best results, place the speakers 6'– 8' apart.

•Position each speaker so that the tweeter is approximately at ear level.

•Generally, bass output will increase as the speaker is moved closer to a

wall or corner.

•Refer to the “Home Theater”section if you also plan to use the speakers

for home theater reproduction.

Figure 1. Experiment with speaker placement to obtain the

best bass level and stereo imaging in your room.

Home Theater

For front-channel use, place one speaker on the left and another on the

right, along either side of the television monitor. Since the speakers are

magnetically shielded, you can place them without worrying about the field

distorting the TV picture.

For rear-channel use, place Primus bookshelf speakers on bookshelves or

stands – or Primus floorstanding speakers on the floor – alongside the

listening position. Final placement depends on room acoustics, availability

of space, and your listening preference (Figure 2).

The center channel speaker should be placed on top of or directly below

the television and aimed toward the listening area.

NOTE: An Infinity powered subwoofer will add impact and realism to both

music and film soundtracks. Contact your Infinity dealer for recommenda-

tions on subwoofer models for your application.

Figure 2. This overhead view shows a typical home theater plan.

Figure 3. This figure shows an alternate layout, which may be more

suitable for some rooms.

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Innity Subwoofer

(optional)

Couch

Left

Front

Channel

Left

Surround

Channel

Right

Surround

Channel

Right

Front

Channel

Center

Channel

Innity Subwoofer

(optional)

Listening Position

Left

Channel

Right

Channel

2PRIMUS SPEAKER SYSTEMS

PRIMUS SPEAKER SYSTEMS

+ –

Receiver or

Amplier

(rear view)

Speaker (rear view)

– +

(one channel shown)

REDBLACK

Figure 4.This example shows how to connect bare wires to the terminals.

W SIRING THE YSTEM

IMPORTANT: Make sure all equipment is turned off before making any

connections.

For speaker connections, use a minimum #16-gauge speaker wire with

polarity coding.The side of the wire with a ridge or other coding is

usually considered positive polarity (i.e.,+).

NOTE: If desired, consult your local Infinity dealer about speaker wire and

connection options.

The speakers have coded terminals that accept a variety of wire connec-

tors.The most common connection is shown in Figure 4.

To ensure proper polarity, connect each +terminal on the back of the

amplifier or receiver to the respective +(red) terminal on each speaker,

as shown in Figure 5. Connect the –(black) terminals in a similar way.

See the owner’s guides that were included with your amplifier, receiver

and television to confirm connection procedures.

IMPORTANT: Do not reverse polarities (i.e., + to –or –to +) when

making connections. Doing so will cause poor imaging and diminished

bass response.

Figure 5. Wiring diagram shows polarity connections for one channel of a

stereo or home theater system.

F AINAL DJUSTMENTS

Check the speakers for playback, first by setting the system volume con-

trol to a minimum level, and then by applying power to your audio system.

Play a favorite music or video segment and increase the system volume

control to a comfortable level.

NOTE: You should hear balanced audio reproduction across the entire

frequency spectrum. If not, check all wiring connections or consult

the authorized Infinity dealer from whom you purchased the system

for more help.

The amount of bass you hear and the stereo-image quality will be affected

by a number of different factors, including the room’s size and shape,

the construction materials used to build the room, the listener’s position

relative to the speakers, and the position of the speakers in the room.

Listen to a variety of music selections and note the bass level. If there is

too much bass, move the speakers away from nearby walls. Conversely, if

you place the speakers closer to the walls, there will be more bass output.

Nearby reflecting surfaces can adversely affect stereo-imaging quality. If

this happens, try angling the speakers slightly inward toward the listening

position until the optimum effect is achieved.

C Y S SARE OF OUR PEAKER YSTEM

Each Primus series cabinet has a wood-grain-vinyl finish that does not

require any routine maintenance. When needed, use a soft cloth to remove

any fingerprints or dust.

Clean the grille by gentle vacuuming.

NOTE: Do not use any cleaning products or polishes on the cabinet

or grille.
