Jackery Explorer 1000 Plus Bruksanvisning
Les nedenfor 📖 manual på norsk for Jackery Explorer 1000 Plus (48 sider) i kategorien kraftbank. Denne guiden var nyttig for 8 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/48
Version: JAK-UM-V3.0
Model: JE-1000C
Contact us:
hello eu jackery.com .@

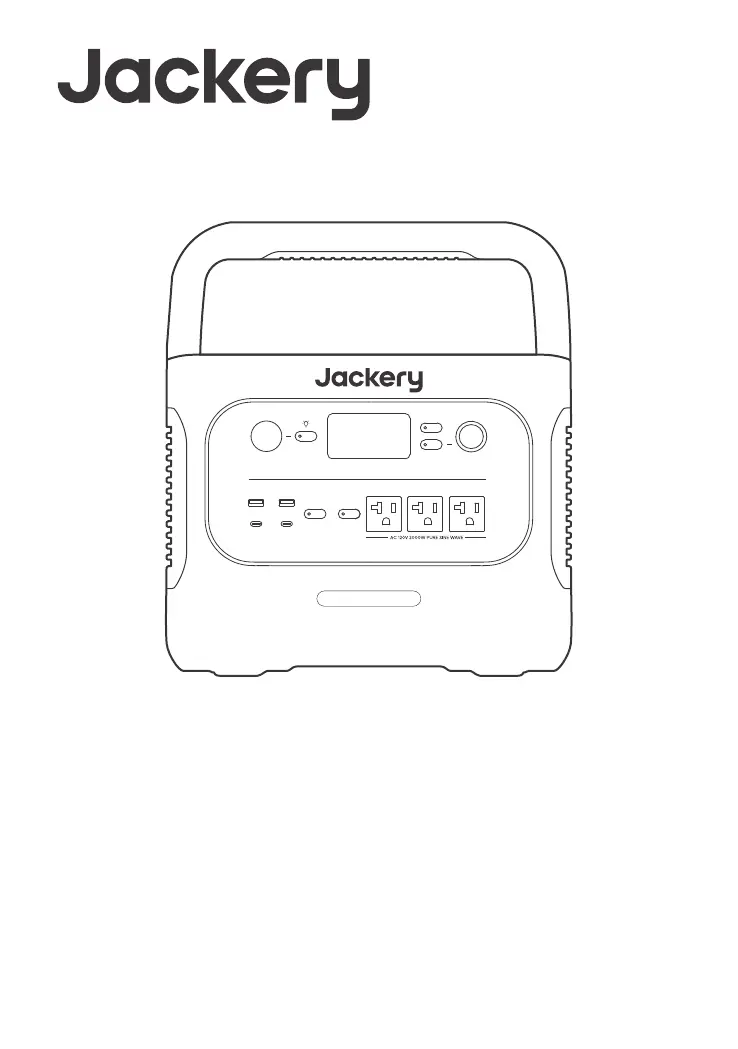

USER MANUAL
Jackery Explorer 1000 Plus
USB-A 18W MAX
USB-C 100W MAX
DC 12V 10A
LIGHT
POWER
PURE SINE-WAVE
AC230V,2000W MAX
PURE SINE-WAVE
AC230V,2000W MAX
Jackery Explorer 1000 Plus
CONTENTS
GB English 01-09
FR Français
10-18
DE Deutsch
19-27
IT Italiano 28-36
ES Español 37-45
More language versions are supported.
Other language versions of the manual can be downloaded on our official website:
https://de.jackery.com/pages/user-guides
Congratulations on your new Jackery Explorer 1000 Plus. Please read this manual carefully before
using the product, particularly the relevant precautions to ensure proper use. Keep this manual in an
accessible place for frequent reference.
In compliance with laws and regulations, the right of final interpretation of this document and all
related documents of this product resides with the Company.
Please kindly notice that no further notifications will be given in case of any update, revision or
termination.
TECHNICAL SPECIFICATIONS
01
CERTIFICATIONS
2x AC Output
AC Total Output
2x USB-C Output
2x USB-A Output
DC Expansion Port
Car Port
230V~ 50Hz, 8.7A
2000W Rated, 4000W Surge peak
100W Max, 5V 3A, 9V 3A, 15V⎓ ⎓3A, 12V⎓ ⎓3A, 20V⎓5A
18W Max, 5-6V 3A, 6-9V 2A, 9-12V 1.5A⎓ ⎓ ⎓
32.5V-46.8V 68A Max⎓
12V⎓10A
GENERAL INFO
Product Name
Model No.
Capacity
Cell Chemistry
Weight
Dimensions
Cycle Life
Jackery Explorer 1000 Plus
JE-1000C
Lithium-ion 30.4Ah/41.6V DC (1264.64Wh)
LiFePO4
About 32 lbs/14.5 kg
14 x 10.24 x 11.14 in/35.6 x 26 x 28.3 cm
4000 cycles to 70%+ capacity
OUTPUT PORTS
INPUT PORTS
DC Input
Charge Mode AC Input
2x DC 8mm Ports: 12V-60V (Working Voltage) 11A Max, ⎓
Double to 22A/800W Max
220V-240V~50Hz, 10A Max
0°C~45°C (32 ~113 )℉ ℉
-10°C~45°C (14 ~113 )℉ ℉
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature
Discharge Temperature
GB
Model: JE-1000C
English
