Side 1/28
Version: JAK-UM-V1.0
Model: JE-2000C
Contact us:
hello@jackery.com
1-888-502-2236(US)
USER MANUAL

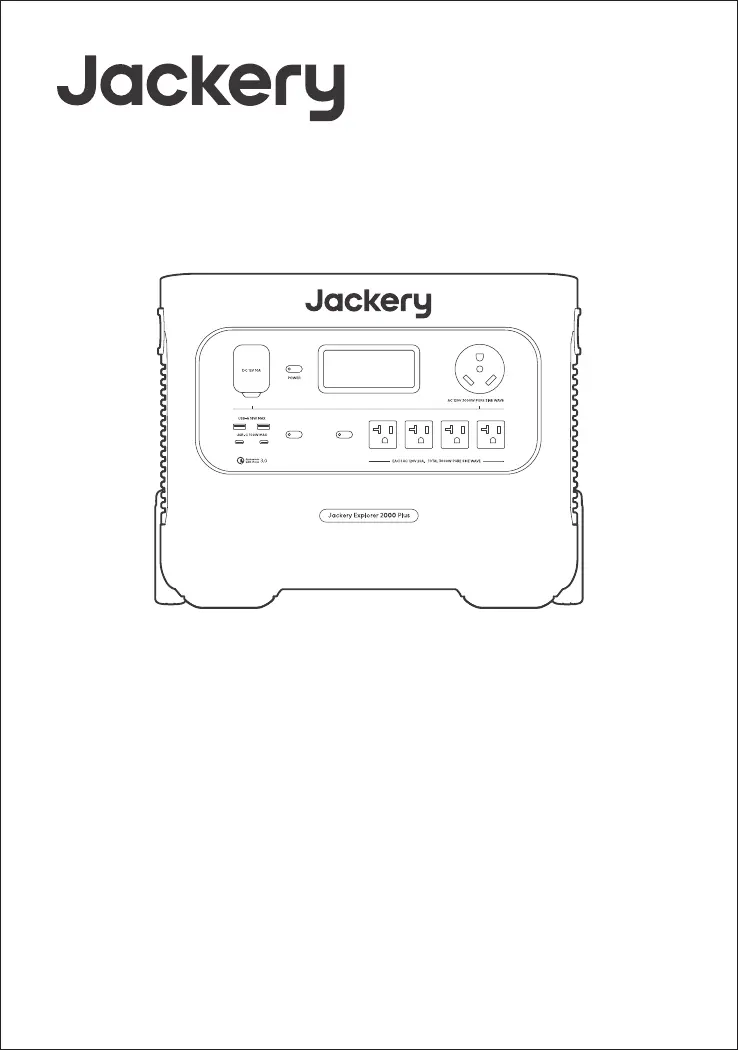

Jackery Explorer 2000 Plus
Congratulations on your new Jackery Explorer 2000 Plus. Please read this manual carefully before
using the product, particularly the relevant precautions to ensure proper use. Keep this manual in an
accessible place for frequent reference.
In compliance with laws and regulations, the right of final interpretation of this document and all
related documents of this product resides with the Company.
Please kindly notice that no further notifications will be given in case of any update, revision or
termination.
TECHNICAL SPECIFICATIONS
01
※ USB Type-C and USB-C are registered trademarks of USB Implementers Forum.
※ Qualcomm Quick Charge is a product of Qualcomm Technologles,Inc. and/or its subsidiaries.
Qualcomm and Quick Charge are trademarks or registered trademarks of Qualcomm Incorporated.
® ®
CERTIFICATIONS
4x AC Output
1x AC Output
AC Total Output
1x AC Expansion Port
1x DC Expansion Port
2x USB-C Output
2x USB-A Output
1x Car Port
120V~ 60Hz, 20A Max
120V~ 60Hz, 25A Max
3000W Max, 6000W surge peak
120V~ 60Hz, 25A Max
32.2V-50.4V 97A Max⎓
100W Max, 5V 3A, 9V 3A, 15V⎓ ⎓3A, 12V⎓ ⎓3A, 20V⎓5A
Quick Charge 3.0, 18W Max, 5-6V 3A, 6-9V 2A, 9-12V 1.5A⎓ ⎓ ⎓
12V⎓10A Max
GENERAL INFO
Product Name
Model No.
Capacity
Weight
Dimensions
Cycle Life
Jackery Explorer 2000 Plus
JE-2000C
Lithium-ion 45.6Ah/ 44.8V DC (2042.8Wh)
About 61.5 lbs/ 27.9 kg
18.6 x 14.1 x 14.7 in/ 47.3 x 35.94 x 37.36 cm
4000 cycles to 70%+ capacity
OUTPUT PORTS
INPUT PORTS
Charge mode AC input
Bypass mode AC input/output
DC Input
120V~ 60Hz, 15A Max
120V~ 60Hz, 12A Max
2x DC 8mm Ports: 11-17.5V (Working Voltage) 8A Max, ⎓
Double to 8A Max;
17.5-60V (Working Voltage) 12A Max, Double to 24A/1400W Max⎓
0~45°C (32~113 °F)
-10~45°C (14~113°F)
ENVIRONMENTAL OPERATING TEMPERATURE
Charge Temperature
Discharge Temperature
