BRASS TRIM INGROUND - 15495CBR
BRASS COWL INGROUND - 15496CBR
BRASS ROCKGUARD INGROUND - 15497CBR
BRASS BEACON INGROUND - 15498CBR
BRASS SIDE THROW INGROUND - 15499CBR
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
2)
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National Electric Code (NEC) and Local code specifications. Failure to
adhere to these codes and instructions may result in serious injury and/or property damage and will void the warranty.
1) WARNING: This fixture is not to be installed within 10 feet (3M) of a pool, spa or fountain.
This fixture is to be used only with a power unit (transformer) rated a maximum of 300 W (25 AMPS) 15 volts per circuit.
3) The #18 ga. fixture wire is not intended for direct burial or connected to transformer.
4) Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the surface of the ground. If additional Direct Burial wireNOTE:
is needed, contact your local Kichler® landscape distributor.
• 8 GA wire can be purchased in length of 250’ (76 M), 15503-BK.
•10 GA wire can be purchased in length of 250’ (76 M), 15504-BK.
•12 GA wire can be purchased in lengths of 100’ (30 M), 15501-BK
; 250’ (76 M), 15502-BK; 500’ (152M), 15505-BK; and 1000’ (304 M),
15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the fixture is marked for use with such lamps.
6) Wiring connections must be made with approved/listed wire connection device(s) suitable for the application. Do not exceed
manufacturers’ wiring combination specifications for size and quantity of conductors.
Five leaves
cover
15498CBR
Grill cover
15497CBR
Shield cover
(15496CBR)
Eyelid cover
15499CBR
Open cover
(15495CBR)
2
3
4
5
6
7
9
10
11
12 13
1
8
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page
Date Issued: 4/27/17

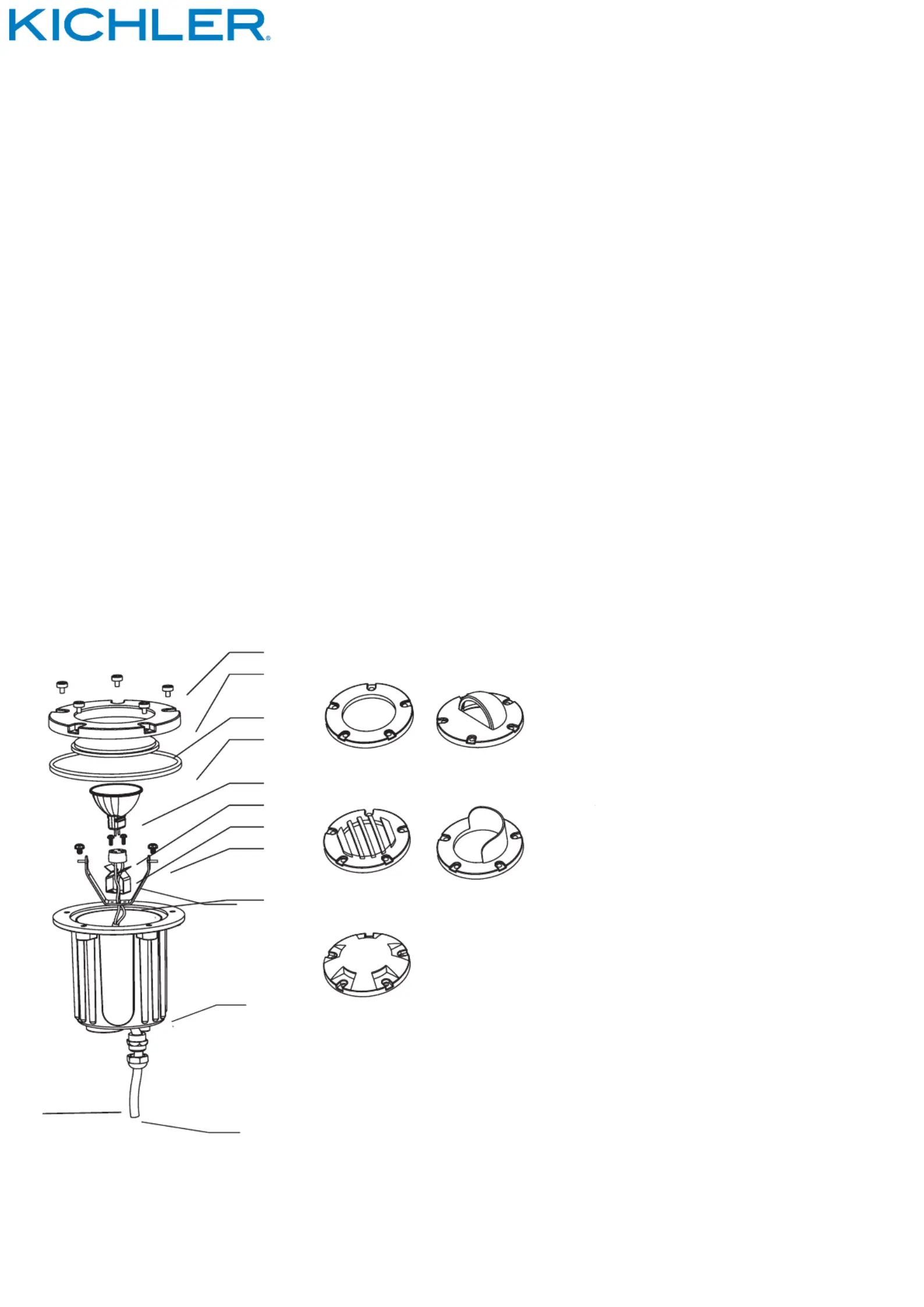

1. Cover Screw
2. Cover
3. Glass
4. Gasket
5. Lamp
6. Socket Screw
7. Socket
8. Bracket Screw
9. Socket Clip
10. Bracket
11. Housing
12. Grommet
13. Cable
4.
5.
6.
Dig a hole approximately 12" deep by 3" wider than the well
light. This allows approximately 3" of pea gravel or sand to
surround ABS housing.
a) 5 1/4For concrete applications, use a inch core drill,
12 inches deep.
Strip the two lead wires from fixture pigtail wire. Using wire
connectors (not included), connect the leads from the
luminaire to the main supply cable leads. Allow 12-18" of
extra wire (coiled inside the bottom of the well light) to allow
for lamp removal / replacement.
Place fixture at final height leaving 1-2 inches of the fixture
above grade to minimize debris collection (in lawn areas
they should be flush with grade).
7. Install luminaire in hole and fill hole after installation with
pea gravel or sand. Backfill and compact the soil
around the fixture thus securing it in the ground.
8. Power fixture to check for proper operation.
9 Call Factory for additional installation options..
CAUTION
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE
OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF
POTENTIALL Y COMBUSTIBLE MATERIALS. WHEN MAINTAINING
THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES,
GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS
ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE
FIXTURE.
ASSEMBLY AND INSTALLATION
Weʼre here to help 844-542-4537
Hrs: M-F 8am to 6:30pm EST
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly!
3) Do not touch hot lens or cowl.
4) Do not touch lamp or fixture if warm.
5) Do not look directly at lamp when on.
6) Keep lamp away from combustible materials.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time. Use a soft cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
1.
TURN OFF POWER
2.
Determine desired location for installation. Check area for
obstructions such as sprinklers, plant material, etc. Assess
soil conditions.
3.
With a screwdriver, loosen cover screws and install lamp
into socket. Then put the cover back and tigh
15495CBR
15496CBR
15497CBR
15498CBR
15499CBR
