Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
LAM6703
LAM6803
www.howdens.com/appliance-registration

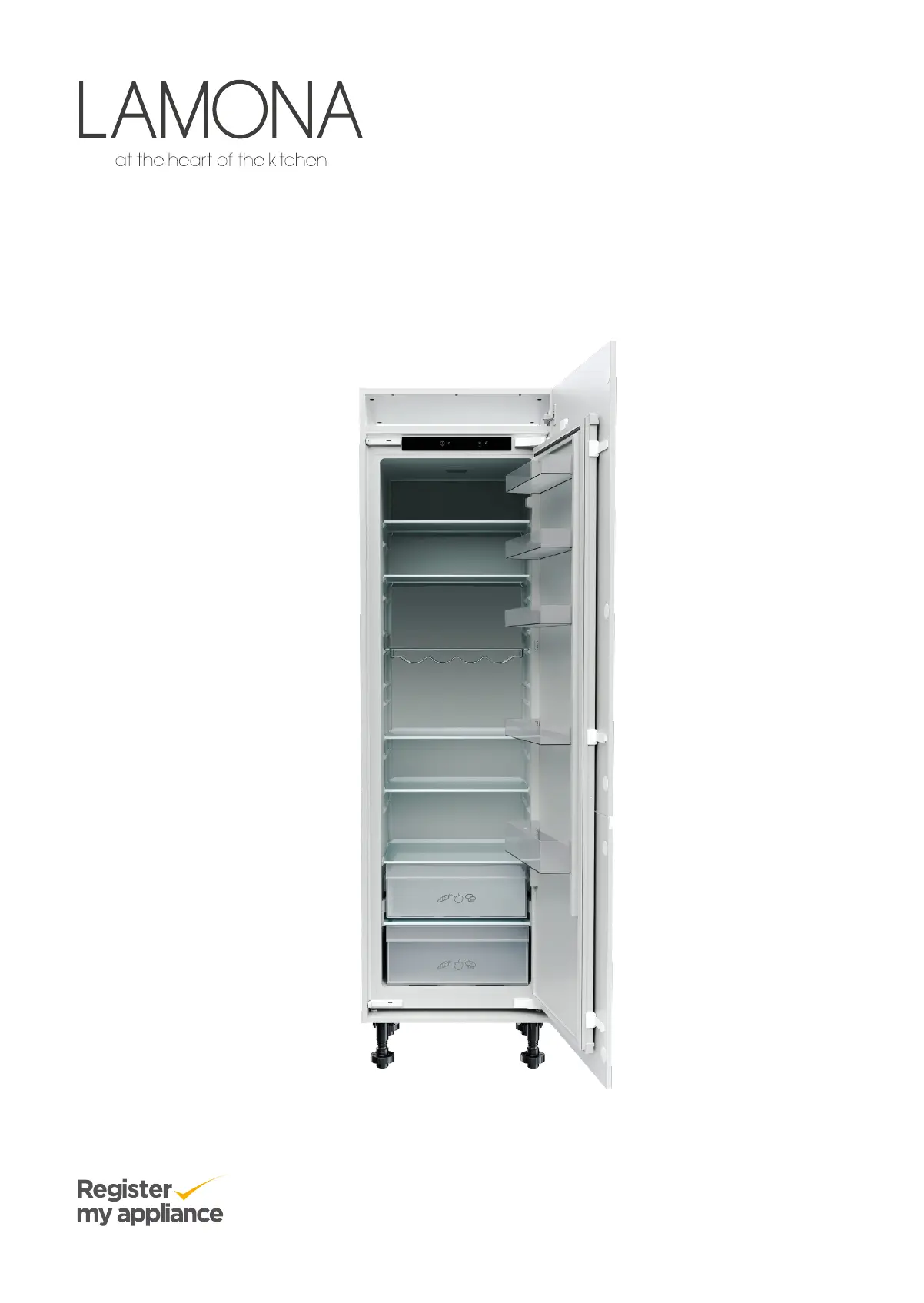

Lamona tall integrated larder fridge
Lamona tall integrated frost free freezer
ISSUE v1.2 091123
2www.howdens.com
Appliance must be
fixed securely and level.
Do not install a
damaged appliance.
WARNING!
This appliance must be earthed.
The electric socket must be
accessible after fitting.
42mm
42mm
Please use brackets with tabs to ensure
appliance install depth is 42mm.
(Use front feet adjustment to assist)
If installed deeper than 42mm (at either
side) the appliance door may not close fully
causing issues such as:-
THE LIGHT WILL STAY ON
THE ALARM WILL SOUND (*Frost free models)
THE APPLIANCE WILL NOT WORK CORRECTLY
(Not cooling, icing-up, water leaking etc.)
1. Establish power socket location,
(must be accessible after installation)
2. Prepare cabinet, (remove back panels,
fit upper shelf, fit plinth vent) ..............................p.4
3. Fit and adjust decor doors ...................................p.4
4. Reverse appliance door if necessary ............p.11
5. Fit side seal trim to appliance .............................p.5
6. Fit top trim to appliance ........................................p.5
7. Protect cabinet edges with masking tape .....p.6
8. Lift appliance into cabinet ....................................p.6
9. Remove appliance door.
Level and align appliance using front
adjustable feet and spacer brackets .............. p.7
10. Fix spacer brackets to appliance and
when in correct position screw to
cabinet sides. .........................................................p.8-9
11. Make any final feet adjustments to
align appliance to brackets and
ensure correct spacing depths ......................p.8-9
12. Tighten appliance brackets to appliance,
(DO NOT over tighten).
Refit appliance door. ...........................................p.8-9
13. Attach door sliders.
Remove bracket spacer tabs ...........................p.10
14. Install cover caps and trims ..............................p.10
Safety Information
Installation overview guide
Two person lift.
Warning for hazardous
situations with regard to
life and property.
WARNING!
Do not use extension
cables / adapters.
Risk of injury:
Beware of metal edges. Use
gloves when handling.
Warning for
electric shock.
NOTE: If the electricity
cable is damaged it
must be replaced by a
competent person.
Warning for
risk of fire.

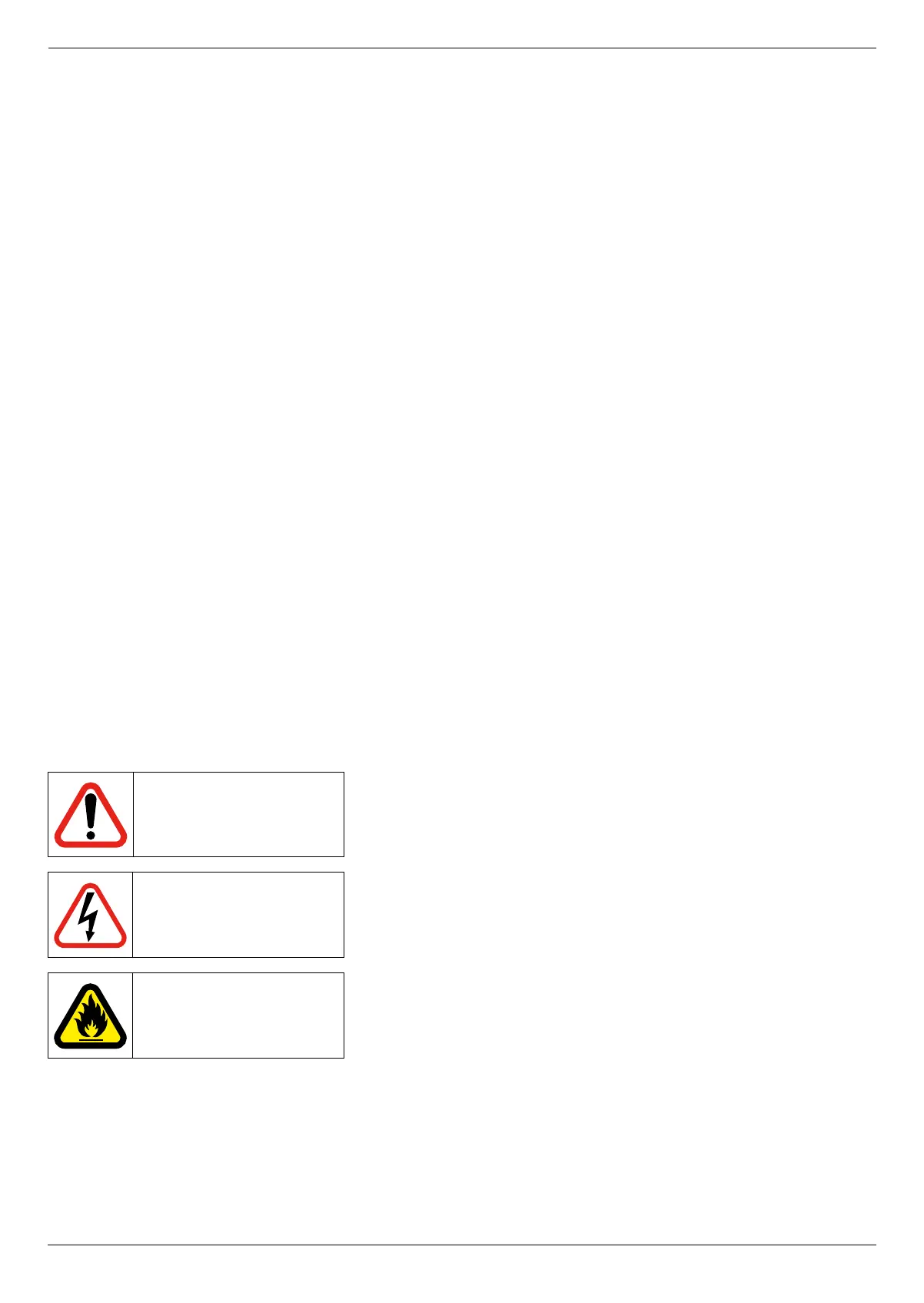

Throughout this manual the following symbols are used.
3
Exclusive to Howdens
Spacer
bracket x2
(3.5x13)
(3.5x13) x8
(3.5x13) x2
(T25x18) x4 (T25x18) x2
Side sealing strip x1
BAG 2 BAG 3
RH Hinge
cover x1
LH Hinge
cover x1
BAG 5 BAG 6
Screw hole
plug x4
Screw hole
cover x2
Remove parts bag
from appliance drawer.
Top trim x1
BAG 1
Door slider x4
Cover
BAG 4
Top spacer
bracket x1
Bottom spacer
bracket x1
TORX25
and
cross head
screw driver
DO NOT use high speed
impact power tools.
2mm drill bit
3 FH) x2
Cover x4
Tools required
Installation
Parts supplied - PLEASE RETAIN, DO NOT THROW AWAY!
A
A
BB
C
A
