I-00162 Rev E
THANK YOU
Thank you for purchasing the SRSR Series Rotating Sliding Rail System. Please read these
instructions thoroughly before assembling this product.

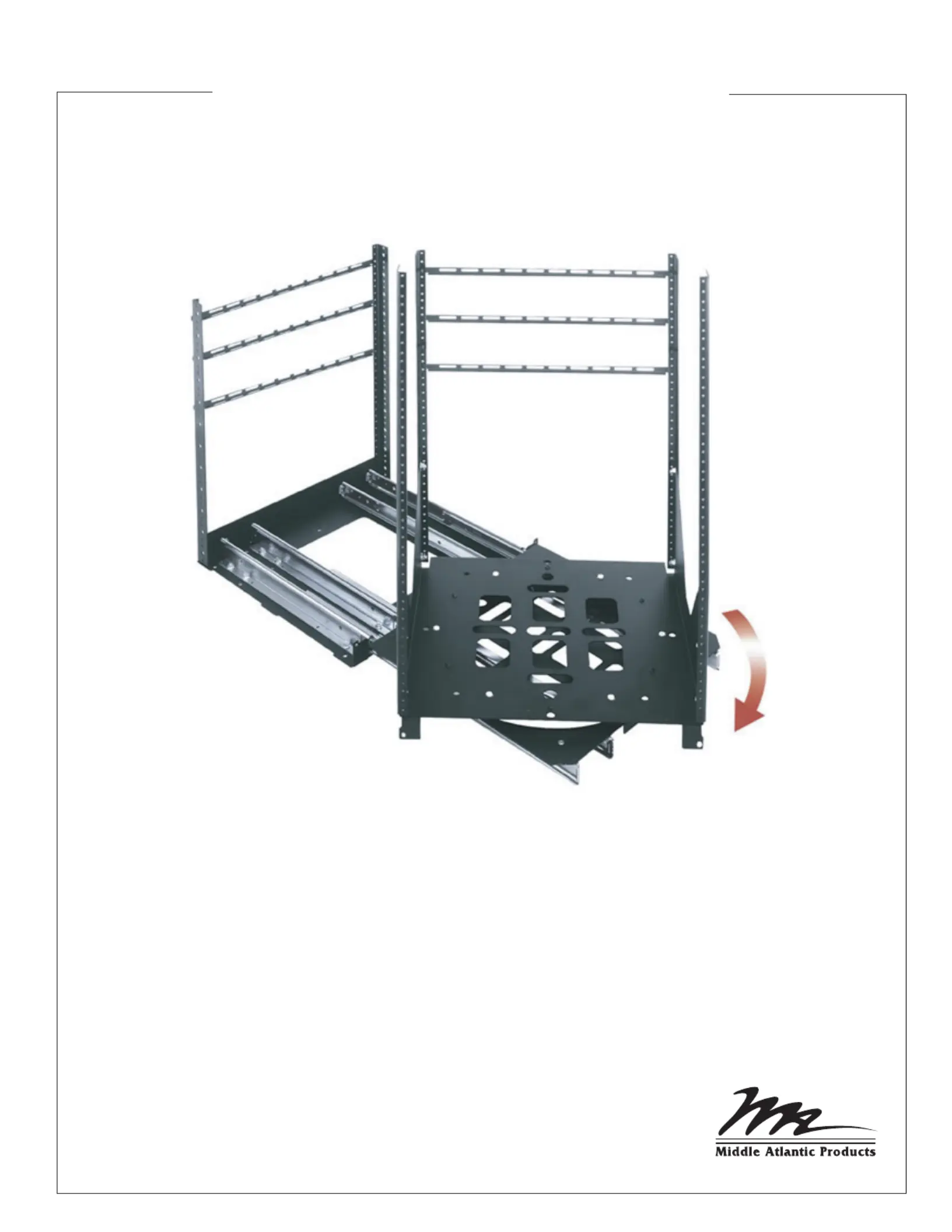

PRODUCT FEATURES
- Provides easy access to rear equipment connections
- Ideal for millwork, cabinets and flush in-wall installations
- Rack frame removes for in-shop integration and on-site installation
LOCKING
TRIM PANEL
RACK SCREWS #10-32 (2)
FIGURE A
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to a
situation that could result in serious personal
injury or death.
!
!
IMPORTANT WARNINGS AND CAUTIONS!
WARNING! Failure to read, understand and follow the following information can result in serious
personal injury, damage to the equipment or voiding of the warranty. It is the responsibility of the
Installer/User to ensure that this product is loaded according to specifications.
!
Page 3
CAUTION: A CAUTION alerts you to a
situation that may result in minor personal
injury or damage to the product
and /or property.
TOOLS REQUIRED
#2 Phillips Head Screwdriver
1/2” Wrench
Drill
Tape Measure
HARDWARE KIT INCLUDES
1/8” Hex Key
5/16” - 18 Flange Nuts
#10 - 32 x 1/2” Hex Head Screws
#10 - 32 Rack Screws
QTY DESCRIPTION
1
14
4
26
ASSEMBLY
1) Remove two (2) #10-32 rack screws securing
locking trim panel to SRSR base and set
aside. (FIGURE A)
2) Extend the sliding carriage on the SRSR base.
