Side 1/8
12/2021 EN

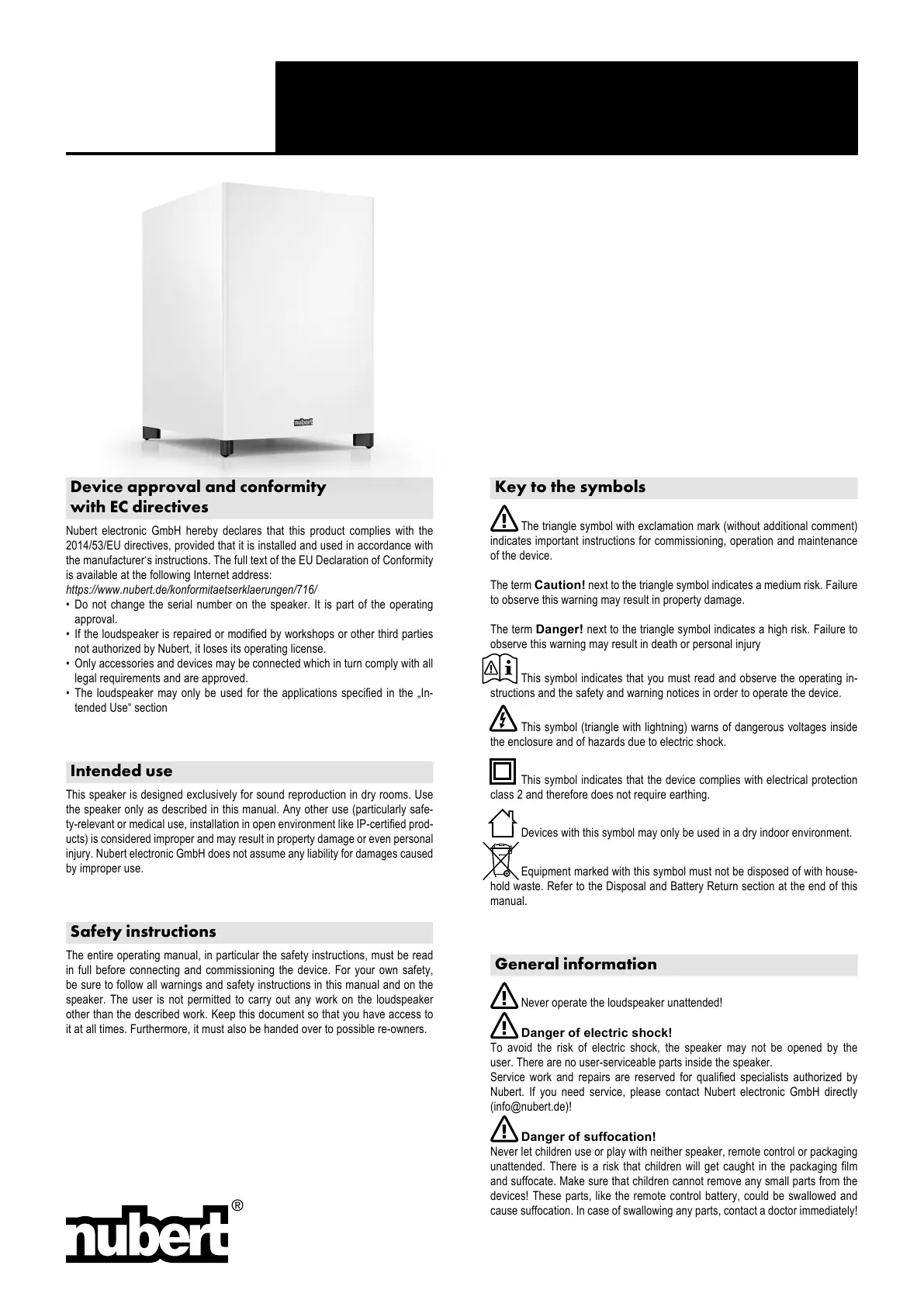

Active subwoofer
Safety instructions
Technical data
Warranty terms
1
nuSub XW-1200
1
nuSub XW-1200 · 12/2021 EN
22
Unpacking and Scope of Delivery
Unpacking
When unpacking your speaker, do not use sharp or pointed objects to avoid
possible damage to the enclosure. Please keep the packaging in a safe place
in case you need to transport the speaker at a later date.
Scope of delivery
If the delivery is complete, it contains the following parts:
• 1 Subwoofer
• 1 Mains cable, 3 m
• 1 Y-subwoofer cable, mono cinch plug to 2x cinch plug, 3 m
Auto-off
The subwoofer has an automatic power off function. If the LINE IN input is se-
lected, the subwoofer switches to standby mode after no more than 20 minutes
without a signal. For this input the automatic switch-off can be deactivated via
app. The stand-by power consumption is 0.5 watts.
If WIRELESS IN is selected as the input, the subwoofer follows the wireless
transmitter that acts as the master. This function cannot be be deactivated. The
standby power consumption is 0.6 watts.
Auto-on
The subwoofer has an auto-on function that can automatically wake the sub-
woofer up from standby mode when a signal is sensed. This function is only
active if the subwoofer was set to standby by the auto-off function. To wake up
the subwoofer, a signal must be present at the input that was selected when the
loudspeaker went into standby. If the subwoofer was set to standby using the
on/off button in the app, the auto-on function is disabled.
EN 12/2021 · nuSub XW-1200
3
Technical Data XW-1200
Principle ActiveBassReexSubwoofer
Subwoofer chassis 1x 320 mm bass-driver
Powerofbuilt-inampliers 1x360Watt(ratedpower)
1x420Watt(musicpower)
Frequencyresponse 19–150Hz(-3dB)
Input sensitivity 0.3 Veff
Max. Input 3 Veff
Standby power consumption
(variesdependingonselectedsource) 0.5Watt(Source:LineIn)
0.6Watt(Source:Wireless)
Radio frequency bands radio transmitting power
Bluetooth module 2402 – 2480 MHz 2.72 dBm / 1.9 mW
Network module 5180 – 5240 MHz 11.58 dBm / 14.4 mW
5736 – 5814 MHz 12.92 dBm / 19.6 mW
Hight 59.8cm(incl.feet)
Width 40.5 cm
Depth 48 cm
Weight 29.6 kg
Ambient temperature 5° C – 35° C
Care and cleaning tips
Caution!
Improper handling of the speaker may result in damage.
• Always unplug the speaker before cleaning it!
• Before recommissioning, make sure that all connections are correct, that
there are no short circuits and that the speaker is completely dry.
• Never use strong cleaning agents or solvents such as petrol, spirit or similar!
Enclosure
We recommend commercial window cleaner sprayed onto a cotton cloth. This
allowsalmostallngerprintsanddusttobeeasilyremoved.Alternatively,you
can also use window active foam.
Weadviseagainsttheuseofmicrobrecloths!Thesecancauseminiscratch-
es in the surface.
Diaphragms and Speaker Chassis
Toremovedustfromaloudspeakerchassis,alint-freecottonclothissufcient
to wipe the membrane lightly with very little pressure.
Service
If you have any questions or problems during the commissioning of your Nubert
system, please do not hesitate to contact our service team:
Phone: +49 7171 8712-0
E-mail: info@nubert.de
Please have your customer number ready!
3
