Side 1/6

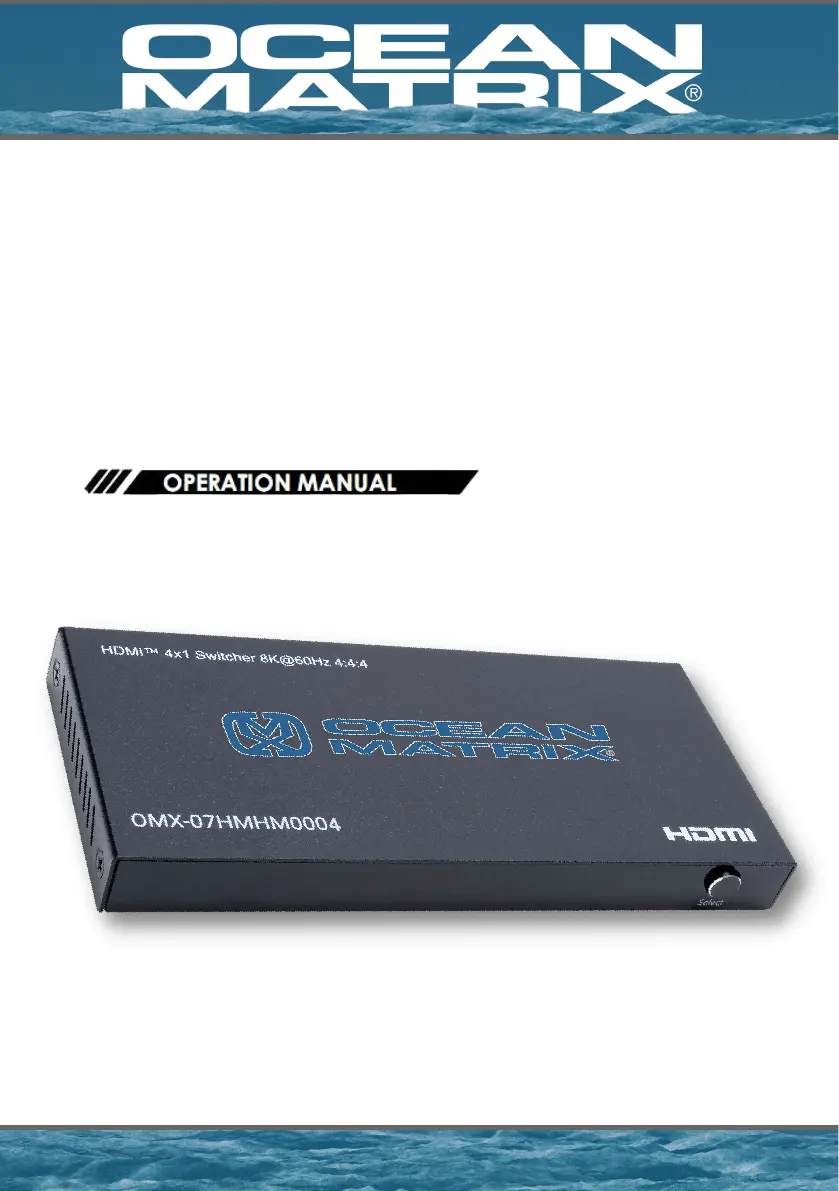

OMX-07HMHM0004
HDMI 4x1 Switcher 8K@60Hz 4:4:4 HDR
HDCP2.3
Supports Resolutions up to 8K@60Hz 4:4:4, 4K@120Hz, and 1080p@240Hz
1200MHz/12Gbps per Channel Bandwidth (48Gbps All Channels)
Supports 12bit per Channel (36bit All Channels) Deep Color
HDCP 2.3, HDCP2.2 and HDCP1.4 Compliant
Support High Dynamic Range (HDR) Video Pass-through, such as
HDR10/HDR10+/Dolby vision etc.
VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick
Frame Transport) Functionality
Built-in Equalizer, Retiming, and Driver
Automatic, Manual, and Remote Control Switching Supported
Supports Uncompressed Audio; LPCM
Supports Compressed Audio: DTS, Dolby Digital (DTS-HD Master Audio™ and
Dolby TrueHD)
The Ocean Matrix OMX-07HMHM0004 is an HDMI 4x1 switcher that lets you share four
HDMI-enabled video sources with a single display or projector. The switcher features
four independent inputs that each support 8K resolutions and 7.1 surround sound audio.
The switcher is backward compatible with Ultra HD 4K and HD 1080p, so users can be
assured that their digital signage will look great in all situations.
Description:
Features:
Specifications:
Input Ports: HDMI x 4
Output Ports: HDMI x 1
Vertical Frequency Range: 50/60/100/120/240Hz
Video Amplifier Bandwidth: 12Gbps/1200MHz per Channel (48Gbps All Channels)
Interlaced (50 & 60Hz): 480i,576i,1080i
Progressive (50 & 60Hz): 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60/120Hz,
8K@24/30/50/60Hz
Operating Temperature: 32°F – 158°F (0°C-70°C)
Storage Humidity: 5% to 90% TH Non-condensation
Power Consumption (Max): 5W
Switcher Unit & Power Supply Certifications: FCC, CE, RoHS
Dimensions (LxWxH): 5.35 x 2.41 x 0.56in (136.3 x 61.5 x 14.5mm)
Weight: 0.3563lbs (163g)
Operation Controls and Functions:
24 5
7 8 9
Power LED Indicator
Input Ports 1-4 LED Indicators - Blue LED indicates an active signal path while no
LED indicates no input signal
Auto Mode LED Indicator - LED on indicates the unit is in automatic switching
mode while off indicates it's in manual switching mode
IR Mode LED Indicator - LED on indicates the unit is in the normal IR receiver
mode while off indicates it's not in IR function mode
IR Signal Receiver Port
Switch - Press to change the input channel, automatic / manual switching mode,
and IR receiver mode
DC/5V - DC 5V input via micro-USB
HDMI Output Port
HDMI Input Port 1-4
1.
2.
3.
4.
5.
6.
7.
8.
9.
3
16
