STANDARD EQUIPMENT
Pruning Chainsaw
PRUNING
CHAINSAW
INSTRUCTION MANUAL
ozito.com.au
Bottle for Oil
Guide Bar & Chain
SPECIFICATIONS
Input: 18V
Bar Length: 160mm
Cutting Length: 125mm max.
Chain Speed: 4.8m/s max.
Chain Pitch: 7.62mm
Chain Gauge: 1.0mm (0.039”)
Oil Bottle: 50ml
Weight: 1.1kg
Bar & Chain Cover, Hex Key
PXBPCS-1815
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
1023
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty Warranty excludes consumable parts, for example: guide bar, chain
and included accessories.
160
MM
(6¼”)
160
MM
(6¼”)
OZITO. 25 Fox Drive, Dandenong South, Victoria 3175, Australia
This product is intended for use by a competent
trained person. This user manual is a guide only and
should not be treated as a training manual.
• Please seek professional training before use.
• This product is designed for light limbing of branches and or light
pruning of trees, shrubs and bushes while user is rmly footed on the
ground. Not designed for tree-felling purposes.
16
M
¼”)

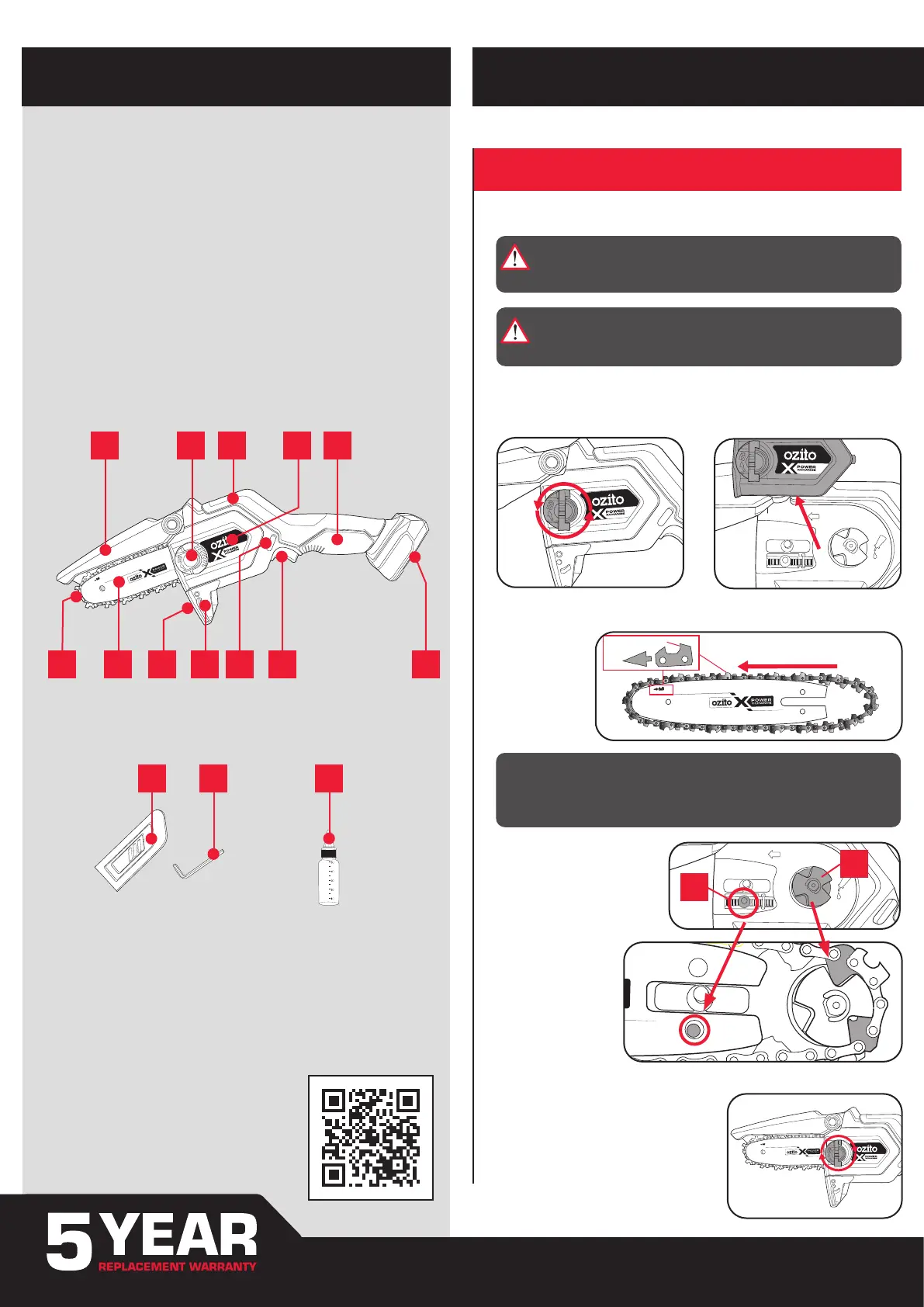

KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
1. Pivoting Guard
2. Side Cover Lock
3. Front Handle
4. Side Cover
5. Rear Handle
6. Chain
7. Guide Bar
8. Front Hand Guard
9. Hex Key Storage
10. Safety Switch
11. On/Off Trigger
12. Battery Seating
13. Chain & Bar Cover
14. Hex Key
15. Bottle for Oil
PRUNING CHAINSAW
1 42
6 7 8
BATTERY & CHARGER
This tool is compatible with all battery and chargers
from the Ozito PXC Range.
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
14
10 119
15
12
13
WARNING!: ENSURE THE CHAINSAW IS SWITCHED
OFF AND THE BATTERY IS DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING!: ALWAYS WEAR GLOVES WHEN HANDLING
THE CHAIN. THE CHAIN CUTTERS ARE SHARP AND
COULD CUT YOU.
160
MM
(6¼”)
3 5
Cutter Face
160
MM
(6¼”)
Direction of Rotation
IMPORTANT: IF THE CHAIN IS INSTALLED BACKWARDS
(CHAIN CUTTERS ARE FACING IN THE OPPOSITE DIRECTION
OF ROTATION) THE CHAINSAW WILL VIBRATE EXCESSIVELY
AND NOT CUT.
4. Place the Guide Bar and
Chain in position, ensuring
that the chain is around
sprocket and the chain (A)
links are in the groove of
the Guide Bar and
the Sprocket. Also
ensure that the pin
(B) ts into the
hole of the Guide
Bar.
5. Attach the Side Cover and secure
it with the Side Cover Lock.
Do not fully tighten until after
adjusting the chain tension.
(See Adjusting the Chain
Tension).
A
B
1. Lift the tab on the Side Cover
Lock and completely unscrew,
rotating counter clockwise.
Fitting the Chain & Bar
2. Remove the Side Cover.
3. Fit the Chain in the groove on the Guide Bar, making sure that the
cutters are
facing in the
direction of
rotation.
Note: Proper tension of the chain
is extremely important and must be
checked before starting, as well as
during any cutting operation as the chain heats up thus changes in
length. Taking the time to make adjustments to the chain will result in
improved cutting performance and prolonged chain life.
Check the chain tension every 10 minutes and adjust it again as
required.
2. CHAIN TENSION & LUBRICATION
160
MM
(6¼”)
WARNING!: THE CHAIN HAS SHARP EDGES, PLEASE USE
WORK GLOVES. NEVER TOUCH THE CHAIN OR SERVICE
THE UNIT WITH THE BATTERY FITTED.
WARNING!: IF YOU TRY TO ADJUST THE CHAIN TENSION
WHILST THE SIDE COVER LOCK IS TIGHT, IT WILL RESULT
IN THE CHAIN NOT LOOSENING AND POSSIBLE DAMAGE
TO THE MECHANISM.
160
MM
(6¼”)
WARNING!: NEVER START WORK UNLESS THE CHAIN
AND GUIDE BAR ARE LUBRICATED.
WARNING!: ONLY USE OIL THAT IS EXPRESSLY LABELLED
‘CHAIN BAR OIL’.
160
MM
(6¼”)
WARNING!: NEVER START THE PRUNING CHAINSAW
WHILE THE CHAIN & BAR COVER IS FITTED.
1. Before starting
operation, apply 5
drops of chain bar oil
(not supplied) to the
groove in the Guide
Bar.
160
MM
(6¼”)
2. Repeat the lubrication process after 5 minutes of use (depending on
the number and size of cuts) so that the chain does not run dry.
Adjusting the Chain Tension
1. Loosen the Side Cover Lock,
rotating in a counter clockwise
direction. Do not remove the Side
Cover.
2. Adjust the chain tension by
turning the chain tensioning
screw with the supplied
Hex Key. Turning the screw
CLOCKWISE (as shown)
increases the chain tension,
turning it
COUNTER-CLOCKWISE
decreases the chain tension.
For the correct chain tension, rmly pull the chain away from the
exposed guide bar. When the chain is pulled away at its furthest point,
the bottom tip of the links should only just stay in the groove [middle of
the guide bar].
3. After the chain has been
accurately tensioned, lock the
guide bar in place with the Side
Cover Lock.
Chain & Guide Bar Lubrication
Chain & Bar Cover
This protects the guide
bar and chain when not
in use. Simply slide it off
before use. Once nished
operating, place the cover
back over the guide bar.
