Side 1/7

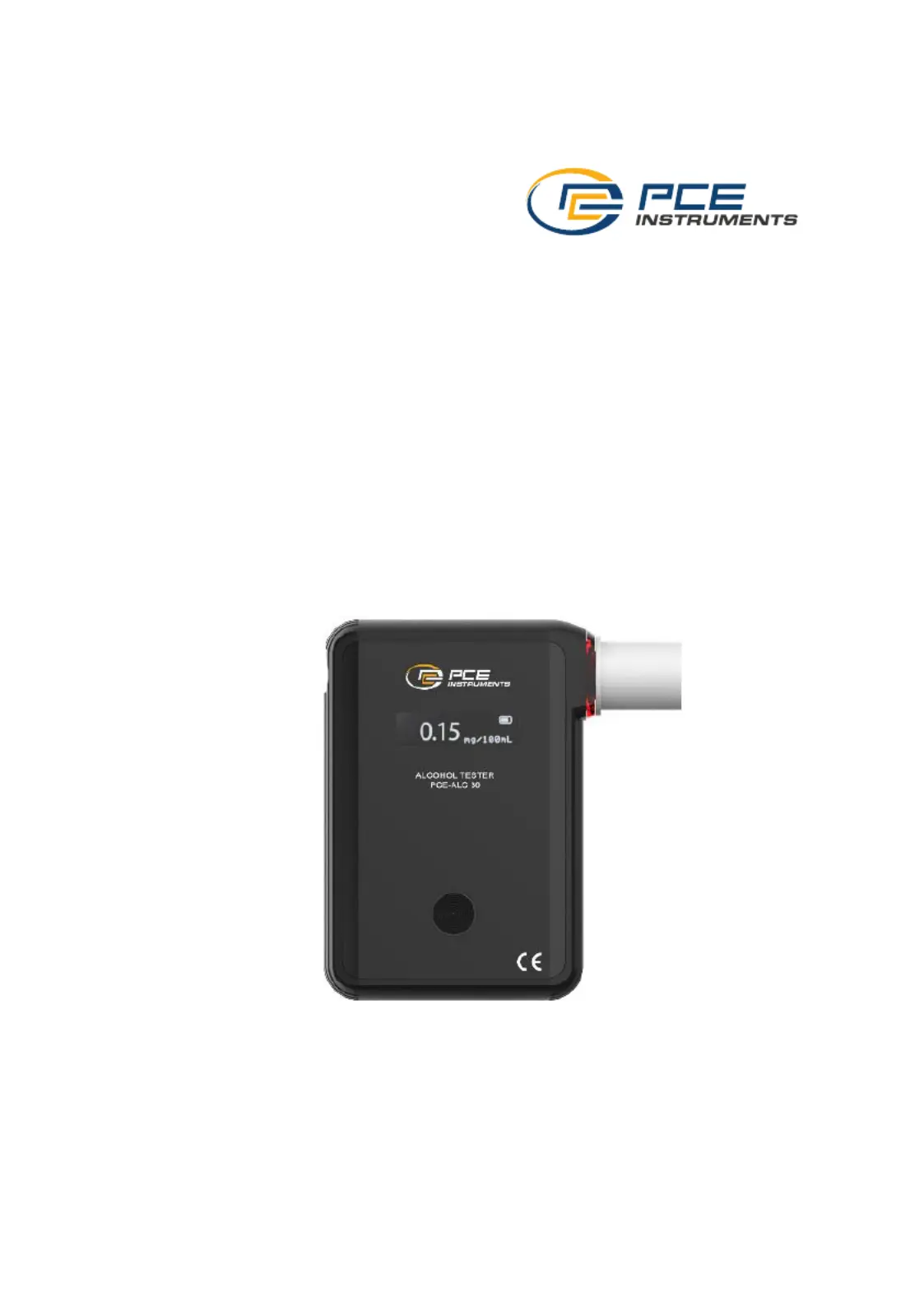

PCE-ALC 30
Alcohol Tester
Cautions
➢To have accurate indication of blood alcohol concentration, please
test at least 15 minutes later after drinking. Make sure to attach a
mouthpiece during testing, otherwise, the result is not accurate.
➢Not recommend to use it beyond - -10℃50℃. The reading may not
be accurate.
➢To keep accuracy of alcohol tester, it’s highly recommended to be
recalibrated in every 6 months. Please calibrate the sensor once the
tester is due for recalibration.
➢Do not block breath sample inlet, otherwise, the sample could be
stay inside of tester, which will impact following tests.
➢Do not clean surface by Ethanol. Recommend to use soft wet cloth
and neutral detergent.
➢Do not let smoke into the mouthpiece and tester, which maygo
damage the sensor.
➢Avoid any fall or strong shock which may damage the tester.
General Information
PCE-ALC 30 is a key chain breathalyzer which is convenient to carry
and use at all times. It adopts fuel cell sensor which provides superb
accuracy
and repeatability; OLED shows results with 3 decimals; Preset alarm
threshold; Low voltage indication, etc.
Specification
Model
PCE-ALC 30
Sensor
Fuel Cell
Test Range
0 2.00mg/L～
0 0.40%BAC～
0 4.00g/L～
0 440mg/100mL～
Resolution
0.001%BAC
Accuracy
±0.010%BAC at 0.050%BAC
Warm Up Time
Less than 5s
Operation Condition
Temperature -: 10℃～50℃
Humidity: ≤95%
Display
OLED
Battery
1×1.5V AAA
Dimension
66mm×47mm×19mm
Weight
35g
Automatically power
off time
Testing mode: 30s
Menu mode: 600s
