Side 1/12
CSW100 User Manual | Benutzerhandbuch
-02-
SAFETY WARNINGS
• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not
expose the components to rain or moisture. Do not use the product close to a bath, swimming pool
etc.
• Do not expose the components of your sytems to extremely high temperatures or bright light
sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees
expire. PureLink does not accept responsibility in the case of improper usage of the product or
when the product is used for purposes other than specied. PureLink does not accept
responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel excepted): the device may contain live parts. The product
shouldonlyberepairedorservicedbyaqualiedexpert.
• Keepbatteriesoutofreachofchildren.Disposeobatteriesaschemicalwaste.Neveruseoldand
new batteries ordierenttypesofbatteries together.Removethebatteries whenyou arenot
using the system for a longer period of time. Check the polarity (+/-) of the batteries when
inserting them into the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the
valuesontheidenticationtags.Neverconnectanadapterorpowercordwhenitisdamaged.
In that case, contact your supplier.
1. INTRODUCTION
Congratulations on your purchase of the PureLink CSW100, which allows you to send a connected HD
signal wirelessly to your HDTV or HD projector.
Examples of HD devices: Blu-ray players, HD set-top boxes, PlayStation4, XboxOne, etc. The CSW100
supports FullHD resolutions up to 1080p and all 3D formats. The inbuilt loop-through function
(HDMI out) of the transmitter means that you can watch the same content on the 1st as on the 2nd
HDTV or the HD projector (via receiver). The inbuilt infrared extender function allows you to operate
HD equipment using your own remote control, even if it is kept in a closed cabinet!
PureLink products are manufactured with the utmost precision and of top quality. Please read this
manual carefully and follow the instructions in order to get the very results from this product.
2. PACKAGE CONTENT
1x PureLink CSW100 Transmitter (TX)
1x PureLinkCSW100Receiver(RX)
1x IRReceiver
1x IREmitter
2x Power adapter 5V1A (Micro USB)
1x Manual
-03- ENGLISH

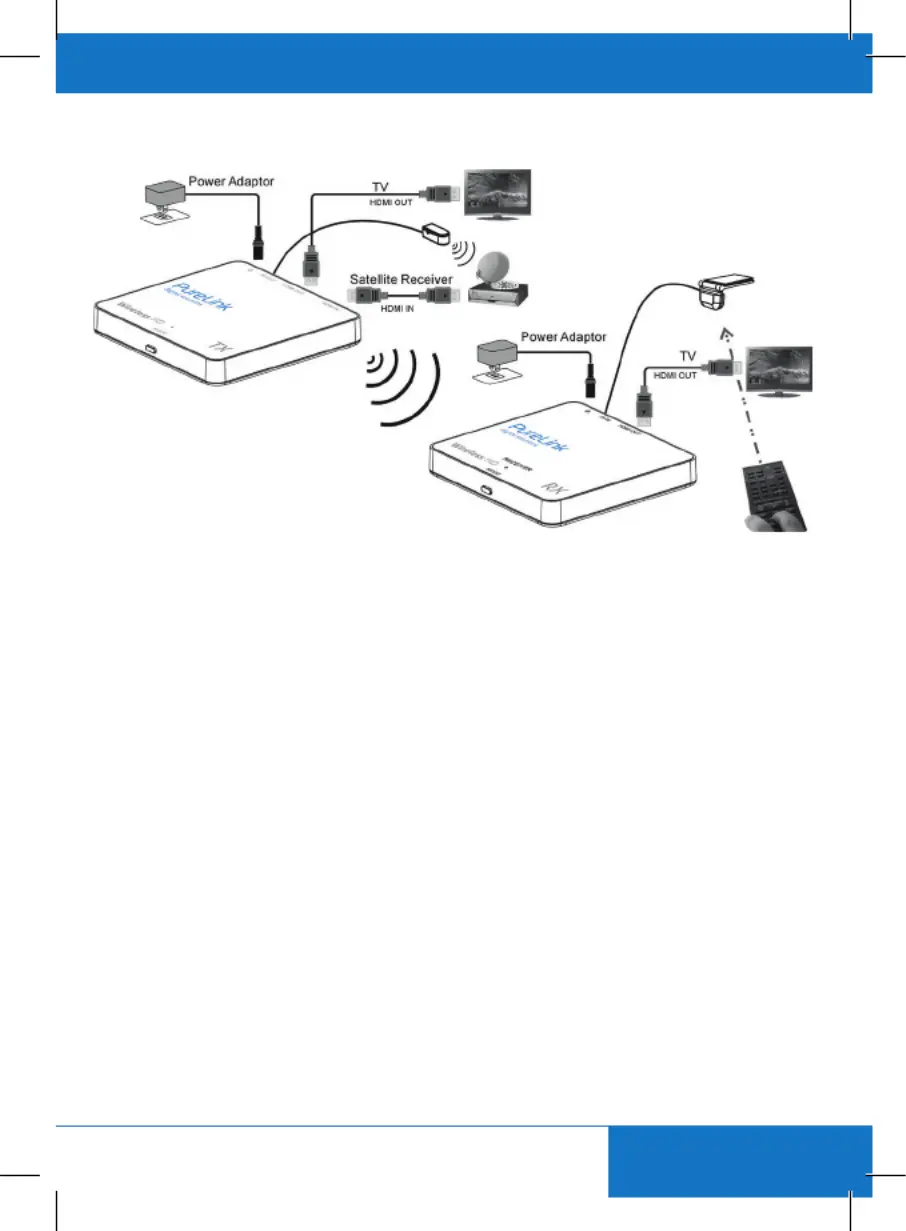

3. CONNECTION
Step 1:
UseanHDMIcabletoconnecttheHDMIINoftheCSW100transmitterwithasourcedevice.Youcan
use another HDMI cable to connect the HDMI OUT to a display (Loop-Through).
Step 2:
Use an HDMI cable to connect the HDMI OUT of CSW100 receiver to a display device.
Step 3:
(Skipthisstepifyoudon‘tneedIRExtension)ConnecttheIRemittertotheCSW100transmitter.Then
placetheemitterinfrontofthesourcedevice’sIRreceiver.ConnecttheIRreceivertotheCSW100
receiver. Then place the receiver probe in place, accessible for your remote control.
Step 4:
Connect a DC 5V1A power adapter to the power jack (MicroUSB) of the CSW100 transmitter.
Step 5:
Connect the other DC 5V1A power adapter to the power jack (MicroUSB) of the CSW100 receiver.
Step 6:
To pair receiver and transmitter, press the MODE key on the receiver‘s box and then press the MODE
key on the transmitter.
