Side 1/4
www.PyleUSA.com
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Waterproof Marine Bluetooth
Powered Speakers
PLATV65BT - PLATV85BT
Product Technical Parameters
PLATV85BT
Technical Specs:
• Speakers: 8.0'' (x2) Poly Injection Cone Speakers
• Tweeters: 1.0'' (x2) Titanium Dome Diaphragms
• MAX Power Output: 1000 Watt (500 x 2)
• RMS Power Output: 500 Watt (250 x 2)
• Frequency Response: 20-25kHz
• Signal-to-Noise Ratio: 91 dB
• Marine Grade IP-44 Rating
• Amplier Class: AB
• Power: DC 12V
• Total Dimensions: 32.5'' x 12.2'' x 9.3''
• Bluetooth Console Dimensions: 4.6'' x 1.6'' x 1.0''
PLATV65BT
Technical Specs:
• Speakers: 6.5'' (x2) Poly Injection Cone Speakers
• Tweeters: 1.0'' (x2) Titanium Dome Diaphragms
• MAX Power Output: 800 Watt (400 x 2)
• RMS Power Output: 400 Watt (200 x 2)
• Frequency Response: 45-25kHz
• Signal-to-Noise Ratio: 90 dB
• Marine Grade IP-44 Rating
• Amplier Class: AB
• Power: DC 12V
• Total Dimensions: 28.7'' x 11.2'' x 7.7''
• Bluetooth Console Dimensions: 4.6'' x 1.6'' x 1.1''
System Features:
• Universal Vehicle Mounting Ability
• Bluetooth Wireless Music Streaming
• Weatherproof & Water Resistant Housing
• Rugged Heavy-Duty Construction Design
• Full Range Stereo Sound Reproduction
• Dual Speaker 2-Way Audio System
• Built-in 2-Channer Digital Amplier
• 'Plug & Play' Connection for Easy Installation
• Instant Connect & Stream Audio Ability
• Can be hard-wired or powered through a cigarette lighter port
• Engineered 'Tube' Design for Maximum Sound Projection
• Perfect for ATV, UTV, 4x4, Golf Carts, Jetski, Snowmobile & More!
• Includes Bluetooth Controller/In-Line Volume Control
Bluetooth Music Streaming:
• Wireless Audio Streaming Ability
• Works with All of Your Favorite Devices
(iPhone, Android, Smartphones, iPad, Tablet, etc.)
• Bluetooth Version: 4.0
• Bluetooth Network Name: Pyle
• Bluetooth Network Password: ' '0000
• Bluetooth Wireless Range: 30'+ Feet
Color-Changing LED Lights:
• Built-in Dancing / Flashing Lights
• 19 Dynamic Color Changing Modes
• Speed & Color Brightness Adjustable
• Multi-Color LED Lights: Red/Green/Blue
• Includes LED Lighting Remote Control
www.PyleUSA.com
Remote Control Features
11. Press this key to switch to Demo mode. In demo mode, it plays 17 dynamic modes in a loop, each mode Demo Mode:
repeating 3 times.
IMPORTANT
• Please remember to remove plastic insulator from remote unit battery compartment.
• This remote uses a 3volt CR2025 type battery. When replacing the battery, be sure to use only the same type of battery.
• The remote signal can pass through most obstacles.
• DO NOT install the unit in areas surrounded by metal as the remote signal will not reach the unit.
1. Turn On/Standby: Press this key to turn unit or switch to stand by mode.ON
At power-on, the unit will automatically turn on and restore to the previous status.
2/9. Switch to dynamic mode from static color, or switch between Dynamic Mode Adjust:
dynamic modes.
3/10. Adjust dynamic playing speed. Press to increase Dynamic Speed Adjust: SPEED+
speed and press to decrease. The unit will switch to dynamic mode if this key is SPEED-
pressed in static color mode.
4/5. Switch to static color mode from dynamic mode, or switch between Static Color Adjust:
static colors.
6. Shortcut key to static colors. When pressing the specic color key, the Direct Color Select:
LED will play the same static color. The direct colors are included in 'COLOR+ COLOR-' and ' '
operation.
7/8. Adjust static color brightness. Press to increase brightness Brightness Adjust: BRIGHT+
and press BRIGHT- to decrease. The unit will switch to static color mode if this key is
pressed in dynamic mode.
What's
• O-Ro
• Wiring
• LED Lig
• Fasten
1. Cigarette Lighter
2. DC12V
3. Ribbon
4. RGB Remote Controller
5. 3.5mm Aux-in
www.PyleUSA.com
Installation
To mount the PLATV to your vehicle, use the four heavy-duty mounting straps included in the accessories package.
Please ensure that the straps are pulled tight and the unit is strapped down properly to prevent any damage from occurring.

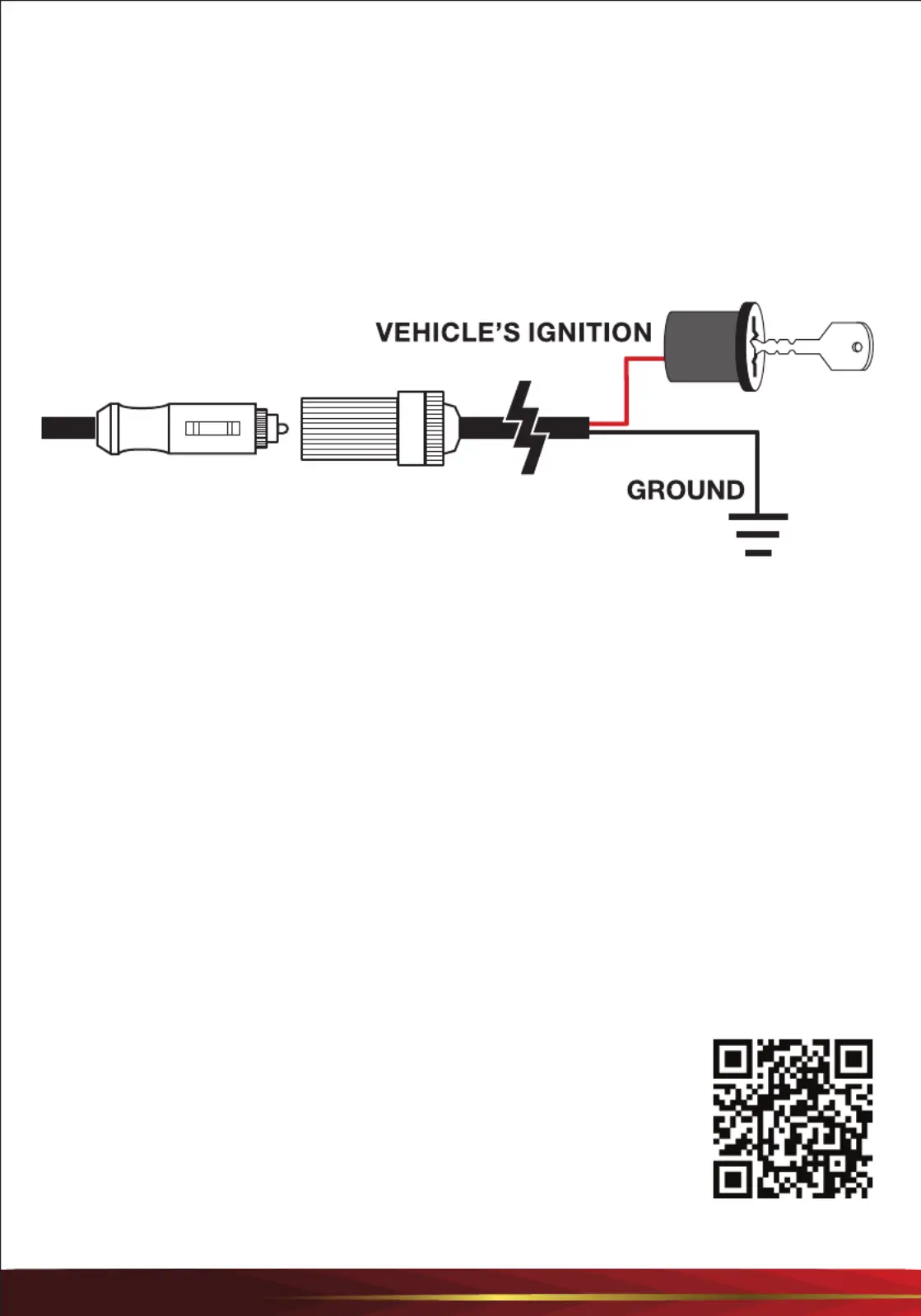

The PLATV can be powered by your vehicle's cigarette lighter port or wired directly to the ignition using the included
cigarette lighter power connector. The RED wire goes to the RED (+) wire of the ignition harness.
The BLACK wire serves as a ground connection and should be connected to the vehicle chassis.
Ensure there is no paint or other insulator blocking the ground connection.
Warning
The power voltage must not exceed DC 12V.
Bluetooth
Make sure that your device is set to "Discoverable." Turn on the Bluetooth device, search for , and enter the password Pyle
0000 for pairing. You will hear a tone and pairing is completed. You’ll be listening to your favorite tunes in no time.
Aux-In Connection
To connect a non-Bluetooth device, the Pyle features a 3.5mm input port located on the front of the unit.
Simply use the included 3.5mm to 3.5mm mini jack cable to connect the device to the Pyle.
Please note that connecting a device to the auxiliary port will disable the Bluetooth function.
Waterproof
It can be used in the rain. However, do not submerge the product in water.
Register Product
Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the
full benets of our exclusive warranty and personalized customer support.
Complete the form to access expert support and to keep your PyleUSA purchase in perfect
condition.
PyleUSA.com/register
