Side 1/2
www.PyleUSA.com

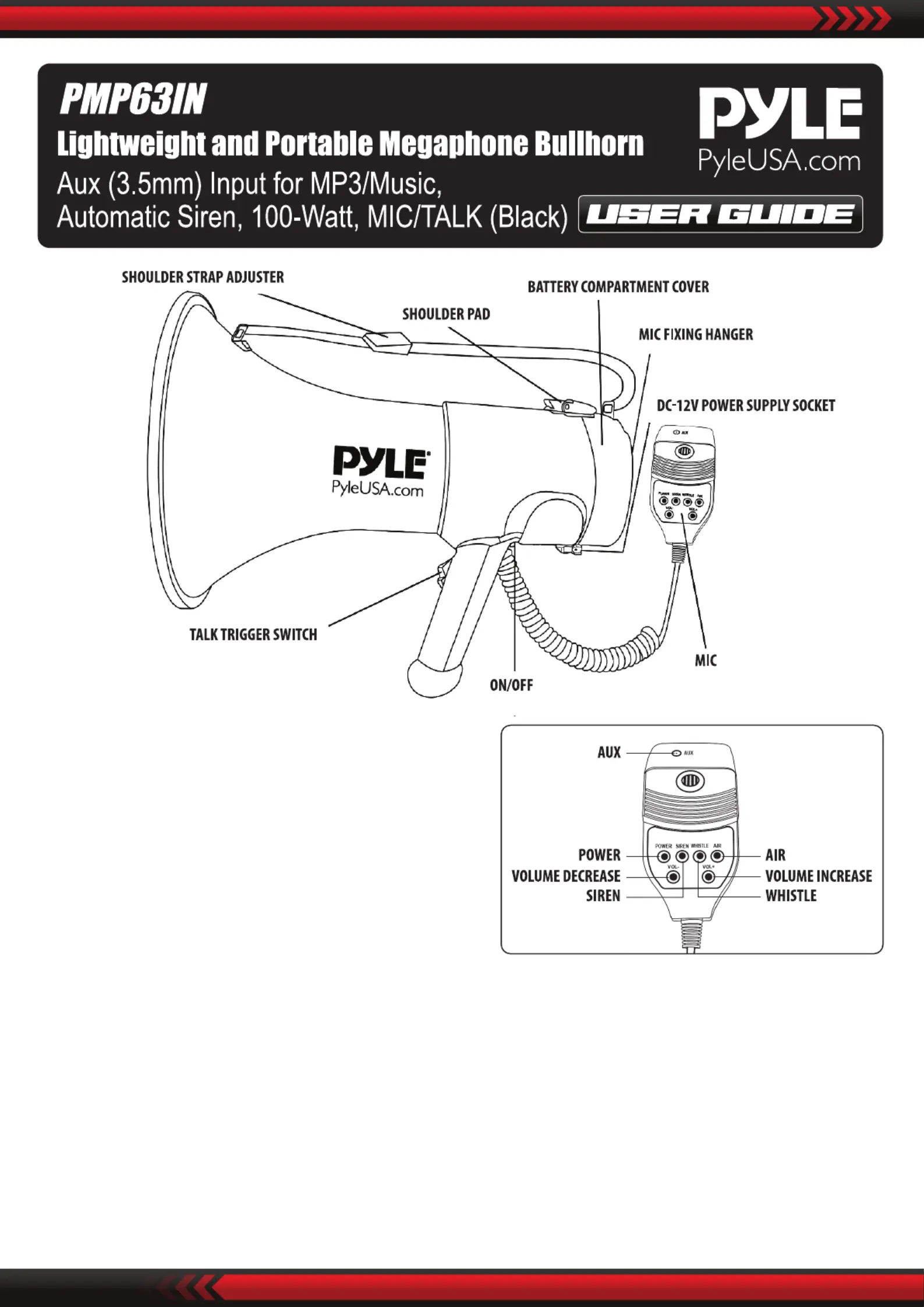

OPERATION
Open the Back Cover. Remove the plastic battery sleeve
and insert 8 nos. UM-2 cells with correct polarity, insert the
sleeve into the battery compartment according to the
instructions in the compartment. Then close the back cover
until it locks. Now your megaphone is ready for action.
You can also open the back cover, remove the plastic battery
sleeve and insert one 12V rechargeable battery then close
the back cover until it locks.
TALK OPERATION
Dial the toggle switch to MIC and then press the power key
on MIC, the indicator lights up, and then you can now speak into the microphone.
Toggle power switch to , press the on the MIC, then the indicator lights up. ON POWER Now the megaphone is ready
for the following function operation:
TALK Operation: Mic is powered on without pressing any key, the microphone can be used as propaganda amplication.
Short press to play alarm sound. Press again to turn o.SIREN
Short press on the to activate whistle sound. Press again to turn o.WHISTLE
Short press to broadcast 119 sound. Press again to turn o.AIR
AUX Operation: Connect one end of your phone or MP3 player with 3.5 audio cable, and insert the AUX of mic into the
other end to play.
www.PyleUSA.com
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
TO REPLACE BATTERIES
1. Loosen the locking screw of the battery compartment cover on the back of the body.
The battery compartment cover comes o.
2. Insert 8 x type-C ( ) batteries in the battery case observing correct polarity.UM-2
3. Insert the battery case with batteries into the battery compartment of the megaphone, paying attention to polarity.
TO REPLACE RECHARGEABLE BATTERIES
4. Open the back cover. Remove the plastic battery sleeve and insert the rechargeable battery.
Clock the back cover until it locks.
Notes:
1. Make sure the batteries are insrted correctly, observe correct polarity.
2. Charge the battery for 6-8 hours in 110-220V before rst use.
3. When the megaphone is not in use for a long period of time, remove the dry cells and replace.
4. Drained cells or rechargeable battery will not give sucient sound volume.
5. After the lithium battery is fully charged, the indicator light will turn red into green.
6. Swith the button to if you have nished using the megaphone.OFF
Features:
• (3) Modes: Talk, Siren & Music
• Aux (3.5mm) Input Connector Jack
• Stream MP3 & Digital Audio Files
• Ability to Connect External Devices
(iPhone, Android, Smartphone, iPad, Tablet, etc.)
• Includes Plug-in Handheld Microphone
• Button Activated Automatic Siren Alarm
• Adjustable Volume Control
• Ergonomic Pistol Grip and Lightweight Chassis
• For Indoor/Outdoor Use
• Built-in Automatic Siren Function
• Talk, Music, and Siren Switch
What's in The Box:
• Megaphone Speaker
• Microphone
• Strap
Technical Specs:
• Constructional Materials: ABS
• Power Output: 100 Watt MAX
• Bell Width: 8.46’’ -inches
• Projection Range: Up to 1500 Square Yards
• Battery Powered: Requires 8 x 'C' Batteries, Not Included
• Product Dimensions (D x L): 8.46'‘ x 14.96'' -inches
1 2 3 4
Produkspesifikasjoner
| Merke: | Pyle |
| Kategori: | Megafon |
| Modell: | PMP63IN |
