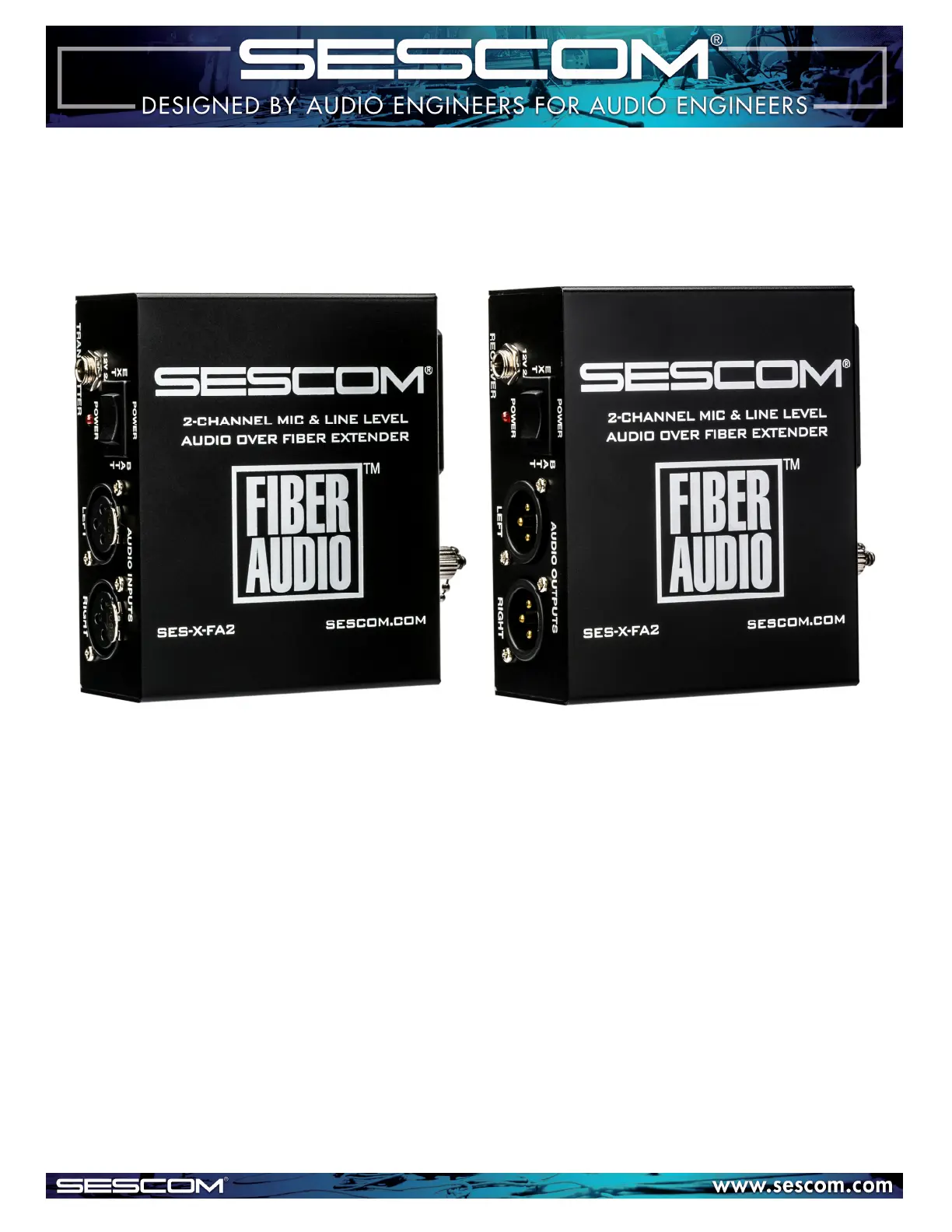

SES-X-FA2 2-Channel Mic & Line Level Audio over Fiber Extender
AC Adapters or Battery Operated
FEATURES
2-Channel Directional, Analog Audio to Fiber Transmission
24-Bit Digitally Encoded Analog Audio, 48KHz Sample Rate
Supports Multimode Fiber up to 984 feet
Supports Single Mode Fiber up to 12.4 miles
Switchable Balanced Mic or Line Level Inputs
Wide Dynamic Optical Range Requires No Optical Adjustments
Power: AC Adapter or Standard 9VDC Battery
Battery Runtime: Alkaline - Approximately 4 hours
1 Year Warranty
FCC & RoHS Compliant
Set Up Instructions
1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the
unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that
can severely affect the signal transfer.
2. Use proper cable management and handling for routing fiber optic cable.
3. Carefully connect your source(s) to the transmitter input(s) and the receiver unit output(s) to your receiving device
input(s) using the XLR connectors on the transmitter and on the receiver unit.
4. Note that audio on the transmitter (Tx) can be Line or Mic level input and the receiver (Rx) is Line level only.
5. CLEAN* the ST fiber optical cable contacts that will be used for connecting the Tx and Rx units and attach the fiber
cable to the ST connections and secure, as you would secure a bayonet BNC. While pressing lightly in on the
connector, twist it in a clockwise direction about 1/8 to 1/4 of a turn and then release. The connector should stay
inserted and have backwards spring pressure holding the bayonet in place.
6. Connect the included power supplies to the transmitter and receiver units, and plug them both into an AC power
source (100-240VAC 50/60Hz) or insert the 9V batteries in both units for remote use.
* CLEAN: All fiber optical cable contacts require cleaning each time before inserting into a device’s outputs or
inputs. Failure to clean the contacts can damage the unit’s optics over time and can also permanently damage
the cable and the device.
Use cleaning kits designed specifically for fiber optics.
SES-X-FA2 AUDIO OVER SINGLE FIBER EXTENDER
SPECIFICATIONS
Input Power 12VDC/1.5A, DC Plug 2.1mm
Power Adapter 90-240VAC
Optic Fiber 50/125u multimode, 62.5/125u multimode, 9/125u singlemode
Signal to Noise Ratio >85dB
Input Impedance 10KΩ - 20KΩ
Power Consumption <5W
Max Line Input Voltage 6.9Vp-p
Line Level 0dB in / 0dB out
Frequency Response 20Hz—20KHz
Sample Rate 48KHz
Latency Delay 272us
Unit Dimensions Each Unit 4.33 x 3.62 x 1.65 in / 110mm x 92mm x 42mm
Weight Each Unit 7.9 oz / 224 g
Includes 2-AC 12VDC/1.5A Power Adapters & 2-9V Batteries Power Adapters
TRANSMITTER
RECEIVER
1 DC Power Jack
2 3 Position Rocker Switch
3 Power LED Indicator
4 Audio Input Left
5 Audio Input Right
6 Left Channel Mic/Line Switch
7 Right Channel Mic/Line Switch
8 ST Fiber I/O
9 9V Battery Cover
1 DC Power Jack
2 3 Position Rocker Switch
3 Power LED Indicator
4 Audio Output 1 Left
5 Audio Output 2 Right
6 Fiber Link LED Indicator
7 ST Fiber I/O
8 9V Battery Cover
SES-X-FA2 AUDIO OVER SINGLE FIBER EXTENDER
9
3
4 5
6 7 8
2 1
3
4 5
6 7 8
2 1
