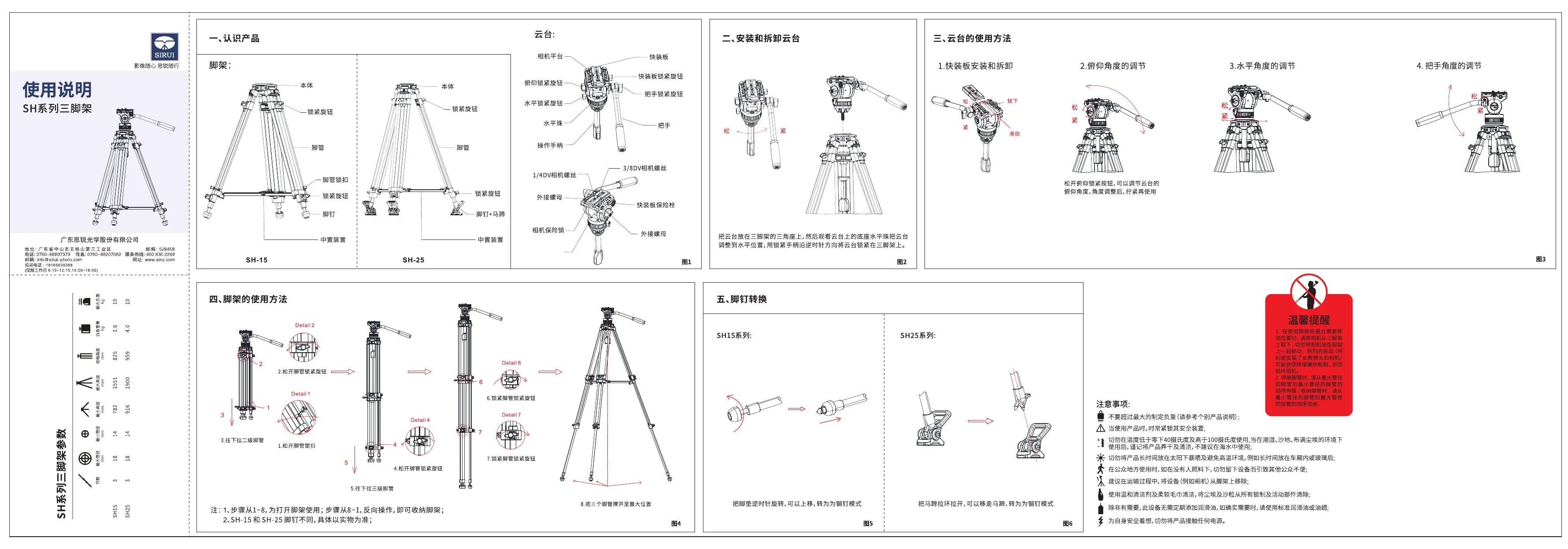

Side 1/8
1、逆时针松开水平锁紧旋钮（至少一圈），转动水平阻尼拨盘
来调整阻尼，即可水平360°旋转云 台 。此时阻尼加到最
大
云台仍可轻微转动。
2、顺时针锁紧水平锁紧旋钮，此时无论如何调节阻尼，云台均
无法水平旋转。
3、锁紧旋钮如遇限位不能转动，可向外拉出后调整角度，复位
后再进行扭动。
1、把快装板锁紧旋钮逆时针方向松开，按
下保险按钮，然后把快装板从夹座的后
面滑出。
2、锁紧旋钮如遇限位不能转动，可向外拉
出后调整角度，复位再进行扭动。
水平阻尼拨盘
SH15-P001 SH15/25 _ V2.0 2022.01.06
2、完全松开锁紧旋钮可拆卸把手，可安装在云台另一侧。
1、松开把手锁紧按钮可以旋转调节把手的使用角度，角
度调整后拧紧再使用。
Panning Drag Control
Wheel
Mounting and Removal of the
Quick Release Plate
Tilting Angle Adjustment Panning Angle Adjustment Handle Angle Adjustment
a. Press the security pin and twist the quick
release plate locking knob counterclockwise
to take out the quick release plate.
b. If the quick release plate locking knob hits
the limit, pull out the knob to adjust its position.
Loosen the tilting locking knob to tilt the
head to your desired angle. Then tighten
the knob to lock the head securely.
a. Loosen the panning locking knob by twisting it
counterclockwise for at least one turn. Rotate the
panning friction control wheel to adjust the friction.
Then you can smoothly pan the head 360°. The head
can be slightly panned even when the friction is at its
maximum.
b. Tighten the panning locking knob by twisting it
clockwise. Then the head will be securely locked
into place no matter how you adjust the friction.
c. If the panning locking knob hits the limit, pull
out the knob to adjust its position.
a. Loosen the handle locking knob to adjust the
handle to your desired angle. Then tighten the
knob to lock the handle into place.
b. Fully loosen the handle locking knob to remove
the handle. You can mount the handle on the other
side of the head.
Video Head 2. Mounting and Removal of the Video Head 3. Operation of the Video Head
tighten
tighten
tighten
tighten
loosen
loosen
loosen press
slide
loosen
