Side 1/9

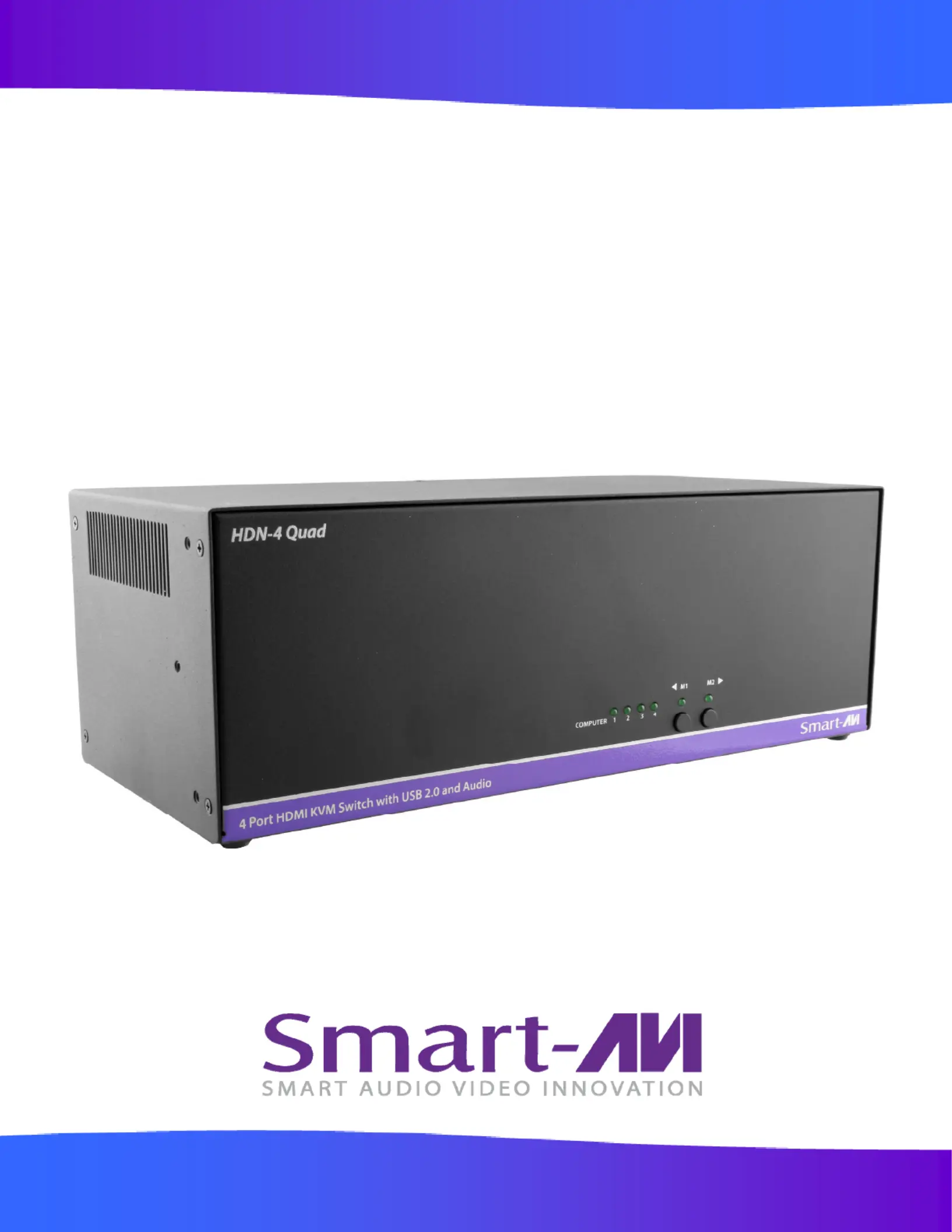

Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131
HDN‐ 4 Quad
UserManual
4-Por
4-Por
4-Por
4-Por4-Port Quad HDMI KVM Switch with USB 2.0 and A
t Quad HDMI KVM Switch with USB 2.0 and A
t Quad HDMI KVM Switch with USB 2.0 and A
t Quad HDMI KVM Switch with USB 2.0 and At Quad HDMI KVM Switch with USB 2.0 and Audio Sharing
udio Sharing
udio Sharing
udio Sharingudio Sharing
Access and Contr
Access and Contr
Access and Contr
Access and ContrAccess and Control up t
ol up t
ol up t
ol up tol up to 4 Com
o 4 Com
o 4 Com
o 4 Como 4 Comput
put
put
putputers from a single W
ers from a single W
ers from a single W
ers from a single Wers from a single Workstation
orkstation
orkstation
orkstationorkstation
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION 3
FEATURES 3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
CONTROL 6
ESTABLISHING AN RS-232 CONNECTION 7
LIMITED WARRANTY STATEMENT 8
Figure 2-1
Figure 2-2
PART NO. QTY DESCRIPTION
HDN-4QUAD-S 1 4-Port Quad HDMI KVM Switch with USB 2.0 and Audio
Sharing
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
WHAT’S IN THE BOX?
Brackets for mounting this device in a standard 19” rack can be ordered from SmartAVI.
3
INTRODUCTION
The HDN-4 Quad is a dedicated multi-platform KVM switch capable of managing up to 4 different com-
puters through four HDMI monitors and one USB keyboard & mouse. It also supports a single set of
speakers and up to 2 USB 2.0 Devices. The USB emulation technology utilized by the HDN-4 Quad en-
ables immediate hotkey source switching through a remote USB keyboard and mouse. The HDN-4 Quad
uses single link connectors providing high resolutions up to 4K (3840x2160 @ 30Hz) with zero pixel loss
from TMDS signal correction.
SOURCE S
SOURCE S
SOURCE S
SOURCE SSOURCE SWIT
WIT
WIT
WITWITCHING MADE EAS
CHING MADE EAS
CHING MADE EAS
CHING MADE EASCHING MADE EASY
Y
Y
Y Y
The HDN-4 Quad provides a simplified management approach for up to 4 computers with HDMI, stereo
audio, and USB 2.0 outputs. This dynamic KVM console can be controlled remotely from easily accessible
keyboard hotkeys or RS-232 commands, as well as directly through the console’s easy to read front
panel.
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING
EDID LEARNING & PROGRAMMING EDID LEARNING & PROGRAMMING
Detection of DDC signals for all attached devices is effortless with the HDN-4 Quad due to its real EDID
learning and programming. This is vital in optimizing the resolution of the selected graphics card to prop-
erly display on the remote monitor. Furthermore, the EDID learning feature continues to replicate the right
DDC for the computer to enable the display card to effectively work when unused ports are not selected.
FULL USB KEYBO
FULL USB KEYBO
FULL USB KEYBO
FULL USB KEYBOFULL USB KEYBOARD AND MOUSE EMULA
ARD AND MOUSE EMULA
ARD AND MOUSE EMULA
ARD AND MOUSE EMULAARD AND MOUSE EMULATION
TION
TION
TION TION
The USB keyboard and mouse emulation utilized by the HDN-4 Quad provides accurate and quick source
switching by means of keyboard hotkeys and mouse actions. The HDN-4Quad imitates the presence of a
keyboard and mouse for every attached computer through a USB cable. This is essential as it simulates
the existence of the keyboard and mouse to all the computers while switching without interruptions.
FEATURES
Supports resolutions up to 4K HD (3820x2160 @30Hz)
Uses HDMI 1.4 ports
Supports all USB 2.0 Devices
Supports USB keyboard and mouse emulation for error free booting
Offers SmartPreview picture-in-picture technology
Front panel buttons with LEDs for local control
RS-232 control for additional control
Hot key commands for quick channel selection
Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document
and save in another computer
Supports DVI sources/display with DVI-to-HDMI adaptors (not included)
APPLICATIONS
Server Collocation
Digital Signage
Education
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
