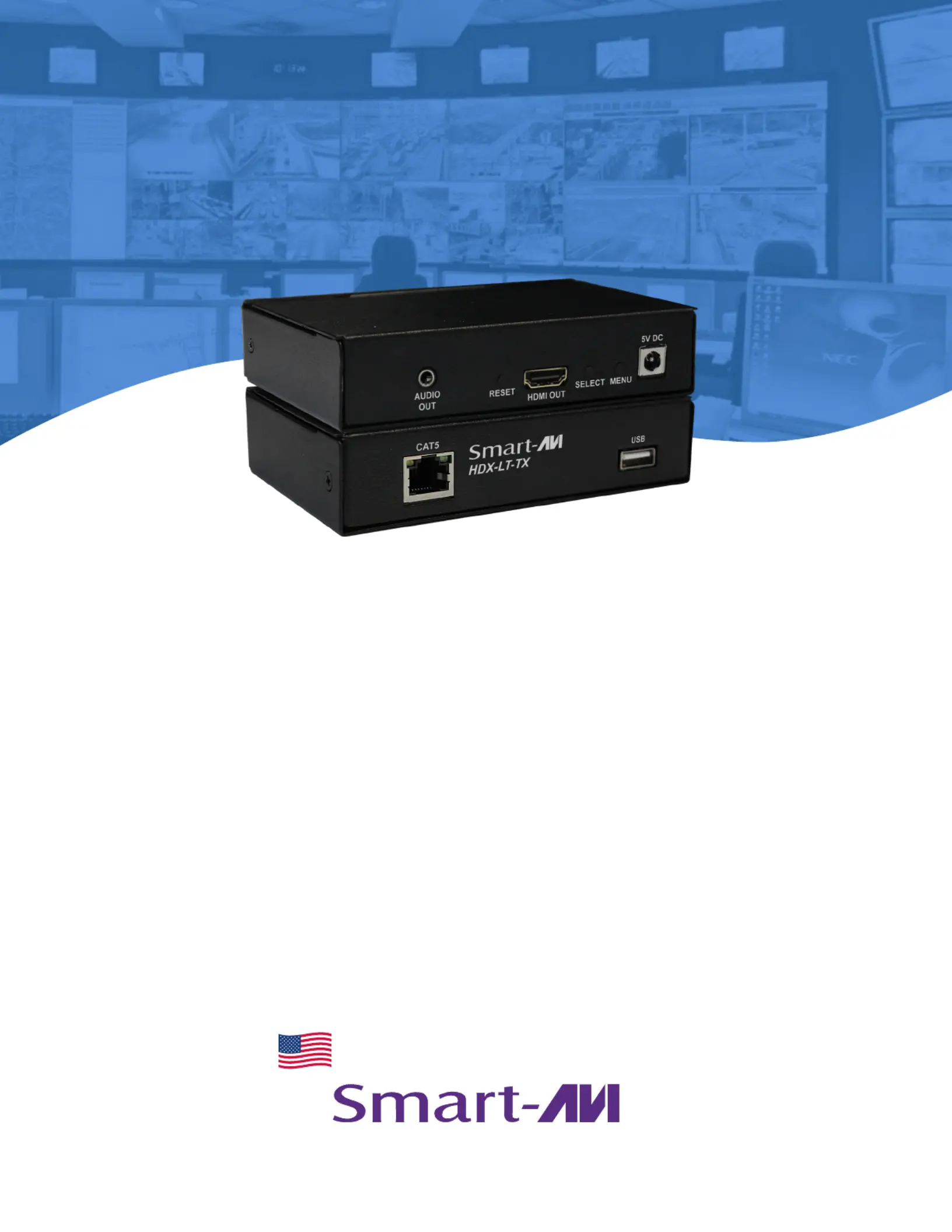

Smart-AVI HDX-LT Bruksanvisning
Les nedenfor 📖 manual på norsk for Smart-AVI HDX-LT (2 sider) i kategorien Bryter. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/2
HDMI, USB 2.0 AND AUDIO
KVM CAT5/6 EXTENDER
EXTEND DIGITAL VIDEO
HDMI 4K@30HZ, USB 2.0,
USB KEYBOARD/MOUSE
AND AUDIO
UP TO 100 M (330 FT)
OVER A SINGLE CAT5/6
Quick Start Guide
VIDEO
Format HDMI 2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (TX) (1) HDMI 19-pin
Output Interface (RX) (1) HDMI 19-pin
Max Output Distance Up to 20 ft
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
AUDIO
Format Stereo
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Input Interface (TX) (1) USB Type A
Output Interface (RX) (2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
SYSTEM
Cable Requirements CAT5/5e/6
Maximum Length 100 m (330 ft)
OTHER
Power 100-240 VAC/ 5VDC @ 3A/15W
Dimensions 7.8” W x 1.15” H x 3.65” D
Weight 1 lb (.5 lbs per unit)
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Operating Humidity 20% to 80% (non condensing)
Storage Temp. -4 to 140°F (-20 to +60°C)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Compliance RoHS2 (CE)
Support Warranty 1-year
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
HDX-LT
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HDX-LT-TX 1 HDMI, USB 2.0, Audio,
CAT5/5e/6 Transmitter
HDX-LT-RX 1 HDMI, USB 2.0, Audio,
CAT5/5e/6 Receiver
PS5VD3A-
WLLMNT 2 PS5VD3A Power Supply
Quick Start Guide 1
ABOUT HDX-LT
The HDX-LT is a Single Head HDMI (3840 x 2160 @ 30 Hz),
USB 2.0, USB keyboard-mouse and stereo audio extender,
sending signals up to 100 m (330 ft) away over a single
conventional and inexpensive CAT5/5e/6 cable. This new
technology is superior to older HDMI extenders that require
a special CAT6 shielded cable to go a short distance.
The HDX-LT is the rst extender on the market to feature
3840 x 2160 @ 30 Hz, USB 2.0 and full KVM extension on
one cohesive system and is optimized for Full HD monitors
with crystal-clear picture; excellent for detail driven work.
The HDX-LT extends keyboard-mouse signals for remote
workow management and offers uninterrupted emulation
from the user’s transmitter unit. This uninterrupted
emulation prevents accidental disconnection or
deactivation issues during mission critical operations. The
HDX-LT‘s unparalleled KVM extension technology makes it
the perfect solution for extending servers in applications
ranging from data processing to interactive conferencing.
FEATURES
• Extends HDMI up to 100 m (330 ft) from the source
• Supports up to 3840 x 2160 digital video
resolution @ 30 Hz
• Automatic DDC Learning
• USB Keyboard and Mouse extension
• External power adapter for transmitter and receiver
unit
• Supports Stereo Sound
• Compatible with Windows, Mac and Linux Operating
Systems
• Transparent USB 2.0 extension
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use a HDMI cable to connect the HDMI output port from a computer to the HDMI IN port of the transmitter.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the transmitter.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computer to the AUDIO IN
port of the transmitter.
5. Connect the transmitter and receiver to each other using a CAT5/5e/6 cable.
6. Connect a monitor to the HDMI OUT console port of the receiver using a HDMI cable.
7. Connect a USB keyboard and mouse to the two USB console ports of the receiver.
8. Optionally connect peripheral USB devices, such as a printer or a camera to the other two USB console ports of the
receiver.
9. Optionally connect stereo speakers to the AUDIO OUT port of the receiver.
10. Finally, power on the transmitter and receiver by connecting a 5VDC power supply to the power connector, and then turn
on the computer.
HDX-LT-TX Front
HDX-LT-TX Back
HDX-LT-RX Front
HDX-LT-RX Back
HARDWARE INSTALLATION
HDMI IN
HDMI OUT
USB IN
USB 2.0 OUT
USB K/M OUT
AUDIO IN
AUDIO OUT
CAT5/6
HDX-LT-RX
HDX-LT-TX
