Please read this user manual in detail before use.
! !
Warning Warning
SoundTube ampli ers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Do not spec or install ampli er near support beam, ventilation duct or
other structure that may interfere with ampli er function or dispersion.
913.663.5600 | www.soundtube.com
MCA7004t/ MCA10004t © 2024 SoundTube Entertainment, Inc. All rights reserved. Rev9.19.24

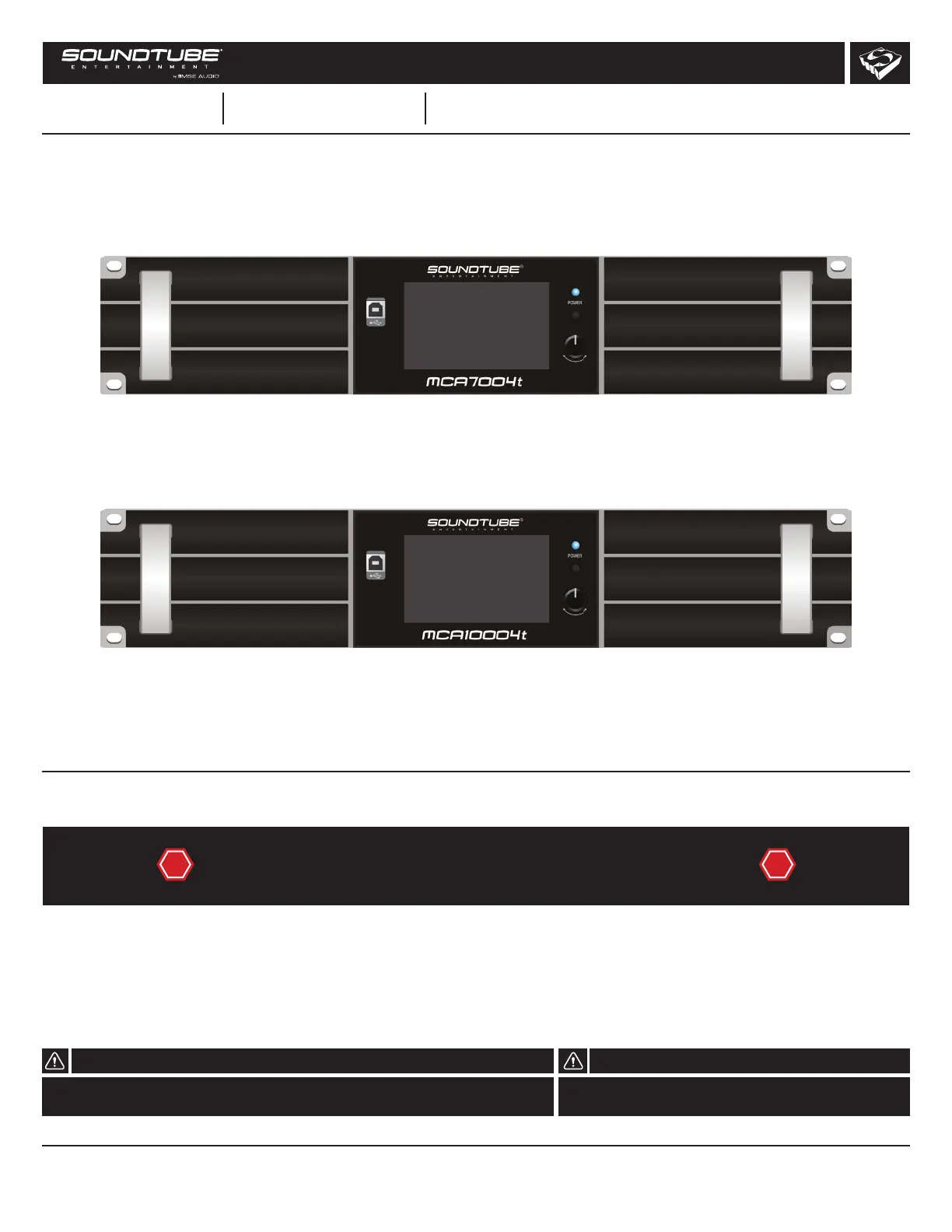

Please consult the MCA7004t / MCA10004t Software Manual for instructions on how to use the STNet
MCA Control PC Software. Manual can be found on the Downloads page at www.soundtube.com or on
the MCA7004t or MCA10004t product webpages.
Lead. Or fol
low.
MCA7004t MCA10004t Install Instructions For:
MCA7004t, MCA10004t
DANTE ENABLED NETWORKING AMPLIFIER INSTALLATION MANUAL
2
913.663.5600 | www.soundtube.com
MCA7004t/MCA10004t © 2024 SoundTube Entertainment, Inc. All rights reserved. Rev1.10.24
CONTENT
1. Product Description 3 ............................................................
1.1. Applicable Scenarios ...................................................3
1.2. Product Features 3 .........................................................
2. Technical Parameters 4 .........................................................
3. Panel Layout 5 .......................................................................
3.1. Front Panel 5 ..................................................................
3.2. Rear Panel 5 ..................................................................
3.3. Display Panel ...............................................................6
3.3.1 Homepage .......................................................6
3.3.2. Amplier Settings Interface 7 .............................
3.3.3. Input Settings Interface 8 ...................................
3.3.4. Output Settings Interface 9 ..................................................
3.3.5. Channel Ganging Interface ............................10
3.3.6. Preset Settings Interface ...............................10
3.3.7. Network IP Settings Interface ........................ 11
3.3.8. Details Interface .............................................12
3.3.9. Device Connection ........................................ 13
4. Device Wiring Instructions ................................................ 14
4.1 Power Cable ..............................................................14
4.2 Wiring Notes .............................................................. 14
4.3 MATRIX Mode ........................................................... 14
4.4 BRIDGE Mode ...........................................................15
5. Mounting Instructions ....................................................... 15
6. Precautions .......................................................................16
MCA7004t MCA10004t
Install Instructions For:
MCA7004t, MCA10004t
3
913.663.5600 | www.soundtube.com
MCA7004t/MCA10004t © 2024 SoundTube Entertainment, Inc. All rights reserved. Rev1.10.24
1. Product Description
The SOUNDTUBE ENTERTAINMENT MCA7004t and MCA10004t multichannel ampliers are Dante enabled and allow
for xed resistance and xed voltage output modes. At 4 ohms, these ampliers offer 700W and 1000W per channel,
respectively. The 4.3” LCD touchscreen on the front panel allows for easy access to gain controls, input matrixing, and
output mode selection. The STNet MCA Control software (included) provides the user with
complete control over the amplier. This software enables the user to monitor the real-time status of the amplier and
set up various DSP functions in real time. These DSP features include functions such as compressor, limiter, noise gate,
parametric equalization, matrix router, delay, and more!
1.1. Applicable Scenarios
• Performing arts centers • Theatres • House of Worship
• Gymnasiums • Hotels • Sports Venues
• Convention Centers • Shopping Malls • Night Clubs
• Retail Stores • Restaurants
1.2. Product Features
1. Standard 19-inch chassis design with a height of 2U.
2. The high-efciency switching power supply, coupled with PFC, and class D digital amplier technology deliver
extremely low output distortion and high efciency.
3. The high-end DSP allows for built-in functions such as compressor, limiter, FIR processor, noise gate, parametric
equalizer, matrix router, delay, high and low pass ltering, and other DSP functions.
4. The amplier supports matrixed and bridged output modes. Matrix mode allows for four independent output
channels, while bridged mode will combine two of the four channels and allow for 100V xed voltage output or high
wattage 8 ohm and 16 ohm outputs.
5. Fixed voltage and xed resistance modes: 4Ω, 8Ω, 16Ω, 70V, 100V,
6. The front panel offers a 4.3-inch IPS display supporting capacitive touch control. Through the front panel display,
the user can monitor items such as mains voltage and current, amplier status, amplier temperature, output mode,
amplier real-time voltage, current, and power, channel volume, and speaker impedance.
7. The amplier supports TCP/IP and allows for remote connection to the amplier using the STNet MCA Control
software.
8. Adjustable Input Sensitivity Options: 2dBu/6dBu/12dBu, set through PC software or LCD screen.
9. Supported Input Sources: Analog, AES3 digital audio, and Dante network. AES3 and Dante inputs will be ducked
for an analog input on the same channel. Only channels A and C support AES3 digital audio input.
10. The amplier will automatically calculate the connected speaker’s impedance and display the impedance on the
front panel display and STNet MCA Control.
11. The amplier will enter standby when there is no input for 30 minutes. The amplier will exit standby if input is
applied, the power button is held, or the amplier is commanded through the MCA STNet Control software. The
amplier supports entering and exiting standby remotely through the MCA STNet Control software. “Wake” time
is approximately 5 seconds.
12. The amplier’s network TCP/IP function can manage multiple devices and the network interface can be cascaded.
13. The RS485 port can be utilized to support external control.
14. Wide Voltage Operation: 110-240VAC.
MCA7004t MCA10004t
Install Instructions For:
MCA7004t, MCA10004t
