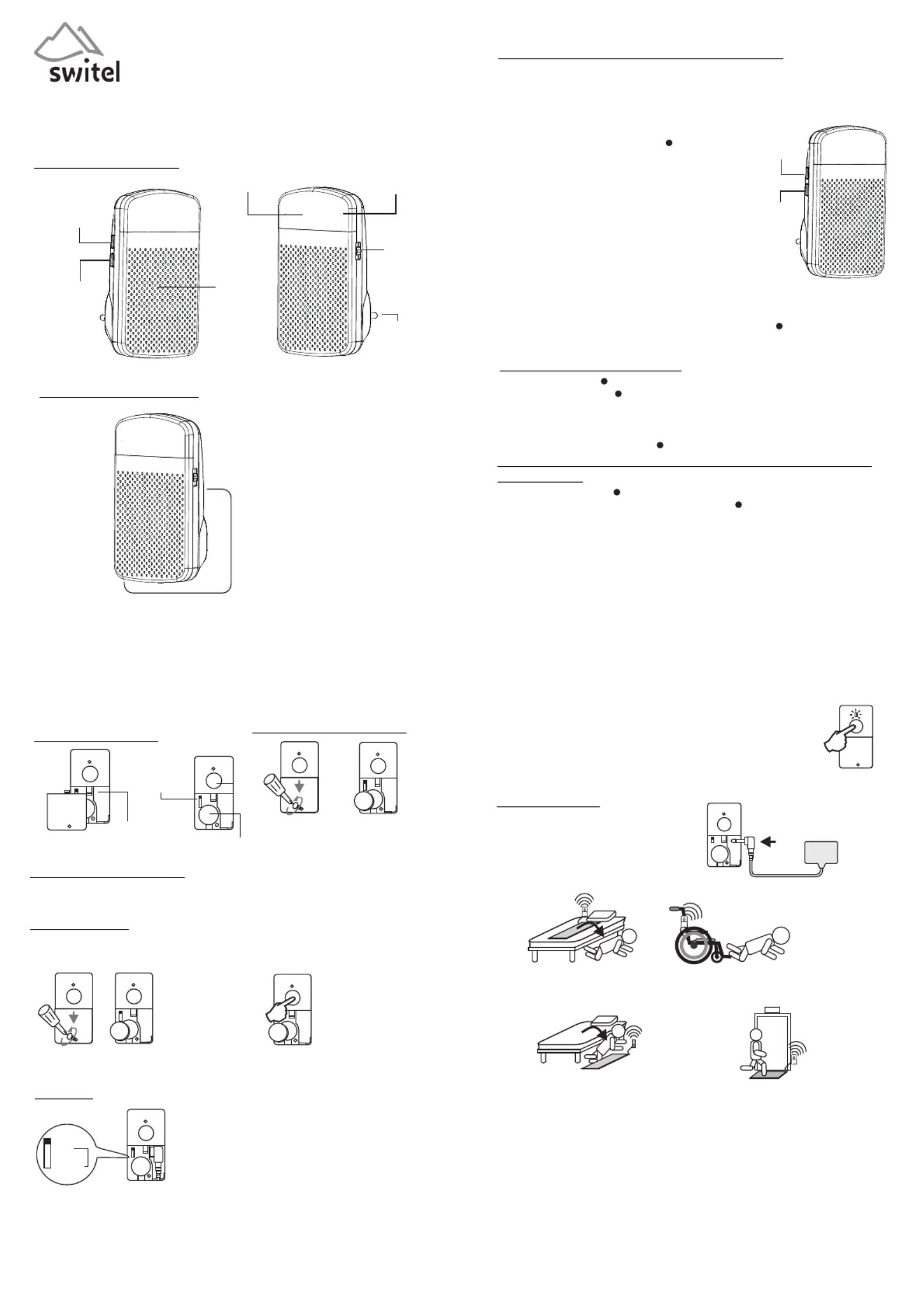

Side 1/2
MA-600 is a plug-in receiver, it can carry two wireless transmitters
such as doorbell buttons with two distinguishable flash pattern.
The first coded transmitter will flash rapidly; the second coded
transmitter flashes slower. Step 1: Press & Hold the Learn button
fo r 3 se co nd s. Th e re d L E D
indicator inside the lens will blink.
(if the red LED indicator lights
c o n s t a n t l y t h a t m e a n s t h e
memory of the receiver is full.
Please see section 3)
Step 2: Press the Melody selector button
♫
to scroll through the melodies.
Once you hear a melody yo u
prefer, do not press any button as
t h e m e l o d y i s s e t f o r t h a t
transmitter.
Step 3: Once the melody is selected, trigger the transmitter to
pair. If successful, the receiver (chime unit) will
generate a s hort tone. Press the Learn s elector
button to exit the pairing mode, the system is now
ready to use.
PARTS & FUNCTION
MOUNTING & POWER
Flasher Indicator
Function
switch
Speaker
Melody
button
Learn
button
Wall plug
(AC plug)
Press & hold the Learn button for 3 seconds to enter the pairing
mode. Press the Learn button to scroll between 1 and 2
transmitters , press the Melody selector repeatedly until you
♫
have found the desired melody.
Trigger the transmitter to confirm the melody, when you hear a
twice short tone press the Learn button to exit.
1. ASSIGNMENT OF THE TRANSMITTER
3. CLEAR THE TRANSMITTER FROM THE RECEIVER
MEMORY
Press & hold the Learn button for 3 seconds to enter the
pairing mode. Press & hold both the Learn button & the ♫
Melody selector together for 3 seconds to delete the memory.
The re ceiv er wil l g en er ate a bee p tone to in dica te all
transmitters on the memory i s deleted. The red LED will change
to blink. Now you can pair the new transmitters to the receiver
as per the previous section.
Melod y
Learn
USER MANUAL
4. TRA NSMI TTER B ATTE RY LOW
When the indicato r lights constantly after tr iggered, it indicate s thi s
transmitter is battery low. Please replace its battery as soon as po ssible.
This receiver works with AC 80V to 240V. Simply plug into a well
visible AC wall socket, it'll turn on.
* PLEASE NOTE THE TRANSMITTER & RECEIVER ARE
READY TO USE
Two transmitters can be assigned to the receiver by sequence.
The transmitter can only be assigned if it is not yet known in the
memory of the receiver.
2. CHANGE THE MELODY
PAD TRAN SMITTER
Part & Function Battery installation
Mono ja ck for
External sensor Battery
compa rtment
* Unlock the screw
* Sli de t o open th e cover
* Insert a CR2032
Battery "+" face up
Switch for
Fall Ma t or
Bed Pad +
Delay
If the coding is the same as another tra nsmitter universal transmitter
you must change the co de. When you h ave c hanged the code re-pair
the . uni versa l transmitter
Open th e cover
Remov e the bat tery Press and hold t he test button, insert
the bat tery whilst ho lding the button
for 5 s econds. The LED will flash 5 times
when a new code is generated
+
+
+
++
Setting
+
Pad
Mat
+ 3S
+ 10Min
Temporary Cancel Call Button
To can cel the call button function , press an d hold th e cal l
button 5 se cons. Th e LE D will blink 4 ti me to indicate th e call
button is disable.
To enable the call function, press and hold the call button 5
seconds again. The LED will blink 2 time to indi cate the call
function is enable.
Call
Button
Open th e battery cover and slide the switch
to pad or mat position
Mat: fo r fall mat (norm al open )
Pad: fo r Bed pad or chair pad (normal
close)
+3S: Alert after the perso n leave the pad
more th an 3 seconds
+10Min: Al ert after the person leave the
pad more than 10 minutes seconds
OPER ATIO N
Pad
Connection
Mat
1. open the battery cover
2. Connect the pressure pad to the
transmitter
3. close the battery cover
o 2.5 mono plug
/
The elder p erson no rmally lay o n the m at, whe n the person leave the mat
more t hen 2 second, the transmitter will send out the a lert signal to the
receiver
EXIT
The t ransmitter will send o ut t he alert signal to the receiver, when some
step on (fall on) t he mat The u niversal transmitter can connected to oth er
type of s ensor such as a switch.
Code Conflict
Paring to the receiver
The Sensor is already paired with the receive. You can add ( pair) one more
transmitter to the sy stem follow th e instructio ns of the r eceiver.
DH-100
1. Read these instructions.
2. Keep these instructions.
3. Read all warnings.
4. Follow all instructions
5. Do not use this device near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other.
9, Do not tamper with the polarized & Grounding plug. Each blade of the plug has a
special purpose for seamless communication & safety. A grounding type plug
has two blades and a third grounding prong.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the product. When moving the ca rt/product
combination to avoid injury from tip-over (When applicable).
13. Unplug this product during lightning storms or when unused for a long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing i s required when the
product has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the product, the
product has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. This product shall not be exposed to dripping or splashing water and that no
object filled with liquids such as vases shall be placed on the product.
Liquid damage is not covered by warranty.
16. Mains plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the mains plug should be disconnected from the mains socket outlet
completely.
17. Caution marking is located at the bottom of device.
18. The marking information is located at the bottom of device.
Important Safety Instructions
Safety Instructions
Warning: To prevent fire or shock hazard. Do not expose this
unit to rain or moisture.
The lighting flash with an
arrowhead within a triangle
alerts you to uninsulated
dangerous voltage withi n
th e pr o d u c t's e n c l osur e
that could cause an electric
shock
T h e e x c l a m a t io n p o i n t
within a triangle alerts you
to pressence of important
operating, maintenance and
servicing instructions in this
user's manual.
T O R E D U C E T H E R I S K O F
E L E C T R I C S H OC K D O N O T
REMOVE COVER (OR BACK) NO
U S ER S E RV I CE A BLE PA R T S
INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
- The socket-outlet shall be installed near the
equipment and shall be easily accessible.
DH 100R Multi-Alert Receiver:
Power by: AC plug (VD E 2 round pin plug for EU)
Adaptor: Built-in AC Power 90V-240V 50/60 Hz 3W
Product dimensions: 120 (L) x 64 (W) x 31 (H) mm
Product Weight: 110 grams
Wireless frequency: radio frequency 868.0 ~868.6M Hz M H z for Europe
Transmission distance 300m /1,000ft (direct line of sight)
DH 100T Pad/Mat Transmitter:
Battery type: C R2032
Battery approx. weight : 2.9 grams
Product dimensions: 75 (L) x 40 (W) x 15 (H) mm
Product Weight: 35 g (incl. battery)
Frequency of R F: radio frequency 868.0 ~868.6M H z for Europe
Transmission Power: 7dBm
Distance Range: 300m /1,000ft (direct line of sight)
