Table / Speaker stand
Varion
Proper use
The table / speaker stand only serves as a stand for a Teufel
Varion speaker. Mount and use the table / speaker stand only as
described in this user manual. Any other use will be deemed as
not in accordance with the instructions and may lead to damage
of property or even persons. The manufacturer cannot be held
liable for damages caused by improper use
. The
table / speaker
stand
is intended for private use.
Before you use the table / speaker stand, please
rst carefully read through the safety notes and the
user manual. Only in this way, can you ensure that all
functions are used in a safe and reliable manner. Store this user
manual in a safe place and also be sure to pass it on to any
subsequent owner.
Notice
The information in this document may change without prior
notice and in no way constitutes any liability on the part of
Lautsprecher Teufel GmbH. Without the written permission of
Lautsprecher Teufel GmbH,
no part of this user manual may be
reproduced in any form or be broadcasted in any way electronical-
ly, mechanically, by photocopy or recording.
Original packaging
If you wish to exercise your eight-week right of return, we ask that
you be absolutely sure to hold onto the packaging. We can only
accept the return of the device WITH THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint, we require your invoice number and the
serial or lot number for processing.
Thank you for your support!
Contact
Please contact our customer service with any questions, sug-
gestions or criticism:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax +49 (0)30 / 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
General Notes and Information
Technical Description and
Operating Instructions
Safety Notes
Pack Contents and Technical Data

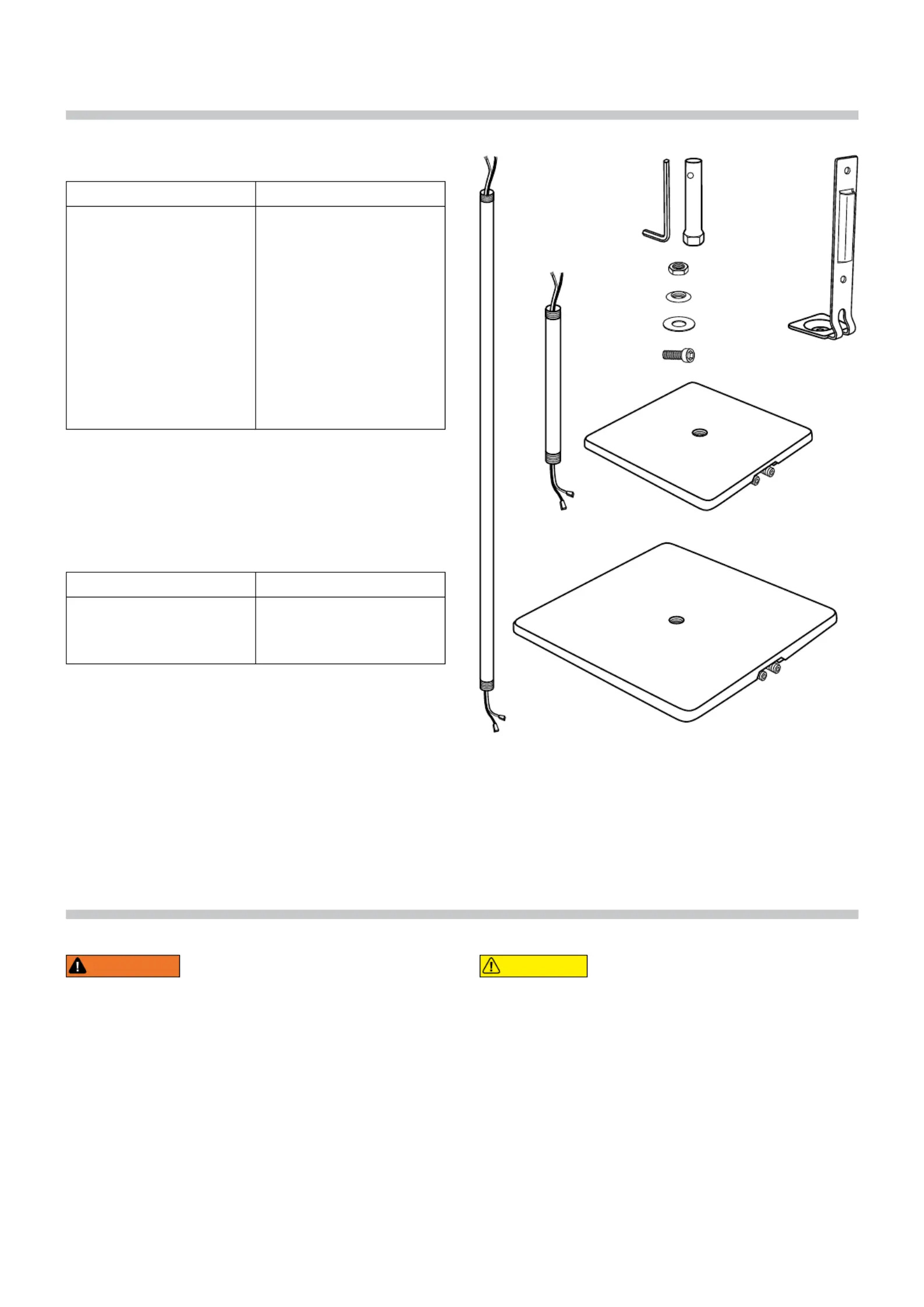

Pack contents
Speaker stand Table stand
a 2× Tube with cable b 2× Tube with cable
a 2× Base plate b 2× Base plate
1× Allen key 1× Allen key
1× Socket key 1× Socket key
4× Nut 4× Nut
4× Cupped washer 4× Cupped washer
2× Flat washer 2× Flat washer
4× Screw 4× Screw
2× Bracket 2× Bracket
Check that all items have been delivered and that nothing is
damaged.
Should the delivery be incomplete or exhibit any transport dam-
age, please contact our support service.
Technical data
Speaker stand Table stand
Dimensions (L×W×H):
18cm × 18cm × 92mm
Dimensions (L×W×H):
15cm × 15cm × 35mm
Weight: 3.3 kg Weight: 2 kg
Technical changes reserved!
You can nd further technical data on our website.
WARNING
There is a risk of suffocation if children play
with the packaging film or small mounting
parts.
–Do not allow children to play with the pack-
aging film. Children can become trapped in it
when playing and suffocate.
–Ensure that children do not take small parts
out of the mounting material bag and place
them in the mouth. They could swallow the
small parts and choke.
CAUTION
If the speakers are placed in an unsuitable
location, this can lead to injury to person and/
or property damage.
–Place the speakers in such a way that they
cannot be knocked over inadvertently and
make sure that the cables do not pose a trip-
ping hazard.
a
a
Speaker
stand
b
b
Table stand

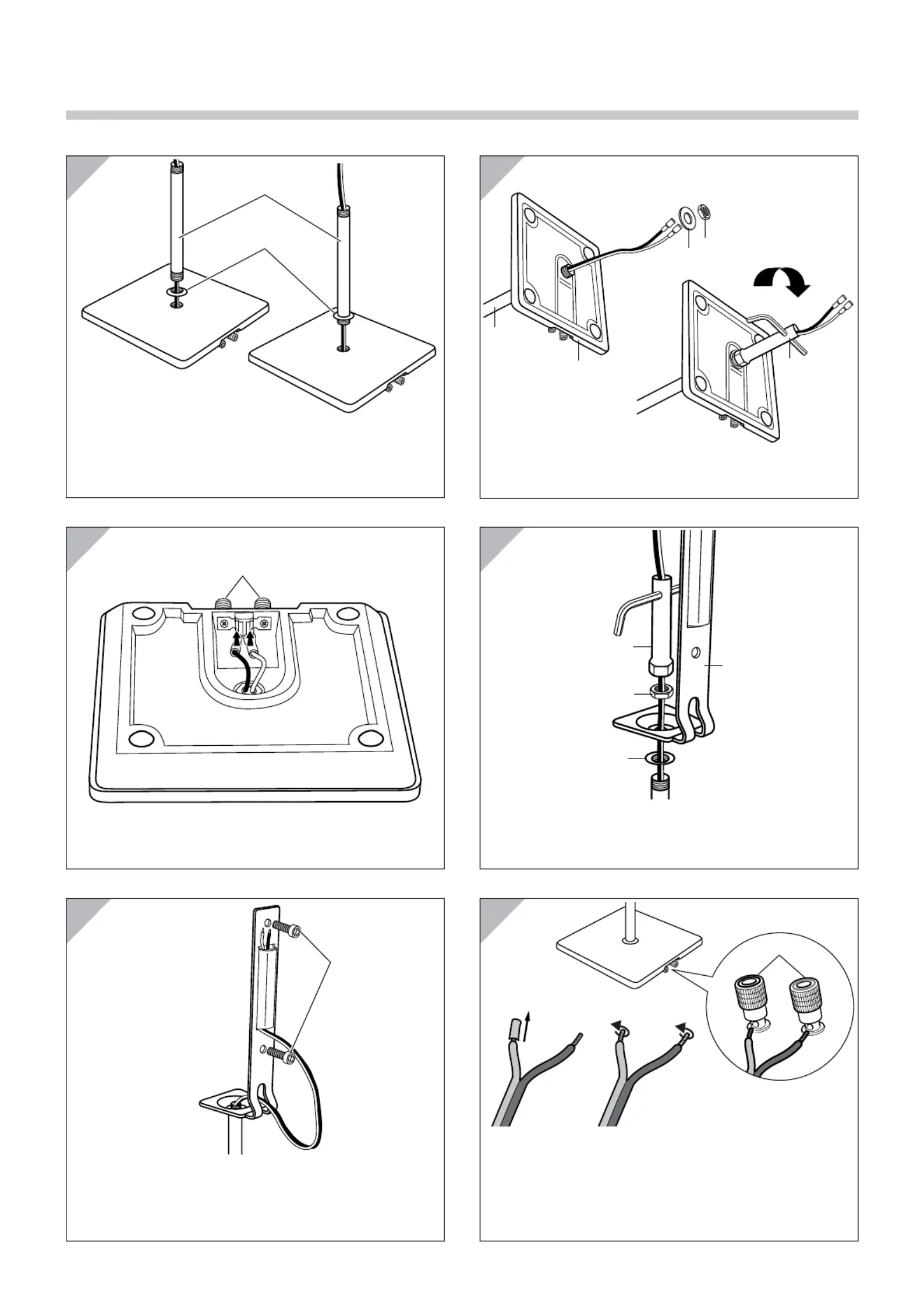

Assembly
2
.
Fasten the tube a using the at washer g and nut e onto the
base plate b. Use the socket key d to tighten the nut.
1
.
Thread the cables with the at plug sleeves from the top
through the cupped washer f and the hole to the underside of
the base plate.
Screw the cupped washer f onto the tube threads and insert
the tube a through the hole.
4
.
Screw a cupped washer f onto the tube threads.
Place the bracket i onto the tube and fasten it in place using
the nut e. Use the socket key d to tighten the nut.
5
.
Thread the cable through the openings of the bracket as
shown here. Use the screws h to fasten the Varion speakers in
place to the bracket and connect the cable as described in the
user manual for the Varion speakers.
6
.
Connect the speaker cable to the connector terminal j as
shown here or use pin plugs from our online shop. In any case,
make sure the polarity is correct (red to red, black to black).
Otherwise the sound quality is affected.
3
.
Place both at plug sleeves on the contact tabs of the connec-
tor terminal j. Pay attention that the colour of the cable is the
same as the terminal contact.
