User Manual
Erbium Doped Fiber Amplifier (EDFA)
F-EDFA- XX
F-EDFA-XX
Tel: (800) 521-8467 Email: sales@thorber.com http://www.thorbroadcast.com
A Note from Thor Broadcast about this Manual
Intended Audience
This user manual has been written to help people who have to use, integrate and to install the product.
Some chapters require some prerequisite knowledge in electronics and especially in broadcast
technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of Thor
Broadcast.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. Thor shall have no liability for any error or damage of any
kind resulting from the use of this document.
Copyright Warning
This document includes some condential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modied, or translated in another language without
prior written authorization from Thor Broadcast .
F-EDFA-XX
Tel: (800) 521-8467 Email: sales@thorber.com http://www.thorbroadcast.com

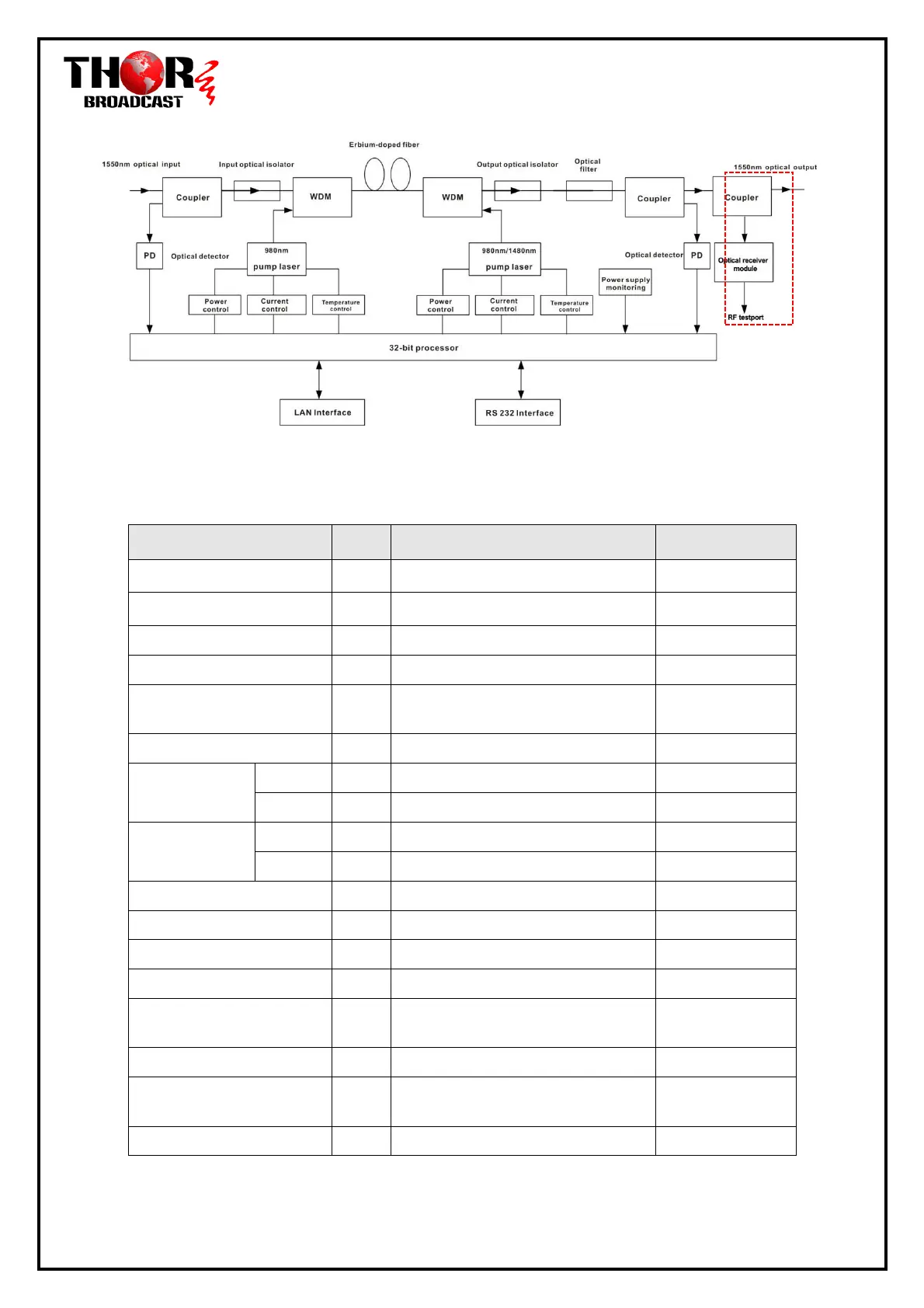

2 Block Diagram
Note:The dashed box in thegure is optional.
3 Technique Parameter
Item
Unit
Technique parameter
Remark
Operating bandwidth
nm
1545 - 1565
Input optical power range
dBm
- - +10 5
Output optical power
dBm
13 26-
Output power stability
dBm
±0.5
Noisegure
dB
≤ 5.0
Input optical power
0dBm
RF testport
dBuV
78 ± 2
Optional
Return loss
Input
dB
≥ 45
Output
dB
≥ 45
Pump leakage
power
Input
dBm
≤ -30
Output
dBm
≤ -30
Optical connector type
FC，SC or LC
Power supply voltage
V
AC100 - 250V（50-60 Hz） DC48V
Consumption
W
< 30
Operating Temperature Range
℃
- - +55 5
Maximum operating relative
humidity
%
Max 95% No Condensation
Storage Temperature Range
℃
- - +70 30
Maximum storage relative
humidity
%
Max 95% No Condensation
Dimension
mm
483(W)×400(D)× 44(H)
