These models connect to an In-Line, Roof or Wall-
Mounted Remote Blower (sold separately). The blower
used determines the CFM. The Trade-Wind In-Line
blowers are either 836 CFM or 1266 CFM.
Before beginning installation, please thoroughly read and
become familiar with these instructions. Installation and
service must be completed by a qualified installer. Failure to
properly install this product may void the warranty.
VSL430BF
VSL436BF
VSL436-0-19BF
VSL436-0-22BF
VSL442BF
VSL442-0-19BF
VSL442-0-22BF
VSL448BF
VSL448-0-19BF
VSL448-0-22BF
VSL454BF
VSL454-0-19BF
VSL454-0-22BF
VSL460BF
VSL460-0-19BF
VSL460-0-22BF
VSL472BF
VSL472-0-19BF
VSL472-0-22BF
18"
18"
19 ¼"
22
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
28 ⅜"
34 ⅜"
34 ⅜"
34 ⅜"
40 ⅜"
40 ⅜"
40 ⅜"
46 ⅜"
46 ⅜"
46 ⅜"
52 ⅜"
52 ⅜"
52 ⅜"
58 ⅜"
58 ⅜"
58 ⅜"
70 ⅜"
70 ⅜"
70 ⅜"
MODEL
FRONT TO
BACK WIDTH CFM
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
PERFORMANCE QUALITY CUSTOMER SERVICE· · REVISED: JANUARY 1, 2024
I N S T A L L A T I O N I N S T R U C T I O N S
U S E & C A R E G U I D E
V S L 4 0 0 S E R I E S
F O R R E M O T E / I N - L I N E B L O W E R S
Installer:
Owner:
Please leave Installation Instructions with the range hood liner.
Please keep Installation Instructions for local electrical inspector’s use and for future reference.
WARNINGS:
IMPORTANT:
TIPS:
Must be followed carefully to avoid personal injury.
Must be followed carefully to avoid damage and incorrect installation.
Contains helpful information to facilitate installation.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, please contact the
manufacturer at the address or telephone number listed in the warranty.
b) Before servicing or cleaning unit, switch power off at service panel, lock service panel, and lock the service
disconnection means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
READ AND SAVE THESE INSTRUCTIONS
WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
© 2 0 2 3 T R A D E - W I N D M A N U F A C T U R I N G , L L C
P R O V E R B S 2 2 : 2 9 1
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
CAUTION:
RECOMMENDATIONS:
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air
into spaces within walls, ceilings, cabinets or into attics, crawl spaces, or garages.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and standards.
b) Sufficient air is needed for proper combustion and exhausting of gasses through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating equipment manufacturer's guidelines and safety standards
such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoor.
INSTALLATION INSTRUCTIONS
WARNING! TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE GREASE FIRE, OBSERVING THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN—YOU MAY BE BURNED.
c) DO NOT USE WATER, including wet dishcloths or towels. A violent steam explosion will result.
d) Use an extinguisher ONLY if:
1.You know you have a Class ABC extinguisher and you already know how to operate it.
2.The fire is small and contained in the area where it started.
3.The fire department is being called.
4. You can fight the fire with your back to an exit.
Consult a licensed ventilation contractor or qualified technician for proper installation of exhaust ducting. Locate the
cooking area for minimum cross drafts-away from doors and windows, when possible.
1.
Ducts must be of adequate size and duct runs should be as short as possible. Where turns are necessary, keep
turning radius as large and as smooth as possible.
2.
The ducting must be air tight. Use a minimum of 2 sheet metal screws at every duct joint. Then, seal the duct joints
with high quality duct tape.
3.
Do not use this unit with any solid-state speed control device.4.
This unit must be grounded.5.
WARNING! TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION: To reduce the risk of fire and electric shock, install this (range hood liner) only with Remote Blower
models rated maximum 6 amps.
TO ACCESS THE INSTALLATION INSTRUCTIONS FOR YOUR TRADE-WIND® PRODUCT,
PLEASE SCAN THE QR CODE:
© 2 0 2 3 T R A D E - W I N D M A N U F A C T U R I N G , L L C
P R O V E R B S 2 2 : 2 9 2

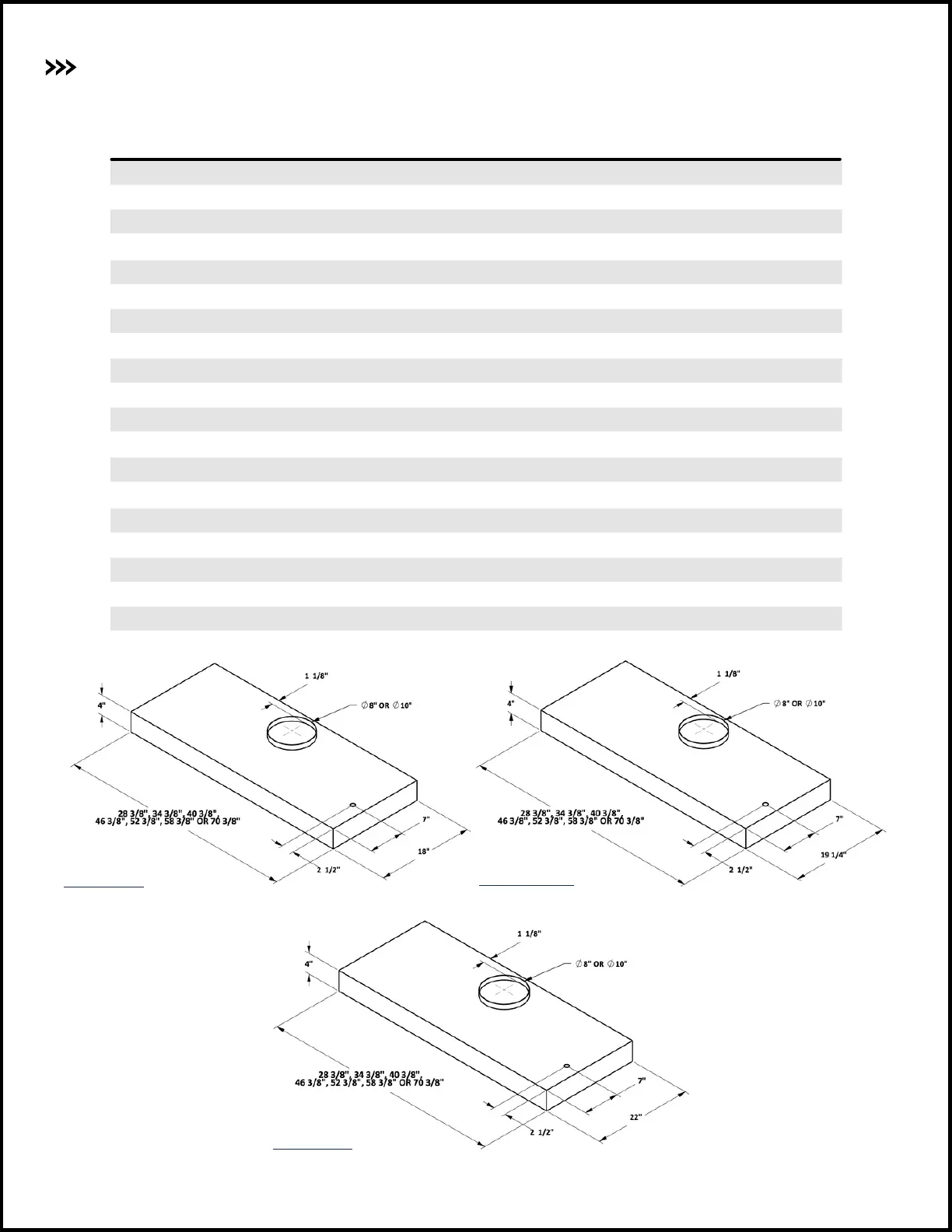

IMPORTANT: CUT-OUT INFORMATION
Cabinets or hood cut-outs should be at least 1/8” larger than outside dimensions
VSL430BF
VSL436BF
VSL436-0-19BF
VSL436-0-22BF
VSL442BF
VSL442-0-19BF
VSL442-0-22BF
VSL448BF
VSL448-0-19BF
VSL448-0-22BF
VSL454BF
VSL454-0-19BF
VSL454-0-22BF
VSL460BF
VSL460-0-19BF
VSL460-0-22BF
VSL472BF
VSL472-0-19BF
VSL472-0-22BF
18"
18"
19 ¼"
22
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
18"
19 ¼"
22"
28 ⅜"
34 ⅜"
34 ⅜"
34 ⅜"
40 ⅜"
40 ⅜"
40 ⅜"
46 ⅜"
46 ⅜"
46 ⅜"
52 ⅜"
52 ⅜"
52 ⅜"
58 ⅜"
58 ⅜"
58 ⅜"
70 ⅜"
70 ⅜"
70 ⅜"
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
8"
8"
8"
8"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
10"
MODEL FRONT TO
BACK WIDTH LED
LIGHTS
S/S BAFFLE
FLITERS REMOTE
CONTROL
VARIABLE
ROTARY
CONTROL
DUCT
COLLARCOLOR
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
S/S
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
18" MODELS 19 ¼" MODELS
22" MODELS
© 2 0 2 3 T R A D E - W I N D M A N U F A C T U R I N G , L L C
P R O V E R B S 2 2 : 2 9 3
