Owner's Manual

Purchased product

may diﬀer from image.

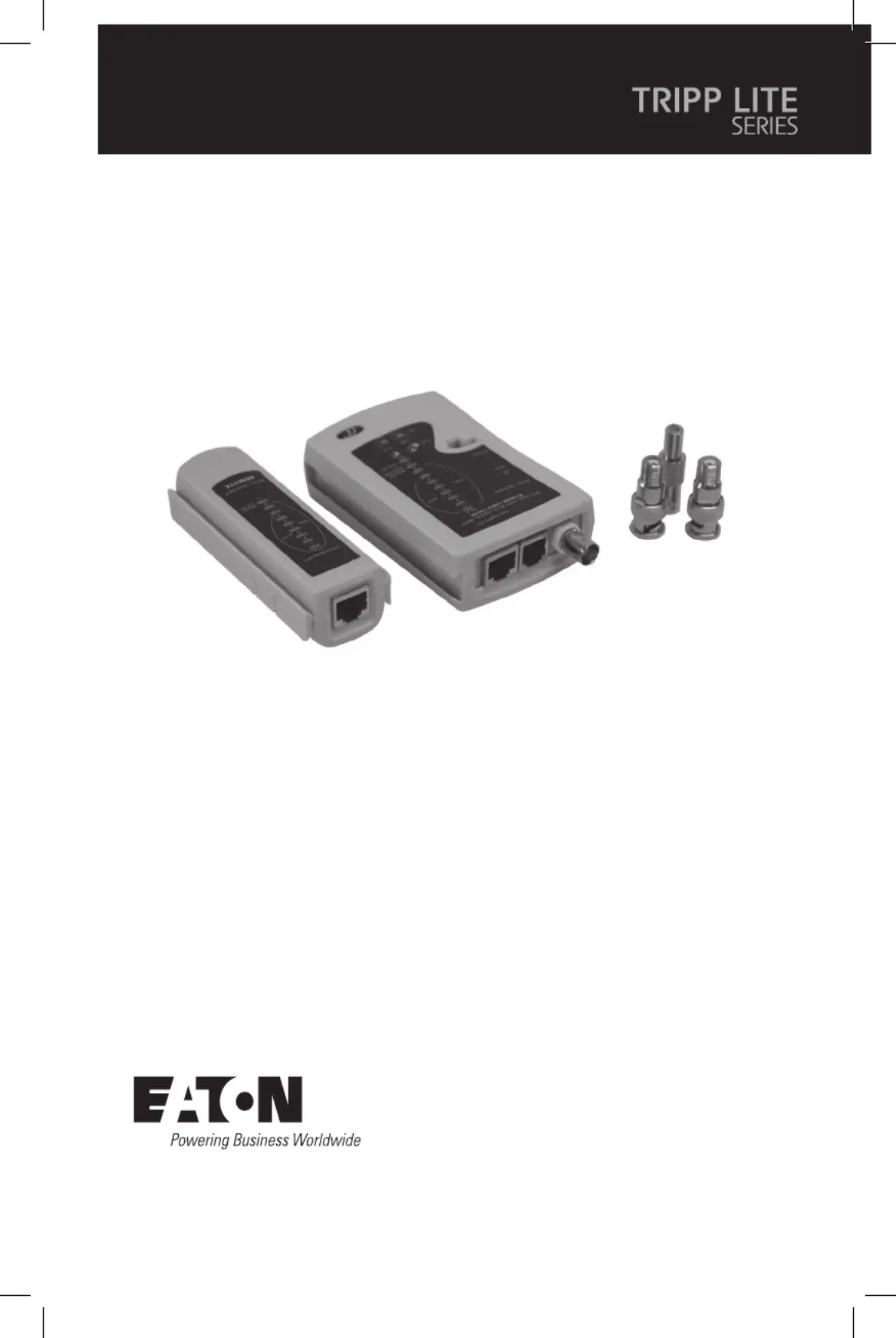

Model:

N044-000·R

Multi-Functional Network Cable

Tester

Español 4

Français 7

Deutsch 10

Italiano 13

Functions

BNCIF Testing Procedures

Double-Twisted Cable Testing Procedures

Abnormal Connections

1. Tests BNC, F, RJ11, RJl 2 and RJ45 cables.

2. Tests double-twisted cables (1,2,3,4,5,6,7,8 and G) and identiﬁes wrong

connection, short circuit and open circuit.

1. For BNC cable testing, connect the BNC cable to the female (F) connector on the

main tester, then connect the other end to the BNC terminator. The BNC

terminator and the main tester's B/F light will illuminate green, indicating proper

function.

2. For F cable testing, connect the BNC (M-F) adapters to the BNC female (F)

connector on the main tester and the BNC terminator. Then connect the F cable

to the tester and terminator. The BNC terminator and the main tester's B/F light

will illuminate green, indicating proper function.

1. Switch on the power. ("S" is slow automatic grade. "M" is manual.)

2. Insert cables into main tester and remote tester. The main tester lights will

illuminate sequentially from 1 to G.

Main Tester: 1-2-3-4-5-6-7-8-G

Remote Tester: 1-2-3-4-5-6-7-8-G ..........RJ45

1-2-3-4-5-6 ......................RJ12

1-2-3-4 .............................RJ11

1. While testing a cable (for example, Pin No. 3 has an open circuit) the main and

remote tester will not light up.

2. If two ends of a cable are out of order (for example, Pins No. 2 and No. 4), the

tester will display the following:

Main Tester: 1-2-3-4-5-6-7-8-G

Remote Tester: 1-4-3-2-5-6-7-8-G

3. If the cable has a short circuit, the main tester lights will remain sequentially on

and the remote tester lights will remain oﬀ.

WARNING

• Do not use the network cable tester to test any electriﬁed products.

• For best test results, change the tester's 9V battery (not included) when weak

lights appear.

• Do not test RJ45 cables that are not completely terminated . Improper use can

cause permanent damage to the tester.

• Do not use 8P8C jacks to test RJl 1 and RJl 2 cables. Improper use can cause

permanent damage to the tester.

Eaton has a policy of continuous improvement. Speciﬁcations are subject to change

without notice.

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

Publication No. 24-02-041 / 93-3067_revD

March 2024

Eaton is a registered trademark.

All trademarks are property

of their respective owners.

933067
