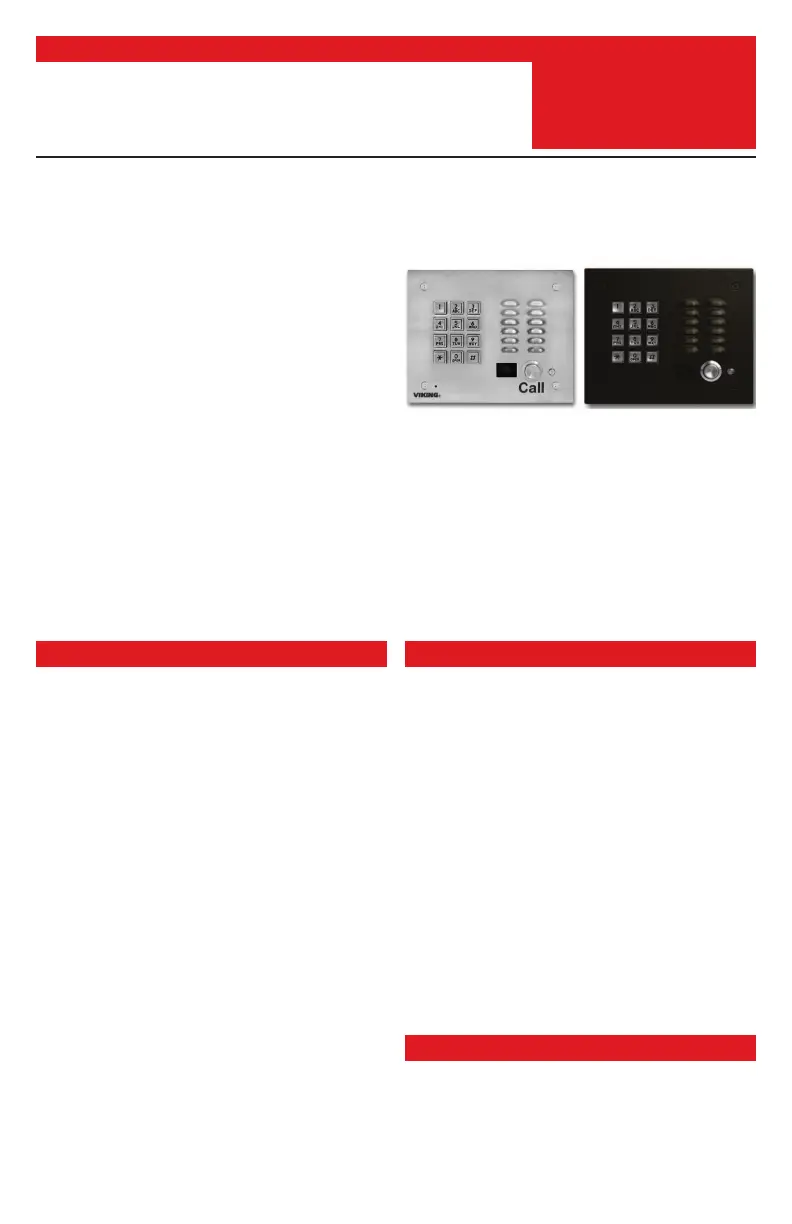

Vandal Resistant Handsfree Entry Phones
with Built-In Keypad and Color Video Camera
Features
The K-1705-3 Series entry phones provide a tough and
attractive handsfree phone for apartment, and residential door
entry or applications requiring a vandal resistant speaker
phone. The K-1705-3 Series entry phones are available in
two attractive finishes: “brushed stainless steel” and “oil
rubbed bronze”.
When the “Call” button is pressed, the returns dialK-1705-3
tone. The keypad may then be used to dial any number. If
no Touch Tone is entered within 8 seconds, CPC is detected,
a busy signal is detected, or the programmable maximum call
time has elapsed, the will automatically disconnect.K-1705-3
Alternatively, the may be disconnected by pressingK-1705-3
the “Call” button again. The comes complete withK-1705-3
a standard, flush mount, rough-in box. In addition, an optional
VE-6x7 weather resistant, surface mount box is available (see
DOD# 424).
The K-1705-3-EWP K-1705 shares all of the features of the -3
in addition to Enhanced Weather Protection (EWP) for outdoor
• Apartment entry phone when used with the Apartment Entry Dialer K-1900-3
or Apartment/Office Entry Controller or C-4000 C-3000 Apartment Entry
Controller
• Use with a ( ) to control 1 or 2 (expandable to 8) Viking C-500 DOD 177
K-1705-3’s and door/gate control on a single phone line
• Use with a to control 1 to 4 s and door/gate control Viking C-2000B K-1705’
on a single phone line ( ) DOD 156
• Courtesy and customer assistance phone
• Automated teller (ATM) phone
• Security or emergency phone
• Hot-Line phone when used with the Hot-Line Dialer ( ) K-1900-5 DOD 317
Note: When installing a line powered phone on a low voltage and/or low
loop current phone system extension, a Talk Battery Booster may be TBB-1B
required ( ). DOD 632
• Kiosk phone with (100 number speed dialing) when used with the K-1900-9
Multi-Number Dialer ( )DOD 321
Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm),
Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)
Shipping Weight: 3.5 lbs (1.6 kg)
Operating Temperature: -30°F to 150°F (-34°C to 65°C)
Connections: (2) gel-filled butt connectors (3M Scotchlok UR2)
(See page 2 for complete specifications)
Applications
Specifications
www.VikingElectronics.com
Information: 715-386-8861
• Built-in high resolution color video camera with wide viewing
angle, tilt/swivel adjustments and wide operating temperature of
-30°F to 150°F
• Audio and video transmission on one CAT5E cable (page 5)
• Vandal Resistant Features: 14 gauge louvered 316 stainless
steel faceplate with permanent laser etched graphics, stainless
steel “Call” button, heavy duty metal keypad and T-10 Torx
security mounting screws, scratch resistant powder coating
(model K-1705-3-BN)
• Marine grade 316 stainless steel Weather Resistant Features:
faceplate, screws and and push button switch. Switch internally
sealed per IP67. Mylar speaker. Self-draining mic mount.
Faceplate, mic and speaker gaskets. Weather resisant powder
paint (K-1705-3-BN)
• is designed to meet IP66 Ingress Protection K-1705-3-EWP
Rating (see for more information) DOD 859
• Available in 2 standard faceplate finishes: 316 brushed stainless
steel or oil rubbed bronze
• Blue “in use” LED
• Telephone line powered
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy signal,
return to dial tone, CPC, reorder tone, maximum call time out and
40 second silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
• Optional Surface Mount Box available VE-6x7
• Selectable VOX switching speed
K-1705-3
“Brushed 316 Stainless Steel”
(similar to brushed nickel)
installations where the unit is exposed to precipitation or
condensation. EWP products feature foam rubber gaskets
and boots, sealed connections, gel-filled butt connectors, as
well as urethane or thermal plastic potted circuit boards with
internally sealed, field-adjustable trim pots and DIP switches
for easy on-site programming. For more information, see DOD
859.
K-1705-3-BN
“Oil Rubbed Bronze”
(satin dark brown powder paint
with fine copper metallic)
DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA
K-1705-3 Series
Video Entry Phones
with Keypads
September 29, 2023
PRODUCT
MANUAL
SECURITY & COMMUNICATION
VIKING
2
Specifications
Camera Specifications
Power: 6-22V DC 150mA (12V DC UL Listed adapter included)
Image Sensor: 1/4” color CMOS
Video Output: 1 VP-P composite, NTSC, 75 ohms
Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
Lens: 2.1mm, conical pinhole
FOV (Field of View):
80° Horizontal, 60° Vertical,100° Diagonal
Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see below) Diagram A
IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain correct
video color in outside applications. The standard camera is compatible with IR illuminators. If IRNOT
illumination is required, you will need to replace the exisiting camera with a Viking model VCAM-1IR.
For more information, see . DOD 190
Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (1 pair) and entry
phone audio (1 pair). 150 ft with CAT5E for video, power and entry phone audio (longer video runs are
possible by using video balun transceivers, see section , page ). Installation F 5
* Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.
Entry Phone Specifications
Power: Telephone line powered 20V DC/20mA minimum
Dimensions: Overall: 140mm x 165mm x 66mm (5.5” x 6.5” x 2.6”) , Rough-in box: 114mm x 140mm
x 64mm (4.5” x 5.5” x 2.5”)
Shipping Weight: 1.6 kg (3.5 lbs)
Speaker Volume: Approximately 70 db maximum @1m
Ring Voltage: 25V AC RMS minimum (for auto answer)
CPC Disconnect Time: 500ms minimum
REN #: 0.5 A
Doorbox / Camera Specifications
Operating Temperature: -30° F to 150° F (-34° C to 65° C)
Humidity: Standard model: 5% to 95% non-condensing, EWP model: Up to 100%
Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)
Recommended Surface Mount Box: VE-5x5 Viking model (DOD 424)
80° Lens FOV
Rotate
Left 30°
Rotate
Right 30°
Camera Lens
Diagram A
Camera Horizontal Field of View:
Call
VI
KI
NG
©
12
ABC
3
DEF
4
GH I
5
JK L
6
MNO
7
PR
S
8
TU V
9
WXY
0
OPER
#
P
re
ss "Call "butt
on
then
enter tena nt code
Optional Instruction Label (included):
Clean surface and adhere label when
using a K-1705-3 with a K-1900-3
Apartment Entry Dialer.
(4) 6-32 X 3/4” Stainless
steel, flat head, T-10 Torx
security screws (included)
(1) .74”
diameter
Rear View of the Optional
VE-6x7 Surface Mount Box
3.0” 3.3”
3.0”
2.25”
Condensation
Drain Hole
5.64”
6.72” 3.25”
(2) 0.2 x 0.43 slots
OR
Optional VE-6x7
Surface Mount Box
(not included)
The optional VE-6x7 Surface Mount Box (above) is designed
to be surface mounted to a single gang box, double gang box,
or VE-GNP Gooseneck Pedestal (shown right). For more
information on the , see DOD# 424.VE-6x7 VE-GNPand
Peel paper liner and adhere gasket to back of
panel, centering over mounting holes.
Caution: For rough surfaces (ie: brick, stucco,
etc.) additional caulking may be required.
4.5”
2.5”
3/4” Conduit
Knockouts
5.5”
Rough-In
Box
(included)
(4) 0.38” diameter
K-1705-3-EWP
shown with VE-6x7
Surface Mount Box
and VE-GNP
Gooseneck
Pedestal
(not included)
3
Features Overview
Installation
A. Mounting
Push Button Switch: Push to initiate call,
push again to disconnect. Solid marine grade
316 stainless steel internally sealed per IP67.
Call
VIKING
©
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
OPER
#
Color Video Camera: Wide operating
temperature range of -30°F to 150°F, NTSC
composite video output with 420 lines of
resolution, 80° wide viewing angle lens, tilt and
swivel adjustments for aiming towards visitors.
Speaker Screen: Stainless steel speaker
screen with 0.018" diameter holes to prevent
punctures from paperclips, etc.
Faceplate: 14 gauge (0.075" thick) marine
grade 316 stainless steel to prevent corrosion.
Protective Camera Window: Impact resistant
polycarbonate lens with scratch resistant
coating and water-tight gasket.
Speaker: Mylar speaker with rubber gasket to
maintain water-tight seal and eliminate water
deterioration.
Condensation Drain Hole
Mounting Screws: 6-32 x 0.75" long
flathead with 5/64" T-10 Tors Security, marine
grade 316 stainless steel to prevent
corrosion.
LED: Lights Blue for "In-Use" indication.
Keypad: Metal construction with internal seal
to provide vandal and weather resistance.
Microphone: Omni-directional microphone
with protective water-resistant cloth.
Permanent Laser Etched Graphics
Faceplate Gasket: 1/8" thick closed cell PVC
to provide a water-tight seal.
Earth Ground: To increase surge protection,
loosen the screw labeled (as shown) and
fasten a wire with spade terminal (included)
from the mounting screw to Earth Ground
(grounding rod, water pipe, etc.)
Speaker Volume
Microphone Volume
DIP Switches (see page 6)
VIKING
Mo del:
K-1705- 3
261102- 1
Serial N o:
REN: 1.0B
XXXXXXXX
Viking Ele ctr onic s, Inc . (715) 386-8861
1531 Indus trial St., Hudso n, WI 54016
P/N: DEV:
Co mplies with FCC Pa rt 15 an d 68 Reg. N o: AH3US A-32531-TE- E
RoHS
