Installer guide 05 2103

1. FIRMWARE LICENSE INFORMATION.

The Vimar access point contains third party firmware subject to the GNU General Public License conditions. The firmware was made available and can be modified and dis-

tributed under GNU General Public License conditions.

2. SOURCE CODE AVAILABILITY.

The firmware source code (including programming scripts) subject to the GNU General Public License is available upon request and can be downloaded from www.vimar.com.

3. NETWORK SAFETY.

The access point is a device designed to be connected via network interfaces to the local network to communicate information and data. It is the user's responsibility to

establish a secure communication between the access point and the local network and/or other networks (and to monitor them regularly).

All actions (for example, installing a firewall and/or anti virus software, adopting authentication procedures, data encryption etc.) to ensure security and protect the device, the

network, the system and the interface against any kind of security violation, unauthorized access, interference, infiltration attempts, loss of information and/or theft of data or

information are the responsibility of the user.

Vimar SpA declines all responsibility for damages and/or losses associated with security violations, infiltration attempts, unauthorized access, interference, loss of information

and/or theft of data or information.

4. ACCESS POINT INSTALLATION.

• The Access Point can be installed at a height of between 30 and 240 cm.

• The performance levels of the device are not particularly affected by the type of material of the cover plate installed.

• The quality of coverage depends on both the type of setting and on the position in which the device is installed.

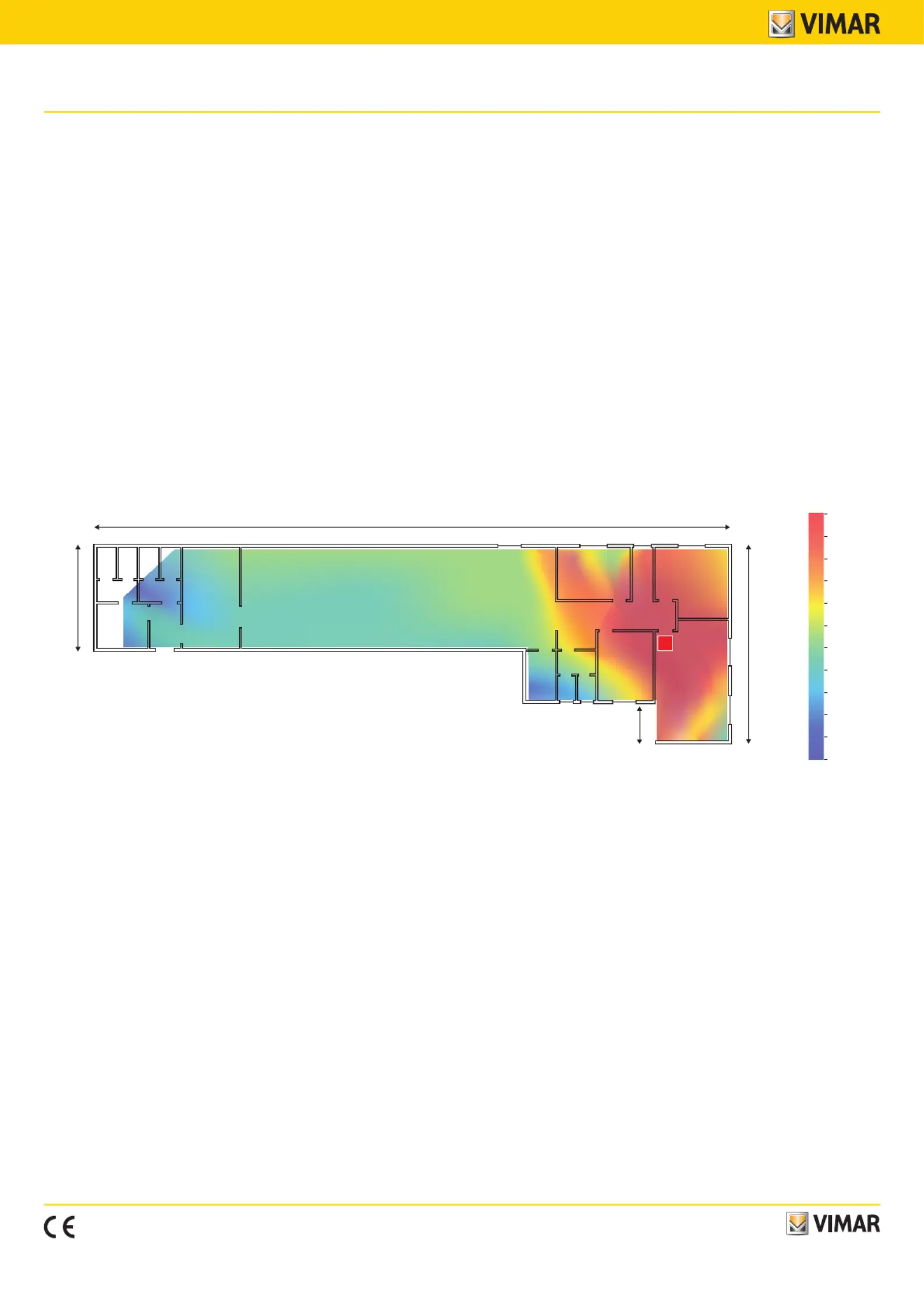

• Connectivity can be used on a surface of approximately 150-200 m2 keeping in mind the fact that the coverage extension is naturally characterised by a drop in performance

levels as the distance increases (see figure below).

Throughput [Mbps]

AP = Access Point

6 m

11 m

2 m

35 m 55

• If installation is appropriate, two storeys of a building/home may even be covered.

5. FIRST SETUP.

The configurator device (PC, tablet or smartphone) connected to the access point is used to configure the system; this device must be set up with a static IP address.

Once the configuration is completed, the pages are displayed at the address: http://192.168.1.225.

5.1 Cable connection .

In the event the access point is connected via LAN to the configurator device ( or connection ), set the TCP/IP parameters as follows:ETH1 ETH2

- IP static in the subnet 192.168.1.x

x = number between 2 and 254 different from the address used by the access point (225 by default)

- Subnet mask 255.255.255.0

5.2 Wireless connection .

Activate the access point WiFi radio by briefly pressing the button (front or remote); the LED will blink for about 1 to 10 seconds and will stay on until the initialization

phase has been completed.

To connect from the configurator device WiFi interface, use the following default parameters:

- SSID: “VIMAR_AP”

- WPA2 key: “password” (we recommend changing the default password immediately, replacing it with a personal one).

Set the TCP/IP parameters as follows:

- IP static in the subnet 192.168.1.x

x = number between 2 and 254 different from the address used by the access point (225 by default)

- Subnet mask 255.255.255.0

Access point installer guide art. 20195-19195-14195

Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

Installer guide 05 2103

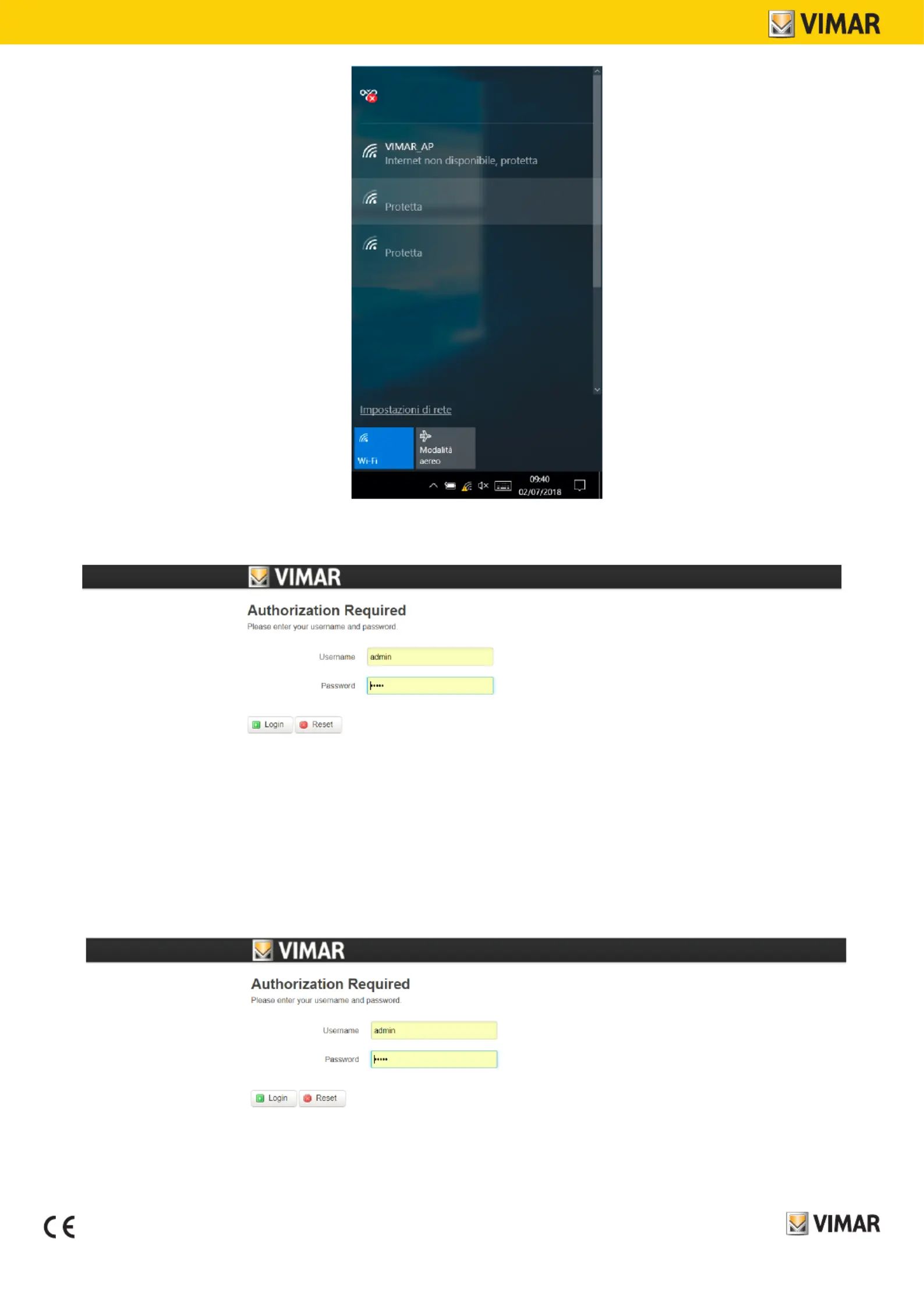

5.3 Example of configuration from PC Windows.

Because the default access point does not supply the user network address, the PC's WiFi interface needs to be configured assigning a fixed address that belongs to

the same device subnet.

To configure the static IP on a PC with Windows 10, proceed as follows:

- Right click the mouse to select “ Network connections”.

- On the page “ ”, select the interface you want to use to configure the access point (in this case the WiFi interface) by right clicking the mouse Network connections

and selecting “Properties”.

- On the page “ ”, right click to select the option “ ” and set a fixed address in the subnet IP network assigned to the Properties Internet Protocol version 4 (TCP/IPv4)

access point that is different from the one assigned to the same access point.

By default, the access point IP is 192.168.1.225 and so it is set to 192.168.1.200 for the PC and 255.255.255.0 for the mask.

- Activate the access point search on the PC and select the device with SSID “ ” (SSID by default), using the password “VIMAR_AP password”.

Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

Installer guide 05 2103

- Display the configuration page on the access point browser by entering the device IP as the URL and set password.

By default the IP and the username is “ ” with password “192.168.1.225 admin admin”.

N.B. The SSID BSSID corresponds to the (that can be selected by the user) while the “network name” corresponds to the MAC address of the access point or network

device in general (unique number written by the Vendor).

6. CONFIGURATION BY OPERATION TYPE.

Here we outline the procedures in detail for the three types of operation (SWITCH, BRIDGE and EXTENDER), that can be configured through the browser interface, with which

the access point can be used.

• Login
