Aguilar OBP-1 Bruksanvisning
Les nedenfor 📖 manual på norsk for Aguilar OBP-1 (5 sider) i kategorien Mottaker. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/5
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND

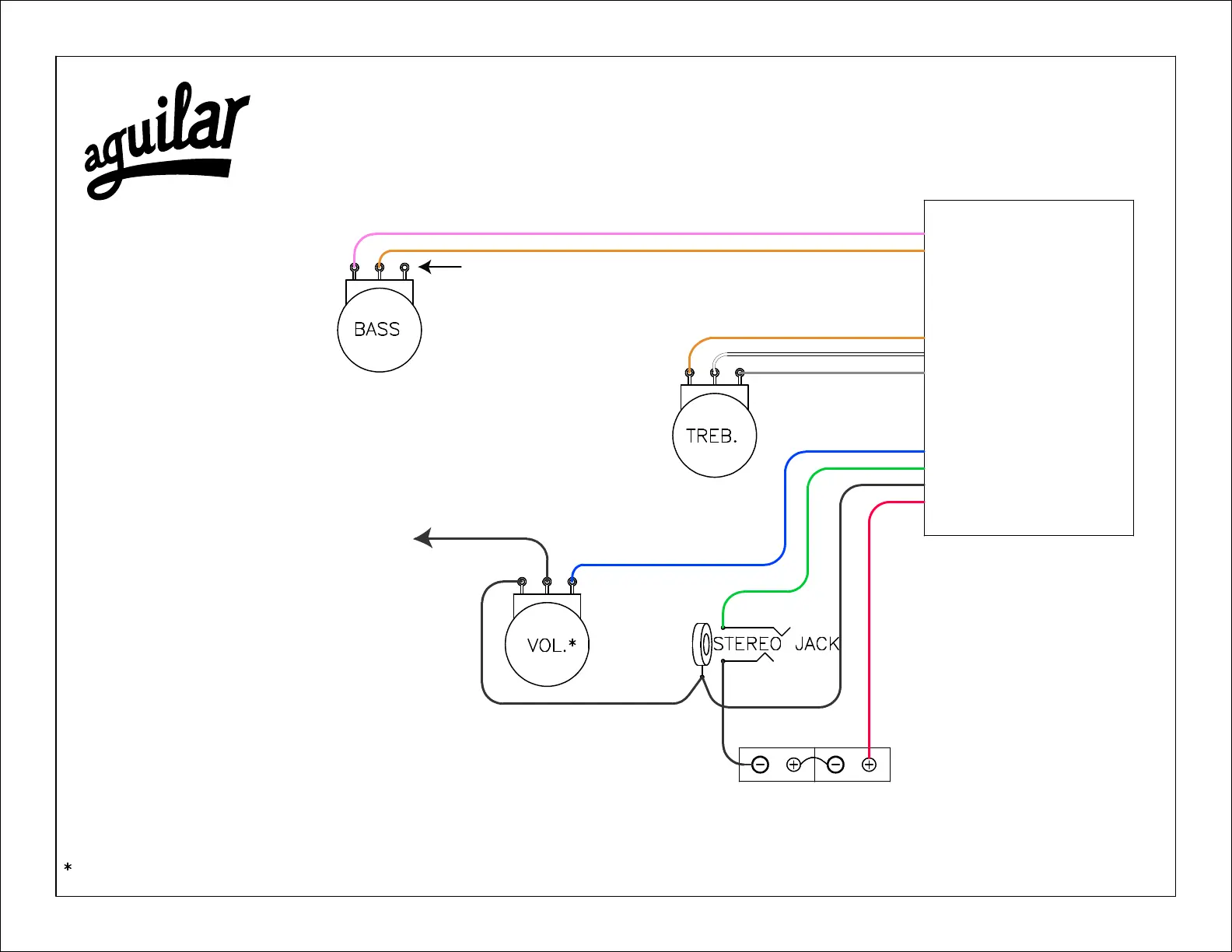

AGUILAR OBP-1 WIRING DIAGRAM
WITH VOLUME CONTROL
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO SINGLE PICKUP
PAGE 1
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND
AGUILAR OBP-1 WIRING DIAGRAM
WITH TWO VOLUME CONTROLS
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO BRIDGE PICKUP
TO NECK PICKUP
PAGE 2
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND
AGUILAR OBP-1 WIRING DIAGRAM
WITH VOLUME CONTROL AND BYPASS SWITCH
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO SINGLE PICKUP
PAGE 3
