Aguilar OBP-3 Bruksanvisning
Les nedenfor 📖 manual på norsk for Aguilar OBP-3 (6 sider) i kategorien Mottaker. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/6

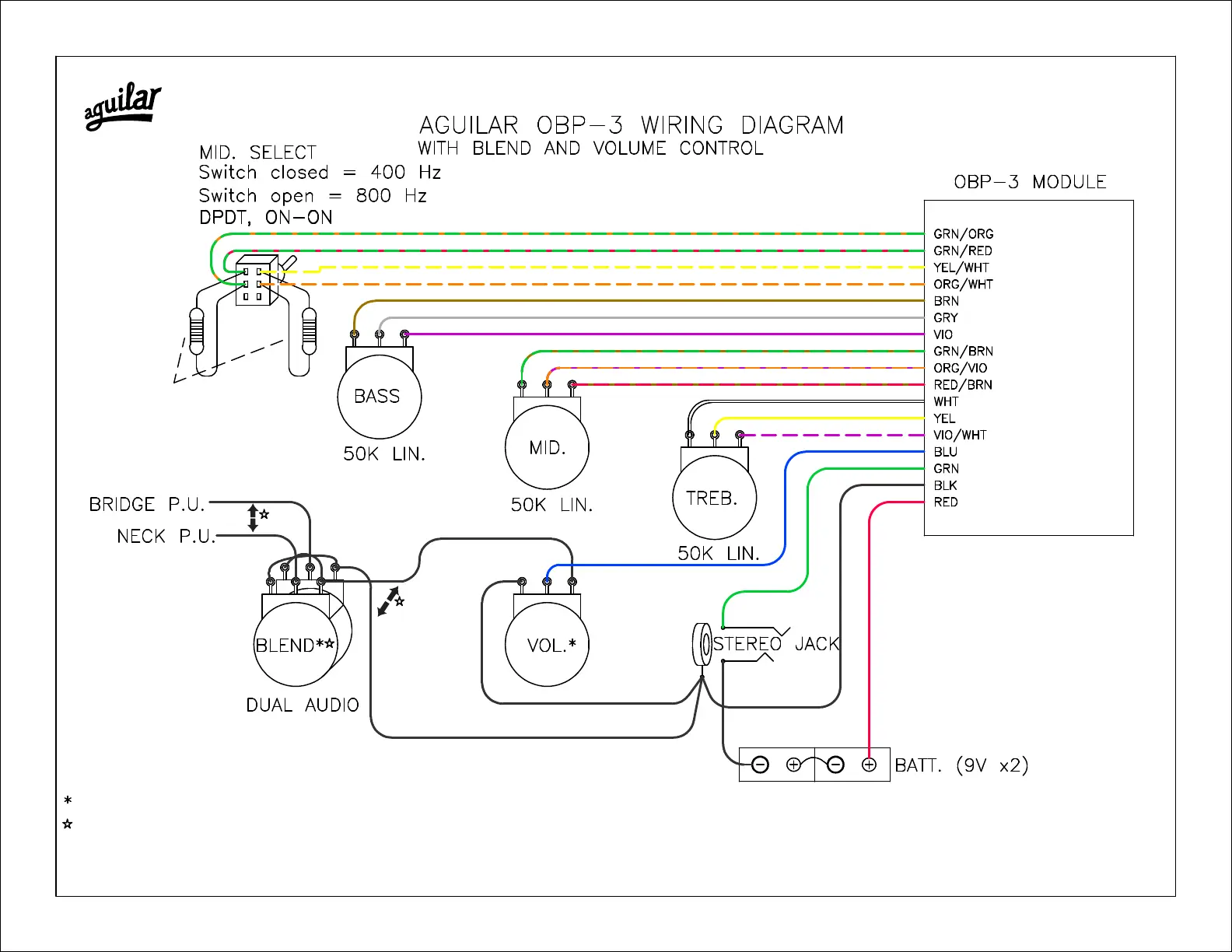

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.
To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.
GND
To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.
Produkspesifikasjoner
| Merke: | Aguilar |
| Kategori: | Mottaker |
| Modell: | OBP-3 |
